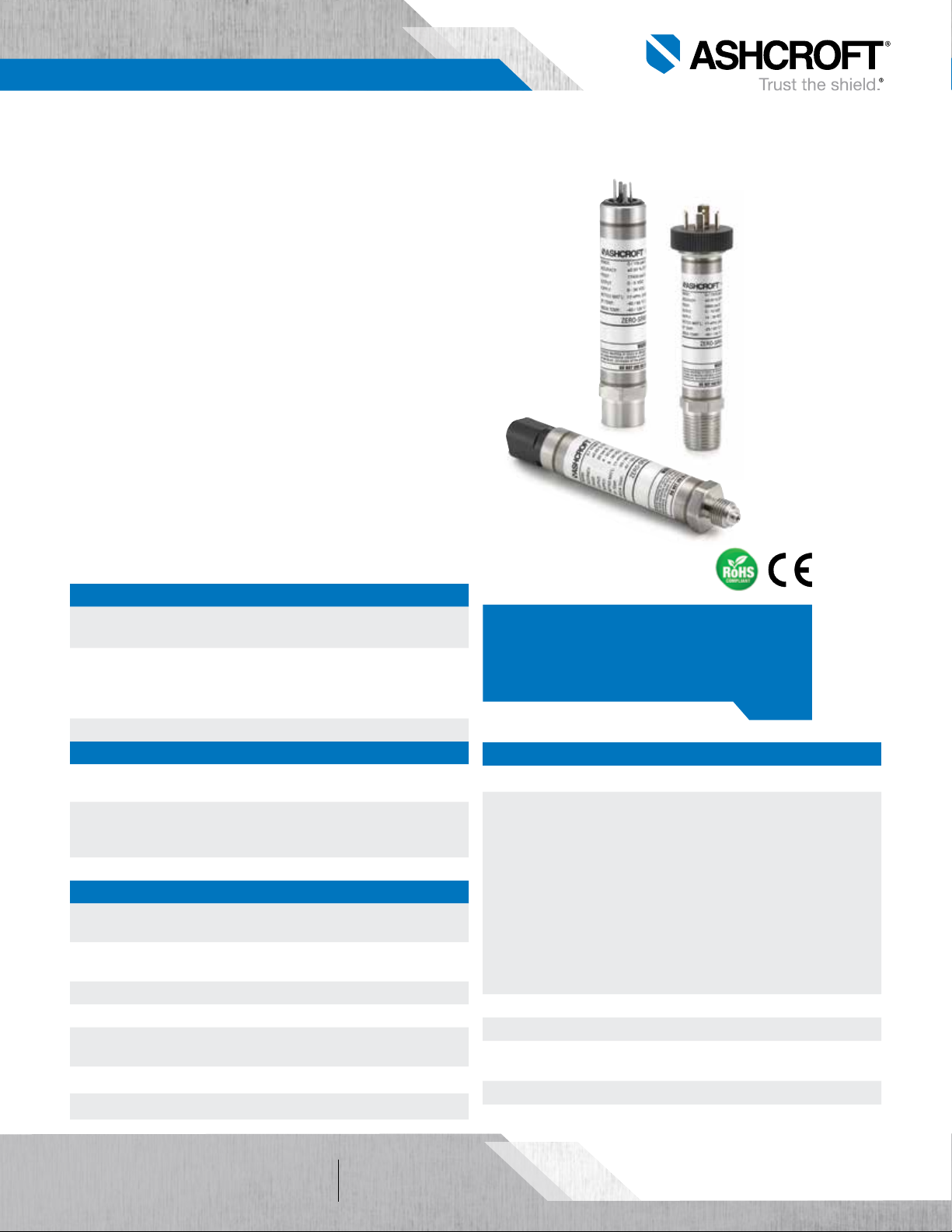

Data Sheet
E2G Pressure Transducer
FEATURES
Ranges vac through 20,000 psi
IP66/67 Ingress rating
Wide selection of electrical & process
connections available
Customizable configurations
External magnetic offset & span adjustment
TYPICAL USES
Off-Road equipment
Construction machinery
HVAC/Refrigeration
Compressor control
Pump monitoring
Agricultural equipment
Diagnostic kits
Engine monitoring
Process automation & controls
Hydraulic & pneumatic sensing
E2G
Pressure Transducer
PERFORMANCE SPECIFICATIONS
Reference
Temperature:
Static Accuracy: ±0.25% of span, ±0.50% of span, ±1.0% of span,
Stability: ±0.25% year at reference conditions
ENVIRONMENTAL SPECIFICATIONS
Thermal
Coefficients:
Temperature Limits: Storage:
Humidity:
FUNCTIONAL SPECIFICATIONS
Response Time
(Output)
Gauge/Compound
Pressure Ranges:
Shock:
Vibration:
Absolute
Pressure Ranges:
Proof Pressure: 1.2× - 2× (See Table 1 on page 2)
Burst Pressure: 3× - 8× (See Table 1 on page 2)
21°C ±2°C
(0-1.5# Range only available in ±0.5% and 1.0%
accuracy) Terminal Point Method includes:
hysteresis, linearity, repeatability, offset and span
Offset: ±0.009% /°C from -40°C to 125°C
Span: ±0.009% /°C from -40°C to 125°C
-58°F to 257°F (-50°C to 125°C)
Operating:
Media:
0-100% (non-condensing)
4 ms
VAC to 20,000 psig
80g, 6 ms, Haversine
Random: 10g RMS 20-2000 Hz
0 to 500 psia
-40°F to 257°F (-40°C to 125°C)
-40°F to 257°F (-40°C to 125°C)
KEY BENEFITS
• Highly configurable
• Easy calibration of offset and span
ELECTRICAL SPECIFICATIONS
Circuit Protection: Reverse polarity protected
Output Signal:
0-5 Vdc (3 Wire)
1-5 Vdc (3 Wire)
1-6 Vdc (3 Wire)
0-10 Vdc (3 Wire)
1-11 Vdc (3 Wire)
0.1-5 Vdc (3 Wire)
0.1-10 Vdc (3 Wire)
0.5-4.5 Vdc (3 Wire)
4-20 mA (2 Wire)
20-4 mA (2 Wire)
Adjustability: ±5% of span non-interactive offset & span
Supply Current:
Curent Source/Sink
for Voltage Output
Withstand/Breakdown
Supply Voltage: (unregulated)
Min. Max:
9 Vdc 36 Vdc
9 Vdc 36 Vdc
9 Vdc 36 Vdc
14 Vdc 36 Vdc
14 Vdc 36 Vdc
9 Vdc 36 Vdc
14 Vdc 36 Vdc
9 Vdc 36 Vdc
9 Vdc 36 Vdc
9 Vdc 36 Vdc
<8 mA (Vout)
1 mA (source)/ 0.1 mA (sink) MAX.
100 Vdc/Vac, optional 500 Vdc/Vac
All speci fications are subject to change without notice.
All sales subject to standard terms and conditions.
©2020 Ashcroft Inc. e2g_transducer_ds_RevG_03-27-20
ashcroft.com
of 81
info@ashcroft.com
1.800.328.8258
Data Sheet
E2G Pressure Transducer
PHYSICAL SPECIFICATIONS
Ingress Rating:
IP66 (NEMA 4X) (STD.)
IP67 (IP69K Consult Factory)
WETTED MATERIAL
Diaphragm: Sensor:
A
B
C
D
Material:
17-4PH Stainless steel
316L Stainless steel
316L Stainless steel, liquid isolated
A286
Process Connection: 316L Stainless steel
NON-WETTED MATERIAL
Housing: 316L Stainless steel
EMC TESTING
EMC: Directive 2014/30/EU, and EN61326-1,
EN61326-2-3 (Industrial Env.)
Immunity: 61000-4-2 (ESD) ±4kV/±8kV (Contact/Air)
61000-4-3 (Radiated RF) 10 V/m to 1GHZ, 3 V/m to
2GHz, 1 V/m to 2.7GHz
61000-4-4 (EFT/Burst) ±1kV (5/50ns, 5kHz)
61000-4-5 (Surge) ±1kV, Earth to Shield over
all I/O lines
61000-4-6 (Conducted RF) 3V/ (0.15 to 80MHz)
61000-4-8 (Line Freq. Magnetic) 30A/m
Emissions: EN 55011 (CISPR 11) Class A, Group 1 & FCC (47 CFR 15)
All speci fications are subject to change without notice.
All sales subject to standard terms and conditions.
©2020 Ashcroft Inc. e2g_transducer_ds_RevG_03-27-20
ashcroft.com
info@ashcroft.com
1.800.328.8258
TABLE 1: PROOF & BURST PRESSURE MULTIPLIERS
A Sensor 17-4PH SS
Sensor
(psi)
(Compound)
V&100# 2× 8× 1.5× 8×
V&150# 2× 8× 1.5× 8× 2× 4×
V&200# 2× 8× 1.5× 8×
V&300# 2× 8× 1.5× 8× 2× 3×
(psia)
Proof Burst Proof Burst Proof Burst Proof Burst
Range
1.5 2X 5X
5 3× 5×
10 2× 5×
15 2× 5×
30 2× 5×
45 2× 8× 1.5× 8× 2× 5×
50 2× 8× 1.5× 8× 2× 5×
60 2× 8× 1.5× 8× 2× 5×
75 2× 8× 1.5× 8× 2× 5×
100 2× 8× 1.5× 8× 2× 5×
150 2× 8× 1.5× 8× 2× 4×
200 2× 8× 1.5× 8× 2× 3×
300 2× 8× 1.5× 8× 2× 3×
500 2× 8× 1.2× 5× 3× 4×
750 2× 8× 1.2× 5×
1000 2× 8× 1.2× 5×
1500 2× 8× 1.2× 5×
2000 2× 8× 1.2× 5×
3000 2× 5× 1.2× 5×
5000 1.5× 5× 1.2× 5× 1.5× 5×
7500 1.5× 3× 1.5× 5×
10000 1.2× 3× 1.2× 5×
15000 1.2× 3× 1.2× 5×
20000 1.2× 3× 1.2× 5×
VAC# 2× 5×
V&15# 2× 5×
V&30# 2× 5×
V&45# 2× 8× 1.5× 8×
V&60# 2× 8× 1.5× 8× 2× 5×
15 2× 5×
30 2× 5×
70 2× 5×
150 2× 4×
300 2× 3×
500 2× 3×
B Sensor -
316 LSS
Sensor C -
316L SS ISO
Sensor D -
A286
of 82
Data Sheet
E2G Pressure Transducer
ORDERING CODE Example:
Model
E2G - General Purpose E2G
Sensor Materials - See Table 2 on page 4 for more options
A - 17-4PH Stainless steel
B - 316L Stainless steel B
C - 316L Stainless steel (liquid isolated)
D - A286
Accuracy
3 - 0.25% span
5 - 0.50% span
7 - 1.00% span
Calibration Chart
N - Without calibration char t
C - With calibration chart C
Pressure Connections - See Table 3 on page 5 for more options
F02 - (¼ NPT Female) F02
Output Type
05 - 0-5 Vdc
10 - 0-10 Vdc
11 - 1-11 Vdc
12 - 1-10 Vdc
13 - 0.1-5 Vdc
15 - 1-5 Vdc
16 - 1-6 Vdc
42 - 4-20 mA 42
45 - 0.5-4.5 Vdc non-ratiometric
00 - Custom
Electrical Connections - See Table 4 on page 6 for more options
CC - (½ NPT conduit w/cable) CC
Mating Connector
M - With mating connector
X - Without mating connector X
Cable Length
(not available with 1.5 psi range) 3
E2G B 3 C F02 42 CC X 10 F 10 0# -XNH
Max cable length of 30ft for outputs 05, 10, 11, 12, 13, 15, 16 and 45. Max cable length of 99ft for outputs 24 and 42
00 - No cable
XX - 01 to 99 10
Unit of Length
F - Feet F
M - Meter
N - Inches
0 - No cable
Pressure Ranges - Coding example only, see Table 5 on page 7 for more options
100# - 100 psig 100 #
Options
NN - Paper tag
NH - Stainless steel tag NH
(if choosin g an opt ion(s) must includ e an “X”) -X__
Accessory Part Number
Offset and Span Adjustment Magnet 266A143-01
Accessories must be ordered separately
All speci fications are subject to change without notice.
All sales subject to standard terms and conditions.
©2020 Ashcroft Inc. e2g_transducer_ds_RevG_03-27-20
ashcroft.com
info@ashcroft.com
1.800.328.8258
of 83
Data Sheet
E2G Pressure Transducer
TABLE 2 - SENSOR PRESSURE RANGE
psi
17-PH SSB316L SSC316 ISODA286
1.5# •
5# • 400MB • 10IM •
10# • 600MB • 20IM •
15# • 1BR • 30IM •
30# • • • 1.6BR • 50IM •
45# • • • 2BR • 100IM • • •
50# • • • 2.5BR • • • 200IM • • •
60# • • • 4BR • • • 300IM • • •
75# • • • 6BR • • • 500IM • • •
100# • • • 10BR • • • 1000IM • •
150# • • • 16BR • • • VACIM •
200# • • • 20BR • • • V&30IM •
250# • • • 25BR • • • V&60IM •
300# • • • 40BR • • V&100IM • • •
500# • • • 60BR • • V&200IM • • •
750# • • 100BR • • 30IMA •
1000# • • 160BR • • 50IMA •
1500# • • 200BR • • 100IMA •
2000# • • 250BR • • 200IMA •
2500# • • 400BR • • 300IMA •
3000# • • 600BR • • 500IMA •
5000# • • • 1000BR • 1000IMA •
7500# • • VACBR •
10000# • • V&1BR •
15000# • • V&1.6BR •
20000# • • V&2BR •
VAC# • V&4BR • • •
V&15# • • V&6BR • • •
V&30# • • 1BRA •
V&45# • • • 1.6BRA •
V&60# • • • 2BRA •
V&100# • • • 2.5BRA •
V&150# • • • 4BRA •
V&200# • • • 6BRA •
V&300# • • • 10BRA •
15#A • 16BRA •
30#A • 20BRA •
50#A •
100#A •
120#A •
300#A •
Sensor Material
A
bar
17-PH SSB316L SSC316 ISODA286
Sensor Material
A
inHg
Sensor Material
A
17-PH SSB316L SSC316 ISODA286
All speci fications are subject to change without notice.
All sales subject to standard terms and conditions.
©2020 Ashcroft Inc. e2g_transducer_ds_RevG_03-27-20
ashcroft.com
of 84
info@ashcroft.com
1.800.328.8258
Data Sheet
O-ring
Hex.
x
E2G Pressure Transducer
TABLE 3 - PRESSURE CONNECTION DIMENSIONS
1
⁄8 NPT Male
Code: MO1
MAWP: 20,000 psi
.72
.875
Hex.
G¼ B-Male (EN837-1)
Code: MG2
MAWP: 20,000 psi
.87
¼ NPT Male
Code: MO2
MAWP: 20,000 psi
.98
.875
Hex.
G½ B Male (EN837-1)
Code: MG4
MAWP: 20,000 psi
1.19
½ NPT Male
Code: MO4
MAWP: 10,000 psi
1.16
.875
Hex.
G¼ A-MALE
(stud end DIN 3852-E G¼)
Code: MGA
MAWP: 10,000 psi
.83
.47
gasket
7
⁄16-20 UNJF-3A 37
Flare (SAE AS4395)
Code: M76
MAWP: 20,000 psi
.91
.875
Hex.
¼-18 NPT Female
Code: F02
MAWP: 10,000 psi
.66
Ø.81
°
7
⁄16-20 UNJF-2A SAEMale (SAE J1926
O-Ring Boss seal)
Code: MEK
MAWP: 10,000 psi
.71
.875
Hex.
½-14 NPT Female
Code: F04
MAWP: 5,000 psi
.91
Ø 1.06
.875
Hex.
9
⁄16-18 UNF-2B Female
Code: F09
MAWP: 25,000 psi
.71
Ø .81
.875
Hex.
All speci fications are subject to change without notice.
All sales subject to standard terms and conditions.
©2020 Ashcroft Inc. e2g_transducer_ds_RevG_03-27-20
1
⁄8 -27 NPT Female
Code: F01
MAWP: 10,000 psi
.47
.875
Hex.
Ø.81
.875
Hex.
7
SAEJ1926
Code: FRW
MAWP: 9,100 psi
ashcroft.com
info@ashcroft.com
1.800.328.8258
.875
Hex.
⁄16-20 UNF-2B
.80
Ø .81
.875
.875
Hex.
¼˝ VCR gland with
9
⁄16-18 Female Swivel Nut
Code: FV2
MAWP: 5,100 psi
.875
Hex.
1.48
.75
He
1.98
MAX.
1.063
Hex.
¼˝ VCR gland with
9
⁄16-18 Male Swivel Nut
Code: MV2
MAWP: 5,100 psi
1.48
.63
Hex.
.875
Hex.
of 85
Data Sheet
Ø.47
Code "B4"
"HM"
.63
1.30
.875
Ø 1.34
1.10
.875
1.36
1.01
.08
.81
Ø.75
Ø.47
1.142
E2G Pressure Transducer

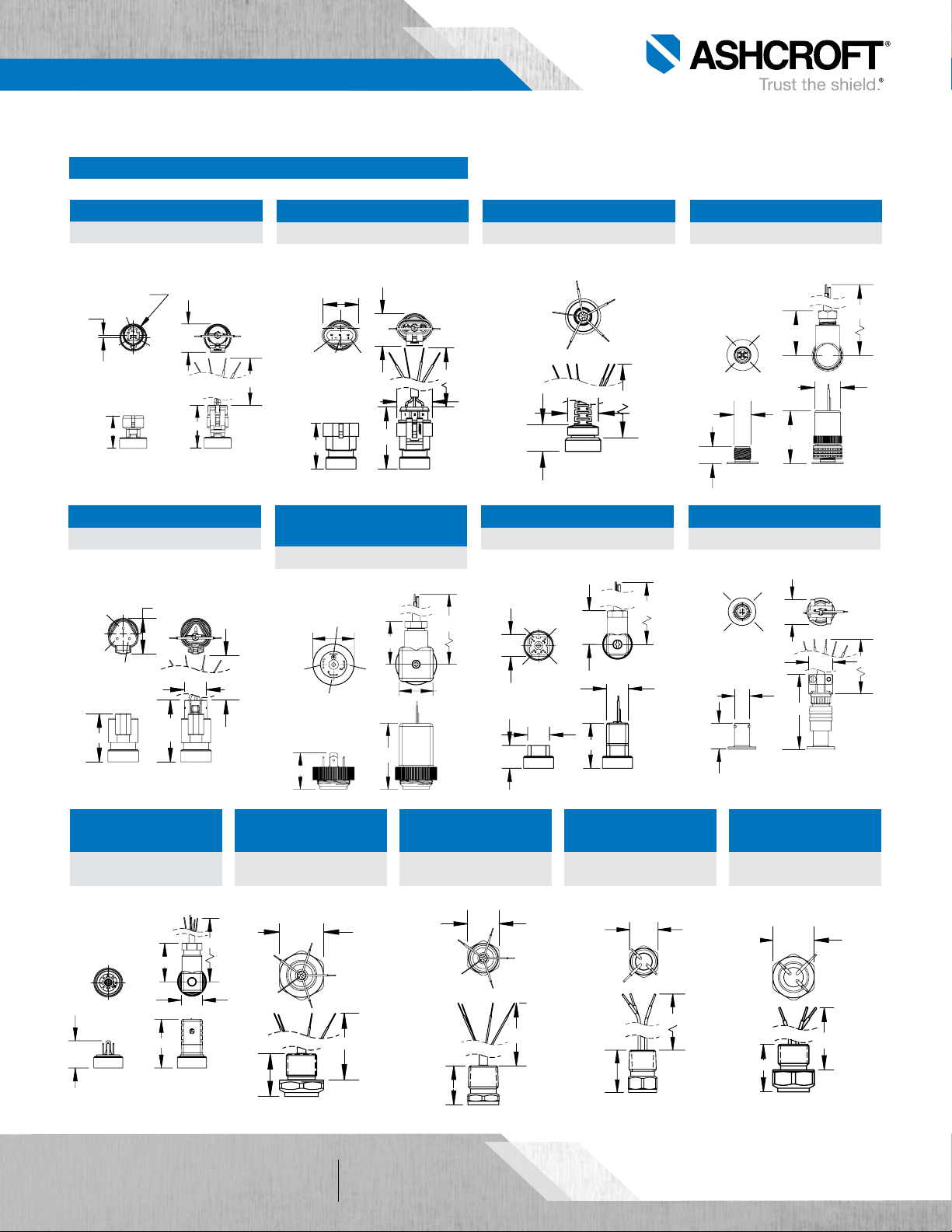

TABLE 4 - ELECTRICAL CONNECTION DIMENSIONS
Maximum temperature range listed
Metri Pack 3-Pin
Code: GN – IP67 (NEMA 4X)
-40°F to 185°F (-40°C to 85°C)
AMP Superseal 3-Pin
Code: AP – IP66 (NEMA 4X)
-40°F to 185°F (-40°C to 85°C)
Over-Mold Cable
Code: FC, FV* – IP67 (NEMA 4X)
-40°F to 185°F (-40°C to 85°C)
M12 4-Pin
Code: EW – IP66 (NEMA 4X)
-40°F to 185°F (-40°C to 85°C)
Ø .63
C
B A
1.04
.90
1.36
DEUTSCH DT04 3-Pin
Code: DT – IP66 (NEMA 4X)
-40°F to 185°F (-40°C to 85°C)
2
3
1
.62
1.75
1.02
.92
3
2 1
L
1.31
1.02
1.77
L
L
.65
Overmold
Hirschmann EN 175301-803
Form A
Code: DA – IP66 (NEMA 4X)
-40°F to 185°F (-40°C to 85°C)
GND
L
1
3
1.16
1.37
2
1.08
2.11
Mini-Hirschmann
Code: HM – IP66 (NEMA 4X)
-40°F to 185°F (-40°C to 85°C)
L
1
4
.63
.66
Mini
3
.98
2
.63
1.31
L
1
4
1.24
2
3
Ø.71
1.47
.47
M12
MIL DTL 26482 8 4-Pin
Code: B4 – No IP or NEMA rating
-40°F to 221°F (-25°C to 105°C)
B
C
.78
A D
.81
MIL-DTL-26482
2.33
8-4
"EW"
.75
"B4"
with Mate
L
L
Hirschmann EN
175301-803 Form C
Code: DC
IP66 (NEMA 4X)
-40°F to 185°F (-40°C to 85°C)
L
GND
1
EN 175301-803
Form C
Code "DC"
All speci fications are subject to change without notice.
All sales subject to standard terms and conditions.
©2020 Ashcroft Inc. e2g_transducer_ds_RevG_03-27-20
3
1.15
2
.62
1.45
"DC"
with Mate
M20 Conduit
With Cable
Code: MC, MV*
IP67 (NEMA 4X)
-40°F to 257°F (-40°C to 125°C)
Hex.
L
ashcroft.com
info@ashcroft.com
1.800.328.8258
½˝ NPT Conduit
With Cable
Code: CC, CV*
IP67 (NEMA 4X)
-40°F to 257°F (-40°C to 125°C)
Hex.
L
½˝ NPT Conduit
With Flying Leads
Code: CF
IP67 (NEMA 4X)
-40°F to 257°F (-40°C to 125°C)
Hex.
L
M20 Conduit
With Flying Leads
Code: MF
IP67 (NEMA 4X)
-40°F to 257°F (-40°C to 125°C)
1.142
Hex.
L
Note: * Indicates Vented Cable
of 86
Data Sheet
Ø.866
4.45
Cable Length
4.34
0.875
E2G Pressure Transducer
TABLE 5 - PRESSURE RANGES
PSI bar inHg
Vac.
Compound
Positive Pressure (psig)
Absolute Pressure (psia)
VAC# VACBR
V&15 # V&1BR
— V &1.6BR
V&30# V&2BR V&60IM
V&45# — V&10 0I M
V&60# V&4BR —
— V&6BR —
V&10 0# — V&200IM
V&150# — —
V&200# — —
V&300# — —
1.5 # 105MB 3IM
5# 400MB 10IM
— 600MB
10# —
15# 1BR 30IM
— 1. 6BR 50IM
30# 2BR —
— 2.5BR —
45# — —
50# — 100 IM
60# 4BR
75# — —
— 6BR —
100 # — 200IM
150 # 10BR 300 IM
200# — —
— 16B R —
250# — 500IM
300# 20BR —
— 25BR —
500# — 1000IM
— 40BR —
750# — —
— 60BR —
1000# — —
150 0# 100 BR —
2000# 160BR —
— 200BR —
2500# — —
3000# — —
— 250BR —
5000# — —
— 400BR —
7500# — —
— 600BR —
10000# — —
15000# 1000BR —
20000# — —
15# A 1BRA 30IMA
— 1.6 BRA 50IMA
30#A 2BRA —
— 2.5BRA —
50#A — 100 IM A
— 4BRA —
— 6BRA —
100 #A — 200IMA
— 10B RA 300IMA
200#A — —
— 16B RA 500IMA
— 20BRA —
500#A — —
VACIM
V&30IM
—
—
20IM
DIMENSIONS
For reference only, consult Ashcroft for specific dimensional drawings
.47
3.00
.98
¼ NPT Male
Code "M02"
Ø 0.87
0.875
All speci fications are subject to change without notice.
All sales subject to standard terms and conditions.
©2020 Ashcroft Inc. e2g_transducer_ds_RevG_03-27-20
ashcroft.com
of 87
info@ashcroft.com
1.800.328.8258
Data Sheet
E2G Pressure Transducer
All speci fications are subject to change without notice.
All sales subject to standard terms and conditions.
©2020 Ashcroft Inc. e2g_transducer_ds_RevG_03-27-20
ashcroft.com
of 88
info@ashcroft.com
1.800.328.8258
Loading...
