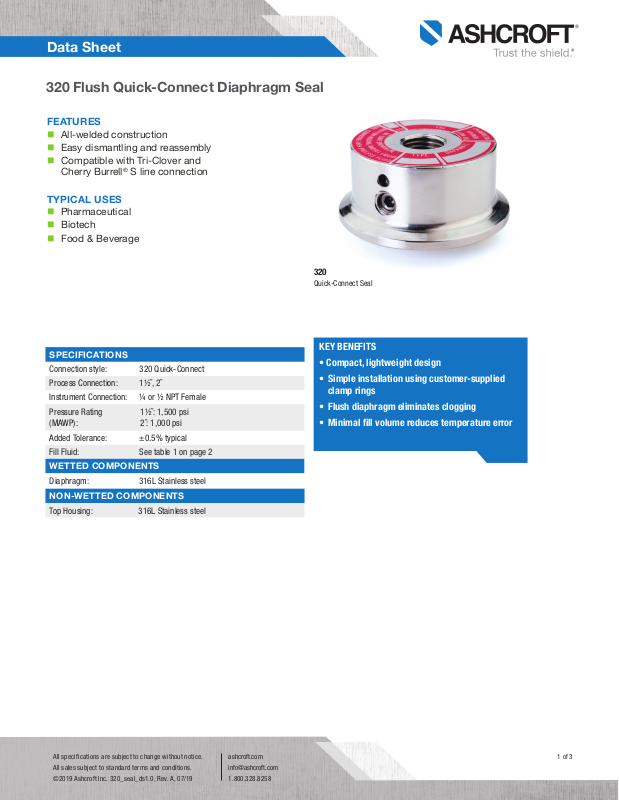

Ashcroft 320 Specifications
Data Sheet
320 Flush Quick-Connect Diaphragm Seal
FEATURES
All-welded construction
Easy dismantling and reassembly
Compatible with Tri-Clover and
Cherry Burrell® S line connection
TYPICAL USES
Pharmaceutical
Biotech
Food & Beverage
320
Quick-Connect Seal
SPECIFICATIONS
Connection style: 320 Quick-Connect
Process Connection: 1½˝, 2˝
Instrument Connection: ¼ or ½ NPT Female
Pressure Rating
(MAWP):
Added Tolerance: ±0.5% typical
Fill Fluid: See table 1 on page 2
WETTED COMPONENTS
Diaphragm: 316L Stainless steel
NON-WETTED COMPONENTS
Top Housing: 316L Stainless steel
1½˝: 1,500 psi
2˝: 1,000 psi
KEY BENEFITS
• Compact, lightweight design
• Simple installation using customer-supplied
clamp rings
• Flush diaphragm eliminates clogging
• Minimal fill volume reduces temperature error
All specifications are subject to change without notice.
All sales subject to standard terms and conditions.
©2019 Ashcroft Inc. 320_seal_ds1.0, Rev. A, 07/19
ashcroft.com
info@ashcroft.com
1.800.328.8258
1 of 3
Data Sheet
320 Flush Quick-Connect Diaphragm Seal
TABLE 1 - FILL FLUIDS
Fill Fluid Temperature
Viscosity
(cSt at RT)
Glycerin (food grade) 0°F to 400°F (-18°C to 204°C) 1,300 CG
50 cSt Silicone -40°F to 500°F (-40°C to 260°C) 50 CK
10 cSt Silicone -40°F to 500°F (-40°C to 260°C) 10 DJ
Halocarbon® 4.2 -70°F to 300°F (-57°C to 199°C) 4.2 CF
Slytherm® 800 -40°F to 750°F (-40°C to 400°C) 10 HA
Variation
Code
Notes
Direct-mounting only.
Not for use with vacuum service
For use with oxygen/oxidizing
process media
High temperature applications
Syltherm® XLT -150°F to 500°F (-100°C to 260°C) 1.4 CC
Calflo® AF -20°F to 600°F (-29°C to 316°C) 60 KF
Low temperature applications
High temperature, silicone-free
Mineral Oil 10°F to 400°F (-12°C to 204°C) 75 MY
Neobee® M-20 (food grade) 5°F to 400°F (-15°C to 204°C) 9.5 NM
Silicone (food grade) -40°F to 500°F (-40°C to 260°C) 350 CZ
Distilled Water 40°F to 185°F (4°C to 85°C) 0.9 FJ
50/50 Glycerin/Water 15°F to 200°F (-9°C to 93°C) 30 GH
Propylene Glycol -50°F to 325°F (-46°C to 163°C) 54 CV
Ethylene Glycol 20°F to 325°F (-7°C to 163°C) 14 FK
50/50 Ethylene Glycol/Water -25°F to 190°F (-32°C to 88°C) 2.9 CT
80/20 Glycerin/Water 15°F to 225°F (-9°C to 107°C) 270 GR
95/5 Water/Propylene Glycol 40°F to 185°F (4°C to 85°C) 1.0 PY
ORDERING CODE Example:
Process Connection Size
15 - 1½˝ Quick-connect 15
20 - 2˝ Quick-connect
Se al Type
320 - Quick Connect Seal 320
Diaphragm Material
SX - 316L Stainless steel SX
Instrument Connection Size
02T - ¼ NPT Female 02T
04T - ½ NPT Female (only available on 2 ˝ Quick-connect proces s connection)
Options (if choosing option(s) must include an “X”)
Fill Fl uid (See Table 1 ab ove for more available fill fluids)
CK - 50 cSt Silicone
Optional Features
NH - Stainless steel instrument tag NH
MQ - Positive material identification
15 320 SX 02T XCG NH
X__
