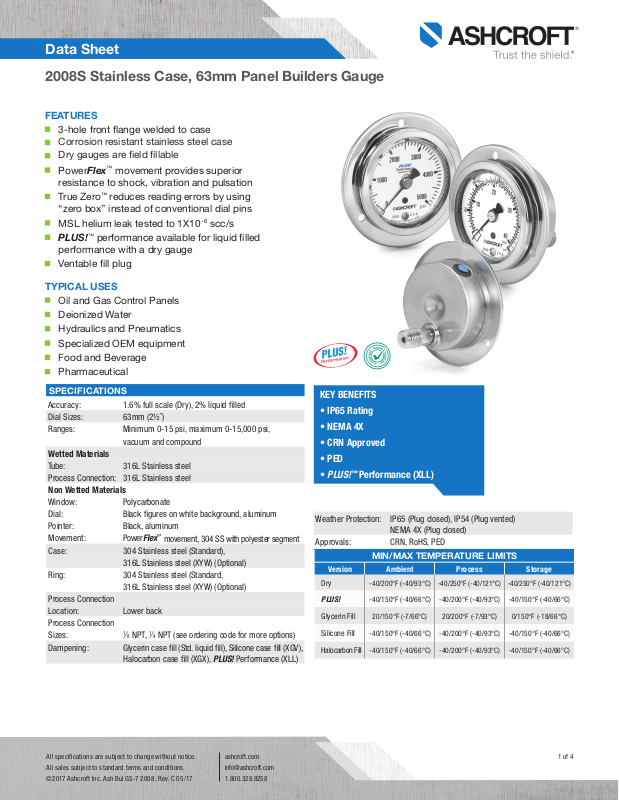

Data Sheet
2008S Stainless Case, 63mm Panel Builders Gauge
FEATURES
3-hole front flange welded to case
Corrosion resistant stainless steel case
Dry gauges are field fillable
PowerFlex™ movement provides superior
resistance to shock, vibration and pulsation
True Zero™ reduces reading errors by using
“zero box” instead of conventional dial pins
MSL helium leak tested to 1X10-6 scc/s
PLUS!™ performance available for liquid filled
performance with a dry gauge
Ventable fill plug
TYPICAL USES
Oil and Gas Control Panels
Deionized Water
Hydraulics and Pneumatics
Specialized OEM equipment
Food and Beverage
Pharmaceutical
SPECIFICATIONS
Accuracy: 1.6% full scale (Dry), 2% liquid filled
Dial Sizes: 63mm (2½˝)
Ranges: Minimum 0-15 psi, maximum 0-15,000 psi,
vacuum and compound
Wetted Materials
Tube: 316L Stainless steel
Process Connection: 316L Stainless steel
Non Wetted Materials
Window: Polycarbonate
Dial: Black figures on white background, aluminum
Pointer: Black, aluminum
Movement: PowerFlex
Case: 304 Stainless steel (Standard),
316L Stainless steel (XYW) (Optional)
Ring: 304 Stainless steel (Standard,
316L Stainless steel (XYW) (Optional)
Process Connection
Location: Lower back
Process Connection
Sizes:
Dampening: Glycerin case fill (Std. liquid fill), Silicone case fill (XGV),
Halocarbon case fill (XGX), PLUS! Performance (XLL)
1
⁄8 NPT, 1⁄4 NPT (see ordering code for more options)
™
movement, 304 SS with polyester segment
KEY BENEFITS
• IP65 Rating
• NEMA 4X
• CRN Approved
• PED
• PLUS!™ Performance (XLL)
Weather Protection: IP65 (Plug closed), IP54 (Plug vented)
NEMA 4X (Plug closed)
Approvals: CRN, RoHS, PED
MIN/MAX TEMPERATURE LIMITS
Version Ambient Process Storage
Dry
PLUS!
Glycerin Fill
Silicone Fill
Halocarbon Fill
-40/200°F (-40/93°C) -40/250°F (-40/121°C) -40/250°F (-40/121°C)
-40/150°F (-40/66°C) -40/200°F (-40/93°C) -40/150°F (-40/66°C)
20/150°F (-7/66°C) 20/200°F (-7/93°C) 0/150°F (-18/66°C)
-40/150°F (-40/66°C) -40/200°F (-40/93°C) -40/150°F (-40/66°C)
-40/150°F (-40/66°C) -40/200°F (-40/93°C) -40/150°F (-40/66°C)
All speci fications are subject to change without notice.
All sales subject to standard terms and conditions.
©2017 Ashcroft Inc. Ash Bul GS-7 2008, Rev. C 05/17
ashcroft.com
1.800.328.8258
1 of 4
Page 2
Data Sheet
2008S Stainless Case, 63mm Panel Builders Gauge
ORDERING CODE
Example:
Dial Size/Series Code
632008 – 63mm stainless steel case 632008
System
S - 316L SS tube/316L SS process connection S
Case Fill
Dry, liquid fillable case
L - Liquid filled case (Glycerin standard) L
Process Connection Sizes
1
⁄8 NPT Male
01 -
02 - ¼ NPT Male 02
RW - SAE
KJ - ¼ Straight JIS, BSP
KA - ¼ Tapered JIS, BSP
13 - G ¼˝ DIN
JP - ¼˝ Tubing, N/A with throttling device
JQ - 6mm Tubing, N/A with throttling device, N/A for ranges above 6000 psi
Connection Location
B - Lower back mount connection B
Options
LL - PLUS!™ performance LL
GV - Silicone case fill
GX - Halocarbon case fill
YW - 316 Stainless steel case and ring flange
TU - Throttling device for ranges up tp 1000 psi
TS - Throttling device for ranges up to 15,000 psi
6B - Cleaned for oxygen service
SH - Red set hand, stationary
NH - Stainless steel tag wired to case
HY - Hydrostatic/pneumatic testing system pressurized to 150% of rated system pressure for 5 minutes.
Overload stop standard
C4 - Individual calibration chart in accordance with ASME B40.100:2013.
Accuracy traceable to N.I.S.T
SM - All stainless steel movement
YW - 316L stainless steel case, ring and flange
Range (coding examples only, see range table for all standard ranges)
Single Scales
15# - 15 psi 60#
1BR - 1 bar
1KSC - 1 kilograms per sq. cm
100KP - 100 kilopascal
Dual Scales
15#/BR - 15 psi inner scale, 1 bar outer scale
1BR/# - 1 bar inner scale, 15 psi outer scale
7
⁄16 & 20 Straight thread
632008 S L 02 B XLL 60#
All speci fications are subject to change without notice.
All sales subject to standard terms and conditions.
©2017 Ashcroft Inc. Ash Bul GS-7 2008, Rev. C 05/17
ashcroft.com
1.800.328.8258
2 of 4
Page 3
Data Sheet
2008S Stainless Case, 63mm Panel Builders Gauge
STANDARD RANGES
psi bar kPa Mpa kg/cm
30IMV -1BR -100KP -.1MP -1KSC
– -1&.6BR -100&60KP -.1&.06MP -1&.6KSC
30IMV&15# – – – –
– -1&1.5BR -100&150KP -.1&.15MP -1&1.5KSC
30IMV&30# – – – –
– -1&3BR -100&300KP -.1&.3MP -1&3KSC
30IMV&60# – – – –
– -1&5BR -100&500KP -.1&.5MP -1&5KSC
30IMV&100# – – – –
– 1&9BR -100&900KP -.1&.9MP -1&9KSC
15# 1BR 100KP .1MP 1KSC
20# – – – –
– 1.6BR 160KP .16MP 1.6KSC
30# – – – –
– 2.5BR 250KP .25MP 2.5KSC
60# 4BR 400KP .4MP 4KSC
– 6BR 600KP .6MP 6KSC
100# – – – –
120# – – – –
– 10BR 1000KP 1MP 10KSC
160# – – – –
200# – – – –
– 16BR 1600KP 1.6MP 16KSC
300# – – – –
– 25BR 2500KP 2.5MP 25KSC
400# – – – –
500# – – – –
600# 40BR 4000KP 4MP 40KSC
800# – – – –
– 60BR 6000KP 6MP 60KSC
1000# – – – –
1500# 100BR 10000KP 10MP 100KSC
2000# – – – –
– 160BR 16000KP 16MP 160KSC
3000# – – – –
– 250BR 25000KP 25MP 250KSC
4000# – – – –
5000# – – – –
6000# 400BR 40000KP 40MP 400KSC
8000# – – – –
– 600BR 60000KP 60MP 600KSC
10000# – – – –
15000# 1000BR 100000KP 100MP 1000KSC
2
All speci fications are subject to change without notice.
All sales subject to standard terms and conditions.
©2017 Ashcroft Inc. Ash Bul GS-7 2008, Rev. C 05/17
ashcroft.com
1.800.328.8258
3 of 4
Page 4
Data Sheet
Data Sheet
2008S Stainless Case, 63mm Panel Builders Gauge

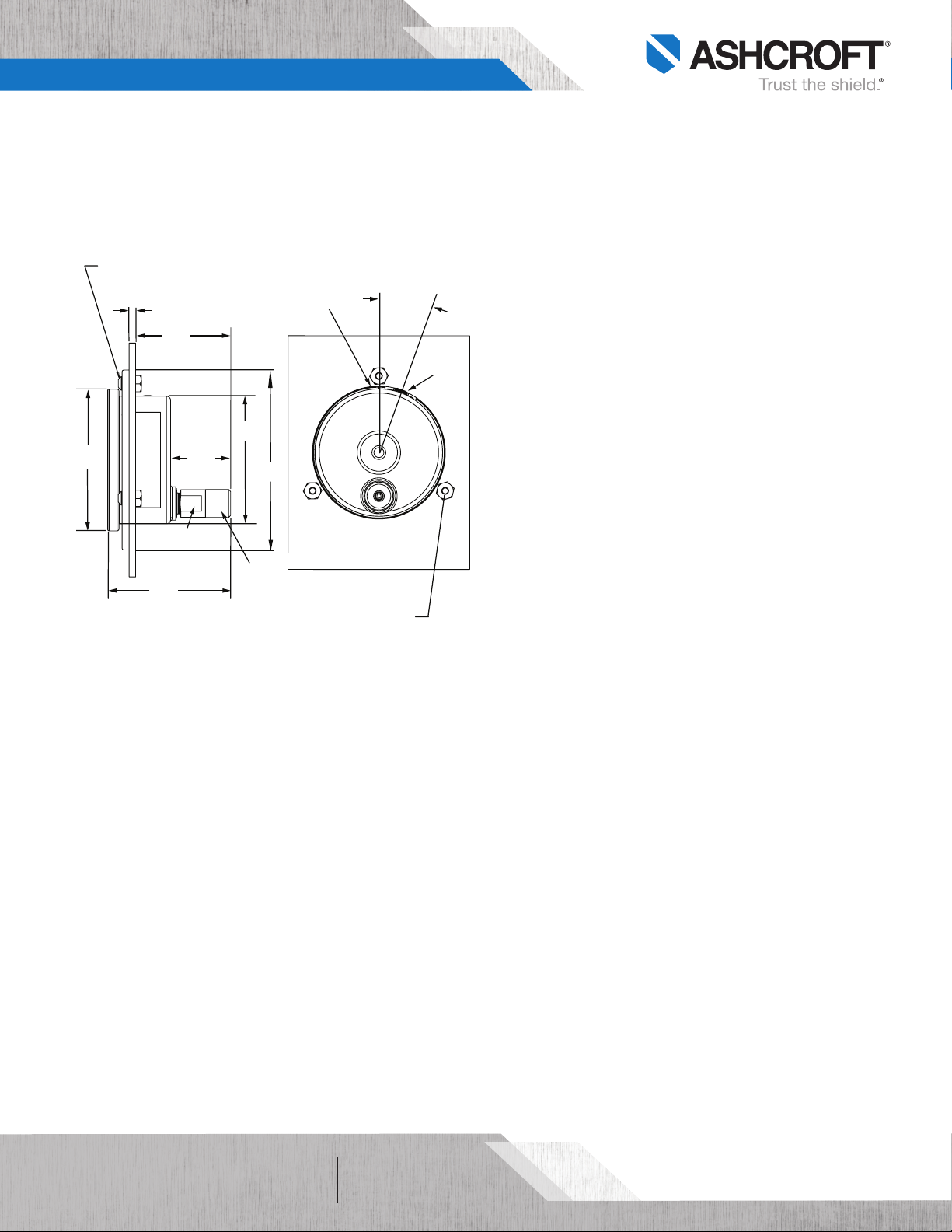

DIMENSIONS (dimensions in [ ] are millimeters)
Note:
(3) Holes in ring are slightly
elongated to maneuver mounting screw when inserting.
.125 (Panel thickness)
2.730
(46.0)
1.812
(25.75)
1.014
2.560 (65.02) ±.005
(Hole in panel to
accommodate gauge.)
[62.321]
2.454
[88.011]
3.465
20°
(Angle of top
fill hole)
Fill plug
offset
7
(56.49)
2.224
/16 square
4 flats
1/4 NPT
threaded
connection
(3) Holes .160 (4.06) equally
spaced 120° apart on a 2.950
(74.93) ±.005 (.127) B.C. (for both
flush mounting ring and panel.)
(3) 6-32UNF screws and
nuts shown but not supplied.
