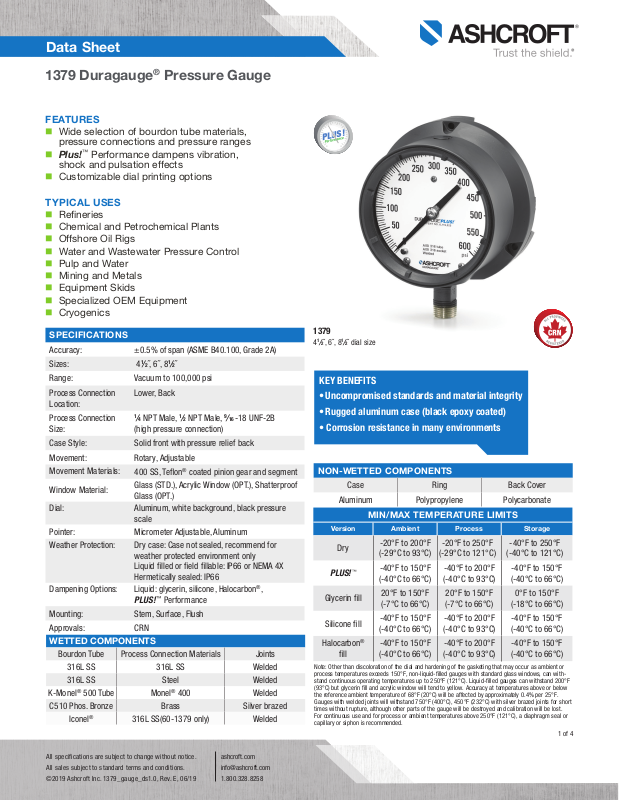

Page 1

Data Sheet

1379 Duragauge® Pressure Gauge

FEATURES

 Wide selection of bourdon tube materials,

pressure connections and pressure ranges

 Plus!™Performance dampens vibration,

shock and pulsation effects

 Customizable dial printing options

TYPICAL USES

 Reﬁneries  Chemical and Petrochemical Plants  Offshore Oil Rigs  Water and Wastewater Pressure Control  Pulp and Water  Mining and Metals  Equipment Skids  Specialized OEM Equipment  Cryogenics

SPECIFICATIONS

Accuracy: ±0.5% of span (ASME B40.100, Grade 2A)

Sizes: 41⁄2˝, 6˝, 81⁄2˝

Range: Vacuum to 100,000 psi

Process Connection Location:

Process Connection Size:

Case Style: Solid front with pressure relief back

Movement: Rotary, Adjustable Movement Materials:

Window Material:

Dial: Aluminum, white background, black pressure

Pointer: Micrometer Adjustable, Aluminum Weather Protection: Dry case: Case not sealed, recommend for

Dampening Options: Liquid: glycerin, silicone, Halocarbon®,

Mounting: Stem, Surface, Flush

Approvals: CRN

WETTED COMPONENTS

Bourdon Tube Process Connection Materials Joints

316L SS 316L SS Welded 316L SS Steel Welded

K-Monel® 500 Tube Monel® 400 Welded

C510 Phos. Bronze Brass Silver brazed

Iconel

Lower, Back

⁄4 NPT Male, 1⁄2 NPT Male, 9⁄16 -18 UNF-2B

(high pressure connection)

400 SS, Teﬂon® coated pinion gear and segment Glass (STD.), Acrylic Window (OPT.), Shatterproof

Glass (OPT.)

scale

weather protected environment only Liquid ﬁlled or ﬁeld ﬁllable: IP66 or NEMA 4X Hermetically sealed: IP66

PLUS!™ Performance

316L SS(60-1379 only) Welded

1379

41⁄2˝, 6˝, 81⁄2˝ dial size

KEY BENEFITS

• Uncompromised standards and material integrity

• Rugged aluminum case (black epoxy coated)

• Corrosion resistance in many environments

NON-WETTED COMPONENTS

Case Ring Back Cover

Aluminum Polypropylene Polycarbonate

MIN/MAX TEMPERATURE LIMITS

Version Ambient Process Storage

™

-20°F to 200°F

(-29°C to 93°C)

-40°F to 150°F

(-40°C to 66°C)

20°F to 150°F (-7°C to 66°C)

-40°F to 150°F

(-40°C to 66°C)

-40°F to 150°F

(-40°C to 66°C)

Dry

PLUS!

Glycerin ﬁll

Silicone ﬁll

Halocarbon®

ﬁll

Note: Other than discoloration of the dial and hardening of the gasketing that may occur as ambient or process temperatures exceeds 150°F, non-liquid-ﬁlled gauges with standard glass windows, can withstand continuous operating temperatures up to 250°F (121°C). Liquid-ﬁlled gauges can withstand 200°F (93°C) but glycerin ﬁll and acrylic window will tend to yellow. Accuracy at temperatures above or below the reference ambient temperature of 68°F (20°C) will be affected by approximately 0.4% per 25°F. Gauges with welded joints will withstand 750°F (400°C), 450°F (232°C) with silver brazed joints for short times without rupture, although other parts of the gauge will be destroyed and calibration will be lost. For continuous use and for process or ambient temperatures above 250°F (121°C), a diaphragm seal or capillary or siphon is recommended.

-20°F to 250°F

(-29°C to 121°C)

-40°F to 200°F

(-40°C to 93°C)

20°F to 150°F (-7°C to 66°C)

-40°F to 200°F

(-40°C to 93°C)

-40°F to 200°F

(-40°C to 93°C)

-40°F to 250°F

(-40°C to 121°C)

-40°F to 150°F

(-40°C to 66°C)

0°F to 150°F

(-18°C to 66°C)

-40°F to 150°F

(-40°C to 66°C)

-40°F to 150°F

(-40°C to 66°C)

of 41

All speciﬁcations are subject to change without notice.

All sales subject to standard terms and conditions.

ashcroft.com

[email protected]

1.800.328.8258

Page 2

Data Sheet

1379 Duragauge® Pressure Gauge

ORDERING CODE Example:

Dial Size/Model Code

451379 - 41⁄2˝ aluminum case, solid front 451379 601379 - 6˝ aluminum case, solid front 851379 - 81⁄2˝ aluminum case, solid front

System (tube and process connection)

A - Bronze tube, brass process connection, max. pressure connection 1,000 psi P - K-Monel® 500 tube, Monel® 400 process connection, max. pressure 30,000 psi R - 316L SS tube, steel process connection, max. pressure 20,000 psi S - 316 SS tube, 316L SS process connection, max. pressure 20,000 psi S

WW - Inconel® 718 tube, Inconel 718 process connection (50,000 to 100,00 psi ranges)

Case Design

S - Solid front case, dry SH - Solid front case, dry, sealed, hermetically sealed (n/a 8 ½˝ size) SH SL - Solid front case, liquid ﬁlled (glycerin std.)

Process Connection Sizes

02 -

⁄4 NPT Male, N/A for ranges over 20,000 psi

04 -

⁄2 NPT Male, N/A for ranges over 20,000 psi

09 -

⁄16 18 UNF-2B, high pressure ﬁtting, standard for pressures over 20,000 psi

Process Connection Location

L - Lower L B - Back D - Side (3 o’clock) E - Side connection (9 o’clock) T - Top connection

Options (If choosing an option(s) must include a “X”)

Dampening

LL - PLUS!™ Performance LL NZ - PLUS!™ Performance Silicone Free GV - Silicone case ﬁll GX - Halocarbon® case ﬁll TS - Throttle screw (standard with liquid ﬁlled, hermetically sealed or PLUS!™ Performance)

Case/Ring/Dial

56 - Flush mounting ring BF - Surface mounting bracket TM - 2˝ pipe mounting bracket (4½˝ dial size only) D3 - DuraVis™ Retroreﬂective Dial (4½˝ and dry case only) DA - Dial marking (text marking on the dial)

Windows/Pointers

PD - Acrylic window (standard with liquid ﬁlled or hermetically sealed cases) SG - Safety glass NG - Non-glare glass (4 EP - Maximum pointer (adjustable, N/A with liquid ﬁlled or hermetically sealed cases) SH - Red set hand, stationary

Other

6B - Cleaned for gaseous oxygen service NH - Stainless Steel tag wired to case AB - Gauges calibrated to compensate for absolute pressure OS - Overload stop VS - Underload stop HY - Hydrostatic/pneumatic testing (system pressurized to 150% of rated system pressure for 5 minutes. Overload stop standard.) C4 - Individual calibration chart (in accordance with ASME B40.100:2013. Accuracy traceable to N.I.S.T)

Range (coding examples only, see range table on page 3 for all standard ranges)

Single Scales

15# - 15 psi 1BR - 1 bar 1KSC - 1 kilograms per sq. cm 100KP - 100 kilopascal

Dual Scales

15#/BR - 15 psi inner scale, 1 bar outer scale 1BR/# - 1 bar inner scale, 15 psi outer scale

⁄2˝ and 6˝ cases only, N/A with liquid ﬁll or hermetically sealed cases)

451379

S SH 04 L XLL 15#

X__

15#

of 42

All speciﬁcations are subject to change without notice.

All sales subject to standard terms and conditions.

ashcroft.com

[email protected]

1.800.328.8258

Page 3

Data Sheet

1379 Duragauge® Pressure Gauge

STANDARD PRESSURE RANGES

psi bar kPa mPa kg/cm

30IMV N1BR N100KP N1MP N1KG

Vacuum

Compound

Positive Pressure

– N1/0.6BR N100/60KP 0.1/0.06MP N1/0.6KG

V/15# – – – –

– N1/1.5BR N100/150KP N0.1/0.15MP N1/1.5KG

V/30# – – – –

– N1/3BR N100/300KP N0.1/0.3MP N1/3KG

V/60# – – – –

– N1/5BR N100/500KP N0.1/.5MP N1/5KG

V/100# – – – –

– N1/9BR N100/900KP N0.1/.9MP N1/9KG 15# 1BR 100KP 0.1MP 1KG 20# – – – –

– 1.6BR 160KP 0.16MP 1.6KG 30# – – – –

– 2.5BR 250KP 0.25MP 2.5KG 60# 4BR 400KP 0.4MP 4KG

– 6BR 600KP 0.6MP 6KG

100# – – – – 120# – – – –

– 10BR 1000KP 1MP 10KG

160# – – – – 200# – – – –

– 16BR 1600KP 1.6MP 16KG

300# – – – –

– 25BR 2500KP 2.5MP 25KG

400# – – – – 500# – – – – 600# 40BR 4000KP 4MP 40KG 800# – – – –

– 60BR 6000KP 6MP 60KG

1000# – – – – 1500# 100BR 10000KP 10MP 100KG 2000# – – – –

– 160BR 16000KP 16MP 160KG

3000# – – – –

– 250BR 25000KP 25MP 250KG

4000# – – – – 5000# – – – – 6000# 400BR 40000KP 40MP 400KG 8000# – – – –

– 600BR 60000KP 60MP 600KG

10000# – – – – 15000# 1000BR 100000KP 100MP 1000KG 20000# - - - -

- 1600BR - 160MP 1600KG

30000# - - - -

2500BR - 250MP 2500KG

50000# - - -

- 4000BR - 400MP 4000KG

80000# - - -

- 6000BR - 600MP 6000KG

100000# - - - -

All speciﬁcations are subject to change without notice.

All sales subject to standard terms and conditions.

of 43

ashcroft.com

[email protected]

1.800.328.8258

Page 4

3on

Hole in panel

Nuts & washers not supplied by Ashcroft

3 Mounting studs CC threaded equally spaced on E dia. Bolt Circle

Hole in panel

Nuts & washers not supplied by Ashcroft

3 Mounting studs CC threaded equally spaced on E dia. Bolt Circle

Hole in panel

Nuts & washers not supplied by Ashcroft

3 Mounting studs CC threaded equally spaced on E dia. Bolt Circle

Hole in panel

Nuts & washers not supplied by Ashcroft

3 Mounting studs CC threaded equally spaced on E dia. Bolt Circle

Hole in

threaded equally spaced

ANEL

PANEL

MOUNTING

Data Sheet

1379 Duragauge® Pressure Gauge

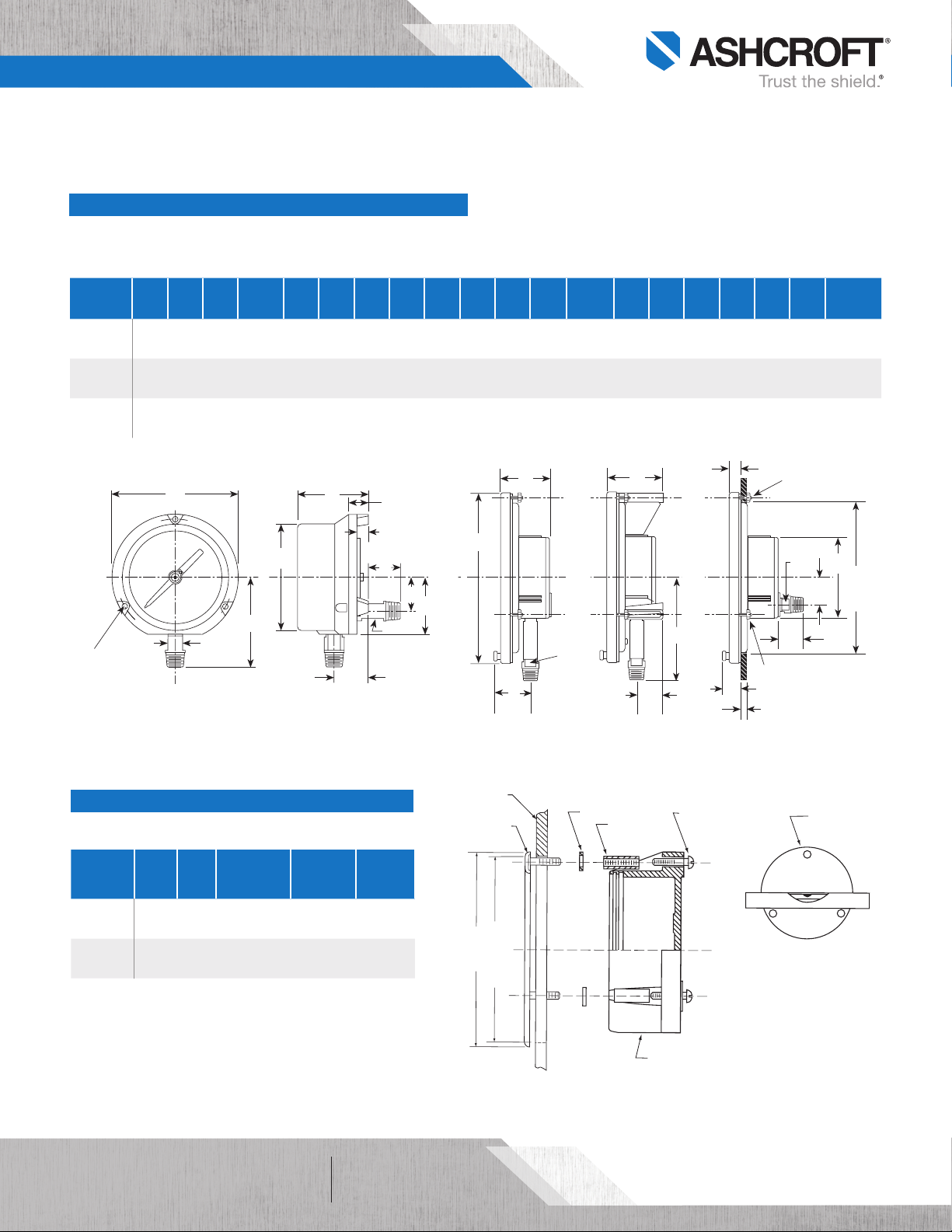

DIMENSIONS in [ ] are millimeters

For reference only, consult Ashcroft for speciﬁc dimensional drawings

Dial Size

Inches

41⁄2

A B C CC D E F G H J K L LL M N P S T V

33⁄8

[86]

31⁄2

[89]

27⁄8

[73]

47⁄8

[124]

65⁄8

[162]

43⁄4

[121]

#10-24

513⁄16 [148]

79⁄16

[192]

101⁄16

⁄2

[256]

15⁄8

53⁄8

[41]

[137]

15⁄8

[41]7[178]

11⁄16

95⁄8

[27]

[244]

11⁄2

[42]

11⁄2

[42]

15⁄8

[41]6 [152]

315⁄16

[100]

41⁄2

[114]

[20]

13⁄8

[35]

⁄8

11⁄16 [27]

⁄8

11⁄16 [27]

0.218 [6]

⁄8 - 1⁄2

[3] [13]

⁄8 - 1⁄2

[3] [13]

⁄8 - 1⁄2

[3] [13]9[228]

21⁄8

[54]

21⁄8

[54]

3.19

[80.9]

[17]

⁄16

L dia. holes

E dia. Bolt Circle

41⁄2˝ & 6˝ Lower Conn. 41⁄2˝ & 6˝ Back Conn. 81⁄2˝ Lower Conn. 81⁄2˝ Wall Conn. 81⁄2˝ Back Conn.

Weight

(lbs)

⁄8

25⁄8

[67]

25⁄8

[67]

2.5 (Dry)

3.5 (L.F.)

3.0 (Dry)

4.0 (L.F.)

[16]

⁄8

4.5 (Dry)

5.5 (L.F.)

Nuts & washers not supplied by Ashcroft

3 Mounting studs CC

on E dia. Bolt Circle

panel

Type 1278M Series Flush Mounting Ring

Used to ﬂush mount gauge case. Standard ﬁnish in black; optional polished stainless steel ﬁnish is available.

Gauge

Size

Inches

41⁄2

Ring

"A"

O.D

DIA.

55⁄8

[152]

[148]

73⁄4

[197]

73⁄10

[185]

All speciﬁcations are subject to change without notice.

All sales subject to standard terms and conditions.

"B"

Size of 3

Screws

"C"

Size of

Washers

#10-24 x 15⁄87⁄16 x 17⁄64 x 5⁄8 1

#1⁄4 -20 x 117⁄94 x 1⁄2 x 1⁄16 113⁄32

Spacer

ashcroft.com

[email protected]

1.800.328.8258

RING

RING O.D.

PANEL CUTOUT

“A” DIA.

“C”

WASHER

SPACER POST

(3 REQ’D)

“B” (3 REQ’D)

CASE

SHOWING USE OF LEVEL

TO LINE UP SPACER POSTS

HOLE IN P (REAR VIEW)
