ASH INSPEX 3 DIGITAL MICROSCOPE SYSTEM 3
Digital Microscope System
Inspex 3 is a powerful, exible and intuitive HD
digital microscope designed around ASH’s new
30X HD Camera module.
This zoom camera module was designed by ASH
to meet industrial inspection needs.
ASH has developed unique patented high-speed
image processing algorithms deliver exceptional
image quality, super-fast focus speed, and
smooth digital zoom that makes inspection
simpler, ergonomic and ecient.
Inspex 3 is ideal for industries such as medical
device, pharma, precision engineering and
electronics.
The benets of the Inspex 3 system are clear to
see.
Page 4
Smart Inspection
New Features
Inspex 3 is the latest evolution from ASH. Incorporating the AshCam™ module with a wide range of
additional and improved capabilities.
Superb Image Quality
Experience unrivalled Full HD video
imaging never seen before in an Ash
system.
The Inspex 3 oers an enhanced, vibrant,
crystal clear image for even the most
demanding inspection applications.
Manual Rocker Focus
Super Fast Auto-Focus
Place any part under the camera and it will
immediately adjust the focus position allowing you
to quickly and seamlessly inspect your part without
having to adjust manual focus or change the height
of the part.
SpotFocus™
Save time by quickly adjusting the focus using
the rocker icon to inspect the area of interest on a
sample part when in manual focus mode.
*
Global patent applied for by ASH.
Quickly focus on the area of interest by
simply using the mouse pointer.
Improve accuracy and reduce human error with the
capabilities of Spot Focus.
*
Page 5
ASH INSPEX 3 DIGITAL MICROSCOPE SYSTEM 55

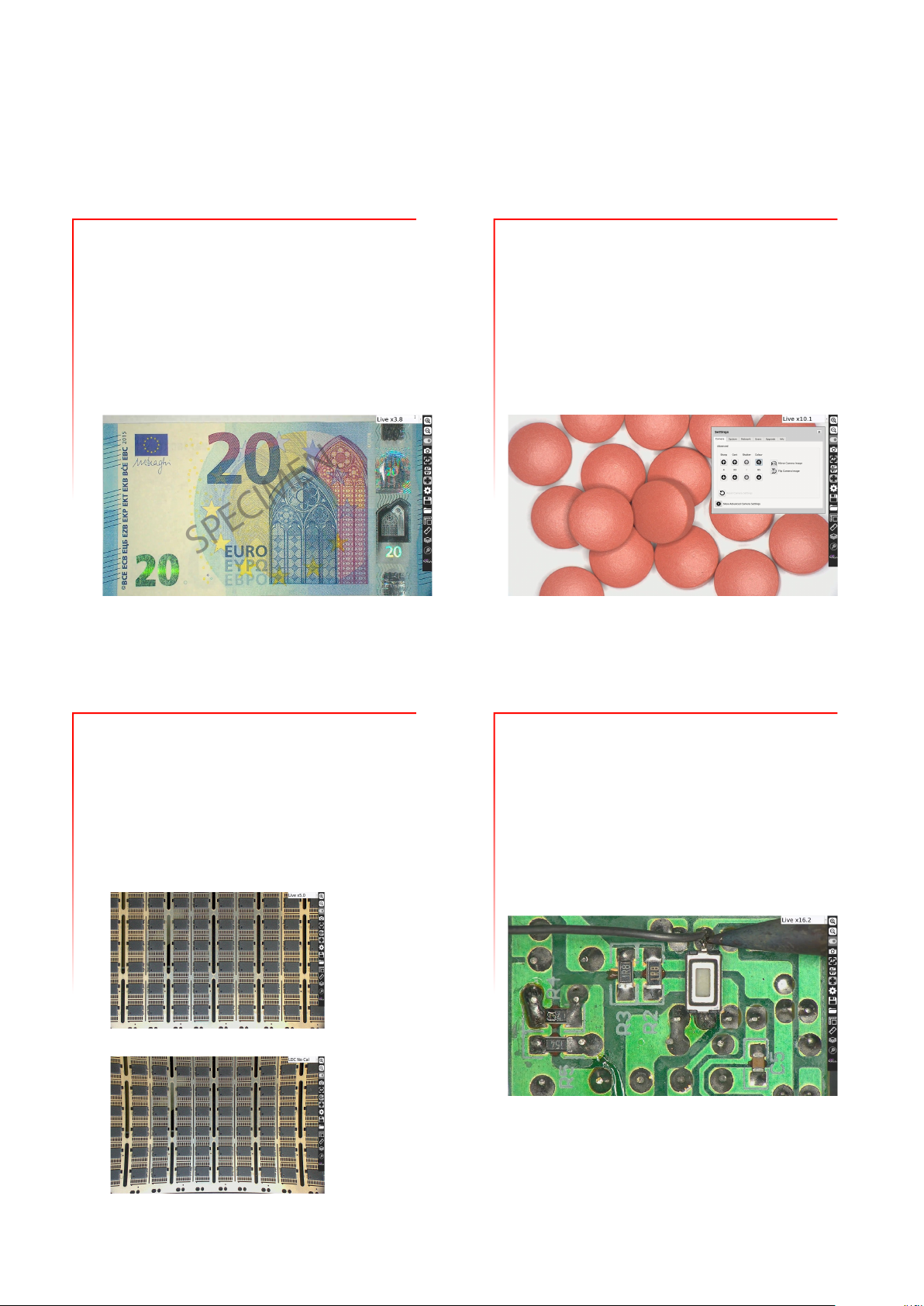

SPECIMEN
AshTruColour™ - True Colour
Reproduction
View true colour reproduction of your sample
with the Inspex 3. Replicate real and accurate
colours as seen with the naked eye for true colour
representation.
Advanced Camera Settings
The new Advanced Camera Settings gives the user
more power to enhance the image for a wide range
of inspection and measurement capabilities.
Tailor sharpness, contrast, saturation and camera
shutter speed to suit your particular application.
RTLDC™
Real-Time Lens Distortion Correction*.
Lens distortion is inherent in all
microscopes. Image distortion at the outer
edges of large samples is automatically
corrected by the Inspex 3.
Inspex 3 RTLDC
Without RTLDC
No Video Latency
The video from the Inspex 3 has zero delay. It’s 3x
times faster than our previous systems. View parts
in real time with no video lag, allowing you to
comfortably inspect, rework, modify and assemble
any part. There is no delay between movement
under the camera and what you see on the screen.
*
Global Patent applied for by ASH.
Page 6
ASH INSPEX 3 DIGITAL MICROSCOPE SYSTEM 66
The Inspex 3 maintains the following improved great features introduced with
the hugely successful Inspex II.
AshCal™
Inspex 3 is factory calibrated
before shipping. No time is wasted
performing recalibrations between
changing magnications.
2D Measurement, Annotation &
Graticules
Point to point measurement and annotation
of samples and creation of graticules.
Image Stacking
Inspex 3 automatically captures several
images at dierent focal depths to create
a fully focused, sharp, clear image for easy
inspection. Save time by removing the need to
adjust the camera height or manual focus.
Save to Network
Networking enables direct saving to the
server or cloud for increased workow
eciency.
User Privileges
User privilege settings enables operational control
and traceability. Assign multiple users with access
to dierent settings and features, improving
security and streamlining the inspection process.
Interchangeable Lighting
Multiple types of interchangeable
lighting available, including Ring Light,
DomeLight, Polarised Light and UV Light
to address any inspection application.
On Screen Preset Buttons
On Screen Preset Buttons allow
quick access to pre-congured
part-specic system settings.
Image Stamping
Image Stamping with time, date, user and
magnication level. Easy documentation
& traceability for accurate quality control
records using image capture to USB key.
Page 7

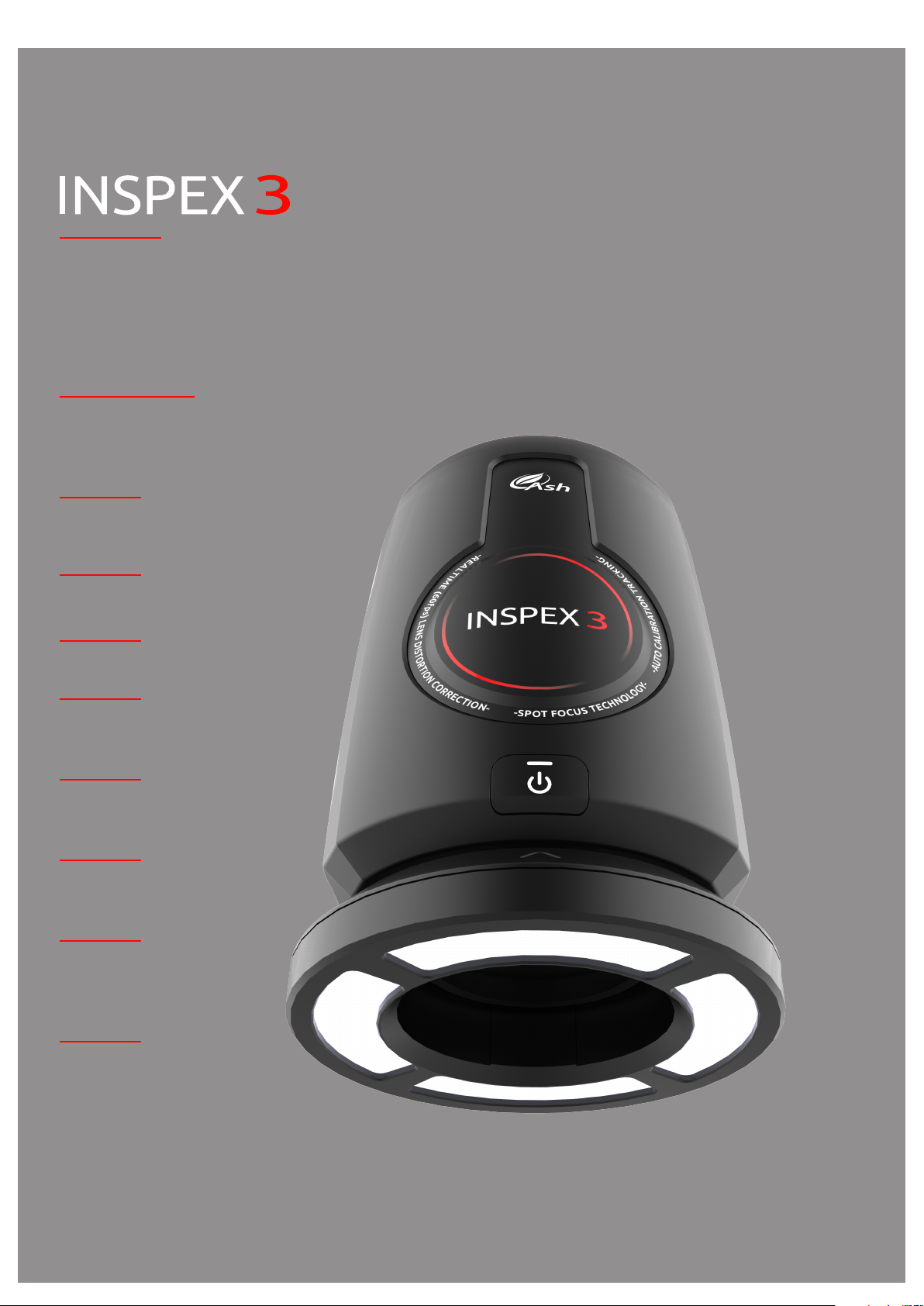

is the latest evolution
AshCal™
Automatic Calibration
Tra ckin g
Improved
Auto-Focus Speed
New! Spot Focus
Rocker Focus
No Video
Latency
Improved
Depth of Field
Improved
Sensitivity
Smooth
Magnication
Zoom
RTLDC™
Simply Smarter
Page 8

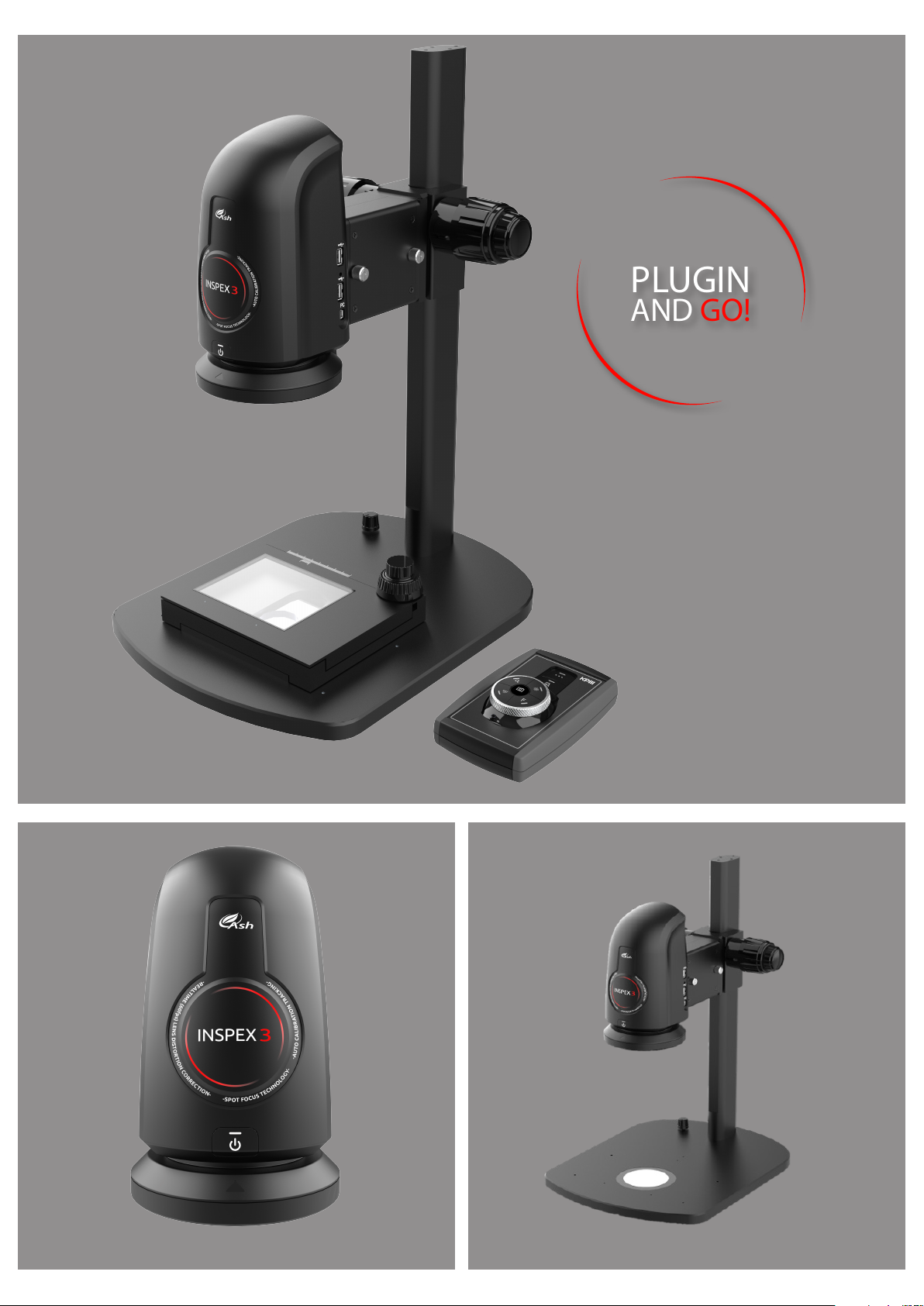

PLUGIN
AND GO!
Page 9
ASH INSPEX 3 DIGITAL MICROSCOPE SYSTEM 99
Digital Microscope System
Smart Inspection
Applications Industries
• In Process Visual Inspection, Rework and
Assembly of Component Parts
• Connected for Traceability and
Documentation. Store images and data
on the Cloud.
• Large Scale Inspection in a Production
Environment
• Final QC Release Inspection
Steven Martin,
Dakin Flathers
Dakin Flathers
“The ease of use has meant that we
have had no issues with operator
engagement and everyone who we
asked insists it has taken away any
degree of uncertainty that was always
evident in analogue checks.
From a personal point of view, right
from the initial demonstration through
to the after-sales service, I cannot
fault the sta at ASH, who have gone
over-and-above to assist however they
have been able. Possibly the greatest
testament to the unit is that other
sections within the factory have seen
the potential it brings and have begun
making their own case to me for the
purchase of additional units. I have to
say, it is only a matter of time!”
Pádraig McVeigh, Creganna
- TE Connectivity
Conductix Wamper
“ASH supplied a digital microscope
system to help assessment of
tube nishes without major
impact to the overall cycle of
production. ASH have provided
excellent support from problem
classication, through vision
system development, right to
xturing and set-up support.
The speed of the response and
ability to meet our tight timeline
was very impressive.
The availability and assistance
from team members of all levels,
from Sales to Engineering, was
invaluable to our team!”
• Medical Device Manufacture
• Pharma
• Precision Engineering
• Electronics
Roland Rücker, Quality
Engineer Optoelectronics,
Heraeus Noblelight
“Our goal was to acquire a microscope
with the smallest possible surface
dierences between 5 and 500
microns without fatigue. Likewise,
we wanted to create sharp images
with the abnormalities and these
surveying. The implementation
of these requirements has now
been conrmed in practice by our
employees. What also stands out
is the intuitive user interface our
employees were able to use within
a very short time. The support from
their side for commissioning and
technical questions is also to be
positively emphasized. We can highly
recommend this microscope because
of our positive experiences and you as
a partner.“
Page 10
ASH INSPEX 3 SYSTEM COMPONENTS
FI 80 6-0 01
System Components Included
LENSES LIGHTS OTHERS
+5 Lens LED Ring Light
Wireless Keyboard and
Mouse
Optional System Components
LENSES
+5 Lens
AI 280-150
+10 Plan 1x Lens
AI 10 0-05 5
+25 Lens
AI 10 0-05 3
Ash 360 Rotating Viewer
AI 801-422
Polarising Lens
(Analyser)
AI 10 0- 041
Sub-Stage Polarising
Film & Analyser
AI 801- 835
Sub-Stage Polarising
Film
AI 801- 836
Polarised Ringlight &
Analyser (58mm)
AI 801- 423
LIGHTS CONTROLLERS STANDS & STAGES
Diused LED D ome Light
AI 100- 045
UV Ring Light 367nm
AI 8 01-421
Polarised Ringlight &
Analyser (58mm)
AI 801- 423
KPII External Keypad
FI 806 -002
KIII External Keypad
FI806 -003
OTHERS
Ash PC Capture
AI 10 0-05 2
24” Monitor
AI 8 01-416
Hard Carry Case
AI 801- 563
USB Memory Stick
XY Stage for
Uplight
AI 10 0- 011
XY Stage
AI 10 0-010
Large XY Stage
AI 10 0-05 7
HDMI Cable
Illuminated Track
Stand
AI 10 0-03 6
Tra ck St and
AI 10 0-037
Articulated Arm
Stand
AI 10 0-03 9
Dual Arm Boom
Stand
AI 10 0-03 8
Page 11

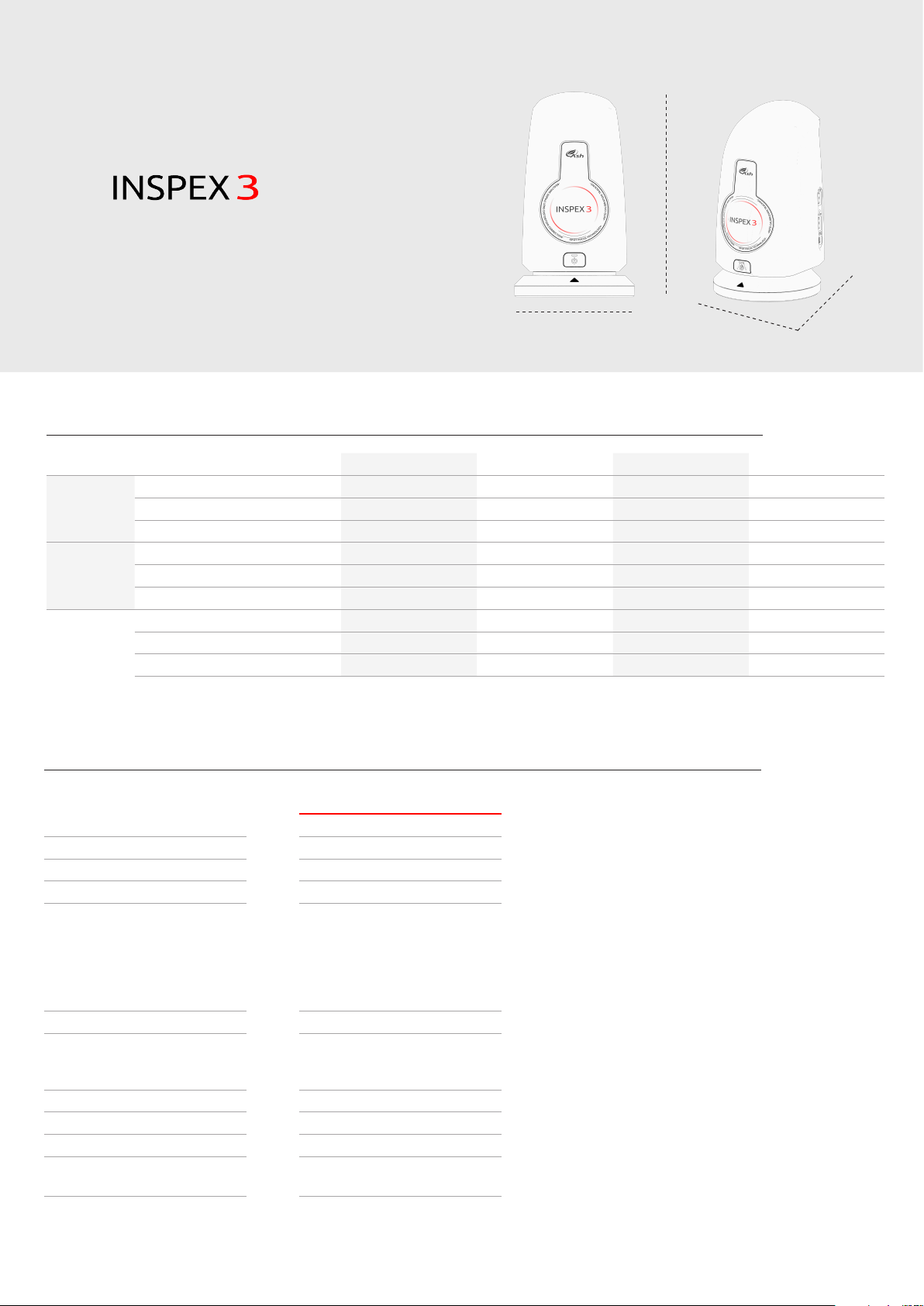

ASH INSPEX 3 TECHNICAL SPECIFICATIONS
Digital Microscope System
216mm
Magnication
Lens Type
Optical Magnication Range (X)
X-axis FOV (mm) 240 - 8.34
Y-axis FOV (mm) 135 - 4.69
Digital Magnication Range (X)
X-axis FOV (mm) 8.34 - 4.13 4.15 - 2.08 1.65 - 0.85
Y-axis FOV (mm) 4.69 - 2.32 2.32 - 1.16 0.9 - 0.5
Working Distance (mm)
Depth of Field (mm) 80 - 0.5 42 - 0.2
Video Latency (milli seconds)
Technical Specications
165mm
+5 +10 Plan 1x +25 +50
2.1 - 65.6 4.1 - 130 51.7 - 323.4 97.7 - 628
80 - 4.1 3.5 - 1.75 2.1 - 1
71 - 2.2 1.75 - 0.9 2 - 0.6
66.1d - 131.6d 130.5d - 259.9d 325d - 646.7d 631.2d - 1256.1d
195
20 (50Hz)/ 17 (60Hz) 20 (50Hz)/ 17 (60Hz) 20 (50Hz)/ 17 (60Hz) 20 (50Hz)/ 17 (60Hz)
79
0.3 - 0.015 15um - 4um
165mm
44 36
170 mm
1.2 - 0.44
0.7 - 0.26
INSPEX 3
Zoom Range (with supplied +5 Lens)
Camera Resolution 1920 x 1080 pixels
Monitor Connections HDMI / DVI
Monitor Requirements HD Ready / Full HD (Recommended)
Input / Output HDMI Output
Internal Storage 16GB
Image Capture Internal Storage
Power 24W
Dimensions 216mm x 165mm x 170mm
Weight
Operating Temperature Storage -10°C to +60°C
2.1 - 131.6x
USB 2.0 (x4 Ports)
Mini USB Port
General Purpose IO (x3 Ports)
DC Power Jack 24V
Removable USB Image Storage
USB on the Go (PC Connectivity)
1.5kg
Operating +5°C to +40°C
Page 12
