Aser LCD Monitor User Manual

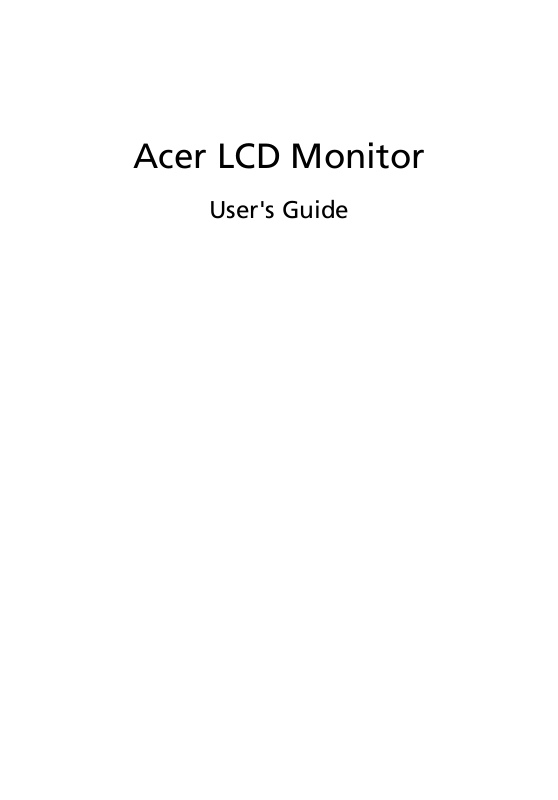

Acer LCD Monitor

User's Guide

Acer LCD Monitor User's Guide Original Issue: 0/2020

Changes may be made periodically to the information in this publication without obligation to notify any person of such revisions or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose.

Record the model number, serial number, purchase date and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your computer. All correspondence concerning your unit should include the serial number, model number and purchase information.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronically, mechanically, by photocopy, recording or otherwise, without the prior written permission of Acer Incorporated.

Acer LCD Monitor User's Guide

Model number: __________________________________

Serial number: ___________________________________

Date of purchase: ________________________________

Place of purchase: ________________________________

Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companie product names or trademarks are used here their respective companies.

in for identification pu

rposes only and belong to

Special notes on LCD monitors

The following are normal with the LCD monitor and do not indicate a prob

Due to the nature of the fluorescent light, the screen may flicker during

•

initial use. Turn off the power switch and then turn it on again to m sure the flicker disappears.

You may find slightly uneven brightness on the screen depending on the

•

desktop pattern you us The LCD screen has 99.99% or more effective pixels. It may include

•

blemishes of 0.01% or less such as a missing p Due to the nature of the LCD screen, an afterimage of the previous screen

•

may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the or turning off the power switch for a few hours.

•

Acer monitor is purposed fo obtained from electronic devices.

ixel or a pixel lit all the time.

r video and visual display of information

ake


Information for your safety and comfort

iii

lem.

Safety instructions

Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product.

Cleaning your monitor

Please carefully follow these guidelines when cleaning the monitor:

•

Always unplug the monitor before cleaning. Use a soft cloth to wipe the screen and cabinet front and sides.

•

Connecting/disconnecting the device

Observe the following guidelines when connecting and disconnecting power from the LCD monitor:

Make sure the monitor is attached to its base before connecting the power

•

cord to the AC power outlet.

•

Make sure both the LCD monitor and the computer are turned off before connecting any cable or unplugging the power cord.

• If the system has multiple sources of power, disconnect power from the

system by unplugging all power cords from the power supplies.

Accessibility

Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipm disconnect power from the equipment, be sure to unplug the power cord from the electrical outlet.

ent operator as possible. When you need to

Safe listening

To protect your hearing, follow these instructions.

Gradually increase the volume until you can hear it clearly and comfortably

•

and without distortion. After setting the volume level, do not increase it after your ears have

•

adjusted. Limit the amount of time listening to music at high volume.

•

Avoid turning up the volume to block out noisy surroundings.

•

Turn the volume down if you can't hear people speaking near you.

•

Warnings

Do not use this product near water.

•

Do not place this product on an unstable cart, stand or table. If the product falls, it could be seriously damaged.

Slots and openings are provided for ventilation to ensure reliable

•

operation of the prod openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.

•

Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind the product.

To avoid damage of internal components and to prevent battery leakage,

•

do not place the product on a vibrating surface Never use it under sporting, exercising, or any vibrating environment

•

which will probably cause un devices.

uct and to protect it from overheating. These

onto or into

expected short current or damage internal

Using electrical power

This product should be operated from the type of power indicated on the

•

marking label. If you are not sure of the type of power available, co your dealer or local power company.

• Do not allow anything to rest on the power cord. Do not locate th

product where people will walk on the cord.

• If an extension cord is used with this product, make sure that the total

nsult

ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.

Do not overload a power outlet, strip or receptacle by plugging in too

•

many devices. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip's input rating.

• This product's power cord is equipped with a three-wire grounded plug.

The plug only fits in a grounded power outlet. Make sure the power outlet is properly grounded before inserting the power cord plug. Do not insert the plug into a non-grounded power outlet. Contact your electrician for details.

Warning! The grounding pin is a safety feature. Using a power outlet that is not properly grounded may result in electric shock and/or injury.

Note: The grounding pin also provides good protection from unexpected noise produced by other nearby electrical devices that may interfere with the performance of this product.

Use the product only with the supplied power supply cord set. If you need

•

to replace the power cord set, make sure that the new power cord meets the following requirements: detachable type, UL listed/CSA certified, type SPT-2, rated 7 A 125 V minimum, VDE approved or its equivalent, 4.5 meters (15 feet) maximum length.

Product servicing

Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

Unplug this product from the wall outlet and refer servicing to qualified service personnel when:

•

the power cord or plug is damaged, cut or frayed

• liquid was spilled into the product

the product was exposed to rain or water

•

the product has been dropped or the case has been damaged

•

the product exhibits a distinct change in performance, indicating a need for service

• the product does not operate normally after following the operating

instructions

Note: Adjust only those controls that are covered by the operating instructions, since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.

Potentially explosive environments

Switch off your device in any area with a potentially explosive atmosphere and obey all signs and instructions. Potentially explosive atmospheres include areas where you would normally be advised to turn off your vehicle engine. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Switch off the device near gas pumps at service stations. Observe restrictions on the use of radio equipment in fuel depots, storage and distribution areas; chemical plants; or where blasting operations are in progress. Areas with a potentially explosive atmosphere are often, but not always, marked. They include below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), and areas where the air contains chemicals or particles such as grain, dust or metal powders.

Additional safety information

Your device and its enhancements may contain small parts. Keep them out of the reach of small children.

IT Equipment Recycling Information

Acer is strongly committed to environmental protection and views recycling, in the form of salvaging and disposal of used equipment, as one of the company's top priorities in minimizing the burden placed on the environment.

We at Acer are very conscious of the environmental effects of our business and strive to identify and provide the best working procedures to reduce the environmental impact of our products.

For more information and help when recycling, please go to this website:

http://www.acer-group.com/public/Sustainability/

Visit www. .com of our other products.

acer-group

for further information on the features and benefits

vii

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit

http://www.acer‐group.com/public/Sustainability

LCD pixel statement

The LCD unit is produced with high-precision manufacturing techniques. Nevertheless, some pixels may occasionally misfire or appear as black or red dots. This has no effect on the recorded image and does not constitute a malfunction.

viii

This product has been shipped enabled for power management:

Activate display’s Sleep mode within 15 minutes of user inactivity.

•

Activate computer’s Sleep mode within 30 minutes of user inactivity.

Tips and information for comfortable use

Computer users may complain of eyestrain and headaches after prolonged use. Users are also at risk of p computer. Long work periods, bad posture, poor work habits, stress, inadequate working conditions, personal health and other factors greatly increase the risk of physical injury.

Incorrect computer usage may lead to carpal tunnel syndrome, tendonitis, tenosynovitis or other musculoskeletal disorders. The following symptoms may appear in the hands, wrists, arms, shoulders, neck or back:

•

numbness, or a burning or tingling sensation aching, soreness or tenderness

•

pain, swelling or throbbing stiffness or tightness

•

coldness or weakness If you have these symptoms, or any other recurring or persistent discomfort and/or pain related to co inform your company's health and safety department.

The following section provides tips for more comfortable computer use.

hysical injury after long hours of working in front of a

mputer use, consult a physician immediately and

Finding your comfort zone

Find your comfort zone by adjusting the viewing angle of the monitor, using a footrest, or raising your the following tips:

•

refrain from staying too long in one fixed posture

•

avoid slouching forward and/or leaning backward

• stand up and walk around regularly to remove the strain on your leg

muscles

sitting height to achieve maximum comfort. Observe

Taking care of your vision

Long viewing hours, wearing incorrect glasses or contact lenses, glare, exce room lighting, poorly focused screens, very small typefaces and low-contrast displays could stress your eyes. The following sections provide suggestions on how to reduce eyestrain.

Eyes

•

Rest your eyes frequently.

• Give your eyes regular breaks by looking away from the monitor and

focusing on a distant point.

•

Blink frequently to keep your eyes from drying out.

Display

Keep your display clean.

•

Keep your head at a higher level than the top edge of the display so your

•

eyes point downward when looking at th Adjust the display brightness and/or contrast to a comfortable level for

•

enhanced text readability and graphics clarity. Eliminate glare and reflections by:

•

placing your display in such a way that the side faces the window or any light source

minimizing room light by using drapes, shades or blinds

•

using a task light

•

cha

nging the display'

using a glare-reduction filter

•

using a display visor, such as a piece of cardboard extended from the

•

display's top front e

•

Avoid adjusting your display to an awkward viewing angle. Av

•

oid

periods of time.

look

ing

bright light so

s viewing angle

dge

urces, such as op

e middle of the display.

ndo

en wi

ws, for extended

ssive

Developing good work habits

Develop the following work habits to make your computer use more relaxing and productive:

Take short breaks regularly and often.

•

Perform some stretching exercises.

• Breathe fresh air as often as possible.

Exercise regularly and maintain a healthy body.

•

TABLE OF CONTENTS

UNPACKING............................................................................................ 1

REMOVING THE STAND ARM FOR WALL MOUNT............................... 2

SCREEN POSITION ADJUSTMENT .......................................................... 3

CONNECTING THE POWER CORD.......................................................... 5

SAFETY PRECAUTION............................................................................. 5

CLEANING YOUR MONITOR .................................................................. 5

POWER SAVING...................................................................................... 6

DDC......................................................................................................... 6

CONNECTOR PIN ASSIGNMENT............................................................. 7

STANDARD TIMING TABLE .................................................................... 8

INSTALLATION...................................................................................... 10

USER CONTROLS .................................................................................. 11

TROUBLESHOOTING ............................................................................ 22

UNPACKING

Please check the following items are present when you unpack the box, and save the packing materials in case you will need to ship or transport the monitor in future.

 LCD Monitor  Quick Start Guide  AC Power Cord

 DP Cable

(Optional)

 HDMI Cable

(Optional)

 USB Cable

(Optional)

EN-1

REMOVING THE STAND ARM FOR WALL MOUNT

Note: Carefully place the monitor face-down on a stable surface -- use a cloth to avoid scratching the screen.

1. Loosen and remove the screws with a Phillips screwdriver, then lift and remove the stand arm.

Note: If installing with a wall mounting kit, it is recommended to use VESA mounting kit (100mm x 100mm) with M4 x 10 (L) mm screws to fix your monitor on the wall.

2. Your monitor is ready for wall mount.

EN-2

SCREEN POSITION ADJUSTMENT

-5



130mm

In order to optimize the best viewing position, you can adjust the height/tilt of the monitor.

• Tilt Please see the illustration below for an example of the tilt range. Only at the highest point can 23 degrees of recline be offered for the angle of elevation.

• Height Adjustment After pressing the top of the monitor then you can adjust the height of the monitor.

EN-3

• Monitor Pivot





PP







Before rotating the display, lift it to the top position and then push it back to the utmost degree. Rotate until the monitor stops at 90°.

• Swivel With the built-in pedestal, you can swivel the monitor for the most comfortable viewing angle.

EN-4

CONNECTING THE POWER CORD

 Check first to make sure that the power cord you use is the correct type

required for your area.

 This monitor has a universal power supply that allows operation in either

100/120V AC or 220/240 V AC voltage area. No user-adjustment is required.

 Plug one end of the AC power cord to an AC inlet, and plug the other end

into an AC outlet.

 For unit using at 120 V AC:

Use a UL Listed Cord Set, Type SVT wire and plug rated 10 A/125 V.

 For unit using at 220/240 V AC (outside of U.S.):

Use a Cord Set consisting of H05VV-F cord and plug rated 10 A, 250 V. The cord set should have the appropriate safety approvals for the country in which the equipment will be installed.

SAFETY PRECAUTION

 Avoid placing the monitor, or any other heavy object, on the power cord

to avoid damage to the cable.

 Do not expose the monitor to rain, excessive moisture, or dust.  Do not cover the ventilation slots or openings of the monitor. Always put

the monitor in a place where there is adequate ventilation.

 Avoid placing the monitor against a bright background or where sun-light

or other light sources may reflect on the face of the monitor. Place the monitor just below eye level.

 Handle with care when transporting the monitor.  Refrain from giving shock or scratch to the screen, as screen is fragile.  In order to prevent damage to the monitor, do not lift the monitor by its

base.

CLEANING YOUR MONITOR

Please carefully follow the below guidelines when cleaning the monitor.

 Always unplug the monitor before cleaning.  Use a soft cloth to gently wipe the screen and cabinet front and sides.  NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE SCREEN OR

CASE.

 PLEASE DO NOT USE ANY AMMONIA OR ALCOHOL-BASED CLEANERS ON

THE LCD DISPLAY SCREEN OR CASE.

 Acer will not be liable for damage resulting from use of any ammonia or

alcohol-based cleaners.

EN-5

POWER SAVING

The monitor will be driven into “Power Saving” mode by the control signal from the display controller, as indicated by the amber-color power LED.

State LED Light

ON Blue

Power Saving Mode Amber

The power saving states will be kept until a control signal has been detected or the keyboard or mouse is activated. The recovery time from Active OFF state back to ON state is around 3 seconds.

DDC

To make your installation easier, the monitor is able to Plug and Play with your system if your system also supports DDC protocol. The DDC (Display Data Channel) is a communication protocol through which the monitor automatically informs the host system about its capabilities, for example, supported resolutions and corresponding timing. The monitor supports DDC2B standard.

EN-6

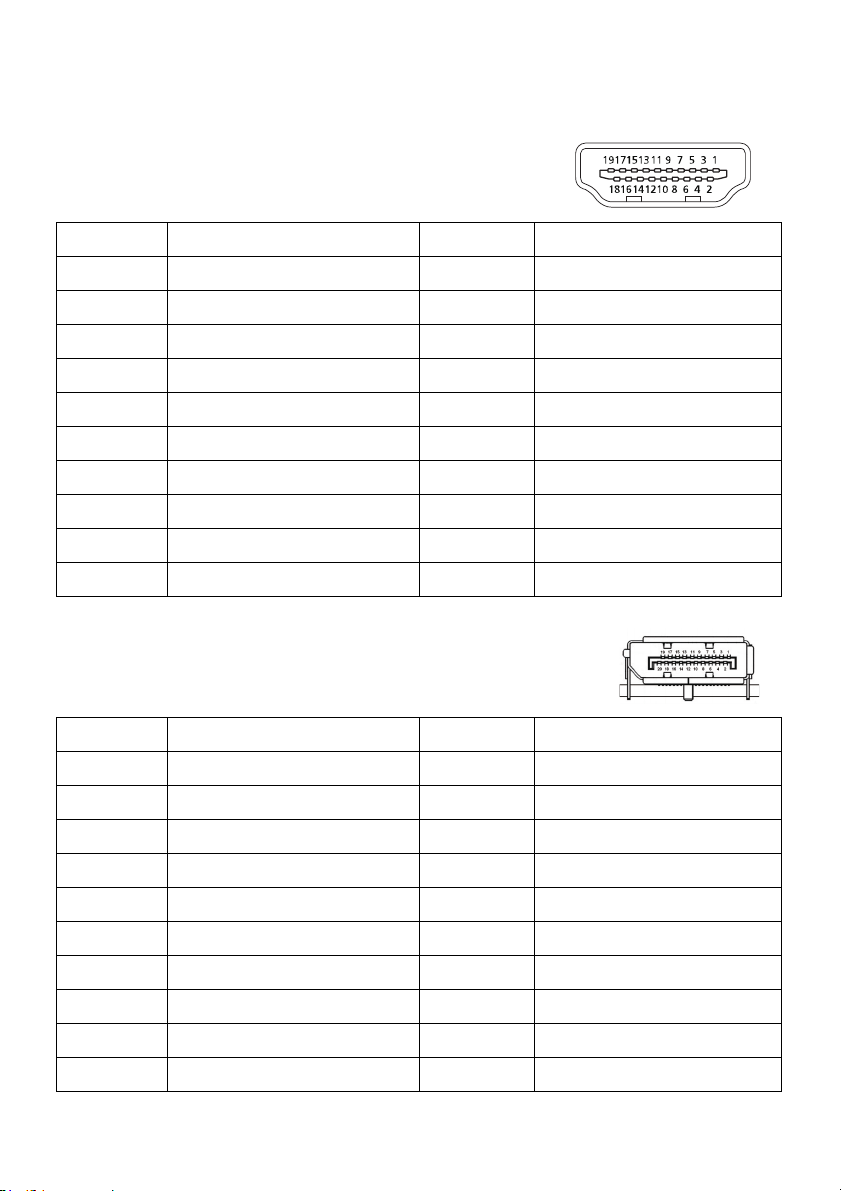

CONNECTOR PIN ASSIGNMENT

19-Pin Color Display Signal Cable*

PIN Meaning PIN Meaning

1. TMDS Data2+ 10. TMDS Clock+

2. TMDS Data2 Shield 11. TMDS Clock Shield

3. TMDS Data2- 12. TMDS Clock-

4. TMDS Data1+ 13. CEC

5. TMDS Data1 Shield 14. Reserved (N.C. on device)

6. TMDS Data1- 15. SCL

7. TMDS Data0+ 16. SDA

8. TMDS Data0 Shield 17. DDC/CEC Ground

9. TMDS Data0- 18. +5V Power

19. Hot Plug Detect

* only for certain models

20-Pin Color Display Signal Cable*

PIN Description PIN Description

1. Lane0(p) 11. GND

2. GND 12. Lane3(n)

3. Lane0(n) 13. Config1

4. Lane1(p) 14. Config2

5. GND 15. AUX_CH (n)

6. Lane1(n) 16. GND

7. Lane2(p) 17. AUX_CH (p)

8. GND 18. Hot Plug Detect

9. Lane3(n) 19. DP Power_Return

10. Lane3(p) 20. DP Power

* only for certain models

EN-7

STANDARD TIMING TABLE

Mode Resolution Remark

1 VGA 640 x 480 60 Hz 2 VGA 640 x 480 72 Hz 3 VGA 640 x 480 75 Hz 4 MAC 640 x 480 66.66 Hz 5 VESA 720 x 400 70 Hz 6 SVGA 800 x 600 56 Hz 7 SVGA 800 x 600 60 Hz 8 SVGA 800 x 600 72 Hz 9 SVGA 800 x 600 75 Hz 10 MAC 832 x 624 74.55 Hz 11 XGA 1024 x 768 60 Hz 12 XGA 1024 x 768 70 Hz 13 XGA 1024 x 768 75 Hz 14 VESA 1152 x 864 75 Hz 15 VESA 1280 x 960 60 Hz 16 SXGA 1280 x1024 60 Hz 17 SXGA 1280 x1024 75 Hz 18 VESA 1280 x 720 60 Hz 19 WXGA+ 1440 x 900 60 Hz 20 WSXGA+ 1680 x 1050 60 Hz 21 FHD 1920 x 1080 60 Hz 22 QHD 2560 x 1440 60 Hz 23 QHD 2560 x 1440 100 Hz 24 QHD 2560 x 1440 120 Hz 25 QHD 2560 x 1440 144 Hz

26 QHD 2560 x 1440 170 Hz

Overclocking for DisplayPort only.

EN-8

Note: The DisplayPort of this monitor is purposely supporting the G-Sync compatible/Adaptive-Sync support technology. This technology allows Adaptive-Sync (DP) supported graphics source to dynamically adjust display refresh rate based on typical content frame rates in order to eliminate stuttering and enhance low-latency display.

Note: Overclocking may result in flicker or other adverse effects that may derive from the total configuration of the system connected to the display, and possibly, in addition, the display’s panel specifications. It may be possible to resolve or reduce such effects by setting a lower refresh rate.

EN-9

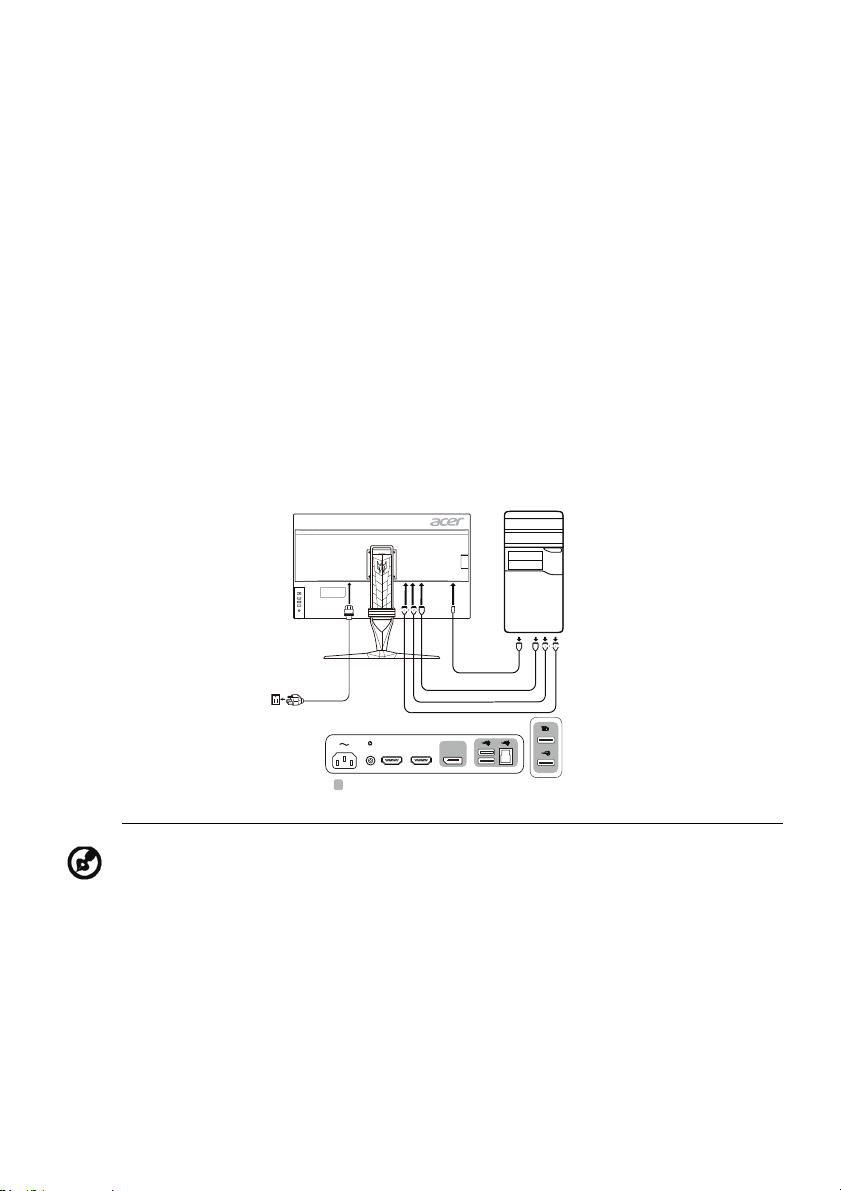

INSTALLATION

HDMI HDMI

HDMI 2 DPHDMI 1

optional

To install the monitor to your host system, please follow the steps as given below: Steps

1. 1-1 Connect HDMI Cable (Only HDMI-input model) a. Make sure both the monitor and computer are powered-OFF. b. Connect the HDMI cable to the computer.

1-2 Connect DP Cable (Only DP-input model) (Optional)

a. Make sure both the monitor and computer are powered-OFF. b. Connect the DP cable to the computer.

2. Insert the monitor power cable into the power port at the back of the

monitor.

3. Plug the power cords of your computer and your monitor into a nearby

electrical outlet.

4. Select Power-off USB charge ON/OFF to enable/disable Power-off USB

charge function. (Optional)

Note: Adjustment of the volume control as well as the equalizer to other settings than the center position may increase the ear-/ headphones output voltage and therefore the sound pressure level.

EN-10

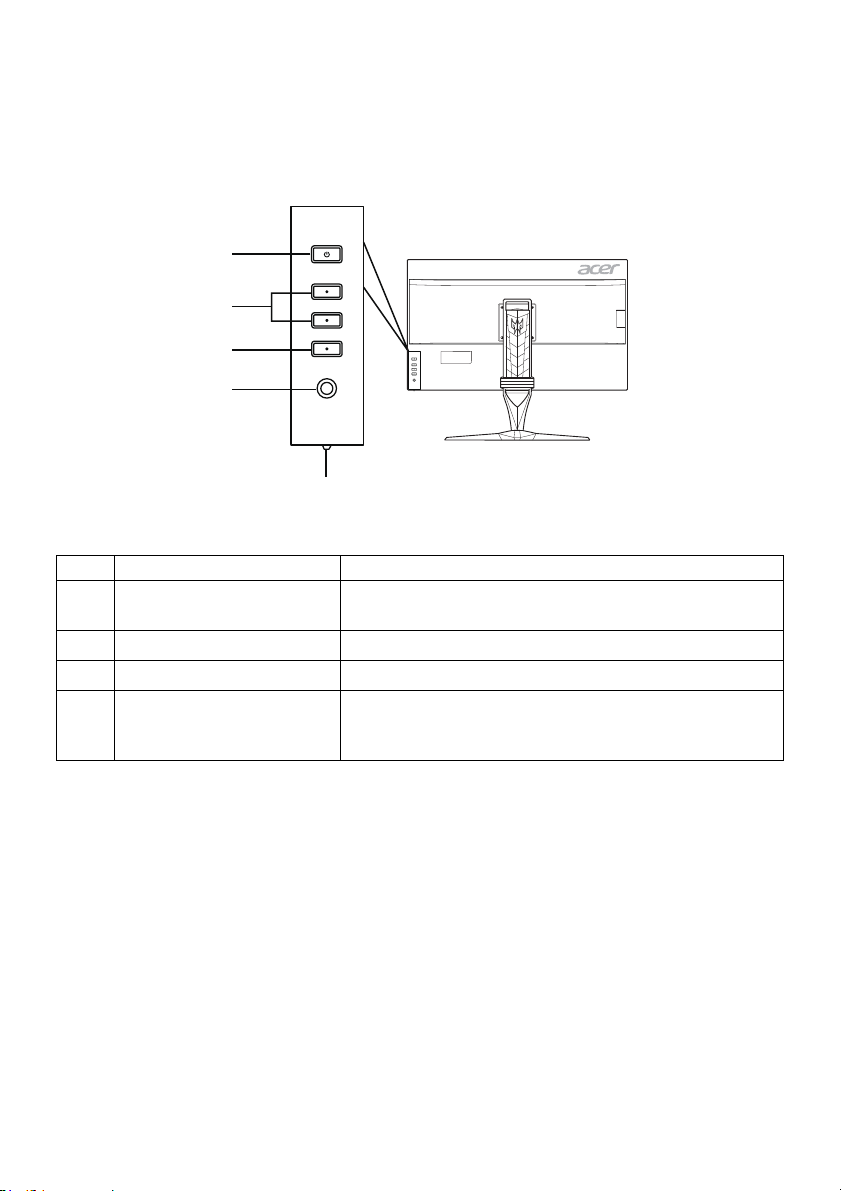

USER CONTROLS

2 3

Base Controls

No. Item Description

1 Power button/indicator

2 Hotkey 1, 2 buttons Press to activate user defined hotkey function. 3 Input button Press to toggle input sources.

4 Navi/OK button

Turns the monitor on/off. Blue indicates power on. Amber indicates standby/power saving mode.

Press to activate the OSD menu, then use it as a directional key to highlight the desired function. Press it again to enter a selection.

EN-11

Adjusting the OSD settings

Note: The following content is for general reference only. Actual product specifications may vary.

The OSD (on-screen display) can be used for adjusting the settings of your LCD Monitor. Press the MENU key to open the OSD. You can use the OSD to adjust the picture quality, OSD position and general settings. For advanced settings, please refer to following page:

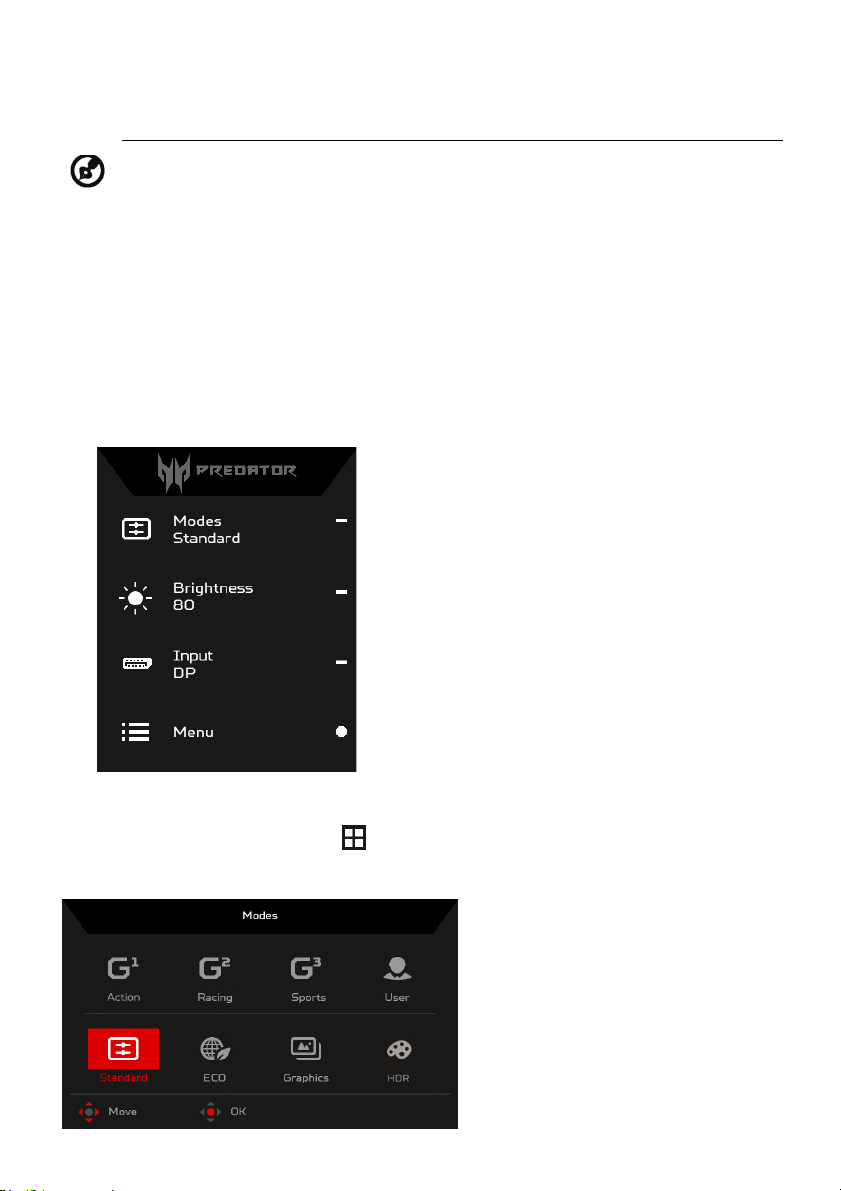

Main Page The default function for buttons 1 and 2 are Modes and Brightness. You can

use the Hot Key Assignment function to set these buttons to your preferred functions.

1. Modes

2. Brightness

3. Input

4. Menu

Turn Modes on or off From any function page, press to open the Modes control and select which

user-defined profile to use (please see the OSD section for more information).

EN-12

Adjusting the Brightness Open the Brightness control and select the brightness setting using the Navi/

OK button. When you are done, press the Navi/OK button to exit.

Selecting the Input Open the Input control and select an available input source. When you are

done, press the Navi/OK button to go back one level.

EN-13

The Function page

Open the Function page to select a menu function, and adjust the settings which you want using the Navi/OK button. When you are done, press the Navi/OK button or to go back one level.

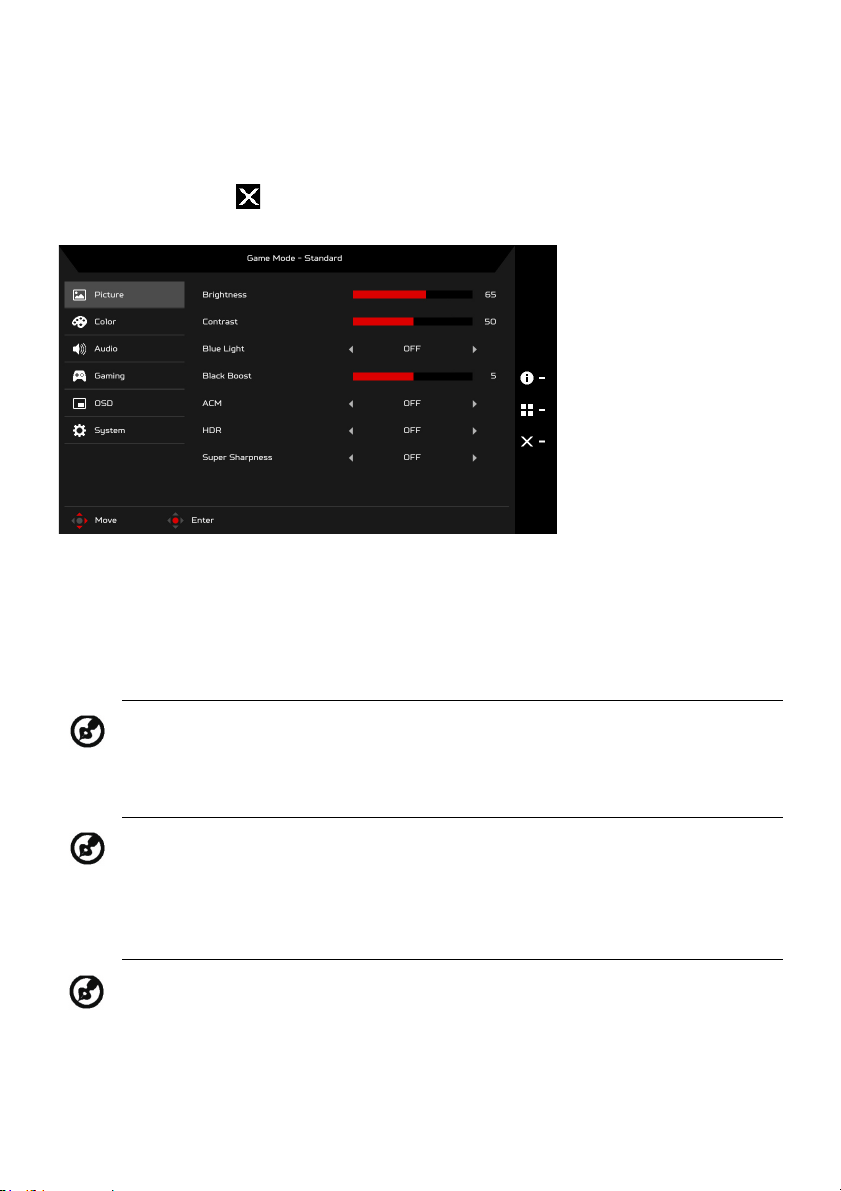

Adjusting the Picture

1. Press the MENU key to bring up the OSD.

2. Using the Navi/OK button, select Picture from the OSD. Then navigate to

the setting you wish to adjust.

3. Use the Navi/OK button to adjust the sliding scales.

4. Brightness: Adjust the brightness from 0 to 100.

Note: Adjusts the balance between light and dark shades.

5. Contrast: adjust the contrast from 0 to 100.

Note: Sets the degree of difference between light and dark areas.

6. Blue Light: filter out blue light by adjusting different Blue Light showing

ratio - 80%, 70%, 60%, 50%

Note: Higher values allow more blue light through. For the best protection, select a lower value.

7. Black Boost: This boosts the amplitude of the dark color levels of the

display– blacks will be less black. The higher the level, the higher the boost.

EN-14

8. ACM: Turn ACM on or off. The default is off.

9. HDR: Turn HDR Off, Auto or HDR-600. The default is Off. Select Auto

enables this function to automatically detect and process HDR signal.

Note:

1. If HDR is “Auto”, then Modes is set to “HDR” automatically.

2. If HDR is “Auto”, certain parameters (ACM, Gamma, Contrast, Blue Light, Color Temperature, Black Boost, Grayscale Mode, 6axis Hue, 6-axis Saturate, and VRB) are grayed out and disabled.

Note: With HDR enabled, full-array local dimming display may experience a blooming or haloing effect due to brighter zones affecting images of adjacent dark zones.

10. Super Sharpness technology can simulate high-resolution images by boosting the pixel density of the original source. It can make images sharper and clear.

EN-15

Adjusting the Color

1. Press the MENU key to open the OSD.

2. Using the Navi/OK button, select Color from the OSD. Then navigate to the setting you wish to adjust.

3. Use the Navi/OK button to select the setting.

4. Gamma mode allows you to adjust the luminance tone. The default value is 2.2 (standard value for Windows).

5. Color temperature: Default is warm. You can choose Cool, Warm, Normal, Blue Light or User.

6. Modes: Select your preferred mode.

EN-16

7. Color Space: You can choose Standard, SMPTE-C, DCI, EBU, HDR, Rec. 709 or sRGB.

Note:

1. If Color Space is “HDR”, then Modes is set to “HDR” automatically.

2. If Color Space is not “HDR”, then Modes is set to “Standard”.

8. Grayscale Mode: Turn grayscale mode On or Off.

9. 6-axis Hue: Adjust the red, green, blue, yellow, magenta and cyan hue.

10. 6-axis Saturate: Adjust the red, green, blue, yellow, magenta and cyan saturation.

Adjusting the Audio

1. Press the MENU key to open the OSD.

2. Using the Navi/OK button, select Audio from the OSD. Then navigate to the setting you wish to adjust.

3. Use the Navi/OK button to adjust any sliding scales.

4. Volume: Adjusts the volume.

5. Mute: Select On or Off.

EN-17

Adjusting the Gaming

1. Press the MENU key to open the OSD.

2. Using the Navi/OK button, select Gaming from the OSD. Then navigate to the setting you wish to adjust.

3. Use the Navi/OK button to adjust any sliding scales.

4. Over Drive: Select Off, Normal, or Extreme.

Note:

1. If Adaptive-Sync is “ON”, then the Over Drive selection is set to “Normal” automatically

2. If Adaptive-Sync is “OFF”, then the user can set Over Drive to either one of the three settings including: (a) Extreme (b) Normal (c) Off

5. Adaptive-Sync: To control supporting Adaptive-Sync or not; the default is On.

Note: Adaptive-Sync provides artifact-free performance. It is compatible with both Nvidia G-Sync and AMD FreeSync technologies when used in combination with select Nvidia/AMD graphics cards.

6. Refresh Rate Num: Display the panel’s current refresh rate on the screen.

7. Ultra-Low Latency: Select On to speed up the processing time of the display switching process.

Note:

1. If Adaptive-Sync is “ON”, then the Ultra-Low Latency is automatically turned On and grayed out.

2. Ultra-Low Latency is not supported at resolutions below 800 x

600.

EN-18

8. Aim Point: Show an Aim point on the screen for shooting games. Adjusting the OSD

1. Press the MENU key to open the OSD.

2. Using the Navi/OK button, select OSD from the OSD. Then navigate to the setting you wish to adjust.

3. Use the Navi/OK button to adjust any sliding scales.

4. Language: Set the OSD menu language.

5. OSD Timeout: Adjust the delay before turning the off the OSD menu.

6. Transparency: Select the transparency when using gaming mode. The transparency can be 0% (OFF), 20%, 40%, 60%, or 80%.

7. OSD Lock: OSD Lock function is used to prevent OSD button from being pressed accidentally. To remove the OSD Lock message, press and hold the Navi/OK button continuously for 3 seconds until the message disappears. If the OSD Lock message remains, please check whether the Navi/OK button is stuck.

EN-19

Adjusting the System

1. Press the MENU key to open the OSD.

2. Using the Navi/OK button, select System from the OSD. Then navigate to the setting you wish to adjust.

3. Use the Navi/OK button to select the setting.

4. Input: Select the source from an available input source.

5. Auto Source: Automatically searches for available input sources.

6. DP Format: You can select which DP format you are using. The default is set at DP1.4.

7. Hot Key Assignment: Select the function of Hot Key 1 or Hot Key 2.

8. Wide Mode: You can select which screen aspect you are using. The options are Full, Aspect and 1:1.

EN-20

9. PIP/PBP: The options for PIP/PBP Mode are Off, PIP Large, PIP Small, and PBP. You can also adjust the PIP Position, PBP Size, Sub Source, Source Swap, and Audio Source.

10. DDC/CI: Allows the monitor settings to be set through the software on the PC.

Note: DDC/CI, short for Display Data Channel/Command Interface, which allows monitor controls to be sent via software.

11. HDMI Black Level: You can select the level of blackness under HDMI source. The options are Normal and Low.

12. Quick Start Mode: Enable monitor rapidly.

13. Power-off USB charge (Optional): Turn On or Off.

Product information

1. From any function page, press the key to open the OSD.

2. Reset All Settings: Reset all settings to the factory defaults.

EN-21

TROUBLESHOOTING

Before sending your LCD monitor for servicing, please check the troubleshooting list below to see if you can self-diagnose the problem.

(HDMI/DP Mode)

Problems Current Status Remedy

 Using OSD, adjust brightness

No Picture

Abnormal Sound

(Only Audio-Input model) (Optional)

LED ON

LED OFF

LED displays amber color

No sound, or sound level is too low

and contrast to maximum or reset to their default settings.

 Check the power switch.  Check if AC power cord is

properly connected to the monitor.

 Check if video signal cable is

properly connected at the back of monitor.

 Check if the power of computer

system is ON.

 Check the audio cable with the

host PC is connected.

 Check if the volume setup of the

host PC is in minimum position and try to raise the volume level.

EN-22

XB323U XB323U

Apr. 24, 2020

EN-23

Acer America Corporation

333 West San Carlos St.,

Suite 1500

San Jose, CA 95110

Fax : 254-298-4147

U. S. A.

Tel : 254-298-4000

www.acer.com

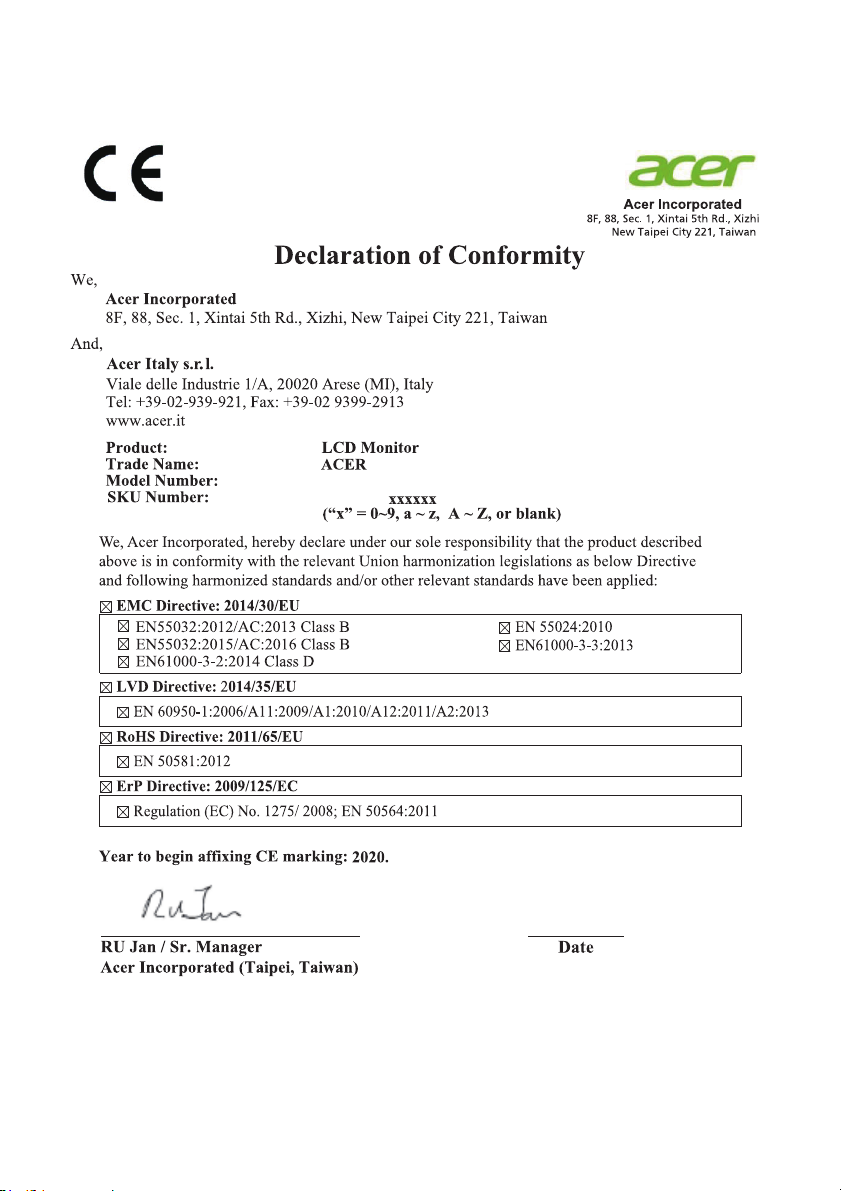

Federal Communications Commission

Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product: LCD Monitor

Model Number: XB323U

SKU Number: XB323U xxxxxx

(“x” = 0~9, a ~ z, or A ~ Z)

Name of Responsible Party: Acer America Corporation

333 West San Carlos St.

Address of Responsible Party:

Suite 1500 San Jose, CA 95110 U. S. A.

Contact Person: Acer Representative

Phone No.: 254-298-4000

Fax No.: 254-298-4147
