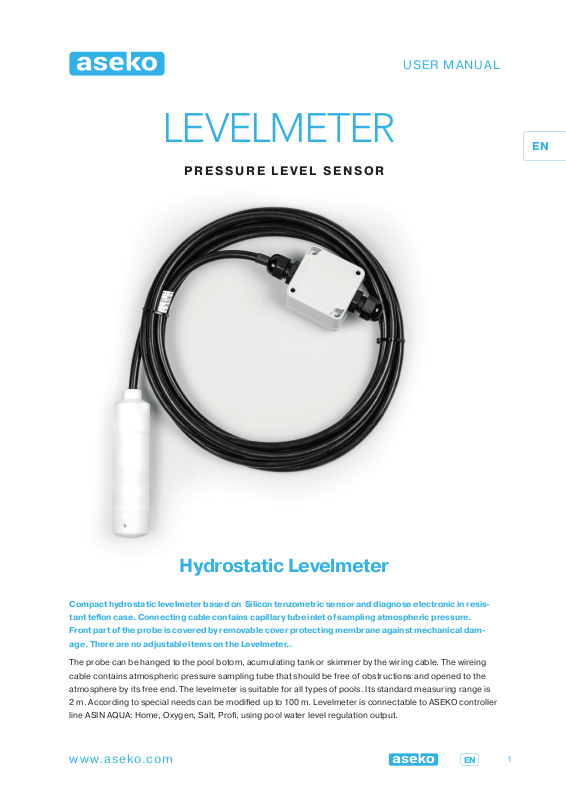

USER MANUAL
LEVELMETER
PRESSURE LEVEL SENSOR
EN
Hydrostatic Levelmeter
Compact hydrostatic levelmeter based on Silicon tenzometric sensor and diagnose electronic in resis-
tant teflon case. Connecting cable contains capillary tube inlet of sampling atmospheric pressure.
Front part of the probe is covered by removable cover protecting membrane against mechanical dam-
age. There are no adjustable items on the Levelmeter..
The probe can be hanged to the pool botom, acumulating tank or skimmer by the wiring cable. The wireing
cable contains atmospheric pressure sampling tube that should be free of obstructions and opened to the
atmosphere by its free end. The levelmeter is suitable for all types of pools. Its standard measuring range is
2 m. According to special needs can be modified up to 100 m. Levelmeter is connectable to ASEKO controller
line ASIN AQUA: Home, Oxygen, Salt, Profi, using pool water level regulation output.
www.aseko.com
EN
1
T125mA
Accessories Connection
POWER SUPPLY
N
230 V ~ 50 Hz
230 V ~ 50 Hz
Besgo
2
valve
connector
Refilling
solenoid
connector
Heating
relay
L L N
19 Besgo valve
18 Refilling solenoid
17 Heating relay
Max 1 A, Max 230 V
POTENTIALFREE RELAY
16 17 18 19
( + )
1
3
1 3 A1 5 7
GND
2 4 A2 6 8
T800mA
Roller shutter
position
Water level senzor
Flowmeter
Water thermometer
4 – 20 mA
12V
Outdoor air thermometer
SENSOR INPUTS
2 3 4 5 6 7 8 9
1
A
External display
B
RS 485
+
–
4x 0,5 max 100 m
Connected - closed
Disconnected - opened
Water level
sensor
connector
External
GND +12V B A
display
connector
2
EN
Pressure Levelmeter #12086
Installing instructions
• Dive the levelmeter to the measured space (pool, skimmer, accumulating
tank etc.). Probe will just hang on the wiring cable.
• It is necessary to use non-hermetic transition box for wiring connection,
as the cable contain the sampling atmospheric pressure tube.
• You must keep the minimum diameter 30 cm when rolling up the excess
cable! It is not recommended to shorten or mechanically modify the cable.
• It is necessary to insert the probe to protection pipe housing, behind
any obstacle or as far as possible from the inlet at pools with swirl
at the inlet water.
Level sensor - Level Monitoring and Automatic Refilling
Level measurement is performed by the pressure-type level sensor. This
allows the very easy installation of the sensor by its inserting into the storage
water reservoir or skimmer. Level is monitored at four heights that are easily
entered in centimeters of water height.
Setting:
High level ALARM - too much water in overflow tank
After this level is reached, following actions may start:
1. If the automatic filter washing is enabled, one filter washing cycle starts
and drains the waste water.
2. If the automatic filter washing is not enabled, the relay 19 switches
on (filter washing) for the period of time until level is OK. The second
circulating pump or automatic drain valve can be connected to this relay.
Refilling OFF - required level
Refilling stops
Refilling ON - level at which refilling starts
Refilling starts after if the water level stay permanently at least for
10 seconds below this value (in order to prevent oscillating)
Low level ALARM
Circulation (filtering) pump shuts o
Protection, safety and compatibility
The flow meter is protected against over-voltage and over-poling of
power-supply.
Danger touch protection is arranged by safety low voltage according to
ČSN 33 2000-4-41
Electromagnetic compatibility correspond to ČSN EN 55011/B,
ČSN EN 61326-1, ČSN EN 61000-4-2 (8 kV), -4-3 (10 V/m),
-4-4 (2 kV) a -4-6 (10 V).
