Operating Instructions for

ASCOLINE 700

AEB 2xx, 4xx

Electric Frying Plate,

Electric Grill Plate /

Griddle Plate

Quality and Competence in

Stainless Steel

Operating Instructions for Ascoline 700, AEB 2xx, 4xx

1 Table of Contents

Page

1 Table of Contents .............................................................................................................. 1

2 Details of the Equipment .................................................................................................. 2

3 Instructions on Safe-handling of the Equipment ........................................................... 2

3.1 General instructions ............................................................................................................ 2

3.2 Safety instructions for operating, cleaning and repair ......................................................... 3

3.3 Instructions for transport ..................................................................................................... 3

3.4 Instructions on installation ................................................................................................... 3

4 Installation ......................................................................................................................... 3

4.1 Setting up ............................................................................................................................ 3

4.2 Connections ........................................................................................................................ 3

5 Proper Use of the Equipment .......................................................................................... 4

5.1 Operational start-up ............................................................................................................ 4

5.2 Operating ............................................................................................................................ 4

5.3 Cleaning .............................................................................................................................. 4

6 Repair and Maintenance ................................................................................................... 4

6.1 Repair and Maintenance ..................................................................................................... 4

6.2 Measures to be taken for longer stoppages ....................................................................... 5

7 Faults and their Rectification ........................................................................................... 5

7.1 Fault rectification ................................................................................................................. 5

7.2 Customer service ................................................................................................................ 5

8 Spare Parts ........................................................................................................................ 6

8.1 List ....................................................................................................................................... 6

8.2 Illustrations .......................................................................................................................... 6

9 Declaration of Conformity ................................................................................................ 8

Annexes

• Technical Data Sheet

• Connection Diagram

• Cleaning and Care Instructions

Dear customer,
Read carefully through these operating instructions before putting the equipment into operation for the first time. They

contain important instructions on setting up, use and maintenance of the equipment. Pay special attention to the safety
instructions included in the text.

Keep these operating instructions in a safe place and ensure that they are accessible to the operating personnel at all
times. In addition to the instructions for operating, you will also find instructions and information for your servicing staff.

Hazard symbol description

ascobloc Gastro-Gerätebau GmbH 01156 Dresden, Grüner Weg 29 Germany

Tel. [phone] Fax: [phone] E-mail:

General hazard symbol
Non-observance of the safety instructions means danger to persons (injury) or damage to

the equipment

Hot surfaces. Contact can lead to burns.

Subject to change without notice!

[email protected] AEBxxxff.doc Status: 06 April 2011

1

Operating Instructions for Ascoline 700, AEB 2xx, 4xx

Appliance type

Version

ID No.

Wall and table

-

top appliances

2 Details of the Equipment

AEB 230 Electric frying plate, CrNi steel GN 1/1 basin 6570.100
AEB 240 Electric grill plate, ribbed steel bottom 6570.200

AEB 240.400 Electric grill plate, ribbed steel bottom, hard chrome-plated 6570.244

AEB 260 Electric griddle plate, smooth steel bottom 6570.260

AEB 260.400 Electric griddle plate, smooth steel bottom 6570.300

AEB 430 Electric frying plate, CrNi steel GN 2/1 basin 6571.100
AEB 440 Electric grill plate, ribbed steel bottom 6571.200

AEB 440.400 Electric grill plate, ribbed steel bottom, hard chrome-plated 6571.444

AEB 450 Electric grill plate/griddle plate, steel bottom, half-side is ribbed

AEB 450.400

AEB 460 Electric griddle plate, smooth steel bottom 6571.460

AEB 460.400 Electric griddle plate, smooth steel bottom 6571.464

AEB 238 Electric frying plate, CrNi steel GN 1/1 basin 6670.100
AEB 248 Electric grill plate, ribbed steel bottom 6670.200

AEB 248.400 Electric grill plate, ribbed steel bottom, hard chrome-plated 6670.400

AEB 268 Electric griddle plate, smooth steel bottom 6670.260

AEB 268.400 Electric griddle plate, smooth steel bottom 6670.300

AEB 438 Electric frying plate, CrNi steel GN 2/1 basin 6671.100
AEB 448 Electric grill plate, ribbed steel bottom 6671.200

AEB 448.400 Electric grill plate, ribbed steel bottom, hard chrome-plated 6671.400

AEB 458 Electric grill plate/griddle plate, steel bottom, half-side is ribbed

AEB 458.400

AEB 468 Electric griddle plate, smooth steel bottom 6676.460

AEB 468.400 Electric griddle plate, smooth steel bottom 6676.464

(see data sheet in annex for technical data)

Electric grill plate/griddle plate, steel bottom, half-side is
ribbed, hard chrome-plated

Electric grill plate/griddle plate, steel bottom, half-side is
ribbed, hard chrome-plated

Free-standing appliances

6571.450

6571.454

6674.450

6674.400

3 Instructions on Safe-handling of the Equipment

3.1 General instructions

The equipment is a technical appliance that is only intended for commercial use.
The electric frying plates and griddle plates are used for the commercial preparation of meals.
The appliance is not suitable for space heating nor for the warming up of other materials – except those

normally used in cooking.
Ventilation of the work rooms complying with the regulations is to be ensured.
The employers' liability insurance association (BG) rules “Working in Commercial Kitchens” of the

“Food Processing Industry” expert committee of the BG Central Office (BGR 111) are to be observed
when setting up and operating equipment.

Technical modifications to the equipment by unauthorised persons without written permission from the
manufacturer completely nullify any claims under the guarantee and invalidate any claims in respect of
product liability.

ascobloc Gastro-Gerätebau GmbH 01156 Dresden, Grüner Weg 29 Germany
Tel. [phone] Fax: [phone] E-mail:

Subject to change without notice!

[email protected] AEBxxxff.doc Status: 06 April 2011

2

Operating Instructions for Ascoline 700, AEB 2xx, 4xx

These instructions are to be made known to the members of staff affected in the context of an operating
directive.

3.2 Safety instructions for operating, cleaning and repair

Overheated fats and oils can be self-igniting. The preparation of food using fats and oils should not be left
unsupervised. Never try to extinguish fat or oil using water!

Several parts, such as the top plate of the range, frying plate and griddle plate get very hot due to the
high temperatures needed for frying and grilling. Protect yourself by only touching the control elements
provided and by wearing clothing that prevents direct skin contact.

The operating and cleaning may only be carried out by personnel who have received appropriate
instruction. Maintenance and repair may only be performed by qualified specialists who have received
training.

The manufacturer cannot be made liable for damage due to inexpert connection and handling. Claims
under the guarantee in such cases are null and void.

Before repair work is started, the equipment must be disconnected on all poles from the power
(using isolating equipment in the customer's supply, e.g. contact breakers).

3.3 Instructions for transport

Transport ascobloc equipment only in the original packaging. This avoids unnecessary damage and
expense.

Check equipment for damage.
Do not lift or shift the appliance by holding the top plate or the bottom edges at the sides of the appliance.

The bottom edges at the front and rear of the appliance are provided for this.

3.4 Instructions on installation

The appliance is wired up in the factory as far as the connector. All connection work must be carried out
by an authorised specialist company. Allow the technical experts to look at these documents. The legally
acknowledged regulations (Germany VDE, Austria ÖVE, Switzerland SEV etc.) and the connection
requirements of the local electricity utility are to be observed.

Before beginning the installation work, it should be checked that the mains voltage, mains type and the
current rating of the circuit breaker match the values given on the name plates. An isolating device in the
customer's scope of supply that is effective on all poles must be provided, e.g. contact breakers with at
least 3 mm contact gaps, so that the equipment is disconnected from the power supply during repair and
installation work. Connection to an equipotential bonding system is available (check effectiveness).

Do not sharply bend or crush mains cables or damage on sharp edges and route them so that they
cannot come in contact with hot parts. The power supply cable must be led through the equipment, fully
sheathed, from the screwed connection to the entry of the terminal box. The appliance is intended for
a permanent connection; connection via plug and socket is not permitted

4 Installation

4.1 Setting up

Do not set up the equipment next to walls, kitchen furniture, and decorations or similar which are made of
flammable materials. Otherwise there is danger of fire. See data sheet with equipment description for
minimum distance. Local fire protection regulations must be kept to absolutely!

The equipment must be set up absolutely horizontal (use spirit level for alignment). Equipment with
adjustable feet can easily compensate for unevenness in the floor (+/- 20 mm) by turning the bottom ends
of the feet. If set up on a plinth, this is to have shims fitted underneath to compensate for unevenness, if
required.

4.1.1 Free-standing set-up

If the equipment is to be set up on its own, suitable means are to be used to protect it against tilting and
shifting.

4.1.2 Setting them up in groups or blocks

When setting up in groups or blocks, the equipment must be joined together by connecting elements

provided for this purpose. This is for the sake of hygiene. Observe equipment setting up sheets or
assembly diagram (data sheet in annex).

4.2 Connections

Details of connections for the media can be taken from the accompanying connection diagram and
equipment description. Check whether the size and position of the electrical connections of the customer
side correspond to the information in the connection plan, equipment description or installation plan.

ascobloc Gastro-Gerätebau GmbH 01156 Dresden, Grüner Weg 29 Germany
Tel. [phone] Fax: [phone] E-mail:

Subject to change without notice!

[email protected] AEBxxxff.doc Status: 06 April 2011

3

Operating Instructions for Ascoline 700, AEB 2xx, 4xx

The terminal box for the connections is located behind the front panel A (see data sheet). Make the
connections as shown in the annex or in the connection diagram accompanying the equipment. The
number of the connection diagram is to be found on the type plate. Once the electrical connections have
been made, close the cover of the terminal box and screw the front panel in place again.

4.2.1 Free-standing appliances

The connections can be made from below or from the rear from a closed installation space. With the
connection from below, the pipe length must be 50 mm above the floor surface.

4.2.2 Wall/table mounted appliance - attached to an installation wall, cantilever or wall-mounted frame

When attaching the appliance to an installation wall, cantilever or on a wall-mounted frame (ACC 881),
the appliance connections from below or from the rear are to be used.

4.2.3 Wall/table-top appliances connect through the rear wall

On the right side at the rear in the corner is a bracket that is screwed on with downwards penetration
that covers the access to the installation channel to the rear. Remove the bracket, turn it through 180°
and screw it back on so that the penetration in the bracket now frees up access to the rear and covers
the downwards access.

5 Proper Use of the Equipment

5.1 Operational start-up

Remove the protective film before bringing into operation
Clean the equipment with dilute soap solution.

5.2 Operating

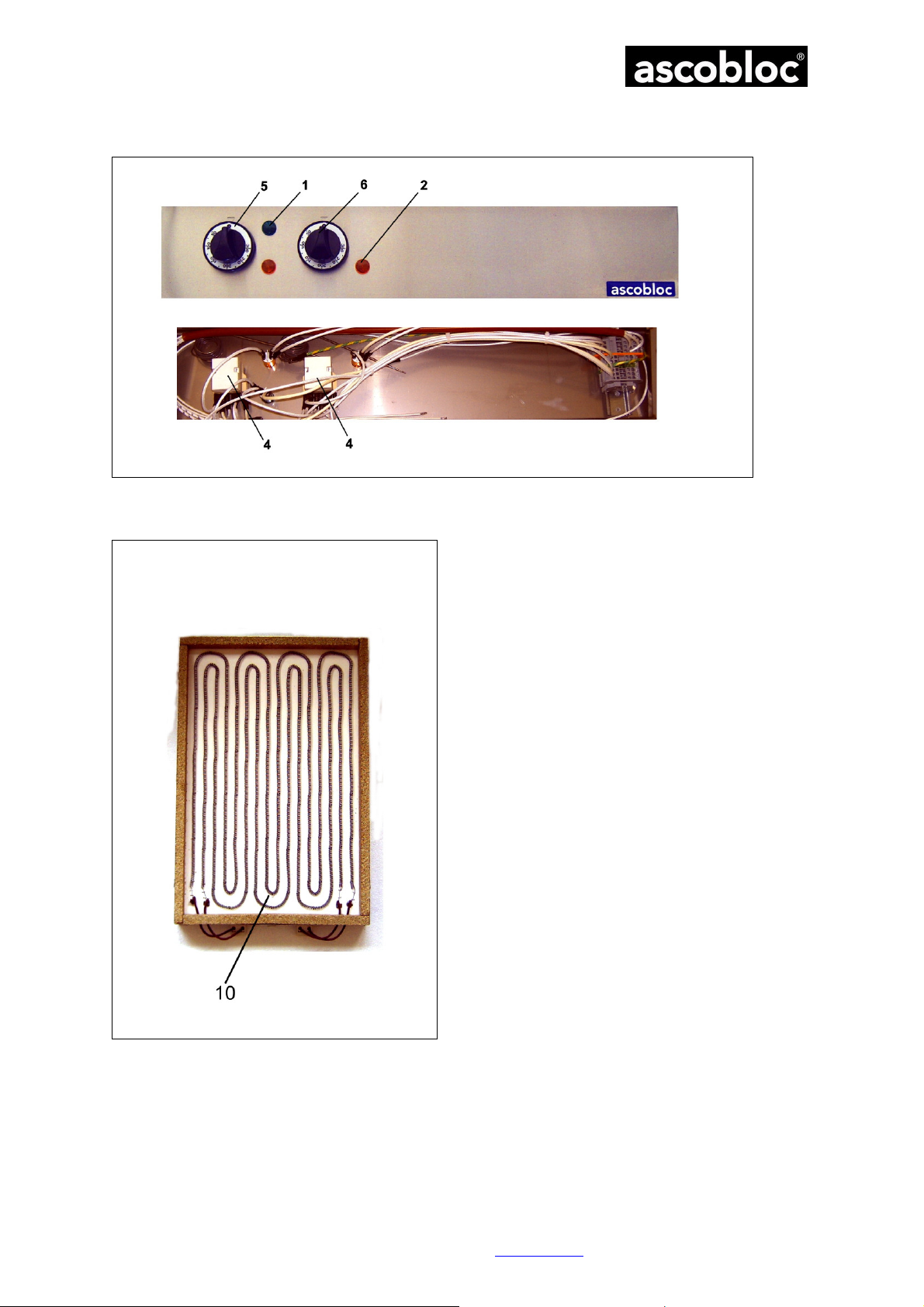

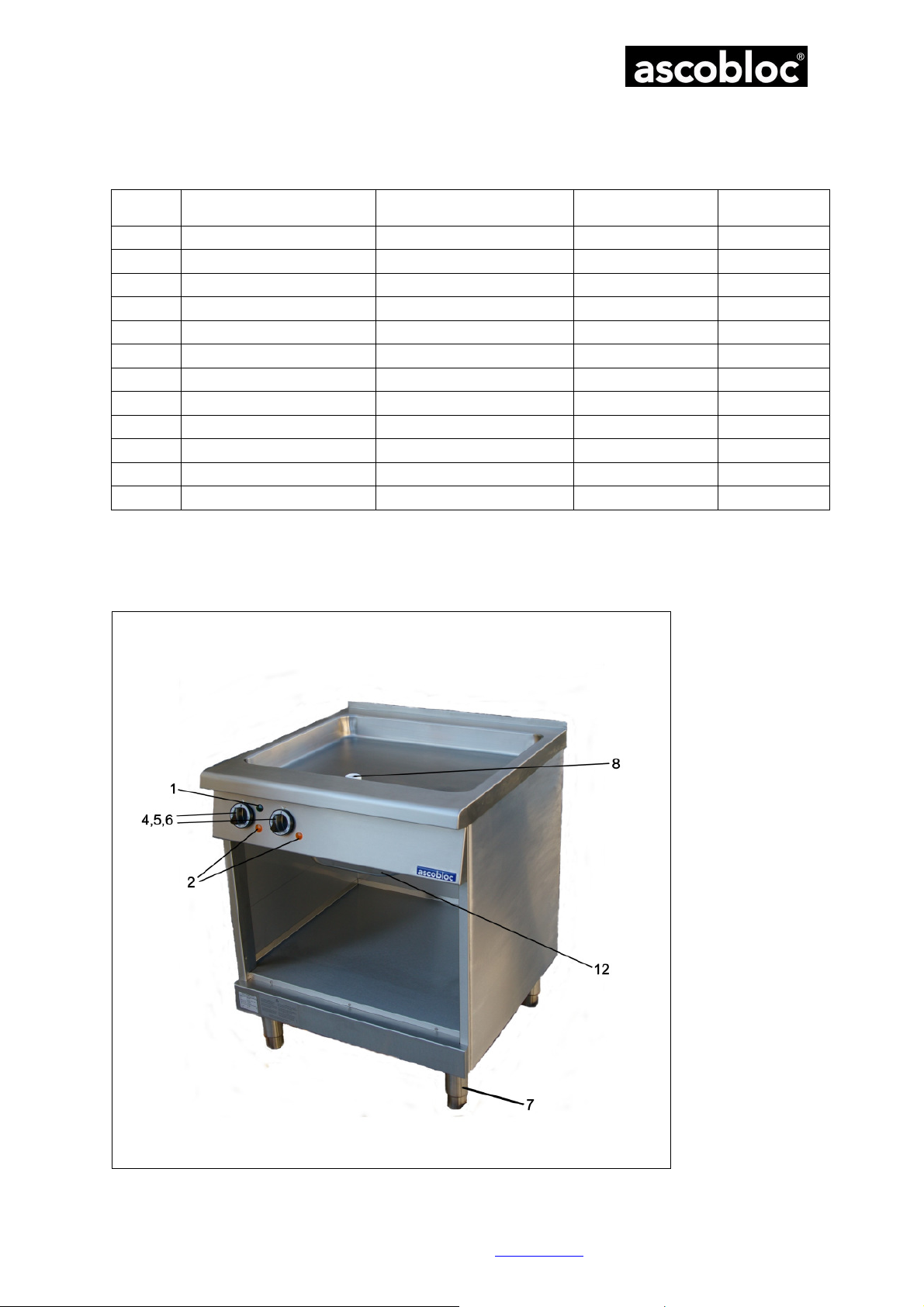

The knobs for the temperature controller and the indicator light for the frying plates are located on the
operating panel. (Figure 2)

When the frying plate is switched on, the green or the yellow indicator light goes on
When the preselected temperature is reached, the yellow light goes out
When in the frying plate is held in readiness, keep the surface temperature as low as possible.
If the equipment is to be taken out of use, set all knobs to “zero”.
The drain pipe for fried residues leads to a catchment tray lying below it (GN 1/1-65 container).

The catchment tray can be removed for emptying and cleaning. The frying plate cannot be operated
without the dirt tray. Please note that the capacity of each dirt tray is limited.

The frying plate can be operated with a liquid fat level or for the preparation of liquid meals by means of
the plug supplied.

In the case of frying and griddle plates, the plug may only be used for cleaning purposes.

5.3 Cleaning

Please observe the hygiene regulations in your firm! The instructions in this document are not a substitute for
such regulations (observe the tips for the treatment of stainless steel appliances in commercial kitchens!).

Attention! Appliances may not be cleaned using water under pressure (spraying with water hose or
steam jet or high pressure cleaners). The appliance is to be shut off if the surroundings are to be cleaned
using such means!

The appliance must be shut off and adequately cooled down before cleaning. Appliance parts or
accessories that come in contact with foodstuffs must be cleaned thoroughly with cleaning agents and
then rinsed off with tap water. Flammable liquids are not be used for cleaning.

To avoid interruptions in operation and for hygiene reasons, the appliance should be cleaned daily after use.

Top plate

With stubborn deposits, spray commercially available stainless steel cleaning agent onto the top plate
and let it take effect for about 10 to 20 minutes. Then clean with a coarse sponge and wipe out with clear
water. Do not flood the top plate – wipe it out with cloths.

ATTENTION! The cleaning agent to be used must be free of chlorine and fluorine compounds as these
halides can attack even high-quality stainless steel.

6 Repair and Maintenance

6.1 Repair and Maintenance

Please also observe the cleaning and care instructions in the annex!

ascobloc Gastro-Gerätebau GmbH 01156 Dresden, Grüner Weg 29 Germany
Tel. [phone] Fax: [phone] E-mail:

Subject to change without notice!

[email protected] AEBxxxff.doc Status: 06 April 2011

4

Operating Instructions for Ascoline 700, AEB 2xx, 4xx

In addition to that they require, apart from specified inspections, no maintenance or servicing.

6.2 Measures to be taken for longer stoppages

Clean the appliance thoroughly. Disconnect the appliance from the mains

7 Faults and their Rectification

7.1 Fault rectification

Always disconnect the power plug before starting any repair work!

Fault Cause Remedy

Green indicator light is on,
but there is no heat

No heat generated at the
electric frying, grill or
griddle plate

Contact breaker trips
repeatedly

Green indicator light does
not light up when the
appliance is switched on

A repair may only be performed by trained, qualified specialists. Please give us the equipment number
and the type designation that are on the equipment name plate. The plate is located on the front cover
A of the equipment (see connection diagram).

Heating, power controller or
temperature limiter defective,
a phase is missing

Power connection to equipment
interrupted

Fuse in customer supply is open
Green indicator light is on,
but there is no heat
 Heating element faulty
Wrong contact breaker or short-

circuit
Mains connection or contact breaker

defective
Indicator light is faulty

Replace defective component

Restore supply

Restore supply

Replace heating element

Replace

Replace contact breaker

7.2 Customer service

ascobloc Customer Service: Tel. [phone]
Fax [phone]
E-mail [email protected]

ascobloc Gastro-Gerätebau GmbH 01156 Dresden, Grüner Weg 29 Germany
Tel. [phone] Fax: [phone] E-mail:

Subject to change without notice!

[email protected] AEBxxxff.doc Status: 06 April 2011

5

Operating Instructions for Ascoline 700, AEB 2xx, 4xx

1.

Indicator light, green

2.

Indicator light, yellow

3.

Temperature limiter

4.

Temperature controller

5.

Scale ring

6.

Knob

7.

Appliance foot

8.

PTFE plug

9.

Heating element box 4.6

kW

10.

Heating element box 3.5

kW

11.

Knurled knob

12.

Catchment tray GN 1/1

8 Spare Parts

8.1 List

Item Name Type / Version Art. No. Remarks

09/2092 x
09/2093 x
09/1687 x
09/2085 x
08/2938
09/2662
except AEB 2x8, AEB 4x8 08/6232
08/1515
except AEB 23x, AEB 43x 09/3355 x
AEB 23x, AEB 43x 09/1020 x
AEB 2x8, AEB 4x8 08/1320
08/2251

x = replacement or repair only by authorised specialist company

8.2 Illustrations

Figure 1 Electric frying plate AEB 430

ascobloc Gastro-Gerätebau GmbH 01156 Dresden, Grüner Weg 29 Germany

Tel. [phone] Fax: [phone] E-mail:

Subject to change without notice!

[email protected] AEBxxxff.doc Status: 06 April 2011

6

Operating Instructions for Ascoline 700, AEB 2xx, 4xx

Figure 2 Control panel (shown is AEB 430) and installation space behind the control panel

Figure 3 Heating element box (shown is AEB 430 – HKK 3.5 kW)

ascobloc Gastro-Gerätebau GmbH 01156 Dresden, Grüner Weg 29 Germany

Tel. [phone] Fax: [phone] E-mail:

Subject to change without notice!

[email protected] AEBxxxff.doc Status: 06 April 2011

7

Operating Instructions for Ascoline 700, AEB 2xx, 4xx

Appliance type

Version

ID No.

Free-standi

ng appliances

Wall and

table

-

top appliances

9 Declaration of Conformity

EC Declaration of Conformity for the CE Mark

The manufacturer

Gastro-Gerätebau GmbH
Grüner Weg 29
D-01156 Dresden

hereby declares that the appliances described below

AEB 230 Electric frying plate, CrNi steel GN 1/1 basin 6570.100
AEB 240 Electric grill plate, ribbed steel bottom 6570.200
AEB 240.400 Electric grill plate, ribbed steel bottom, hard chrome-plated 6570.244
AEB 260 Electric griddle plate, smooth steel bottom 6570.260
AEB 260.400 Electric griddle plate, smooth steel bottom 6570.300
AEB 430 Electric frying plate, CrNi steel GN 2/1 basin 6571.100
AEB 440 Electric grill plate, ribbed steel bottom 6571.200
AEB 440.400 Electric grill plate, ribbed steel bottom, hard chrome-plated 6571.444
AEB 450 Electric grill plate/griddle plate, steel bottom, half-side is ribbed

AEB 450.400

AEB 460 Electric griddle plate, smooth steel bottom 6571.460
AEB 460.400 Electric griddle plate, smooth steel bottom 6571.464

Electric grill plate/griddle plate, steel bottom, half-side is
ribbed, hard chrome-plated

6571.450

6571.454

AEB 238 Electric frying plate, CrNi steel GN 1/1 basin 6670.100
AEB 248 Electric grill plate, ribbed steel bottom 6670.200
AEB 248.400 Electric grill plate, ribbed steel bottom, hard chrome-plated 6670.400
AEB 268 Electric griddle plate, smooth steel bottom 6670.260
AEB 268.400 Electric griddle plate, smooth steel bottom 6670.300
AEB 438 Electric frying plate, CrNi steel GN 2/1 basin 6671.100
AEB 448 Electric grill plate, ribbed steel bottom 6671.200
AEB 448.400 Electric grill plate, ribbed steel bottom, hard chrome-plated 6671.400
AEB 458 Electric grill plate/griddle plate, steel bottom, half-side is ribbed

AEB 458.400

AEB 468 Electric griddle plate, smooth steel bottom 6676.460
AEB 468.400 Electric griddle plate, smooth steel bottom 6676.464

satisfy the provisions of
the EMC Directive 89/336/EEC,
the Low Voltage Directive 2006/95/EC,
including modifications valid at the time of the declaration.
The following harmonised standards were applied:

Electric grill plate/griddle plate, steel bottom, half-side is
ribbed, hard chrome-plated

6674.450

6674.400

ascobloc Gastro-Gerätebau GmbH 01156 Dresden, Grüner Weg 29 Germany
Tel. [phone] Fax: [phone] E-mail:

Subject to change without notice!

[email protected] AEBxxxff.doc Status: 06 April 2011

8

Operating Instructions for Ascoline 700, AEB 2xx, 4xx

DIN EN 55014-1:2010-02 Electromagnetic compatibility - Requirements for household appliances,

electric tools and similar apparatus - Part 1: Emission

DIN EN 55014-2:2009-06 Electromagnetic compatibility - Requirements for household appliances,

electric tools and similar apparatus - Part 2: Immunity

EN 60335-2-38: 2008-12 Household and similar electrical appliances - Safety - Part 2-38: Particular

requirements for commercial electric griddles and griddle grills

EN 60335-1:2010-11 Household and similar electrical appliances - Safety - Part 1: General

requirements

The following national or international standards (or parts/clauses thereof) and specifications were applied:

DIN 18852:2003-06 Equipment for commercial kitchens - Frying and grilling appliances -

Requirements and testing (in German)

Dresden, 06 April 2011

p.p. R. Ziegler
Technical Director

ascobloc Gastro-Gerätebau GmbH 01156 Dresden, Grüner Weg 29 Germany
Tel. [phone] Fax: [phone] E-mail:

Subject to change without notice!

[email protected] AEBxxxff.doc Status: 06 April 2011

9
