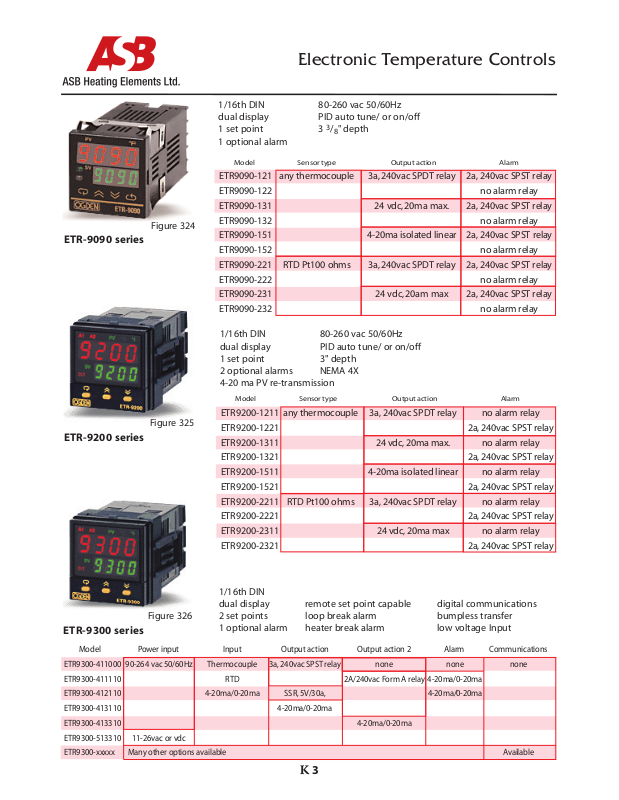

ETR-9090 series
ETR-9200 series
Figure 324
Figure 325
Electronic Temperature Controls
1
/16th DIN 80-260 vac 50/60Hz
dual display PID auto tune/ or on/off
1 set point 3 3/8" depth
1
optional alarm
Model Sensor type Output action Alarm
ETR9090-121 any thermocouple 3a, 240vac SPDT relay 2a, 240vac SPST relay
ETR9090-122 no alarm relay
ETR9090-131 24 vdc, 20ma max. 2a, 240vac SPST relay
ETR9090-132 no alarm relay
ETR9090-151 4-20ma isolated linear 2a, 240vac SPST relay
ETR9090-152 no alarm relay
ETR9090-221 RTD Pt100 ohms 3a,240vac SPDT relay 2a,240vac SPST relay
ETR9090-222 no alarm relay
ETR9090-231 24 vdc, 20am max 2a, 240vac SPST relay
ETR9090-232 no alarm relay
1/16th DIN 80-260 vac 50/60Hz
dual display PID auto tune/ or on/off
1 set point 3" depth
2 optional alarms NEMA 4X
4-20 ma PV re-transmission
Model Sensor type Output action Alarm
ETR9200-1211 any thermocouple 3a, 240vac SPDT relay no alarm relay
ETR9200-1221 2a, 240vac SPST relay
ETR9200-1311 24 vdc, 20ma max. no alarm relay
ETR9200-1321 2a, 240vac SPST relay
ETR9200-1511 4-20ma isolated linear no alarm relay
ETR9200-1521 2a, 240vac SPST relay
ETR9200-2211 RTD Pt100 ohms 3a, 240vac SPDT relay no alarm relay
ETR9200-2221 2a, 240vac SPST relay
ETR9200-2311 24 vdc, 20ma max no alarm relay
ETR9200-2321 2a, 240vac SPST relay
1/16th DIN
dual display remote set point capable digital communications
Figure 326
ETR-9300 series
Model Power input Input Output action Output action 2 Alarm Communications
ETR9300-411000 90-264 vac 50/60Hz Thermocouple 3a, 240vac SPST relay none none none
ETR9300-411110 RTD 2A/240vac Form A relay 4-20ma/0-20ma
ETR9300-412110 4-20ma/0-20ma SSR, 5V/30a, 4-20ma/0-20ma
ETR9300-413110
ETR9300-413310 4-20ma/0-20ma
ETR9300-513310 11-26vac or vdc
ETR9300-xxxxx Many other options available Available
2 set points loop break alarm bumpless transfer
1 optional alarm heater break alarm low voltage Input
, 0-5v, 1-5v, 0-10v 4-20ma/0-20ma
0-1v
K 3

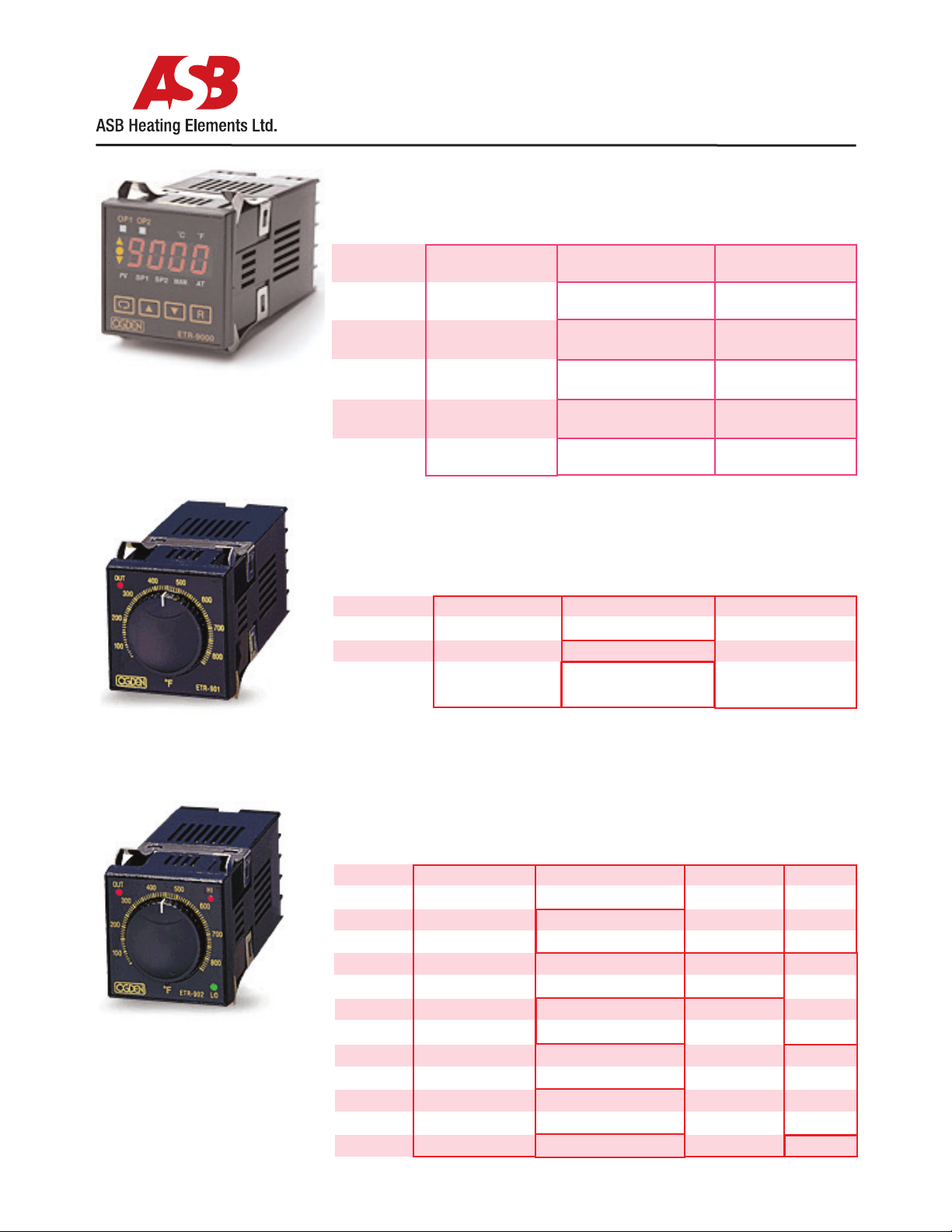

ETR-9000 series
Figure 327
Electronic Temperature Controls
1/16th DIN universal input
dual display (red or green) 90-264 vac 50/60Hz
2
outputs 11-26 VAC or VDC
Model Sensor type Output 1 Output 2
ETR9000 Universal input Relay,2A/240 vac none
41100 Thermocouple,
ETR9000 RTD, Relay,2A/240 vac 4-20ma/)-20ma
411110 4-20ma, voltage
ETR9000 SSR-5V/30ma none
41200
ETR9000 SSR-5V/30ma SSR-5V/30ma
41220
ETR9000 4-20ma/0-20ma none
41300
ETR9000 4-20ma/0-20ma 4-20ma/0-20ma
41310
1/16th DIN 120 vac
no display 3 3/8" depth
Proportional or on/off
ETR-901 series
ETR-902 series
Figure 328
Figure 329
Model Sensor type Output action Temperature range
ETR901-01 “J” thermocouple proportioning relay 50-850°F
3a, 120 vac SPST relay
ETR901-02 SSR, 32 vdc, 20ma max.
ETR901-03
3a, 120 vac SPST relay
1/16th DIN 3 3/8" depth
PID or on/off no display, deviation lights
Model Sensor type Output action Temperature Range Power Input
ETR902-01 “J” thermocouple proportioning 50-850°F 120 vac
3a, 240vac SPST relay
ETR902-02 SSR, 32vdc, 20ma max.
ETR902-03 proportioning 50-300°F 240 vac
3a, 240vac SPST relay
ETR902-04 proportioning 50-850°F
240vac SPST relay
3a,
ETR902-05
3a, 240vac SPST relay
ETR902-06 proportioning
SSR, 32vdc, 20ma max.
ETR902-08 SSR, 32vdc, 20ma max. 240 vac
on/off
on/off 120 vac
K4
Figure 330
Electronic Temperature Controls
S
marter Logic® 80-260 vac, 50-60HZ
1/8th DIN 2 1/2" depth
dual display PID-auto tune, or on/off
f
ront panel set-up 12-36 vdc/vac available
odel Sensor type Output action 2 alarms
M
ETR8120-31211 any thermocouple 3a,240vac SPDT relay no alarm
ETR8120-31221 2a, 240vac SPST relay
ETR8120-31311 SSR 32 vdc, 20ma max. no alarm
ETR8120-31321 2a, 240vac SPST relay
ETR8120-31511 4-20ma, isolated, linear no alarm
ETR8120-31521 2a, 240vac SPST relay
ETR8120-31221 RTD-PT 100 ohms 3a, 240vac SPDT relay 2a, 240vac SPST relay
ETR8120-32521 DIN curve 4-20ma, isolated,linear 2a,240vac SPST relay
Smarter Logic® 80-260 vac, 50-60HZ
1/8th DIN 2 outputs - heat/cool
1
2
/2" depth dual display
PID-auto tune, or on/off front panel set-up
ETR-8120 series
ETR-8130 series
ETR-4130 series
ETR-4120 series
Figure 331
Model Sensor type Output action 2 alarms
ETR8130-312211 any thermocouple 3a, 120 vac SPDT relay no alarm relay
ETR8130-312221 2a, 240vac SPST relay
ETR8130-322211 RTD-PT 100 ohms no alarm relay
ETR8130-322221
DIN curve 2a, 240vac SPST relay
Smarter Logic® 80-260 vac, 50-60HZ
1/4th DIN 2" depth
dual display PID-auto tune, or on/off
front panel set-up
Model Sensor type Output action 2 alarms
ETR4120-31211 any thermocouple 3a, 120 vac SPDT relay no alarm relay
ETR4120-31221 2a, 240vac SPST relay
ETR4120-31521 4-20ma, isolated,linear
ETR4120-32221 RTD-PT 100 ohms
ter Logic® 80-260 vac,50-60HZ
Smar
1/4th DIN
2 outputs heat/cool
dual display 2" depth
front panel set-up PID-auto tune, or on/off
Model Sensor type Output action 2 alarms
ETR4130-312211 any thermocouple 3a, 120 vac SPDT relay no alarm relay
ETR4130-312221 2a, 240vac SPST relay
ETR4130-322211 RTD-PT 100 ohms no alarm relay
ETR4130-322221 DIN curve 2a, 240vac SPST relay
K5
ETR-401 series
ETR-404 series
Figure 332
Figure 333
Electronic Temperature Controls
1
/4th DIN 100-260 vac
2
" depth no display
on/off proportioning
Model Sensor type Output action Temperature range
ETR401-01 “J” thermocouple on/off 50° - 850°F
3a, 240vac SPDT relay
ETR401-02 proportioning
3a, 240vac SPDT relay
ETR401-04 “K” thermocouple Proportioning 1-1200°C
3a, 240vac SPDT relay
1/4th DIN 90-260 vac
2 " depth indicating
on/off proportioning
Model Sensor type Output action Temperature range
ETR404-01 “J” thermocouple Proportioning 50° - 850°F
3a, 240vac SPDT relay
ETR404-03 “K” thermocouple Proportioning 1-1200°C
3a, 240vac SPDT relay
high limit control surface mount or DIN rail
no display FM approved
manual reset optional DC output for SSR
Figure 334
ETR-3 high limit series
Figure 335
ETR-4 high limit series
Model Sensor type Output action Temperature range
ETR3-01 “J” thermocouple 120 volt / 3.8amp 240v max 0-1400°F
ETR3-02 “K” thermocouple 120 volt / 3.8amp 240v max 0-2300°F
ETR3-03 “J” thermocouple 120 volt / 3.8amp 240v max 0-600°F
ETR3-05
ETR3-06 “J” thermocouple 24vac / 3.8amp 240v max 0-1400°F
ETR3-09 RTD 120 volt / 3.8amp 240v max 0-850°F
ETR3-17 “J” thermocouple 240 volt / 3.8amp 240v max 0-1400°F
high limit sur
no display 100-260 vax
latching relay manual reset requires remote push button
auto reset
Model Sensor type Output action Temperature range
ETR4-02 “J” thermocouple 20a, 240vac SPDT relay 0-1000°F &
ETR4-03 “K” thermocouple 20a, 240vac SPDT relay 1-2000°F &
“J” thermocouple 120 volt / 3.8amp 240v max 0-750°F
face mount, no enclosure
0-500°C
0-1100
K6
°C
