9090
9
0
9
0
Control Panels
11/2”
31/2”
B
2.9
85"
2.5
8"
0.80"
2
1
/
8
1
1
/
8
15
/
16
1
3
/
4
Figure 336

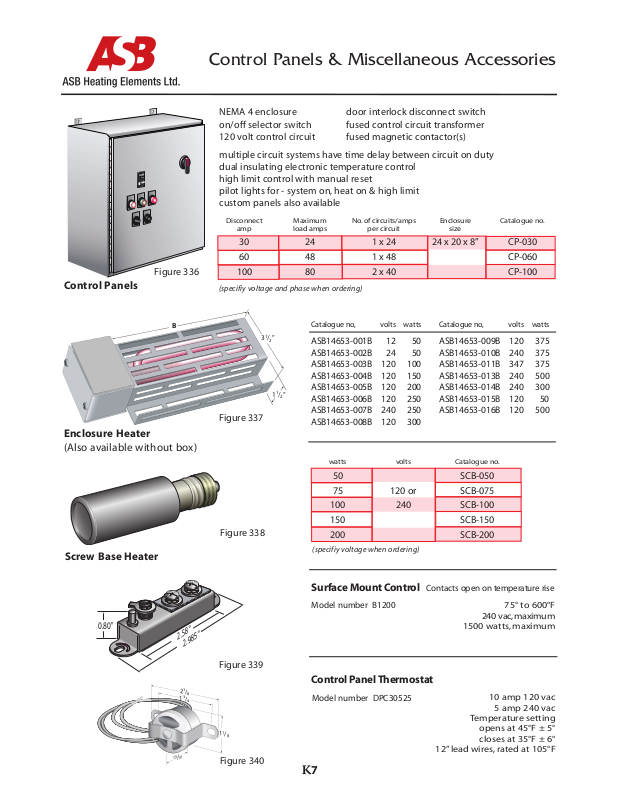

Control Panels & Miscellaneous Accessories
NEMA 4 enclosure door interlock disconnect switch
on/off selector switch fused control circuit transformer
1
20 volt control circuit fused magnetic contactor(s)
multiple circuit systems have time delay between circuit on duty
dual insulating electronic temperature control
high limit control with manual reset
pilot lights for - system on, heat on & high limit
custom panels also available
Disconnect Maximum No.of circuits/amps Enclosure Catalogue no.
amp load amps per circuit size
30 24 1 x 24 24 x 20 x 8” CP-030
60 48 1 x 48 CP-060
100 80 2 x 40 CP-100
(specifiy voltage and phase when ordering)
Enclosure Heater
vailable without box)
lso a
(A
Screw Base Heater
Figure 337
Figure 338
Catalogue no, volts watts
ASB14653-001B 12 50
ASB14653-002B 24 50
ASB14653-003B 120 100
ASB14653-004B 120 150
ASB14653-005B 120 200
ASB14653-006B 120 250
ASB14653-007B 240 250
Catalogue no, volts watts
ASB14653-009B 120 375
ASB14653-010B 240 375
ASB14653-011B 347 375
ASB14653-013B 240 500
ASB14653-014B 240 300
ASB14653-015B 120 50
ASB14653-016B 120 500
ASB14653-008B 120 300
watts volts Catalogue no.
50 SCB-050
75 120 or SCB-075
100 240 SCB-100
150 SCB-150
200 SCB-200
(specifiy voltage when ordering)
Surface Mount Control Contacts open on temperature rise
del number B1200
o
M
1500 watts, maximum
75° to 600°F
240 vac,maximum
Figure 339
Control Panel Thermostat
Figure 340
M
odel number DPC30525
K7
lead wires, rated at 105°F
12”
10 amp 120 v
5 amp 240 vac
emperature setting
T
opens at 45°F ± 5°
closes at 35°F ± 6°
ac
