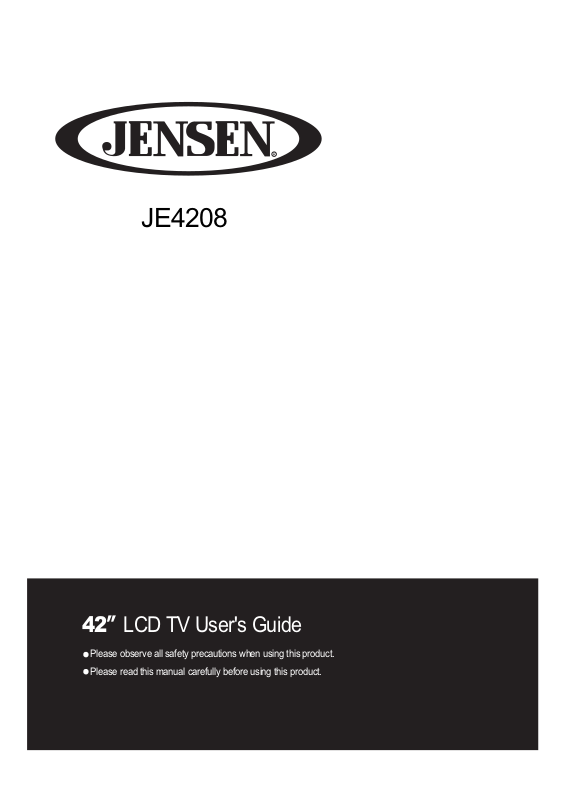

ASA Electronics JE4208 User Manual

JE4208
42” LCD TV User's Guide
Please observe all safety precautions when using this product.
Please read this manual carefully before using this product.
3
Safety Precautions
Cautions
Warnings
Do not use a damaged power cord or plug or a loose outlet.
Doing so may result in fire or electric shock.
Do not plug several devices into the same outlet.
Doing so may cause the outlet to overheat and start a fire.
Insert the power plug fully into the outlet.
A loose or improperly inserted power plug may result in fire.
Do not touch the power plug with wet hands.
Doing so may result in electric shock.
Be sure to ground the unit.
Failing to do so may lead to electric shock when a short circuit or overload occurs. If necessary, install a ground fault circuit breaker. Never ground to a telephone line, lightning rod, or metal gas pipe. (Doing so may result in fire, electric shock, or other hazards.)
Do not bend the power cord excessively or place heavy objects on it.
Doing so may result in fire or electric shock.
Always unplug the unit before cleaning.
Not doing so may result in fire or electric shock.
When disconnecting the power cord from an AC outlet, always grasp it by the plug.
Pulling on the cord can damage the internal wire and may result in fire.
The purpose of these precautions is to ensure user safety and prevent property damage. Be sure to read and observe all safety precautions.
Installation
Cautions
Warnings
Warnings
Do not place the unit where it is exposed to rain, excessive moisture or grease.
Doing so may result in fire, electric shock, malfunction, or deformation.
Do not use or store flamm able or combustible materials near the unit.
Doing so may result in fire or explosion.
Do not place the unit on an unstable surface, such as a wobbly stand or sloped table, or on any surface whose area is smaller than the bottom area of the unit.
If a child climbs on the unit, it could topple and fall onto the child, resulting in serious injury to the child or damage to the unit. Place the unit on a flat stable surface
.
Do not place containers with liquids such as flower vases, soft drink cans, or medicine bottles or small metallic objects on top of the unit.
If liquid enters the unit or any metal object falls into the unit, it may result in short-circuit, fire, or electric shock.
Do not place the unit in a poorly ventilated enclosure, such as a cabinet.
Doing so poses a serious risk of fire.
Do not run power cords near heat-producing appliances such as radiators, stoves, or irons.
The excessive heat could melt the insulation and expose live wires, resulting in fire or electric shock.
Install the antenna away from high-voltage power lines and communication cables and make sure it is installed securely.
If the antenna touches a power line, contact with the antenna could result in fire, electric shock, serious injury, or death.
Do not place a burning candle, burning anti-mosquito incense, or lighted cigarette on top of the unit. Do not place the unit near any heat source such as a fireplace or space heater.
Doing so poses a serious risk of fire.
Install the unit at an adeq­uate distance from the wall to ensure sufficient ventilation.
If the temperature inside the unit rises, it may res­ultin fire.
Do not cover the unit with a tablecloth, curtain, or other material.
If the temperature inside
the unit rises, it may result
in fire.
Be sure to place the unit on a level surface.
Form a drip loop where the coaxial antenna cable enters your building to prevent rainwater from traveling along the cable and coming in contact with the antenna input terminal.
If rainwater finds its way inside the unit, it may result in fire or electric shock.
The following precautions are divided into "Warnings" and "Cautions".
Warning : Ignoring this precaution may result in death or serious injury. Caution : Ignoring this precaution may result in injury or property damage.
4
5
Safety Precautions
Use and Maintenance
Warnings
Cautions
Do not insert any metal objects, such as a screwdriver, paper clip, or bent wire into the ventilation openings or A/V terminals.
Doing so poses a serious risk of fire or electric shock.
Do not allow children to climb or hang on the unit.
The unit could topple over onto a child and result in serious injury.
Never disassemble or modify the unit in any way. Do not attempt to service the unit yourself.
Doing so may result in fire or electric shock. If the unit requires repair, contact the service center.
Disconnect the power cord from the wall outlet during an electrical storm.
Not doing so may result in fire or electric shock.
When not using the unit for long periods of time, discon­nect the power cord from the wall outlet.
Dust could accumulate over time on the unit and cause it to generate heat and ignite, or deteriorate insulation, which in turn may result in an electrical fire.
When removing the batteries from the remote control, make sure children do not swallow them. Keep the batteries out of the reach of infants and children.
If a child has swallowed a battery, seek medical atten-
tion immediately.
If you notice any unusual odors or smoke around the unit, immediately disconnect the unit from the outlet and contact the service center.
Failure to do so may result in fire or electric shock.
When moving the unit, be sure to turn off the unit and unplug the power cord from the wall outlet.
Moving the unit with the power cord connected to the outlet may cause damage to the cord, resulting in fire or electric shock.
Wipe off any moisture, dirt, or dust on the power plug pins with a clean dry cloth.
Failure to do so may result in fire or electric shock.
Always use two or more people to lift or move the unit.
If the unit is dropped, it could be damaged or otherwise cause injury.
Always turn off the unit and unplug the power cord when cleaning the unit. Use a soft dry cloth to clean the unit.
Never clean with industrial strength polish, wax, benzene, paint thinner, air freshener, lubricant, detergent, or other such chemicals. Also, do not clean with a damp cloth.
It is advisable to clean the interior of the unit at least once a year. Contact the store of purchase or service center for information.
Continuing to use the unit without cleaning off the dust build-up inside it may result in fire or electric shock.
Warnings
NOTE: These pictures involved in the “Safety Precautions” section are just for your reference, please take real object as standard.
6
Important Safety Instructions
Safety Precautions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a dry cloth.
7) Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11) Only use the attachments/accessories specified by the manufacturer.
12) Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
Warnings and Precautions
To prevent any injuries, the following safety precautions should be observed in the installation, use,
servicing and maintenance of this equipment.
Before operating this equipment, please read this manual completely, and keep it nearby for future
reference.
7
Important Safety Instructions
Safety Precautions
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
• Apparatus shall not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the apparatus
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.
NOTE TO CABLE/TV INSTALLER :
Apparatus with Class I construction shall be connected to a Mains socket outlet with a protective earthing connection.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
The lightning flash with an arrowhead symbol, within an equilateral triangle is intended to alert
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK), NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
the user to the presence of uninsulated "dangerous voltage" within the product's enclo­sure that may be of sufficient magnitude to con­stitute a risk of electric shock to persons.
The exclamation point within an equilateral tri­angle is intended to alert the user to the pres­ence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
5B-En
8
Important Safety Instructions
Safety Precautions
One Federal Court has held that unauthorized recording of copyrighted TV programs is an infringement of U.S. copyright laws. Certain Canadian programs may also be copyrighted and any unauthorized recording in whole or in part may be in violation of these rights.
Important :
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
REGULATORY INFORMATION :
- These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in
the operating instructions unless you are qualified to do so.
- Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Caution :
TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
WARNING
User Guidance Information
Names of each part
Front View
1 3
5
Source Button
Menu Button
- Input Source Select Button
- OSD Menu Display Button
Channel/Program + , - Button
Power Button
Volume + , - Button
The configuration of the components may look different from the following illustration.
2
4
Accessories
AV Cable
Battery 1.5V( AAA
-/--
User's Guide
2)
Power Cord
User's Guide
DTV EPG MTS
CC V-CHIP SCALE
Remote Control
9
User Guidance Information
Names of each part
Back View
1
HDMI jack
PC and AUDIO jack
2
Y, Pb, Pr jack
3
To turn on the LCD TV
4
AV1 AUDIO(L/R) and VIDEO jacks
5
AV2 AUDIO(L/R) and VIDEO jacks
S - VIDEO jack
6
Press on the back of the LCD TV to first.
Be sure to turn off the power and unplug both units from the wall outlet before making any connections.
1
0
RF jack
7
POWER ON/ OFF jack
8
9
AC input jack
10
AUDIO(L/R) output jacks
Power on
Power off
Wall Mounting
Using the Stand
11
Mounting on a Desktop
Installation Precautions
User Guidance Information
Your LCD TV can be mounted on a Desktop as shown in the figure above. This is not floor-standing unit.
Please secure enough space for safe use. (Please refer to A and B.) Installation of the LCD TV in an improperly ventilated location can cause a fire or damage to the LCD TV
due to increased temperature
.
Do not install on an unstable location with support area smaller than the LCD TV. Please refer to the desktop stand user's manual for details of installation.
Contact your dealer to purchase the "Adjustable-angle wall mount" required for wall-mounted installation.
(Mounting on a wall)
A
(Using the Stand)
B
4 inch
4 inch 4 inch
2.67 inch
4 inch
4 inch 4 inch
2.67 inch
12
Installing an Antenna
User Guidance Information
Wall Jack with
F-Connector
external Antenna
Analog+Digital 75 Ω
RF
Coaxial (Round) Antenna Cable
For connecting to ATSC or NTSC broadcasts
Press SOURCE button on the remote control to select TV, then press RIGHT button to confirm.
Then you can receive the ATSC/NTSC signal.
14
Remote Control
User Guidance Information
-/--
EPG
Press EPG to display the program guide.
DTV
Press DTV to display the DTV(ATSC) OSD menu during DTV(ATSC) mode.
CC
Close Caption
DTV
CC V-CHIP SCALE
EPG
MTS
MTS
Press MTS to select Stereo, SAP or Mono. Note: This button can only be used under NTSC mode.
V-CHI P
Press V-CHIP to choice the rating
SCALE
Cycles among scale mode: 16:9, ZOOM1, ZOOM2, 4:3, PANORAMA.
15
Avoiding Remote Control Problems
Inserting Batteries in the Remote Control
User Guidance Information
2. Insert the two supplied batteries (AAA, 1.5V). Ensure
that the polarities (
+
and-) of the batteries are aligned
correctly.
3. Silde back the cover.
1. Check the polarity (
+
,-) of the batteries in the remote control.
2. Check that the batteries have power.
3. Check that the LCD TV is powered and that it is properly plugged in.
4. Check if any three-wavelength lamp, special fluorescent or neon sign is turned on near the LCD TV.
CAUTION : Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the national code (Recycling program).
The remote control should be operated within 30feet(7m) and 30 to the left and the right of the IR receiver
at the front of the LCD TV.
Used batteries should be disposed properly.
How to use remote control
Precautions
1. Open the cover completely.
Insert the batteries while observing the correct (+) and (-) polarities as illustrated
Step 1 Step 2 Step 3
+
6
+
6
+
6
+
6
16
VCR Connections
Watching Video Tape
Connection
1. Turn on the LCD TV and press on the remote control.
2. Use to move to"AV 1 or 2".
If S-Video has been connected, select "S-Video".
3. Turn on the VCR, insert the tape and press play button.
Connect the LCD TV's Composite In terminal to the VCR's Composite Out terminal using the Composite cable. (Make sure the color of the terminals and the color of the cable are the same)
Use the S-Video cable for higher picture quality.
Connection terminals of other equipments differ by manufacturer and model.
Composite Cable
S-Video Cable
(R) (L)
< VIDEO >
(R) (L)
< VIDEO >
Connecting to the Composite terminal
Connecting to the S-Video terminal
SOURCE
17
Satellite/ Cable TV Set-Top Box Connections
Connection
1. Turn on the LCD TV and press on the remote control.
2. Use to move to "AV 1 or 2".
If S-Video has been connected, select "S-Video".
If HDMI has been connected, select "HDMI".
3. Turn on the cable broadcasting receiver and select the channel you wish to view.
Connect the LCD TV's Composite In terminal to the cable broadcasting receiver Composite Out terminal using the Composite cable. (Make sure the color of the terminals and the color of cable are the same)
In order to watch Cable TV, Subscribe to your local Cable TV company and install a separate receiver(Set-Top-Box) Connection terminals of other equipments differ by manufacturer and model.
Use the S-Video cable for higher picture quality.
Composite Cable
S-Video Cable
HDMI Cable
(R) (L)
(R) (L)
< Cable broadcasting receiver >
< Cable broadcasting receiver >
Connecting to the Composite terminal
Connecting to the HDMI terminal
Connecting to S-Video terminal
Watching Cable TV
SOURCE
< Cable broadcasting receiver >
(R) (L)
DVD Connections
18
Connection
Connection terminals of other equipments differ by manufacturer and model.
Component connection cable
Component Audio cable
S-Video Cable
1. Connect LCD TV's Y, Pb, Pr terminal to DVD's Video Out terminal using the external cable.
2. Connect LCD TV's Audio terminals (left & right) in AV 1 to DVD's Audio Out terminal using the Audio cable.
3. It must match the component connection cable Y, Pb, Pr between the LCD TV and DVD Player.
Connecting from HDMI terminal to HDMI terminal.
S-Video cable can be used if there is an S-Video terminal.
Connecting to the component terminal
Connecting to the S-Video terminal
Connecting to the HDMI terminal
(R)
(L)
< DVD >
PrPbY
(R)
(L)
< DVD >
PrPbY
HDMI connecting cable
(R)
(L)
< DVD >
PrPbY
Playing the DVD
1. Turn on the LCD TV and press on the remote control.
2. Use to move to "YPbPr".
If S-Video has been connected, select "S-Video".
If HDMI has been connected, select "HDMI".
3. Turn on the DVD, insert the DVD disc and press Play button.
SOURCE
Audio Amplifier Connections
20
Powering the LCD TV
Power on/ off
To turn the LCD TV on :
Press the "POWER" button.
To turn the LCD TV off :
Press "POWER" button on the LCD TV.
To turn on/off by remote control :
Press the “POWER” button of remote control.
Basic Use
Selecting Input Source
PressPress button on the remote control.
Use to move to the desired input source.
Press to select.
You can select between the TV signal and the input signal of othe
r equipments
connected to the TV.
Use this function to switch to the input source you wish to view.
Press on the back of the LCD TV to first.
SOURCE
If you select TV, you can receive the ATSC/NTSC signal.
TV AV1 AV2 SVIDEO YPBPR DTV VGA HDMI
21
Watching TV
Basic Use
The information about the current channel
To turn sound off only
Volume Control
Channel Up and Channel Down
Use the mute function to turn off the LCD TV sound for a while, when a phone or a bell rings.
Press to go back to the channel you were previously viewing.
channel up
channel down
Press again to hear the sound again.
Press on the remote control.
Press again to disappear.
Display shows information about current channel if it is provided by the broadcaster.
To go back to the previous channel
increases the volume.
decreases the volume.
You will see all the channels that the TV has memorized.
CH+
CH-
RETURN
VOL.+
VOL.-
MUTE
INFO
INFO
23
Application
Setting up the DTV(ATSC) Function
Scanning the Digital TV channel
1. With the LCD TV connected to a television programming source, press the SOURCE button on the remote
control to select DTV mode.
2. Press the DTV button on the remote control to display the main menu, and use the LEFT and RIGHT buttons
to select.
Channel
3. Select Channel item first, then press the DOWN button to select Auto Scan, and press the ENTER button.
Channel
Caption
Analog CC
Digital CC
Auto Scan
Caption
Caption
Auto scan
DTV CUR CHAN:14 FOUND:
Setup
Setup
Lock
Lock
4. The Auto Scan automatically store the receivable channels. Press the DTV button at any time to interrupt
the memorization process.
24
Application
Setting up the DTV(ATSC) Function
The DTV(ATSC) menu includes the following options:
Channel
Caption Allows to set closed caption ON or OFF.
Analog Close Caption Allows to set basic analog closed caption options: CC1/CC2/CC3/CC4
Digital Close Caption Allows to set digital closed caption options: Service 1/Service 2/Service 3/
Service 4/ Service 5/ Service 6
Auto Scan Automatically store the receivable channels. Press the TV button at any time
to interrupt the memorization process.
Caption
Allows to customize the settings for caption option
Channel
Caption
Font Style
Font Size
Foreground Color
Background Color
Foreground Opacity
Background Opacity
Setup
Lock
Setup
Channel
Caption
Setup
Picture Size
Time Zone
Lock
Picture Size Allows you to select picture size between Auto and Full.
Time Zone Allows selection of regional TV systems of USA: Pacific/ Mountain/
Central/ Eastern
25
Application
Setting up the DTV Function
Using the Lock Settings
Use RIGHT button to highlight the LOCK item, then press ENTER. The unit will demand you input the 4-digital password first. The factory password is 0000.
Please input password

After you input the right password,the screen will display as following:
Channel
The LOCK item includes the following options:
MPAA
Caption
The Movie rating (MPAA) is used for original movies rated by the Motion Picture
Association of America (MPAA) as broadcasted on cable TV and not edited for
television. Use UP or DOWN button to select NA, G, PG, PG-13, R, PG-17 or X.
Setup
Lock
MPAA
Can English
Can French
TV Guidelines
Change PIN
Can English
Can French
RATING DESCRIPTION
G General Audiences. Movie is appropriate for all ages.
PG Parental Guidance Suggested. May contain material not suited for younger viewers
PG-13 Contains content that may not be appropriate for viewers under the age of 13
R Restricted. Contains adult content, no one under 17 admitted without parent.
NC-17 No one 17 and under admitted.
X Adults only
Use UP or DOWN button to select NA, C, C8+, G, PG, 14+ or 18+.
Use UP or DOWN button to select NA, G, 8 Ans+, 13 Ans+, 16 Ans+, 18 Ans+.
26
Application
Setting up the DTV(ATSC) Function
TV Guidelines
Change PIN
ALL FV V S L D
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
Use the UP and DOWN buttons to select the rating you want and press the
ENTER button to select Blocked Rating or Unblocked Rating.
Use DOWN button to select the Change PIN item, then press ENTER.
The screen will display as following:
Change PIN
Confirm
Input the new 4-digital password and input it again to confirm.
The screen will display “New Pin Success”
27
Application
Customizing the PICTURE Settings
Select TV source for example. (Press SOURCE button to select TV mode)
1. Press the POWER button to turn the LCD TV on.
2. Press the MENU button on the remote control to display the Main menu, and use the UP and DOWN buttons
to select the PICTURE.
3. Use the UP and DOWN buttons to highlight an individual PICTURE option, use the LEFT and RIGHT buttons
to change the setting, and press the MENU to exit the menu.
Picture Mode
Brightness
Contrast
Saturation
Shapness
Hue
Normal
Move
The PICTURE menu includes the following options :
Picture Mode Cycles among picture display modes: User, Normal, Soft, Vivid.
Brightness Controls the overall brightness of the picture
Contrast Controls the difference between the brightest and darkest regions of the picture.
Saturation Controls the color intensity.
Sharpness Increase this setting to see crisp edges in the picture; decrease it for soft edges.
Hue Controls the difference between the green and red regions of the picture.
Select Exit
28
Application
Customizing the SOUND Settings
Select TV source for example. (Press SOURCE button to select TV mode)
1. Press the POWER button to turn the LCD TV on
2. Press the MENU button on the remote control to display the Main menu, and use the UP and DOWN
buttons to select the SOUND
3. Use the UP and DOWN buttons to highlight an individual SOUND option, use the LEFT and RIGHT buttons
to change the setting, and press the MENU to exit the menu
Sound
Sound Mode
Volume
Bass
Treble
Balance
Surround
Normal
On
Move
The SOUND menu includes the following options :
Sound Mode Cycles among sound display modes: User, Normal, News, Movie .
Volume To adjust the volume.
Bass Controls the relative intensity of lower pitched sounds.
Treble Controls the relative intensity of higher pitched sounds
Balance To adjust the balance of the left and right sound track, or turn off the volume of the left and right sound track.
Surround Allows you to turn the surround on or off
Select Exit
29
Application
Customizing the FUNCTION Settings
Select TV source for example. (Press SOURCE button to select TV mode)
1. Press the POWER button to turn the LCD TV on.
2. Press the MENU button on the remote control to display the Main menu, and use the UP and DOWN
buttons to select the FUNCTION.
3. Use the UP and DOWN buttons to highlight an individual FUNCTION option, use the LEFT and RIGHT
buttons to change the setting, and press the MENU to exit the menu.
Function
Language
Blue Back
Timer
CC
Parent Guide
Reset
English
On
Off
Move
Select Exit
The FUNCTION menu includes the following options :
Language Selects to display all on-screen menus in your language of choice : English/ Français/ Español
Blue Back To turn the blue back on or off.
Timer
Current
Off Time
On Time
On Channel
Move
Function
0:5
__:__
__:__
1
Select Exit
Current Input the current time. Off Times Allows you to set the off times to turn off the unit automatically. On Times Allows you to set the on times to turn on the unit automatically. On channel The number of the current channel.
Closed Caption Allows to select the following closed caption modes:
● CC1/CC2/CC3/CC4 Display a printed version of the dialog and sound effects of the program beging views.
● T1/T2 Display station information presented using either half or the while screen.
● T3/T4 Extended Data Services. For example: Network name, Program name, Program length, etc.
● Off NOTE : The Closed Caption item can only be activated under TV1 mode.
Reset Restores factory settings except parental and password options.
30
Application
Customizing the FUNCTION Settings
Using the Parent Guide Settings
NOTE: The Parent Guide item can only be activated under TV mode.
The US has 2 rating system for viewing content: Movie rating (MPAA) and TV rating.
The TV rating conjuncts with the V-CHIP to help parents block inappropriate programs from their children.
The Movie rating (MPAA) is used for original movies rated by the Motion Picture Association of America (MPAA)
as broadcasted on cable TV and not edited for television.
The V-CHIP can also be set to block MPAA-rated movies.
1. Use the DOWN button to select “Parent Guide” in the Function menu, then press the RIGHT button to
display the Parent Guide menu.
NOTE : Use the Parent Guide function, must enter a 4-digital password first. The factory password is 0000.
INPUT PASSWORD
Function
Change Password
VCHIP
TV Rating
Movie Rating
English Rating
French Rating
On
None
EXEMPT
EXEMPT
Move
Select Exit
2. Select V-CHIP Enable ON.
The Movie Rating includes the following options:
RATING DESCRIPTION
G General Audiences. Movie is appropriate for all ages.
PG Parental Guidance Suggested. May contain material not suited for younger viewers.
PG-13 Contains content that may not be appropriate for viewers under the age of 13
R Restricted. Contains adult content, no one under 17 admitted without parent.
NC-17 No one 17 and under admitted.
X Adults only.
None
Use the LEFT and RIGHT buttons to select the rating you want.
31
Application
Customizing the FUNCTION Settings
Using the Parent Guide Settings
The TV Rating includes the following options
TV-Y
TV-Y7
TV-G
TV-PG
AGE-BASED
Use the UP and DOWN buttons to select the rating you want and press the ENTER button repeatedly to select
Blocked Rating (B) or Unblocked Rating (U)
The Parent Guide MENU includes the following options :
Change Password Use DOWN button to select “Change Password” and press RIGHT.
TV-14
TV-MA
ALL FV V S L D
U
U
U
U
U
U
U
U
U
U
U
U
U
U
U
U
U
U
INPUT PASSWORD
Input the new 4-digital password and input it again to confirm.
VCHIP To select VCHIP on or off.
TV Rating Selects to activate the TV Rating programs.
Movie Rating Selects to activate the MPAA Rating programs.
English Rating Allows you to select among: EXEMPT, C, C8, G, PG, 14+ and 18+.
French Rating Allows you to select among: EXEMPT, G, 8 Antst+, 13 Antst+, 16 Antst+ and 18 Antst+.
33
Application
Customizing the TV Settings
Air/ Cable Allows selection among HRC, Air, STD and IRC signal sources
Skip Allows addition/ removal of channels.
Application
Customizing the PC Settings
1. Press the POWER button to turn the LCD TV on.
2. Press the SOURCE button on the remote control to select VGA mode.
3. Press the MENU button on the remote control to display the Main menu, and use the UP and DOWN
buttons to select the PC.
4. Use the UP and DOWN buttons to highlight an individual PC option, use the LEFT and RIGHT buttons to
change the setting, and press the MENU to exit the menu.
PC
HPosition
VPosition
Clock
Phase
Auto Sync
Move Select Exit
The PC menu includes the following options :
H Position Allow you to use LEFT and RIGHT button to adjust the H Position.
V Position Allow you to use LEFT and RIGHT button to adjust the V Position.
Clock Allow you to prolong the image.
Phase Allow you to adjust the definition.
Auto Sync Select “Auto Sync” and press RIGHT, the unit will automatically adjust all items to achieve a best effect. NOTE : We recommend you to do this operation to achieve a best effect.
34
35
Application
Customizing the ADVANCED Settings
Select TV source for example. (Press SOURCE button to select TV mode)
1. Press the POWER button to turn the LCD TV on.
2. Press the MENU button on the remote control to display the Main menu, and use the UP and DOWN
buttons to select the ADVANCED.
3. Use the UP and DOWN buttons to highlight an individual ADVANCED option, use the LEFT and RIGHT
buttons to change the setting, and press the MENU to exit the menu.
Advanced
Scale
3D NA
Color Temp

16 9
˖
Low
Normal
Move
Select Exit
The ADVANCED menu includes the following options :
Scale Cycles among scale mode: 16:9, ZOOM1, ZOOM2, 4:3, PANORAMA.
3D NA Allows you to adjust the 3D NA among: LOW, Mid, High, Off.
Color temperature Adjusts color components independently to achieve a warm or cool effect: Use/ Normal/ Warm/ Cool
● User: Allows the user to adjust red, green and blue color component levels independently.
Advanced
User
User-R
User-G
User-B
Move Select Exit
● Normal
● Warm
● Cool
Trouble shooting
Maintenance and Service
Do not use other functions that are not mentioned in this user’s manual. In case a problem occurs with your LCD TV, please take the following steps first. If you still have the problem, turn the power off and contact your dealer or an authorized service center.
Problem Action
The screen does not appear.
Is the power plug pulled out? Insert the power plug.
Press the power button of the remote control.
The screen appears too
This problem occurs for a brief time in the process of
slowly after the power is turned on.
image elimination processing in order to hide temporary screen noise
that occurs when the power is turned on. But if the screen does not
come after 1 minute contact your dealer or an authorized service
center.
Screen is too bright or too dark. Perform brightness adjustment or Contrast adjustment.
Screen is too large or too small. Adjust the screen size.
Stripes appear on the screen
Stop using wireless telephones, hair driers and electric drills.
and it shakes.
The screen does not move. Press the PAUSE button. Check if the Pause button is pressed on
external equipment.
Screen appears, Voice is not heard
1. Press the "MUTE"button.
2. Increase the sound level by pressing volume adjustment button.
3. Check if sound terminal of external input is connected properly.
4. Check if audio cables are connected properly.
5. Select and check the other input.
If the sound still does not work and the other channels are the same after you have done as the above, contact your dealer or an authorized service center.
36
Remote control does not work
1. Check if main power is On.
2. Check that the batteries of the remote controller were loaded properly.
3. Check to see if any obstacle exists between the LCD TV and the remote control , then remove it, if any.
4. If the batteries have no power, replace them with two new batteries.
This LCD TV is for household use and registered as harmless on electromagnetic waves. Therefore, you can use it in every location as well as residential areas.
37
Specifications
Maintenance and Service
The cabinet design and electronics specifications will be modified without prior notice for improving the performance.
LCD Panel
Max. Resolution
Input Connector
Output Connector
Power Source
Power Consumption
Panel Size
Brightness
Contrast Ratio
Viewing Angle
VIDEO
S-VIDEO
YPbPr
AUDIO (L/R)
VGA/AUDIO
HDMI
RF
AUDIO (L/R)
42” TFT LCD
500
1500:1
180º
1920 x 1080
2
1
1
2
1
1
1
1
AC 110-240V, 50/60HZ
230W
Dimension
Weight (N.W.)
1055 W x 736 H x 127 D mm (without bracket)
27.5 Kg
Weight and dimensions are approximate
LCD-TV Wall mounting assembly instruction
1. Lay the TV down with the rear facing up on a non-abrasive surface.
Remove the six screws shown in figure A with a Phillips screwdriver.
2.
Figure
A
Remove the stand from the TV by pulling it out of the cabinet. See Figure B.
3.
B
Figure
38
4. Insert the supplied plastic stand cover as shown in Figure C and D.
Figure C
5.
Remove the 4 screws shown in Figure E.
Figure D
Figure
E
Attach the wall mounting bracket (not supplied) using these 4 screws.
6.
39
www.asaelectronics.com
Loading...
