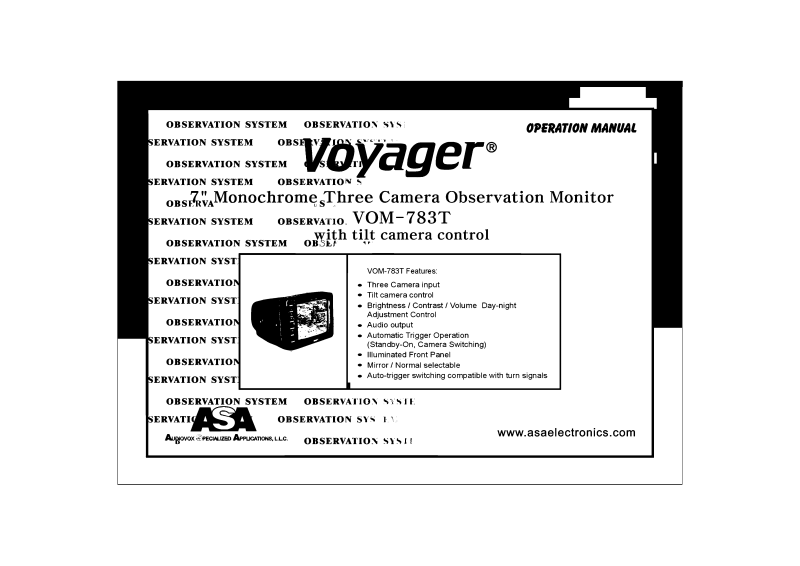

ASA VOM-783T User Manual
VOM-783T OPERATIONS MANUAL
IMPORTANT:
The VOYAGER Observation System has been designed to provide years of trouble-free operation.
Please read this manual thoroughly. This manual contains instructions to ease installation of the camera and monitor.
The VOYAGER Observation System is a supplement to standard rearview mirror systems, and will provide additional
rearview vision when installed and maintained properly.
The VOYAGER Observation System is not intended in any way to be a substitute for careful, cautious, defensive driving or for
the consistent adherence to all applicable traffic laws and motor safety regulations. This product is not intended to be a
substitute for rearview mirrors or for any other motor vehicle or boat equipment mandated by laws.
FEATURES:
VOM-783T Monochrome 7" Monitor
• Day / night switch
• Brightness and contrast controls
• Volume control.
• Power / stand-by switch
• Audio output
• Three camera inputs
• Auto-trigger switching compatible with turn signals
• Tilt up / down switch
CONTENTS OF VOM-783T 7" Monochrome Monitor
1-7" monitor
1- Snap-on sun visor
1- Monitor bracket
1- Power harness with locking connector
1- Range markers
4- Thumb screws (M5 x 15) with plain washer & spring washers
4- Attachment screws with washers(M5 X 12)
1 - 6 inches adaptor cable for non-tilt camera use into CA1 input terminal
VOM-783T 1
VOM-783T OPERATIONS MANUAL
VEC-65 Cable
1 - 65ft cable with waterproof connector. (Not supplied)
VCT-655 Cable
1-65ft cable with waterproof connector for tilt camera. (Not supplied)
Documents:
1- Operations manual
BEFORE INSTALLATION:
1. This system operates from 10 volts DC to 32 volts DC , negative ground.
2. Please install this system according to the instructions in this manual.
3. DO NOT DISASSEMBLE THE CAMERA OR THE MONITOR.
4. Connect the system to a switched ignition power source. Connection to a non-switched battery
** WARNING**
1. To prevent electrical shock, DO NOT OPEN THE MONITOR CASE. There are potentially lethal voltages inside the monitor,
2. Keep monitor away from leaking water, rain, moisture etc. It is not waterproof. Any moisture inside the monitor could cause
Disassembling the camera will compromise the waterproof seal and this voids the Warranty.
power source will reduce
battery life.
there are no serviceable parts inside, if evidence of tampering is detected, the warranty will be considered void.
extensive damage.
2 Voyager
VOM-783T OPERATIONS MANUAL
INSTALLATION INSTRUCTIONS
VOM-783T MONITOR
1. Attach monitor inside vehicle in a location convenient to the driver (e.g. Center of dash, overhead or in dash).
Do not impede the operator's view of any vehicle controls or the view outside the vehicle.
2. Use a compression plate to attach the monitor bracket to the dash or overhead (See Fig.1).
3. Adjust mounting angle of the monitor to allow driver to easily view the screen from all seat position (See Fig.2).
4. If necessary, snap sun visor into groove on front face of monitor. Press all (4) sides of the visor to snap it into place.
VEC-65 & VCT-655 CABLE (Not supplied)
1. The camera-to-cable connection is waterproof. The cable-to-monitor connection is not waterproof.
Be sure to orient the cable properly. The cylindrical end attaches to the camera. The rectangular box end attaches to
the monitor.(See Fig.3)
2. Do not run the VEC-65 & VCT-655 cable over sharp edges. Do not kink the cable.
Keep the cable away from hot and rotating parts.
3. Place all excess cable in convoluted tubing.
4. Tie the cable securely.
MAINTENANCE:
Remove dust and dirt with a damp soft cloth. Heavier dirt should be removed with a damp soft cloth
and mild detergent. Do not use strong cleaning agents containing gasoline, thinner, benzene or
alcohol. These substances may damage the exterior surface of the monitor.
VOM-783T 3
VOM-783T OPERATIONS MANUAL
** CAUTION **
1. Before drilling, be sure no cable or wiring is on the other side. Be sure to drill a 3/4" diameter hole only.
2. Feed as much cable as possible into vehicle and clamp securely. This reduces the possibility of being hooked
during production.
3. Keep all cables away from HOT, ROTATING and ELECTRICALLY NOISY components.
4. To increase protection of cable, place all excess wire and extension cable in convoluted tubing.
5. Do not twist camera cable and do not cut camera pigtail or cable.
WIRING MONITOR
1. See wiring diagram for connections.(See Fig.3)
2. Wiring Monitor:
Insert extension cable into camera #1 position if three cameras are used , be sure to mark each extension cable
properly, plug second and third cables into camera #2 or #3 position.
Bundle excess cable together using a cable tie or vinyl tape. This will avoid possible damage to cable during
operation.(See Fig.3)
3. The red wire is connected to an ignition power source, the black wire
is connected to chassis ground, and the blue wire is connected to the rear gear position, the brown and green wires
are connected to the direction signals.(See Fig.3)
4 Voyager
