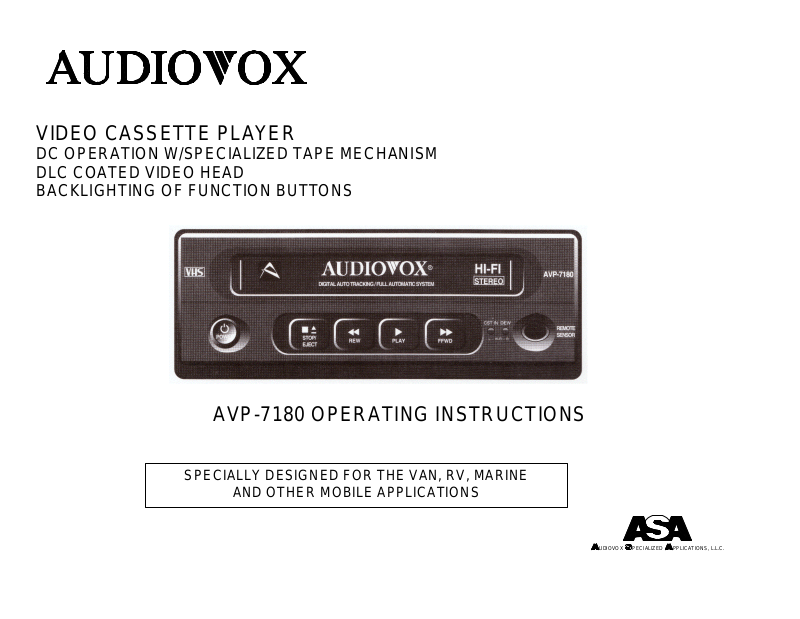

DC OPERATION W/SPECIALIZED TAPE MECHANISM
DLC COATED VIDEO HEAD
BACKLIGHTING OF FUNCTION BUTTONS
AVP-7180 OPERATING INSTRUCTIONS
SPECIALLY DESIGNED FOR THE VAN, RV, MARINE
AND OTHER MOBILE APPLICATIONS
UDIOVOX PECIALIZED
Page 2
♦ A VIDEO MONITOR/TV is designed for rear passenger viewing only. This product may only be installed in
RECOMMENDED GUIDELINES FOR THE USE OF A VIDEO MONITOR/TV IN A MOTOR VEHICLE
the rear seat compartment of the vehicle, out of the driver’s view.
♦ Installation in any other area of the vehicle, including anywhere within the driver’s view, is illegal in most states,
provinces and countries and may lead to driver distraction resulting in an accident, injury and/or death. If you
are unsure of regulations regarding this, please consult your local laws to determine how this applies to you.
♦ Users should be aware of the possible noise distraction caused by the use of the product and should carefully
monitor the volume so as not to interfere with the drivers attention to surrounding traffic conditions.
Page 3
TABLE OF CONTENTS
NOTE: This Video Cassette Player is compatible with any Video Cassette Player bearing the VHS mark. The VCP is designed to
expand your opportunities for home viewing and not for any usage which might violate the copyright laws.
Save the original shipping carton and packing materials, they will come in handy if you ever have to ship your VCP. For maximum
protection, repack the set as it was originally packed at the factory.
DRAWING YOUR ATTENTION…………………………………………………………………………………..1
IMPORTANT SAFEGUARDS……………………………………………………………………………………..3
VIDEO HEAD CLEANING…………………………………………………………………………………………7
IMPORTANT NOTES………………………………………………………………………………………………8
FEATURES………………………………………………………………………………………………………….9

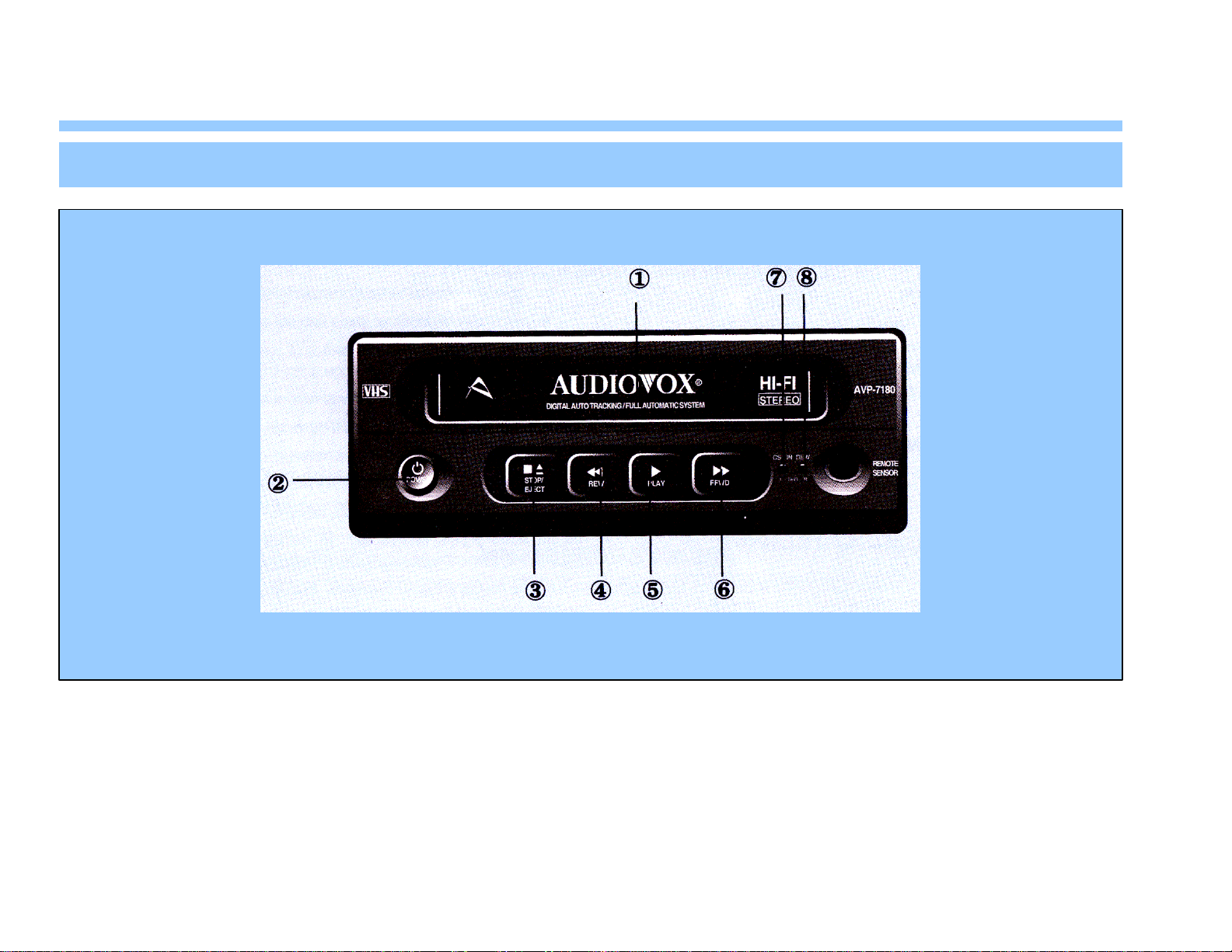

IDENTIFICATION…………………………………………………………………………………………………10
TO GET STARTED……………………………………………………………………………………………….14
BASIC OPERATION………………………………………………………………………………………………16
SPECIAL OPERATION…………………………………………………………………………………………..20
BEFORE CALLING SERVICE PERSONNEL………………………………………………………………….22
SPECIFICATION………………………………………………………………………………………………….25
Page 4
DRAWING YOUR ATTENTION
CAUTION: TO REDUCE RISK OF ELECTRIC
PERSONNEL.
a risk of electric shock to persons.
CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE OR
PEUVENT ⊇TRE INS⊃R⊃ES ℵ FOND SANS QU’AUCUNE PARTIE NE RESTE ℵ DECOUVERT.
Thank you for purchasing AUDIOVOX VCP, developed to provide advanced features and functions for high quality performance.
To obtain best results and to avoid malfunction, PLEASE CAREFULLY READ THE DESCRIPTIONS AND OPERATING PROCEDURE
CONTAINED IN THIS MANUAL PRIOR TO OPERATING THIS VCP.
CAUTION
RISK OF SHOCKS
ELECTRIC
DO NOT OPEN
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
AVERTISSEMENT: POUR PR⊃VENIR LES RISQUES D’INCENDIE ET D’⊃LECTROCUTION, NE PAS EXPOSER CET APPAREIL ℵ LA
OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
ATTENTION: POUR ⊃VITER LES CHOCS ⊃LECTRIQUES, NE PAS UTILISER CETTE FICHE (POLARIS⊃E) AVEC UN CORDON
PROLONGERATEUR, UNE PRISE DE COURANT OU UNE AUTRE SORITE DE COURANT, SAUF SI LES BROCHES
The lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance
1
Page 5
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper
grounding. In particular, it specifies that the cable ground shall be connected to the grounding system of the building, as close to the
point of cable entry as practical.
NOTE:
This equipment has been tested and found to comply with the limit for a Class B digital device, pursuant to Part 15 of the FFC Rules.
These limits are designed to provide protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the
instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
2
Page 6
IMPORTANT SAFEGUARDS
USE
Power Sources-This set should be operated
Overloading- Do not overload wall outlets,
Attachments- Do not use attachments not
For your protection, please read these safety instructions completely before operating the appliance, and keep this manual
for future reference.
Carefully observe all warnings, precautions, and instructions on the appliance, or the ones described in the operating
instructions and adhere to them.
only from the type of power source indicated
on the marking label. If you are not sure of
the type of electrical power supply at your
home, consult your dealer or local power
company. For these sets designed to
operate from battery power, or other sources,
refer to the operating instructions.
extension cords or convenience receptacle
beyond their capacity, since this can result in
fire or electric shock.
Object and Liquid Entry- Never push objects of
any kind into the set through the openings as they
may touch dangerous voltage points or short out
parts that could result in a fire or electric shock.
Never spill liquid of any kind on the set.
recommended by the manufacturer, as they
may cause hazards.
Cleaning- Unplug the set from the wall outlet
before cleaning or polishing it. Do not use
liquid cleaners or aerosol cleaners. Use a
cloth lightly dampened with water for cleaning
the exterior of the set.
33
3
Page 7
Water and Moisture- Do not use power
line operated sets near water- for example,
Ventilation- the slots and openings in the cabinet
Portable Cart Warning- An appliance and cart
near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a
swimming pool, etc.
Accessories- Do not place the set on an
unstable cart, stand, tripod, bracket, or
table. The set may fall causing serious
injury to a child or an adult, and serious
damage to the set. Use only a cart stand,
tripod, bracket, or table recommended by
the manufacturer.
are provided for necessary ventilation. To ensure
reliable operation of the set, and to protect it from
overheating, these slots and openings must never
be blocked or covered.
- Never cover the slots and openings with a
cloth or other materials.
- Never block the slots and openings by placing
the set on a bed, sofa, rug, or other similar
surface.
combination should be moved with care.
Quick stops, excessive force, and uneven
surfaces may cause the appliance and cart
combination to overturn.
4
Page 8
- Never place the set in a confined
Power-Cord Protection- Route the power cord in
MOISTURE CONDENSATION
space such as a bookcase, or built-in
cabinet unless proper ventilation is
provided.
order not to be walked on or pinched by items
placed upon or against them, paying particular
attention to the plugs, receptacles, and the point
where the cord exits from the appliance.
- Do not place the set over a radiator or heat
register, or where it is exposed to direct
sunlight.
In normal temperature, if you pour a cold liquid
into a glass, water vapor in the air will
condense on the surface of the glass. This is
moisture condensation. The moisture
condensation may occur inside VCP's, if used
in this condition, it will cause damage to the
head and the tape.
If the VCP is moved from a cold place to heated
place, or the temperature of the VCP’s
surroundings goes up due to room heat being
switched on. Or if the VCP suddenly moved from
an air conditioned room to place with a of high
degree of humidity in summer. This may cause the
dew indicator light to light up. Do not use the VCP
in this condition.
5
When the moisture condensation occurs inside of
the VCP, NEVER insert the cassette into the
cassette compartment. Remove the cassette if
loaded, by pressing the STOP/EJECT key. Only
operate the VCP after moisture condensation has
completely dried out. Normally, it takes about two
hours.
Page 9
SERVICE
Damage Requiring Service- Unplug the set
from the wall outlet and refer servicing to
Servicing- Do not attempt to service the set
qualified servicing personnel under the following
conditions:
- When the power cord or plug is damaged or
frayed.
- If liquid has been spilled or objects have
fallen into the set.
- If the set has been subjected to excessive
shock by being dropped, or the cabinet has
been damaged.
- If the set does not operate normally when
following the operating instructions, adjust
only those controls that are specified in the
operating instructions. Improper adjustment
of other controls may result in damage and
will often require extensive work by a qualified
technician to restore the set to normal
operation.
yourself as opening or removing covers may
expose you to dangerous voltage or other
hazards.
Refer all servicing to qualified service personnel.
Replacement Parts- When replacement of parts
is required, be sure the service technician has
used replacement parts specified by the
manufacturer that have the same characteristics
as the original parts. Unauthorized substitutions
may result in fire, electric shock, or other hazards.
Safety Check- Upon completion of any service or
repairs to the set, ask the service technician to
perform routine safety checks (as specified by the
manufacturer) to determine that the set is in safe
operating condition.
- If the set has been exposed to rain or water.
-When the set exhibits a distinct change in
performance this indicates a need for service.
6
Page 10
VIDEO HEAD CLEANING
VIDEO HEAD CLOGGING
The video heads are the means by which the VCP reads pictures from the tape during playback.
In the unlikely event that they become dirty enough to be clogged, no picture will be played back. This can easily be
determined if, during playback of a known good tape, there is good sound but the picture is extremely snowy. If this
is the case, have the video cassette player checked by qualified service personnel.
VIDEO HEAD CLEANING
During normal operation of the VCP, the video and audio heads can get dirty over a period of time, especially when
using an old or poor quality tape. When the heads are dirty the picture can get snowy and the tracking control will
not adjust the snow out of the picture. We recommend that head cleaning cartridges be used sparingly due to the
fact that they can be very abrasive to the video heads. If the problem is not resolved with the head cleaning
cartridge then the unit needs to be checked by qualified service personnel.
NOTE: Video heads may eventually wear out and should be replaced when they fail to reproduce clear
pictures. To help prevent video head clogging, use only good quality VHS tapes. Discard worn out
tapes.
7
Page 11
IMPORTANT NOTES
• Note that main voltage is supplied to the unit whenever the main plug is connected to the supply socket.
• To avoid the risk of fire or electric shock, do not expose the unit to rain or moisture.
• Do not attempt to open the cabinet. There are no user serviceable parts inside. Refer all servicing to qualified service personnel.
• Keep the unit away from radiators or other sources of heat.
• Do not operate or store the unit close to strong magnetic fields.
• Do not spill liquid of any kind onto the unit. If liquid is accidentally spilled onto the unit, immediately remove the main plug from the
supply socket, and consult an engineer.
• Avoid places subjected to strong vibration.
• Do not place anything heavy on the VCP.
• Use the video cassette player in a horizontal (flat) position only.
• Before operating, remove any paper wrapping which may have been affixed to the player during manufacturing. DO NOT COVER
VENTILATION OPENINGS ON TOP AND SIDES OF THE PLAYER DURING OPERATION.
• When a cassette is inserted into the loading compartment, power is switched on automatically as long as he power cord is plugged
into a DC outlet. DO NOT force a cassette into the compartment when the power cord is unplugged.
• After playing a video cassette, remove it from the player. DO NOT move the player with a cassette in the compartment.
• Store video cassettes in their sleeves or cases and position vertically.
For your protection, record the model number and serial
numbers of your video cassette player here. In the event
your player requires servicing or is stolen, you may need
this information. You may also wish to clip or staple your
sales receipt to this page.
Model Number:________________________________
Serial Number:________________________________
Date Purchased:_______________________________
Store’s Name and Address:______________________
____________________________________________
8
Page 12
FEATURES
CONGRATULATIONS on your purchase of a new VHS VCP.
This VCP is an exciting, new VCP designed to satisfy all your VHS tape play and recording needs.
And, with proper use and care, your new VCP will offer many years of viewing enjoyment.
Just a few of the features include.
•DIGITAL AUTO TRACKING
This VCP plays clear pictures without special operations.
In the Auto tracking mode, the play indicator lamp will blink.
•SELF PICTURE ADJUSTMENT
Since the HEAD DRUM rotates regularly depending on the voltage change or tape condition, the picture is
always stable.
•AUTO START FUNCTION
This VCP will automatically power on and go into PLAY mode when a video cassette is inserted.
•2-HEAD Hi-Fi PLAYBACK
9
Page 13
IDENTIFICATION
FRONT PANEL
¬
®
Cassette Compartment
- Power key
When power is supplied to the set, power
indicator lamp will always light up in red.
The Power ON and Power OFF mode will be
toggled by pressing this key.
When the POWER is switched on, the power
lamp will light up in green.
10
Stop/Eject key
Press this key to stop tape and once more to eject
Tape.
¯Rewind/Review key
If this key is pressed in the PLAYBACK mode, the
VCP enters the reverse picture search mode. If
Pressed in STOP mode, then the tape will rewind at
high speed. The REW indicator lamp will light up in
orange.
Page 14
IDENTIFICATION (continued)
°
³
PLAY key
Press this key to playback a recorded tape, or
to release special operations such as the
search modes. In the playback mode the
indicator lamp will be lit in orange, and in
Auto tracking mode, this indicator lamp will
blink.
±Fast Forward/Cue key
If this key is pressed in the PLAYBACK mode,
The VCP enters the forward picture search
mode. If pressed in STOP mode, then the
tape will fast forward at high speed. The FF
indicator lamp will light up in orange.
²Cassette-In lamp/Hi-Fi L
When the cassette is inserted, the CST-IN
lamp will light up in red. In the stereo or Hi-Fi
L output mode, the lamp will light up in green.
DEW lamp/Hi-Fi R
This indicator will flash (if power is on) to indicate
excessive moisture has been inside of VCP. This unit
will not operate until it dries out sufficiently (the tape
can be ejected from the unit). When the DEW mode
has been activated, leave the unit on to allow it to dry
out completely. In the stereo or Hi-Fi R output mode,
the lamp will light up in green.
CST-in &
Hi-Fi L
CST IN
•
L-Hi-Fi
RED
CST IN
•
L-H-Fi
GREEN
CST IN
•
L- H-Fi
GREEN
DEW &
Hi-Fi R
DEW
•
Hi-Fi R
GREEN
DEW
•
Hi-Fi R
CST-in or
PLAYBACK in normal
Audio mode.
PLAYBACK in Hi-Fi
STEREO Audio mode.
PLAYBACK in Hi-Fi L
Audio mode.
PLAYBACK in Hi-Fi R
Audio mode.
GREEN
DEW
•
Hi-Fi R
DEW mode.
RED
11
11
Page 15
IDENTIFICATION (continued)
REAR PANEL
¬
FUSE HOLDER
This main line fuse is accessible with the external
fuse holder simply by unscrewing the cap. If the
main line fuse should blow then replace the fuse
with a proper rated fuse (125V, 2A).
1
CAUTION: FOR CONTINUED PROTECTION
AGAINIST RISK OF FIRE, REPLACE ONLY
WITH SAME TYPE ____A,____V FUSE.
ATTENTION: UTILISER UN FUSIBLE DE
RECHANGE DE MÉME TYPE.
8
7
-
RF OUT CHANNEL SELECTION SWITCH
2
34
5
6
Set to channel 3 or 4, whichever is not being
broadcast in your area.
®ANT. IN
Connect the TV antenna to this terminal.
12
Page 16
IDENTIFICATION (continued)
¯VIDEO OUT
Connect this terminal to VIDEO IN terminal of your television, using the RCA cord provided.
°AUDIO OUT L/R
Connect this terminal to AUDIO IN terminal of your television, using the RCA cord provided.
±RF OUT
Connect this terminal to antenna terminal of your television, using the coaxial cable.
²³DC JACK INConnect this jack to DC source (DC 12V).
*Connector description for ²
NOTE: This VCP is for 12V use only, so do not use it in 24V vehicles.
If you use this set in a 24V vehicle, all the indicator lamps will blink. To avoid the malfunction of
this set, please disconnect the plug from the power source.
13
Page 17
TO GET STARTED
VCP TO VEHICLE CONNECTION
• You can apply this method to DC 12V output only.
• Please connect to the vehicle only after making sure of the polarity of the cigarette lighter socket. (negative earth)
14
Page 18
• This VCP operates on 12V DC only. If you apply more than 18 volts then the VCP will automatically turn off.
12 VOLT POWER NOTES
• If this polarity is reversed, the unit will not operate.
• Use of this VCP is not recommended in excessive heat. If inside temperature of vehicle is over 100°F, do not
use VCP. Allow VCP to cool before use.
Verify power polarity before connection.
15
Page 19
BASIC OPERATION
CASSETTE LOADING/UNLOADING
LOADING
UNLOADING
DC power cord is plugged in.
¶
Push the cassette into the cassette
¸
Press the STOP/EJECT key twice on the VCP (in
compartment gently. (Arrow mark at top)
• An inverted cassette cannot be inserted
the PLAYBACK mode). This first press will stop the
tape. The cassette-in indicator lamp will be lit.
¹ Pull the cassette out gently.
· The cassette-in indicator lamp is lit up.
• When you press the STOP/EJECT key even if the
• Upon inserting the cassette, the power turns
on even if the power was off as long as the
power is off, the cassette will be ejected.
16
Page 20
BASIC OPERATION (continued)
ERASURE PROTECTION
Video cassettes are equipped with a safety tab to prevent accidental erasure.
When the tab is removed, recording cannot be performed.
• TO PREVENT ACCIDENTAL ERASURE
• After recording, break off the safety tab with a
screwdriver if you don’t want to record over the
tap.
• TO RECORD AGAIN
• Cover the tab opening with cellophane tape.
17
Page 21
BASIC OPERATION (continued)
BASIC PLAYBACK
18
Page 22
BASIC OPERATION (continued)
¶
·
¸
¹
º
»
19
LOADING
The power is on automatically when the
cassette is inserted even if the power
was off.
FAST FORWARDING
PLAYBACK
Press the PLAY key, then the pictures will
appear within approximately 8 seconds.
The tape will rewind automatically to the
beginning after playing to the end.
REWINDING
STOP
Press the STOP/EJECT key once.
The tape will stop.
EJECTING
Press the FF key in the STOP mode.
The tape advances at high speed
without any picture or sound.
19
Press the REW key in the STOP mode.
The tape will rewind at high speed
without any picture or sound.
Press the STOP/EJECT key once
more (in the STOP mode), and the
tape will eject.
Page 23
SPECIAL OPERATION
¶
·
The tape will advance rapidly with the pictures.
¸
¹
The VCP enters the playback mode during special operations as soon as the PLAY key is pressed. During special
operations, noise bars and loss of color may affect the picture. This is not a fault with this unit.
TO VISUALLY SEARCH FORWARD
Press the FF key once in the PLAYBACK mode.
TO OPERATE RE-AUTO TRACKING
Press the PLAY key during playback.
The VCP will enter the Re-Auto Tracking mode.
TO VISUALLY SEARCH REVERSE
Press the rewind key once in PLAYBACK mode.
The tape will rewind rapidly with the pictures.
TO SELECT Hi-Fi AUDIO OUTPUT
During the Hi-Fi program playback, Hi-Fi lamps
light up in green. Press the PLAY key during
playback, then VCP enters auto-tracking mode.
During the auto tracking mode, press the PLAY
key once more. Then you can select audio output
as like below.
“stereo L R mono stereo “
“” stereo
20
Page 24
SPECIAL OPERATION (continued)
º
AUTO TRACKING ADJUSTMENT
• Since this VCP has an Auto tracking Adjustment function, it can play clear pictures without special
operations.
• Auto Tracking Adjustment operates automatically when the cassette is inserted.
• Playback indicator lamp blinks during auto tracking operation. If the tracking is completed, the playback
indicator lamp lights on.
• If noise bars appear in the picture during playback, press the PLAY key to operate Re-Tracking
function.
NOTE: This VCP has an Auto Start Feature.
This VCP will automatically power on and go into PLAY mode when a cassette is inserted.
21
Page 25
BEFORE CALLING SERVICE PERSONNEL
Before calling service personnel, check the following points for a possible cause of the trouble. A minor adjustment
on your part may eliminate the trouble.
SYMPTOMSCAUSEPOSSIBLE SOLUTIONS
There is no power to the VCP.
♦ The power cord is not
connected.
♦ Check the power cord.
No picture on screen when
playing back a recorded tape.
Noise bars on screen.
Operation key does not work
Cassette is ejected upon
insertion.
Audio output does not change to
Hi-Fi mode.
♦ The polarity of power cord is not
correct.
♦ The TV is not set to the video
channel, 3 or 4.
♦ Tracking is not adjusted.♦ Adjust the picture to be clear by
♦ If the cassette or the VCP is not
in normal condition, every
indicator LED/LAMP lights up
and the VCP does not work.
♦ Safety device works to protect
the cassette when it is inserted
incorrectly.
♦ The cassette is recorded in
mono VCR.
♦ The first auto tracking is
executing now.
♦ Change the polarity of power cord.
♦ Set your TV to the video channel, 3
or 4.
pressing the PLAY key.
♦ Turn off the power and on by
pressing the POWER cord.
♦ Unplug and replug the power cord.
♦ Pull the cassette out (unloading it)
and insert it firmly into the cassette
compartment again.
♦ The cassette can not be played
back in Hi-Fi mode.
♦ Wait for a second.
22
Page 26
SYMPTOMSCAUSEPOSSIBLE SOLUTIONS
No power
No backlighting at power button.
Power indicated with backlighting-unit
will not operate.
More indicators flashing, unit will not
operate.
PLAY mode indicated no audio or video
to TV.
♦ Check to insure Video Switch is in ON position.
♦ No 12V DC.♦ Check circuit fuse at source of power (see
vehicle/converter manual).
♦ In-line fuse of power cord (in lighter plug) is
blown.
♦ VCP (2 amp *20x5mm) fuse located on rear of
unit.
♦Power cord unplugged from 12V outlet or at
rear of unit.
♦ (Unit in dew mode) Dew feature
activated (see owner’s manual).
♦ Retain power to player and allow unit for a time
to get rid of moisture. (After 30 minutes if dew
indicator is still on, completely switch power off
from unit and resupply after a minute. This can
reset dew indicator if moisture eliminated.)
♦ Insert the tape
♦ Start the vehicle, if not running.
♦ No tape in unit.
♦ Low voltage
♦ Unit in emergency mode.♦ Contact dealer for service to player
♦ VCP connected to A/V Input jack,
RCA patch cables set in TV mode.
♦ Switch TV to video mode with remote control or
switch behind control door of TV.
23
Page 27
SYMPTOMSCAUSEPOSSIBLE SOLUTIONS
Play mode indicated no audio
or video to TV. (continued from
the previous page)
♦ VCP connected by (75 Ω coax)
antenna coax to TV.
Set in the “monitor mode”.
♦ Switch to TV mode.
Poor video/snowy picture or
lines on screen.
♦ VCP connected to A/V output
jacks. (AVT-1400 or 1475)
♦ Output of VCP A/V RCA cables or
coax not connected to TV input.
♦ Switchable input device used
between TV and VCP (game
prep).
♦ Poor connection between VCP
output and TV input.
♦ Reversed A/V inputs to TV.♦ Check connection (b).
♦ Shorted coax cable between VCP
and TV.
♦ Dirty heads.♦ Clean head using tape cartridge
♦ Change connector between VCP
and TV.
♦ Check connector between VCP and
TV.
♦ Check connection (a).
♦ Check cable/by pass with continuity
test.
cleaner. We recommend using
cartridge with cloth or paper tape
and cleaning drops included.
♦ These are readily available at retail
stores.
24
Page 28
SPECIFICATION
MODELAVP-7180
POWER SUPPLYDC 12V
POWER CONSUMPTION12W
DIMENSION265 X 91 X 295 (W X H X D) mm
WEIGHT APPROX.3.4 kg
VIDEO SIGNAL SYSTEMNTSC Color
VIDEO SIGNAL, OUTPUT (RF) VHS
TAPE TYPEVHS Type
TAPE SPEEDSP: 33.35 mm/sec, LP: 22.23 mm/sec, SLP: 11.12 mm/sec
FF/REW TIME (T-120)Approx. 5 min.
VIDEO SIGNAL OUTPUT (LINE)
AUDIO SIGNAL OUTPUT (LINE)
OPERATING CONDITION HUMIDITY
OPERATING POWER VOLTAGE12 ~ 14V
Design and Specifications are subjected to change without notice.
25
Page 29
ACCESSORY LIST
DescriptionPart Number
AVT-988 9” Color Television with Remote (12V)AVT988
AVT-597 5” Color Television with Remote (12V)AVT597
AVT-1498 13” Color Television with Remote (12V)AVT1498
AVP-7000 Video Cassette Player (12V)AVP7000
AVT-7285 Video Cassette Player (12V)AVP7285
Wireless Headphone Kit: Includes 2 Sets Wireless Headphones and TransmitterWRFKIT1
BPA-501-12 4 Amp Adapter for use with AVT-988 9” and AVT-1498 13” Televisions0891412
AC2A- 2 Amp Adapter for use with AVT-597 5” TV and AVP-7000 Video Cassette Player0891436
Unified Remote Control0892325
VAC-21- 12 Volt Corded VacuumVAC21
AVF-1 12 Volt Rechargeable FlashlightAVF1
HP-175 Headphones with Pivoting Ear CupHP175
HP-275 Headphones with Volume Control on CordHP275
HP-375 Studio Quality HeadphonesHP375
Unlike household electronics, all of our products have been specifically designed and tested for the mobile
environment and are only available through ASA. To order any of these products, please contact Audiovox
Specialized Applications at www.asaelectronics.com or 800-688-3135.
26
Page 30
90 DAY/12 MONTH LIMITED
WARRANTY
APPLIES TO AUDIOVOX VIDEO PRODUCT
Audiovox Specialized Applications, LLC (the company) warrants to the original retail purchaser of this product that should this
product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 90 days from
the date of original purchase, such defect(s) will be repaired or replaced (at the company’s option) without charge for parts and
repair labor. After the initial 90 day period and for a period of 12 months from the date of the original purchase, the company will
supply at no charge a replacement for any defective part(s), but will charge for the labor to repair the product.
To obtain repair or replacement within the terms of this warranty, the product is to be delivered with proof of warranty coverage
(e.g. dated bill of sale), specification of defect(s), transportation prepaid, to an approved warranty station, or the Company at the
address shown below.
This warranty does not extend to the elimination of externally generated static or noise, to the correction of antenna problems, to
costs incurred for removal or reinstallation of the product, or to damage to any tapes, speakers, accessories, or electrical systems.
This warranty does not apply to any product or part thereof which, in the opinion of the company, has been damaged through
alteration, improper installation, mishandling, misuse neglect or accident. THE EXTENT OF THE COMPANY’S LIABILITY UNDER
THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE, AND , IN NO EVENT , SHALL THE
COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE PAID BY THE PURCHASER FOR THE PRODUCT.
This warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED
WARRNTY OF MERCHANTABLILITY, SHALL BE LIMITED TO THE DURATION OF THIS WARRANTY. ANY ACTION FOR
BREECH OF ANY WARRANTY HEREUNDER, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY MUST BE
BROUGHT WITHIN A PERIOD OF 30 DAYS FROM THE DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE
COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREECH OF THIS OR ANY OTHER
WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. No person or representative is authorized to assume for the company any
liability other than expressed herein in connection with the sale of this product.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or
consequential damages so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights.
You may also have other rights which vary from state to state.
Audiovox Specialized Applications, LLC
23319 Cooper Drive, Elkhart, IN 46514
For Service Information Call: 1-800-688-3135
27
Page 31
This instrument is listed by Underwriters
casualty and electrical hazards.
U
L
AUDIOVOX SPECIALIZED APPLICATIONS, LLC.
23319 COOPER DR.
ELKHART, IN 46514
1-219-264-1886
Laboratories, Inc. It is designed and
manufactured to meet rigid U.L. safety
standards against X-radiation, fire,
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
