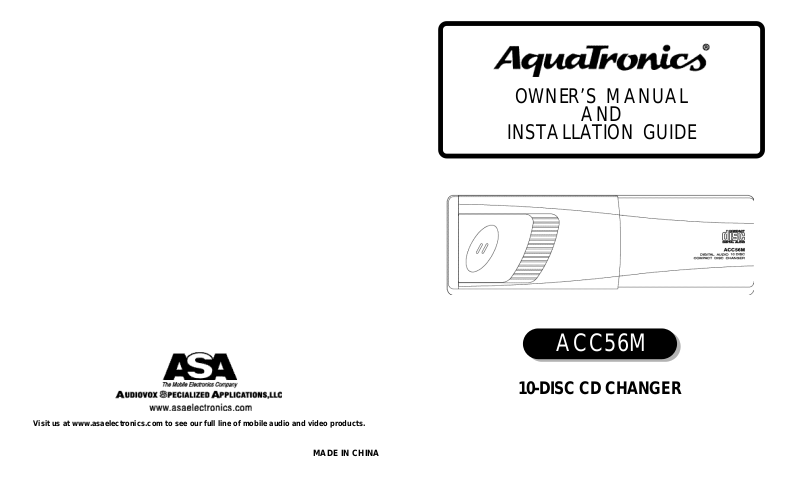

OWNER’S MANUAL
AND
INSTALLATION GUIDE
ACC56M
Visit us at www.asaelectronics.com to see our full line of mobile audio and video products.
MADE IN CHINA
10-DISC CD CHANGER
I N T R O D U C T I O N
Congratulations on your purchase of the AQUATRONICS ACC56M REMOTE-CONTROL
10-DISC CD CHANGER.
This system allows you to easily upgrade your existing audio system to include a quality CD
entertainment function. Best of all, the CD Changer is easy to install. There is only one cable to
plug in to the rear of the already equipped radio. Just follow the simple step-by-step instructions
that follow.
F E A T U R E S
■ Remote mount changer holds up to 10 compact discs.
■ Advanced technology includes 8x oversampling digital filter and twin1-bit digital/analog
converters
■ The special design allows horizontal, vertical or 45-degree mounting.
■ Designed to work with Aquatronics and Voyager CDC ready radios.
I N D E X
Introduction and Contents
page 1
Hints for Correct and Safe Operation
page 10
Packing List
Before Installing the Unit Page
Where to Install the Changer
Installation
Overall Wiring View
page 2
page 3
page 4
page 5
page 9
Handling the Discs
Use of the CD Magazine
Specifications
Troubleshooting
page 11
page 12
page 14
page 15
1
PACKING LIST
Main Unit
BEFORE INSTALLING THE UNIT
Transport Lock Screws
The mechanism in the CD changer is "locked" into place during
shipment by three transport lock screws. Be sure to remove the
screws prior to installation.
R E A R
Installation Parts
Bracket(L) Bracket(R) Hexagonal bolt
1pc.
5Meter Din Cable
1pc.
Other Accessories
CD Magazine(P/N 10CD56M)
with washer (M5 x 10)
1pc. 4pcs.
Self-tapping screw
(T5 x12)
4pcs. 1pc.
lndex label sheet
Screw (C) phillips
Head Self-Tapping Screw
(T3 x12)
2pcs.
Seals(A) Seals(B)
1pc.
Owner’s Manual
and lnstallation Guide
OWNER’S MANUAL
AND
INSTALLATION GUIDE
CAUTION:
After removing the transport lock screws, place the
B O T T O M
F R O N T
supplied seals (A) over the screw holes. These
seals are used to keep dust out of the unit, which
could cause a malfunction.
TRANSPORT LOCK SCREWS
(2 RIGHT SIDE,1 LEFT SIDE)
lnstallation and Wiring Precautions
1. To prevent a short-circuit,
●
Be sure to turn off the ignition and remove the negative (-) battery cable, prior to installation.
●
Connect power wires last.
NOTE: If the changer is to be installed in a vehicle that is equipped with an on-board drive or
navigation computer, do not disconnect the battery cable. If the cable is disconnected,
5 the computer memory may be lost. Under these conditions, use extra caution during
installation not to cause a short circuit.
2. Do not install the unit in the following locations.
●
Locations exposed to direct sunlight.
●
Where hot air is discharged from the car heater.
●
In areas subject to extreme temperatures.
3. Incorrect installation can cause the disc to skip when playing.
Be sure to mount the unit firmly in place, using the supplied brackets and screws.
4 .●Be sure to use the supplied screws.
●
Be careful not to snag any wires when tightening screws.
●
Be careful not to damage the vehicle wiring.
5. ●This unit cannot be installed on its side, end, or upside down.
Installation in such positions will cause malfunctioning of the mechanism.
1pc.
1pc.
ACC56M
10-DISC CD CHANGER
1pc.
32
