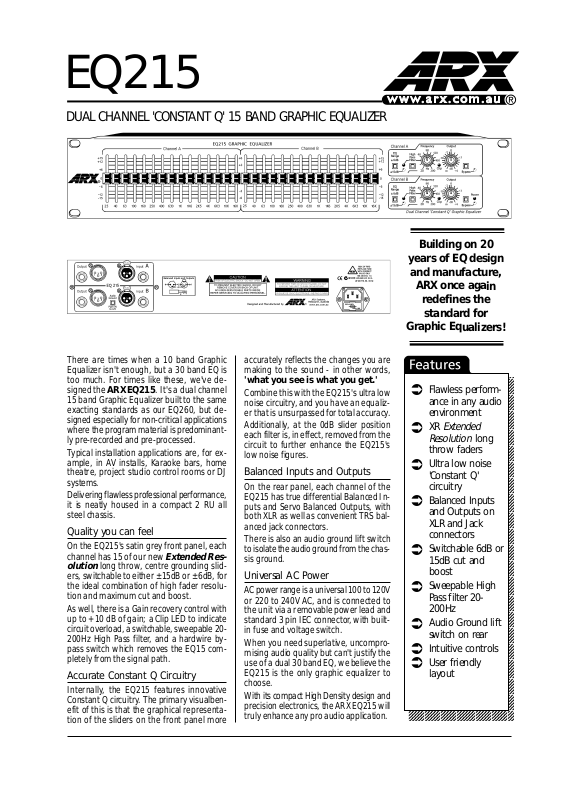

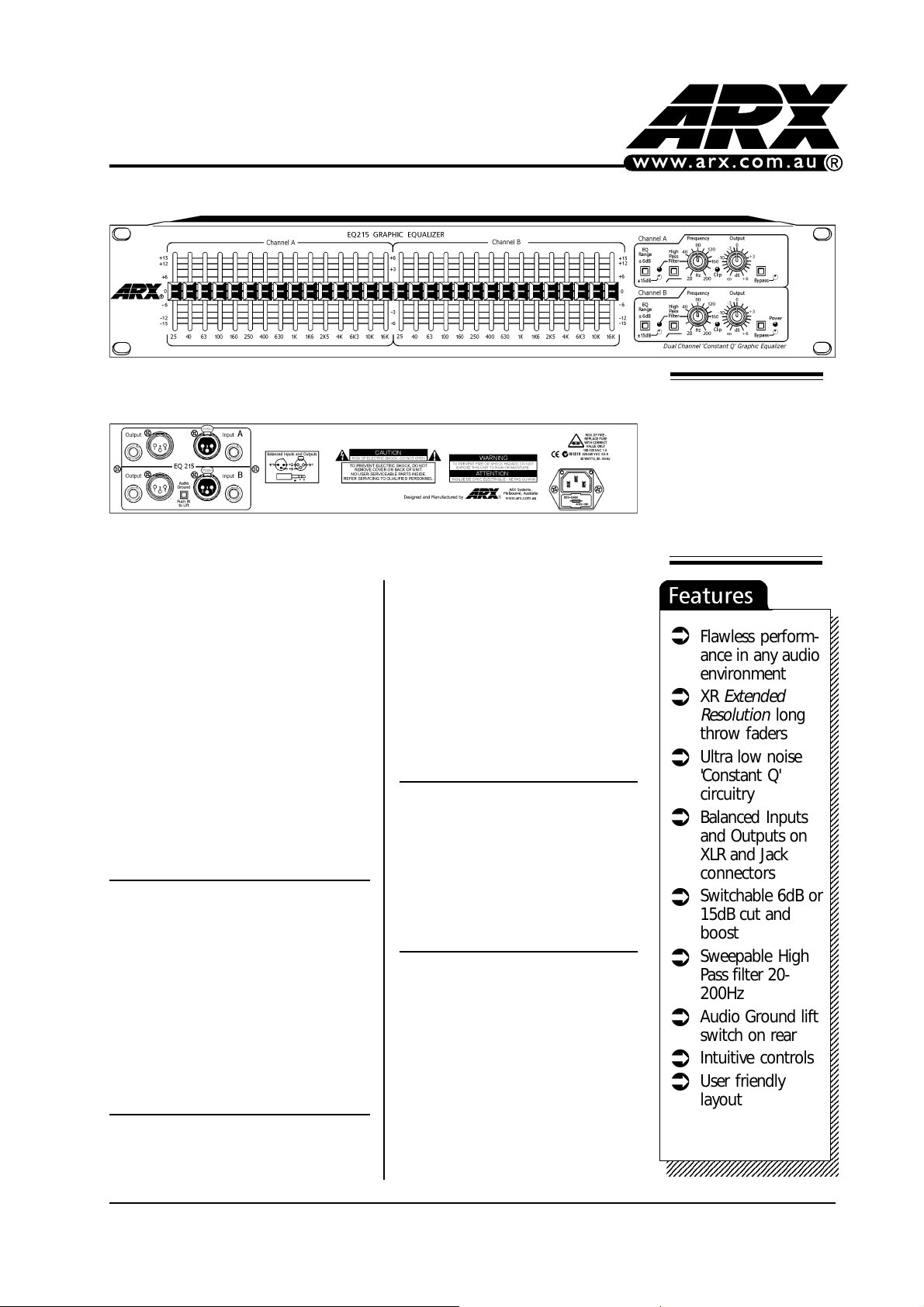

Page 1

EQ215

DUAL CHANNEL 'CONSTANT Q' 15 BAND GRAPHIC EQUALIZER

Building on 20

years of EQ design

and manufacture,

ARX once again

redefines the

standard for

Graphic Equalizers!

There are times when a 10 band Graphic Equalizer isn't enough, but a 30 band EQ is too much. For times like these, we've designed the ARX EQ215. It's a dual channel 15 band Graphic Equalizer built to the same exacting standards as our EQ260, but designed especially for non-critical applications where the program material is predominantly pre-recorded and pre-processed.

Typical installation applications are, for example, in AV installs, Karaoke bars, home theatre, project studio control rooms or DJ systems.

Delivering flawless professional performance, it is neatly housed in a compact 2 RU all steel chassis.

Quality you can feel

On the EQ215's satin grey front panel, each channel has 15 of our new

olution

ers, switchable to either ±15dB or ±6dB, for the ideal combination of high fader resolution and maximum cut and boost.

As well, there is a Gain recovery control with up to +10 dB of gain; a Clip LED to indicate circuit overload, a switchable, sweepable 20200Hz High Pass filter, and a hardwire bypass switch which removes the EQ15 completely from the signal path.

Accurate Constant Q Circuitry

Internally, the EQ215 features innovative Constant Q circuitry . The primary visualbenefit of this is that the graphical representation of the sliders on the front panel more

long throw, centre grounding slid-

Extended Res-

accurately reflects the changes you are making to the sound - in other words,

'what you see is what you get.'

Combine this with the EQ215's ultra low noise circuitry , and you have an equalizer that is unsurpassed for total accuracy .

Additionally, at the 0dB slider position each filter is, in effect, removed from the circuit to further enhance the EQ215's low noise figures.

Balanced Inputs and Outputs

On the rear panel, each channel of the EQ215 has true differential Balanced Inputs and Servo Balanced Outputs, with both XLR as well as convenient TRS balanced jack connectors.

There is also an audio ground lift switch to isolate the audio ground from the chassis ground.

Universal AC Power

AC power range is a universal 100 to 120V or 220 to 240V AC, and is connected to the unit via a removable power lead and standard 3 pin IEC connector , with builtin fuse and voltage switch.

When you need superlative, uncompromising audio quality but can't justify the use of a dual 30 band EQ, we believe the EQ215 is the only graphic equalizer to choose.

With its compact High Density design and precision electronics, the ARX EQ215 will truly enhance any pro audio application.

23456789012345678901234567890121

Flawless perform-

23456789012345678901234567890121

ance in any audio

23456789012345678901234567890121

environment

23456789012345678901234567890121

Extended

Resolution

long

throw faders Ultra low noise

'Constant Q' circuitry

Balanced Inputs and Outputs on XLR and Jack connectors

Switchable 6dB or 15dB cut and boost

Sweepable High Pass filter 20200Hz

Audio Ground lift switch on rear

Intuitive controls User friendly

layout

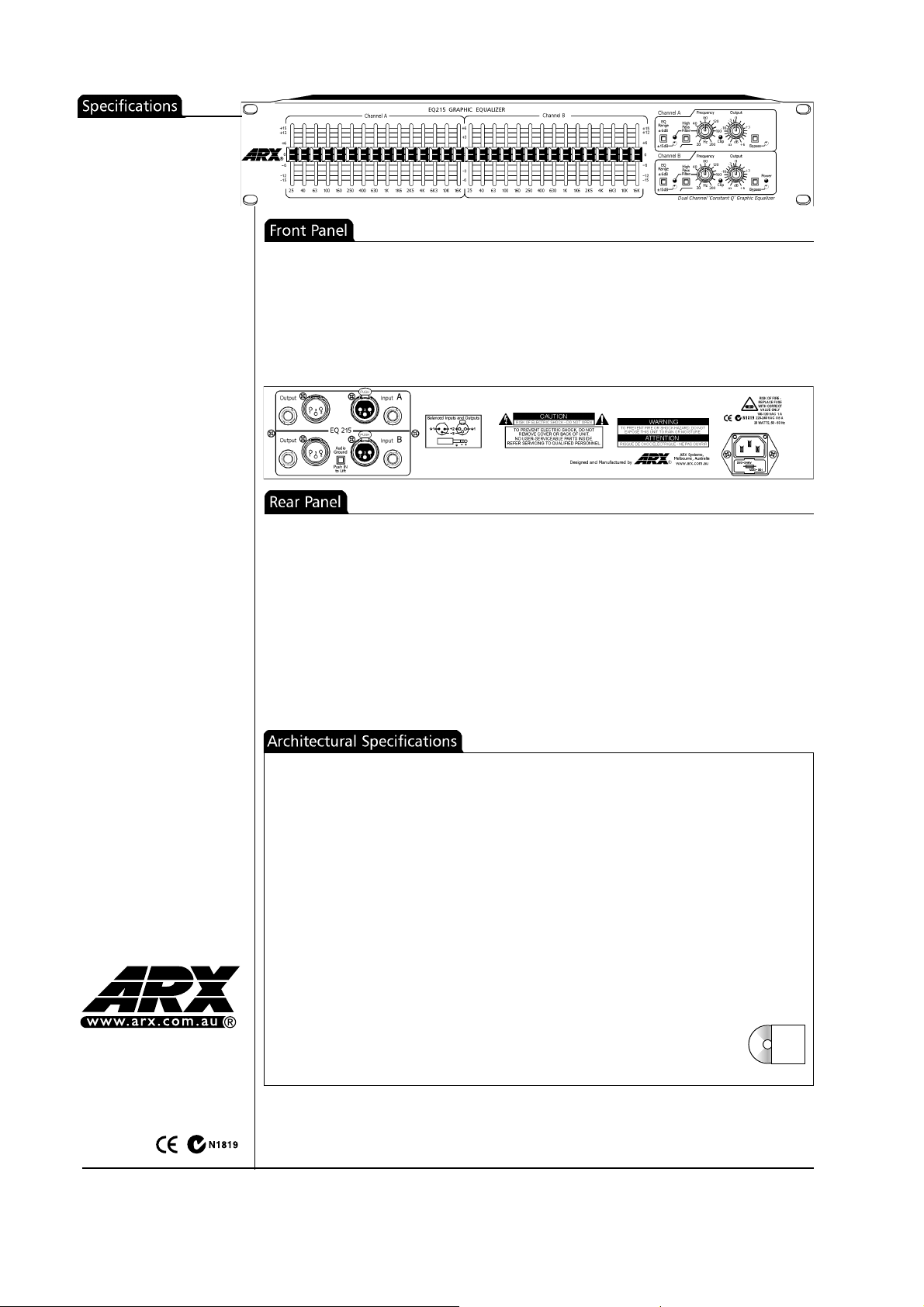

Page 2

Input Impedance

Balanced 40 Kohms Unbalanced 20 Kohms

Input Headroom

+ 23 dB

CMRR

>55 dB, 20 Hz—20 KHz

Output Impedance

Balanced 300 ohms Unbalanced 150 ohms

Output Level (Max)

+ 23 dB

Frequency Response

10Hz-20KHz±0.25dB

Signal to Noise ratio

>–93 dB Unweighted >–98 dB ‘A’ weighted

Distortion

.0035% THD, 0dB,1KHz

Dynamic Range

116 dB

Gain Control

oo to +10dB

High Pass Filter

Sweepable 20 –200Hz

Input Connector type

XLR: Pin 2 +, Pin 3–

Pin 1 Ground Balanced Jack: Tip +, Ring–, Sleeve Ground

Output Connector type

XLR, Balanced Jack wired as above

AC Requirements

100-120, 220/240 V AC 50-60 Hz, 18 VA

Weight

12lbs/5Kg

Dimensions

19"W x 5¼"H x 8"D 482 x 132 x 205mm

Our policy is one of continuous improvement, and therefore designs may change without notice. However, unless otherwise stated, specifications will always equal or exceed those previously given.

• 15 x 60mm Extended Resolution long throw, centre grounding sliders per channel on ISO standard frequencies, 25 Hz to 16 KHz

• Infinity through to +10dB Gain control

• LED clipping indicator

• High Pass filter bypass switch and LED

• 15 or 6 dB EQ Cut/Boost range switch and LED

• Hardwire EQ Active switch and LED

• AC power indicator LED

• 20 - 200Hz sweepable High Pass filter

• Balanced Inputs and Outputs, on both XLR and TRS jack connectors

• AC input connector, with voltage switch and fuse

• Audio Ground Lift switch

ARX Systems are based in Melbourne, Australia, wher e all ARX Pr oducts are assembled and tested in our ‘state-of-the-art’ manufacturing facility

For over 20 years ARX has designed, manufactured and supported Audio Products for Professional users and applications worldwide

The Graphic Equalizer shall be a dual channel unit in a steel chassis eight inches deep and two rack units high, with an all steel front panel.

Each channel shall have 15 x 60mm (45mm travel) long throw centre grounding sliders on standard ISO frequencies, from 25 Hz to 16KHz.

At the 0 point each slider shall effectively be off, and removed from the circuit.

Each channel shall also have a hardwire Bypass switch on the front panel, a High Pass filter sweepable between 20 and 200 Hz, and a range switch to change the maximum cut or boost between ±15dB and ±6dB.

There shall also be an LED to indicate the onset of clipping. In addition, each channel shall have a rotary Gain control, from infinity through 0dB to +10dB gain.

The equalizer shall have electronically Balanced inputs and outputs, on both TRS jack and XLR type connectors, with passive RFI filters and an Input impedance of 40 Kohms (20 Kohms unbalanced).

ARX Systems Pty Ltd; PO Box 15, Moorabbin, Victoria 3189, Australia

Phone: 03 9555 7859 Fax: 03 9555 6747 International Fax +61 3 9555 6747

Email: [email protected] Internet: www.arx.com.au

The Input headroom shall be +23dB, with a CMRR of better than 55dB, and the frequency response shall be 10 Hz to 20 KHz, ±0.25dB.

The Output impedance shall be 300 ohms (150 unbalanced), and the maximum Output level shall be +23dB, with a Signal to Noise ratio of better than -98dB ‘A’ weighted (-93dB unweighted).

T otal Harmonic Distortion shall be .0035% @ 0dB, 1 KHz, and the unit shall have a dynamic range of 116dB. On the rear panel there shall also be an audio ground lift switch.

AC Power shall be supplied via a removable mains cable, connecting to an IEC connector with an integral fuse and voltage change switch on the unit’s rear panel.

The Graphic Equalizer shall be the ARX EQ215.

Specifications available on CD ROM. Latest updates available at:

www.arx.com.au
