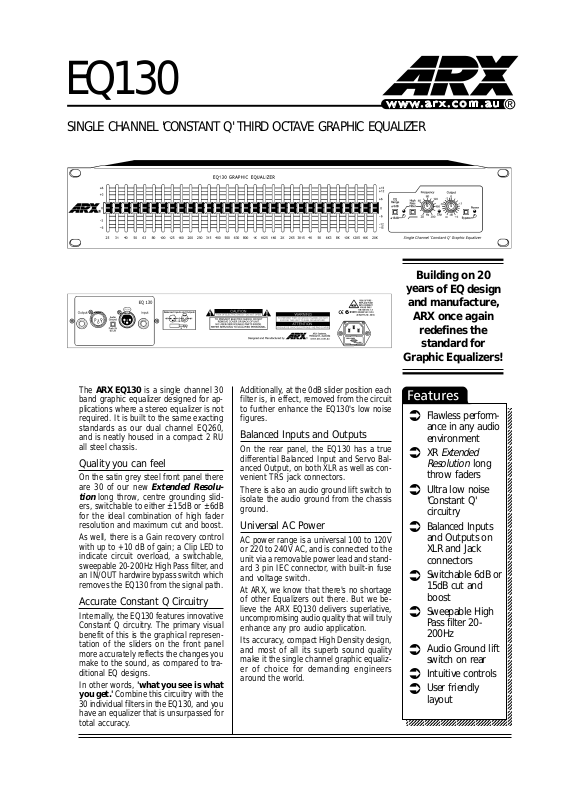

EQ130

SINGLE CHANNEL 'CONSTANT Q' THIRD OCTAVE GRAPHIC EQUALIZER

years of EQ design

and manufacture,

ARX once again

Graphic Equalizers!

Building on 20

redefines the

standard for

The ARX EQ130 is a single channel 30 band graphic equalizer designed for applications where a stereo equalizer is not required. It is built to the same exacting standards as our dual channel EQ260, and is neatly housed in a compact 2 RU all steel chassis.

Quality you can feel

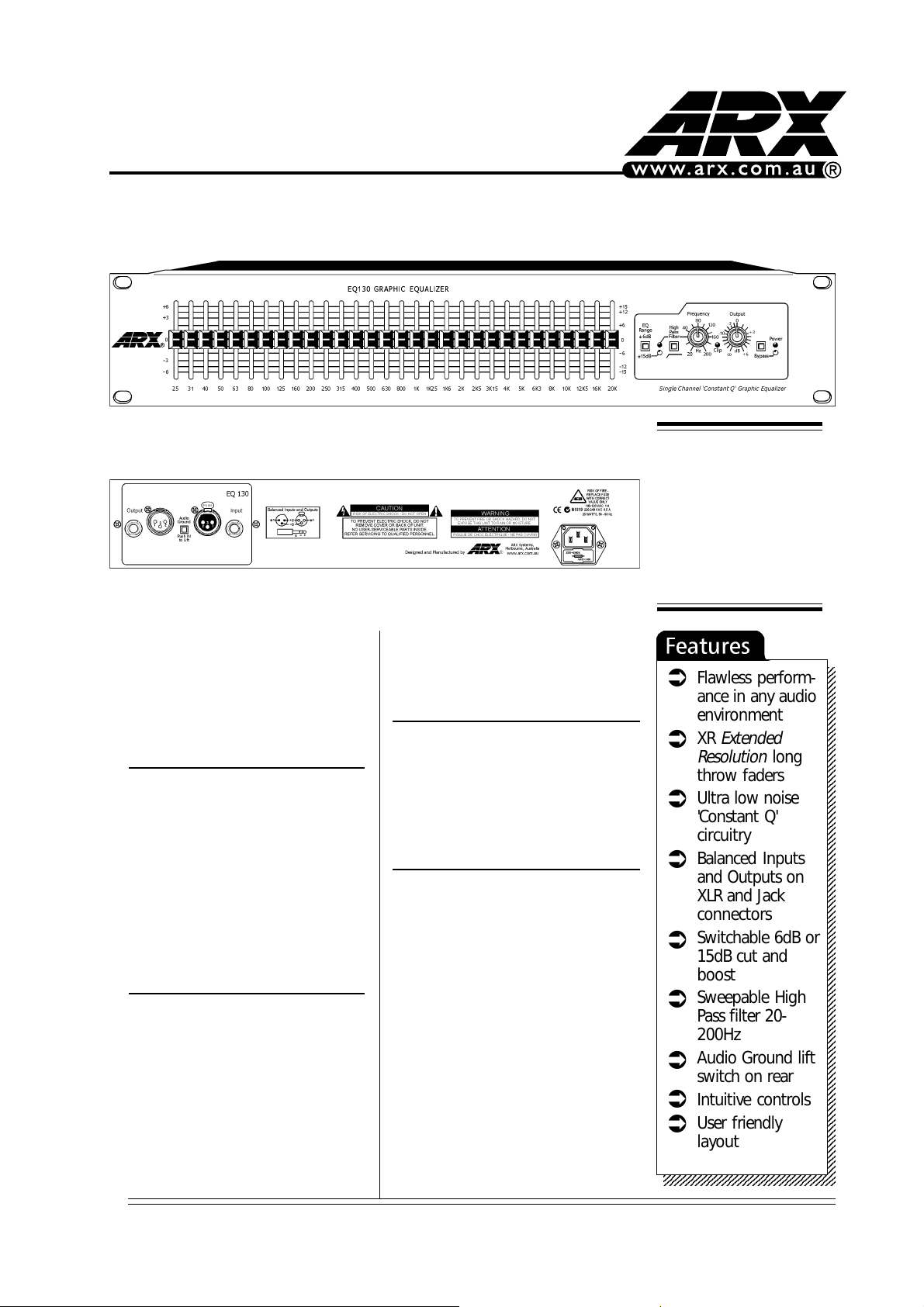

On the satin grey steel front panel there are 30 of our new

tion

long throw, centre grounding sliders, switchable to either ±15dB or ±6dB for the ideal combination of high fader resolution and maximum cut and boost.

As well, there is a Gain recovery control with up to +10 dB of gain; a Clip LED to indicate circuit overload, a switchable, sweepable 20-200Hz High Pass filter, and an IN/OUT hardwire bypass switch which removes the EQ130 from the signal path.

Accurate Constant Q Circuitry

Internally , the EQ130 features innovative Constant Q circuitry. The primary visual benefit of this is the graphical representation of the sliders on the front panel more accurately reflects the changes you make to the sound, as compared to traditional EQ designs.

In other words, 'what you see is what you get.' Combine this circuitry with the 30 individual filters in the EQ130, and you have an equalizer that is unsurpassed for total accuracy.

Extended Resolu-

Additionally , at the 0dB slider position each filter is, in effect, removed from the circuit to further enhance the EQ130's low noise figures.

Balanced Inputs and Outputs

On the rear panel, the EQ130 has a true differential Balanced Input and Servo Balanced Output, on both XLR as well as convenient TRS jack connectors.

There is also an audio ground lift switch to isolate the audio ground from the chassis ground.

Universal AC Power

AC power range is a universal 100 to 120V or 220 to 240V AC, and is connected to the unit via a removable power lead and standard 3 pin IEC connector, with built-in fuse and voltage switch.

At ARX, we know that there's no shortage of other Equalizers out there. But we believe the ARX EQ130 delivers superlative, uncompromising audio quality that will truly enhance any pro audio application.

Its accuracy , compact High Density design, and most of all its superb sound quality make it the single channel graphic equalizer of choice for demanding engineers around the world.

23456789012345678901234567890121

Flawless perform-

23456789012345678901234567890121

ance in any audio

23456789012345678901234567890121

environment

23456789012345678901234567890121

Extended

Resolution

long

throw faders Ultra low noise

'Constant Q' circuitry

Balanced Inputs and Outputs on XLR and Jack connectors

Switchable 6dB or 15dB cut and boost

Sweepable High Pass filter 20200Hz

Audio Ground lift switch on rear

Intuitive controls User friendly

layout

Page 2

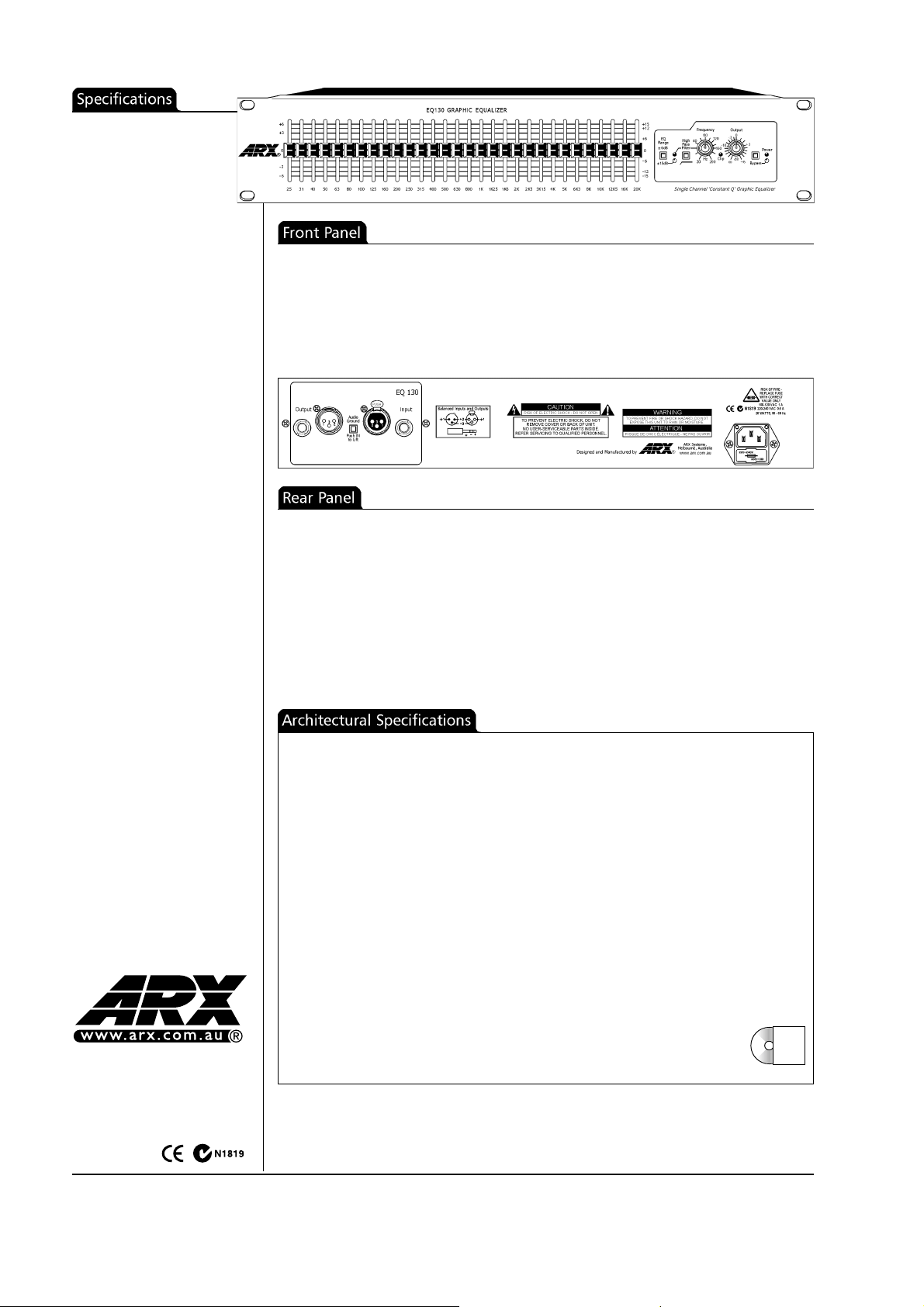

Input Impedance

Balanced 40 Kohms Unbalanced 20 Kohms

Input Headroom

+ 23 dB

CMRR

>55 dB, 20 Hz—20 KHz

Output Impedance

Balanced 300 ohms Unbalanced 150 ohms

Output Level (Max)

+ 23 dB

Frequency Response

10Hz-20KHz±0.25dB

Signal to Noise ratio

-93 dB Unweighted

-98 dB ‘A’ weighted

Distortion

.0035% THD, 0dB,1KHz

Dynamic Range

116 dB

High Pass Filter

Sweepable 20–200Hz

Input Connector type

XLR: Pin 2 +, Pin 3–

Pin 1 Ground Balanced Jack: Tip +, Ring–, Sleeve Ground

Output Connector type

XLR, Balanced Jack wired as above

AC Requirements

100-120, 220/240 V AC 50-60 Hz, 18 VA

Weight

9lbs/4Kg

Dimensions

19"W x 3½"H x 8"D 482 x 89 x 205mm

Our policy is one of continuous improvement, and therefore designs may change without notice. However, unless otherwise stated, specifications will always equal or exceed those previously given.

• 30 x 60mm Extended Resolution long throw, centre grounding sliders on ISO standard frequencies, 25 Hz to 20 KHz

• Infinity through to +10dB Gain control

• LED clipping indicator

• 20 - 200Hz sweepable High Pass filter

• Balanced Inputs and Outputs, on both XLR and TRS jack connectors.

• Audio Ground Lift switch

ARX Systems are based in Melbourne, Australia, where all ARX Products ar e assembled and tested in our ‘state-of-the-art’ manufacturing facility

For over 20 years ARX has designed, manufactured and supported Audio Products for Professional users and applications worldwide

The Graphic Equalizer shall be a single channel unit in a steel chassis eight inches (205mm) deep and two RU high, with a steel front panel.

It shall have 30 x 60mm (45mm travel) centre grounding sliders on standard ISO frequencies, from 25 Hz to 20 KHz. At the 0 point each slider shall be grounded, and effectively removed from the circuit.

It shall also have a hardwire Bypass switch on the front panel, a High Pass filter sweepable between 20 and 200 Hz, and a range switch to change the maximum cut or boost between ± 15dB and ± 6dB. There shall also be an LED to indicate the onset of clipping. In addition, each channel shall have a rotary Gain control, from infinity through 0dB to +10dB gain.

• High Pass filter bypass switch and LED

• 15 or 6 dB EQ Cut/Boost range switch and LED

• Hardwire EQ Active switch and LED

• AC power indicator LED

• AC input connector, with voltage switch and fuse.

quency response shall be 10 Hz to 20 KHz, ±0.25dB. The Output impedance shall be 300 ohms (150 unbal-

anced), and the maximum Output level shall be +23dB, with a Signal to Noise ratio of better than –98dB ‘A’ weighted (–93dB unweighted). Total Harmonic Distor tion shall be .0035% @ 0dB, 1 KHz, and the unit shall have a dynamic range of 116dB. On the rear panel there shall also be an audio ground lift switch.

AC Power shall be supplied via a removable mains cable, connecting to an IEC connector with an integral fuse and voltage change switch on the unit’s rear panel.

The single channel Graphic Equalizer shall be the ARX

EQ130. The equalizer shall have electronically Balanced inputs and outputs, on both TRS jack and XLR type connectors, with passive RFI filters and an Input impedance of 20 Kohms (10 Kohms unbalanced). The Input headroom shall be +23dB, with a CMRR of better than 55dB, and the fre-

ARX Systems Pty Ltd; PO Box 15, Moorabbin, Victoria 3189, Australia

Phone: 03 9555 7859 Fax: 03 9555 6747 International Fax +61 3 9555 6747

Email: [email protected] Internet: www.arx.com.au

Specifications available on CD ROM.
