To obtain warranty service for your Audibox, call, write, or Email to ARX or the dealer you purchased it from. They will give you the correct address to send your unit to. Have your sales receipt showing date of purchase handy, and include a copy of it with your Audibox. Please pack the unit well - we are not responsible for any damage caused by unsuitable packing during shipment. Send the unit to us prepaid, by a delivery service like FedEx, UPS, or any other service that can track the shipment. We will return it to you freight paid. If you have any questions, or any part of this is unclear, please write to ARX Systems in the country of purchase, or to the address below.

PO Box 15,Moorabbin, Victoria 3189, Australia. Phone: +61 (0)3 9555 7859 Fax: +61 (0)3 9555 6747

You can Email the factory at: [email protected]

Page 7Page 6

Page 4

Page 5

ARX Systems (ARX) warrants to the first purchaser of this Audibox product that it is free from defects in materials and workmanship under normal use and service. ARX’s sole obligation under this warranty shall be to provide, without charge, parts and labour necessary to remedy defects, if any, which appear within twelve (12) months from date of purchase; and to supply parts only for the life of the product to the original purchaser. This is our sole warranty. It does not cover finish or appearance items, nor does it apply if the Audibox has been, in ARX’s sole judgement:

• Subjected to misuse, abuse, negligence or accident;

• Repaired, worked on, or altered by persons not authorized by ARX,

• Connected, installed, adjusted or used otherwise than in accordance with the instructions supplied by ARX.

This warranty gives you and us specific legal rights, and you may also have other rights which can vary from state to state.

INTERNATIONAL LIFETIME WARRANTY

ARX manufactures other products in the unique Audibox range:

The ISO-Balancer for balancing unbalanced signals, and also the ISO De-Balancer, which will de-balance a signal when required to connect to an unbalanced input.

The ISO-Later is a Dual channel Unbalanced to Balanced Low Impedance transformer isolated converter, and the ISO Splitter is a transformer isolated 1 input to 2 outputs splitter for splitting 1 input 2 ways in applications where complete Galvanic isolation is required.

Both available in Single Channel or Double Header format.

The Ear Driver is a Headphone Amplifier with 2 pairs of Stereo inputs each feeding two channels of headphone level outputs. It has individual Level controls plus a 12 15VDC power connector. A compact, flexible unit

The AV-DI is a Stereo AudioVisual Active Direct box, with dual RCA or stereo mini jack input and dual XLR outputs. Ideal for interfacing consumer audio (especially computer sound cards) with professional systems.

Did you know...

Other AV-DI features include full- time soft audio ground, –20dB Pad, plus Phantom or DC power options.

Available in Dual Channel format only

The Pro DI is an ultra compact Active Direct box, with normal High Impedance input as well as a separate speaker level input for connection to instrument amplifiers.

Other features include –20dB Pad and Audio Ground Lift switches, plus Phantom or DC power options.

Available in Single Channel or Double Header format

For the latest information on the complete Audibox range, visit our website:

www.arx.com.au/audibox.htm

Using your Audibox PSU

The Audibox PSU is a self contained, stand alone unit designed to provide a regulated 15V DC power suppluy to Audibox units that require external power.

Operating instructions

You will need a short lead with a correct size DC connector attached to one end of the lead.

The lead should be wired as follows: Inner Sleeve +, Outer Sleeve –.

The other end of the lead should be terminated as tinned bare wires. Connect the + wire into the RED screw terminal on the PSU, and the – wire to the Black screw terminal.

Then connect the DC connector to the DC socket on the Audibox unit, connect an AC connector to the IEC AC socket on the PSU, and switch on the power.

The Power LED on the PSU should light up, indicating that the unit is powered up.

Always switch off the AC power when making connections to the PSU.

The Audibox PSU will provide power for up to four Audibox units.

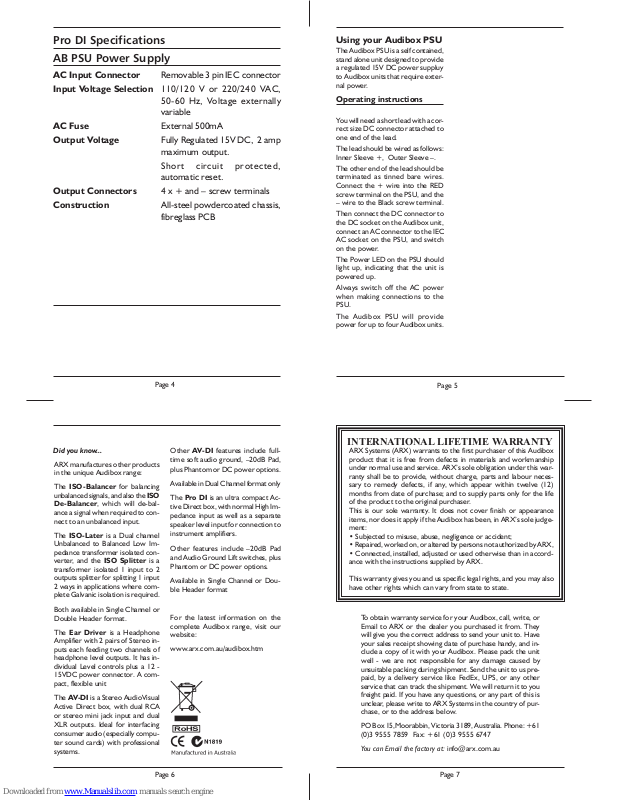

Pro DI Specifications

AB PSU Power Supply

AC Input Connector Removable 3 pin IEC connector

Input Voltage Selection 110/120 V or 220/240 VAC,

50-60 Hz, Voltage externally variable

AC Fuse External 500mA

Output Voltage Fully Regulated 15V DC, 2 amp

maximum output.

Short circuit protected, automatic reset.

Output Connectors 4 x + and – screw terminals

Construction All-steel powdercoated chassis,

fibreglass PCB

Page 2

Page 3

1234567890123456789012345678901212345678901234567890123456789012123456789

23456789012345678901234567890121234567890123456789012345678901212345678

1234567890123456789012345678901212345678901234567890123456789012123456789

Owner's Manual

Page 2

ARX Systems Pty Ltd, PO Box 15,

Moorabbin, Victoria 3189, Australia

Phone: (03) 9555 7859 Fax: (03) 9555 6747

International Fax: +61-3 -9555 6747

On the Net: www.arx.com.au

Email: [email protected]

Thank you for choosing this Audibox

product from ARX. We hope you

enjoy using this unique product as

much as we enjoyed creating it.

As with all ARX equipment, it has un-

dergone extensive factory testing and

‘burn in’ before shipping.

To ensure continued trouble free use,

please familiarise yourself with the

contents of this manual before using.

All models in the Audibox range

feature the same heavy duty all-steel

chassis finished in attractive matt blue

textured powdercoat, with

hardwearing epoxy screen printing

and large slip resistant rubber foot

pads.

By their very nature these units are

compact and portable; to protect

your investment we’ve added numer-

ous security features including a slot

for computer lock, and the option of

a permanent table mounting kit.

A rack mount kit is also available to

rack up to 3 units plus power supply

in 1 RU

Audibox PSU

Regulated 15 volt DC Power Supply,

ideally suited to the Audiobox sys-

tem.

110/120 or 220/240 V AC in, and six

individual 15V DC outputs, with ex-

ernal AC fuse.

Rack mount kit available to rack up

to 3 units plus power supply, or 4

individual units, in 1 RU

Connections and Controls:

Switchable 100 –120 / 220–240 AC

power on a removable IEC connec-

tor; four individual 15V DC outputs,

with 'Power Connected' LED and ex-

ternal AC fuse.

DC Connections

AC Input

Regulated 15 volt DC Power Supply, ideally suited to the Audiobox

system.

110/120 or 220/240 V AC in, and six individual 15V DC outputs, with

exernal AC fuse.

Rack mount kit available to rack up to 3 units plus power supply, or 4

individual units, in 1 RU
