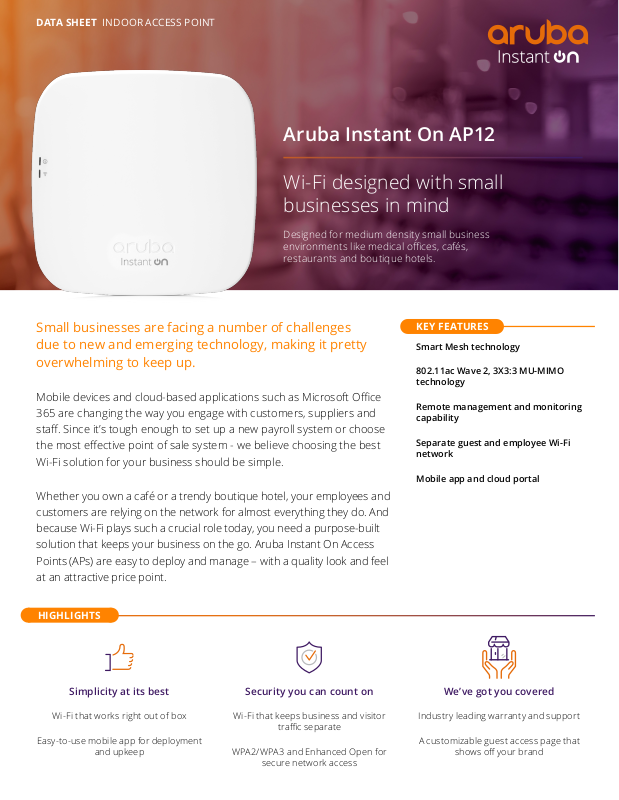

DATA SHEET INDOOR ACCESS POINT
Aruba Instant On AP12
Wi-Fi designed with small
businesses in mind
Designed for medium density small business
environments like medical oces, cafés,
restaurants and boutique hotels.
Small businesses are facing a number of challenges
due to new and emerging technology, making it pretty
overwhelming to keep up.
Mobile devices and cloud-based applications such as Microsoft Oce
365 are changing the way you engage with customers, suppliers and
sta. Since it’s tough enough to set up a new payroll system or choose
the most eective point of sale system - we believe choosing the best
Wi-Fi solution for your business should be simple.
Whether you own a café or a trendy boutique hotel, your employees and
customers are relying on the network for almost everything they do. And
because Wi-Fi plays such a crucial role today, you need a purpose-built
solution that keeps your business on the go. Aruba Instant On Access
Points (APs) are easy to deploy and manage – with a quality look and feel
at an attractive price point.
HIGHLIGHTS
KEY FEATURES
Smart Mesh technology
802.11ac Wave 2, 3X3:3 MU-MIMO
technology
Remote management and monitoring
capability
Separate guest and employee Wi-Fi
network
Mobile app and cloud portal
Simplicity at its best
Wi-Fi that works right out of box
Easy-to-use mobile app for deployment
and upkeep
Security you can count on
Wi-Fi that keeps business and visitor
trac separate
WPA2/WPA3 and Enhanced Open for
secure network access
We’ve got you covered
Industry leading warranty and support
A customizable guest access page that
shows o your brand
DATA SHEET INDOOR ACCESS POINT AP 12
157mm
TECHNICAL SPECIFICATIONS
34mm
157mm
IN THE BOX
Aruba Instant On AP12 Indoor Access
Point
Aruba Instant On AP12 Quick Star t guide
Ceiling rail mount clip
Solid surface mount clip
Ethernet Cable
RADIOS
Dual Radio for simultaneous dual-band
operation
5 GHz 802.11ac 3x3 MIMO for up to 1,300
Mbps wireless data rate, with Multi User
MIMO support (Wi-Fi 5)
2.4 GHz 802.11n 2x2 MIMO for up to 300
Mbps wireless data rate (Wi-Fi 4)
INTERFACES
Uplink Gigabit Ethernet port, with POE-in
support (802.3af)
DC power connector (12V)
PHYSICAL SPECIFICATIONS
157mm x 157mm x 34mm,
excluding mount accessories
Weight: 483g
POWER
Power over Ethernet (POE): 802.3af (class 3)
DC power (12V)
Note: Power sources are sold separately
ANTENNAS
Integrated downtilt omni-directional
antennas with maximum individual
antenna gain of 3.9dBi in 2.4GHz and
5.4dBi in 5GHz
MOUNTING
The access point ships with a (black)
mount clip to attach to suspended ceiling
rails, and a (white) mount clip to attach to
solid surfaces (wall/ceiling)
INDUSTRY CERTIFICATIONS
UL 2043 plenum rating
EN 60601-1-1 and EN 60601-1-2 (for
deployment in medical environments)
Wi-Fi Alliance certied (WFA) 802.11ac
with Wave 2 (Wi-Fi 5), WPA2, WPA3,
Enhanced Open (OWE)
MANAGEMENT OPTIONS
Instant On mobile application
(Android & iOS)
Cloud Portal: Portal.ArubaInstantOn.com
WARRANTY & SUPPORT
Aruba Instant On 1 Year warrant y with
24X7 phone support for rst 90 days
and chat support for the entire warranty
period. Community support as long as
you own the products
USB host interface (future use)
Bluetooth Low Energy (BLE) radio
LED status indicators (2)
Reset/LED control button
Kensington security slot
ENVIRONMENTAL & RELIABILITY
Operating Temperature: 0° C to +50° C
(+32° F to +122° F)
Humidit y: 5% to 93% non-condensing
MTBF: 1,116khrs (127yrs) at +25° C
