QuickSpecs

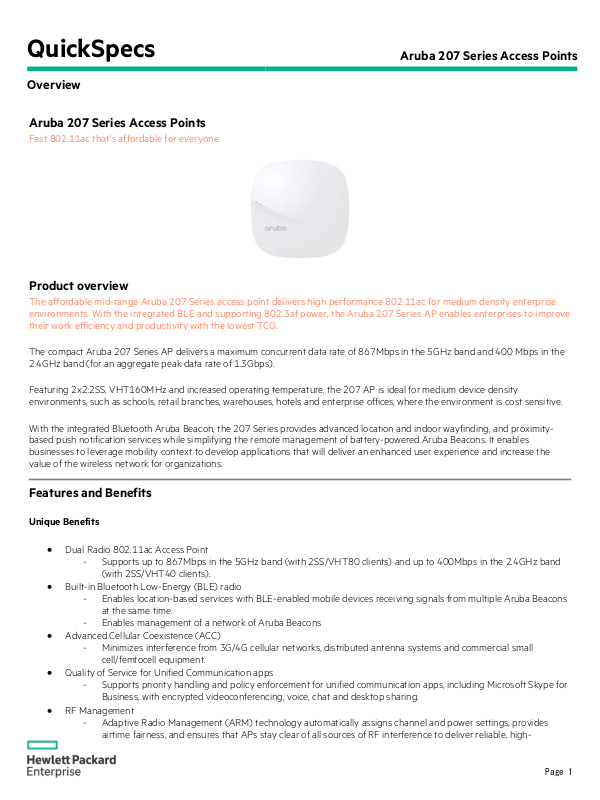

Aruba 207 Series Access Points
Overview
1
Aruba 207 Series Access Points
Fast 802.11ac that's affordable for everyone
Product overview
The affordable mid-range Aruba 207 Series access point delivers high performance 802.11ac for medium density enterprise
environments. With the integrated BLE and supporting 802.3af power, the Aruba 207 Series AP enables enterprises to improve
their work efficiency and productivity with the lowest TCO
The compact Aruba 207 Series AP delivers a maximum concurrent data rate of 867Mbps in the 5GHz band and 400 Mbps in the
2.4GHz band (for an aggregate peak data rate of 1.3Gbps).
Featuring 2x2:2SS, VHT160MHz and increased operating temperature, the 207 AP
environments, such as schools, retail branches, warehouses, hotels and enterprise offices, where the environment is cost sens
With the integrated Bluetooth Aruba Beacon, the 207 Series provides advanced location an
based push notification services while simplifying the remote management of battery
businesses to leverage mobility context to develop applications that will deliver an enhanced user expe
value of the wireless network for organizations.
Features and Benefits
Unique Benefits
enabled mobile devices receiving signals from multiple Aruba Beacons
or unified communication apps, including Microsoft Skype for
airtime fairness, and ensures that APs stay clear of all sources of RF interference to deliver reliable, high-
.
is ideal for medium device density
d indoor wayfinding, and proximity-
-powered Aruba Beacons. It enables
rience and increase the
• Dual Radio 802.11ac Access Point
- Supports up to 867Mbps in the 5GHz band (with 2SS/VHT80 clients) and up to 400Mbps in the 2.4GHz band
• Built-in Bluetooth Low-Energy (BLE) radio
• Advanced Cellular Coexistence (ACC)
• Quality of Service for Unified Communication apps
• RF Management
(with 2SS/VHT40 clients).
- Enables location-based services with BLE-
at the same time.
- Enables management of a network of Aruba Beacons
- Minimizes interference from 3G/4G cellular networks, distributed antenna systems and commercial small
cell/femtocell equipment.
- Supports priority handling and policy enforcement f
Business, with encrypted videoconferencing, voice, chat and desktop sharing.
- Adaptive Radio Management (ARM) technology automatically assigns channel and power settings, provides
itive.
Page
Page 2
QuickSpecs
Aruba 207 Series Access Points
Overview
2
performance WLANs.
Choose your Operating Mo
Aruba 207 Series APs offer a choice of operating modes to meet your unique management and deployment requirements.
in migration path allows 207 Series instant APs to
For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device
provisioning, firmware upgrades, and inventory management. With Aruba Activate, Instant APs are factory
configure themselves when powered up.
207
WI
Single User (SU) MIMO for up to 400Mbps wireless data rate to individual 2x2 VHT40 client
- 5.725 to 5.850GHz
- The Aruba 207 Series APs can be configured to provide part-time or dedicated air monitoring for wireless
intrusion protection, VPN tunnels to extend remote locations to corporate resources, and wireless mesh
connections where Ethernet drops are not available.
• Intelligent app visibility and control
- AppRF technology leverages deep packet inspection to classify and block, prioritize, or limit bandwidth for
thousands of applications in a range of categories.
• Security
- Integrated wireless intrusion protection offers threat protection and mitigation, and eliminates the need for
separate RF sensors and security appliances.
- IP reputation and security services identify, classify, and block malicious files, URLs and IPs, providing
comprehensive protection against advanced online threats.
- Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys
de
• Controller-managed mode - When managed by Aruba Mobility Controllers, Aruba 207 Series APs offer centralized
configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic
forwarding.
• Aruba Instant mode - In Aruba Instant mode, a single AP automatically distributes the network configuration to other
Instant APs in the WLAN. Simply power-up one Instant AP, configure it over the air, and plug in the other APs - the entire
process takes about five minutes. If WLAN requirements change, a builtbecome part of a WLAN that is managed by a Mobility Controller.
• Remote AP (RAP) for branch deployments.
• Air monitor (AM) for wireless IDS, rogue detection and containment.
• Secure enterprise mesh.
-shipped to any site and
Series Access Point
• AP-207 (controller-managed) and IAP-207 (Instant):
- 802.11ac - 5GHz 2x2 MIMO (867Mbps max rate) and 2.4GHz 2x2 MIMO (400Mbps max rate) radios, with a
total of two integrated omni-directional downtilt dual-band antennas
-FI Radio Specifications
• AP type: Indoor, dual radio, 5GHz 802.11ac 2x2 MIMO and 2.4GHz 802.11n 2x2 MIMO
• Software-configurable dual radio supports 5GHz (Radio 0) and 2.4GHz (Radio 1)
• 5GHz: Two spatial stream Single User (SU) MIMO for up to 867Mbps wireless data rate to individual 2x2 VHT80 client
• 2.4GHz: Two spatial stream
• Support for up to 255 associated client devices per radio, and up to 16 BSSIDs per radio
• Supported frequency bands (country-specific restrictions apply):
devices
devices (300Mbps for HT40 802.11n client devices)
- 2.400 to 2.4835GHz
- 5.150 to 5.250GHz
- 5.250 to 5.350GHz
- 5.470 to 5.725GHz
Page
Page 3
QuickSpecs
Aruba 207 Series Access Points
Overview
3
•
conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain
WI
in antennas are optimized for horizontal ceiling mounted orientation of
Other Interfaces
Power
• The AP supports direct DC power and Power over Ethernet (POE)
Available channels: Dependent on configured regulatory domain
• Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
• Supported radio technologies:
• Supported modulation types:
• Transmit power: Configurable in increments of 0.5 dBm
• Maximum (conducted) transmit power (limited by local regulatory requirements):
• Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks
• Maximum ratio combining (MRC) for improved receiver performance
• Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
• Short guard interval for 20MHz, 40MHz and 80MHz channels
• Space-time block coding (STBC) for increased range and improved reception
• Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
• Transmit beam-forming (TxBF) for increased signal reliability and range
• Supported data rates (Mbps):
• 802.11n high-throughput (HT) support: HT 20/40
• 802.11ac very high throughput (VHT) support: VHT 20/40/80
• 802.11n/ac packet aggregation: A-MPDU, A-MSDU
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
- 2.4GHz band: +18 dBm per chain, +21 dBm aggregate (2x2)
- 5GHz band: +18 dBm per chain, +21 dBm aggregate (2x2)
- NOTE:
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n: 6.5 to 300 (MCS0 to MCS15)
- 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80
-FI Antennas
• AP-207/IAP-207: Two integrated dual-band downtilt omni-directional antennas for 2x2 MIMO with maximum antenna
• One 10/100/1000BASE-T Ethernet network interface (RJ-45)
• Bluetooth Low Energy (BLE) radio
• Visual indicators (multi-color LEDs): for System and Radio status
• Reset button: factory reset (during device power up)
• Serial console interface (proprietary; optional adapter cable available)
• Kensington security slot
Sources and Consumption
gain of 3.4dBi in 2.4GHz and 6.6dBi in 5GHz. Builtthe AP. The downtilt angle for maximum gain is roughly 30 degrees.
- The maximum gain of the combined (summed) antenna patterns for all elements operating in the same band is
5.2dBi in 2.4GHz and 7.5dBi in 5GHz.
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
- Up to 3dBm transmit power (class 2) and -92dBm receive sensitivity
- Integrated antenna with roughly 30 degrees downtilt and peak gain of 2.2dBi
Page
Page 4
QuickSpecs
Aruba 207 Series Access Points
Overview
4
•
Mounting
Me
Environmental
Regulatory
For more country
Regulatory Model Number
Certifications
When both power sources are available, DC power takes priority over POE
• Power sources are sold separately
• Direct DC source: 12Vdc nominal, +/- 5%
• Power over Ethernet (POE): 48 Vdc (nominal) 802.3af/802.3at compliant source
• Maximum (worst-case) power consumption: 12.3W (POE) or 10.1W (DC)
• Maximum (worst-case) power consumption in idle mode: 5.3W (POE) or 4.4W (DC)
- Interface accepts 2.1/5.5-mm center-positive circular plug with 9.5-mm length
- Unrestricted functionality with 802.3af POE
• The AP ships with two (white) mounting clips to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling.
• Several optional mount kits are available to attach the AP to a variety of surfaces; see the Ordering Information section
chanical
• Dimensions/weight (unit, excluding mount accessories):
• Dimensions/weight (shipping):
• Operating:
• Storage and transportation:
below for details
- 150mm x 150mm x 40mm
- 380g
- 190mm x 180mm x 70mm
- 590g
- Temperature: 0° C to +50° C (+32° F to +122° F)
- Humidity: 5% to 95% non-condensing
- Temperature: -40° C to +70° C (-40° F to +158° F)
• FCC/Industry of Canada
• CE Marked
• R&TTE Directive 1995/5/EC
• Low Voltage Directive 72/23/EEC
• EN 300 328
• EN 301 489
• EN 301 893
• UL/IEC/EN 60950
• EN 60601-1-1 and EN 60601-1-2
-specific regulatory information and approvals, please see your Aruba representative.
• AP-207 and IAP-207: APIN0207
s
Page
Page 5
QuickSpecs
Aruba 207 Series Access Points
Overview
5
•
Warranty
Minimum
CB Scheme Safety, cTUVus
• UL2043 plenum rating
• Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac
• Aruba Limited lifetime warranty
Software Versions
• ArubaOS 6.5.1.0
• Aruba InstantOS 4.3.1.0
Page
Page 6
QuickSpecs
Aruba 207 Series Access Points
Configuration
6
Ordering Guide
Step 1: Select AP Model
Description
Part Number
Configuration Impact
Controller-based Access Points
Aruba AP-207 802.11n/ac 2x2:2 Dual Radio Integrated Antenna AP
JX952A
Add POE injector or AC
adapter
Aruba AP-207 FIPS/TAA-compliant 802.11n/ac Dual 2x2:2 Dual Radio
Integrated Antenna AP
JX953A
Add POE injector or AC
adapter
NOTE: All models ship with ceiling rail adapters (for flat rails) in the box.
Step 2: Add Powering Accessories (Optional)
Description
Part Number
Configuration Impact
Select one of the following:
PD-3510G-AC 15.4W 802.3af PoE 10/100/1000Base-T Ethernet Midspan
Injector
JW627A
Add AC power cord
AP-AC-12V30B 12V/30W AC/DC Desktop Style 2.1/5.5/9.5mm Circular 90
Deg Plug DoE Level VI Adapter
Add AC power cord
Add 3-prong AC power cord for injector or AC adapter:
PC-AC-ARG Argentina 220V AC 10A 2-meter AC Power Cord
JW113A
PC-AC-AUS Australian AC Power Cord
JW114A
PC-AC-BR Brazil AC Power Cord
JW115A
PC-AC-CHN China AC Power Cord
JW116A
PC-AC-DEN Denmark 220V AC 10A 2-meter AC Power Cord
JW117A
PC-AC-EC Continental European/Schuko AC Power Cord
JW118A
PC-AC-IN India AC Power Cord
JW119A
PC-AC-IL Israel 250V AC 10A 2-meter AC Power Cord
JW120A
PC-AC-IT Italian AC Power Cord
JW121A
PC-AC-JP Japanese AC Power Cord
JW122A
PC-AC-KOR Korea AC Power Cord
JW123A
PC-AC-NA North America AC Power Cord
JW124A
PC-AC-SWI Switzerland 220V AC 10A 2-meter AC Power Cord
JW125A
PC-AC-TW Taiwan AC Power Cord
JW126A
PC-AC-UK UK AC Power Cord
JW127A
PC-AC-ZA South Africa 250V AC 10A 2-meter AC Power Cord
JW128A
Step 3: Add Mount Accessories (Optional)
Description
Part Number
AP-220-MNT-C2 2x Ceiling Grid Rail Adapter for Interlude and Silhouette Mt Kit
JW045A
AP-MNT-CM1 Industrial Grade Indoor Access Point Metal Suspended Ceiling Rail Mount Kit
JX961A
AP-220-MNT-W1 Flat Surface Wall/Ceiling Black AP Basic Flat Surface Mount Kit
JW046A
AP-220-MNT-W1W Flat Surface Wall/Ceiling White AP Basic Flat Surface Mount Kit
JW047A
AP-220-MNT-W3 White Low Profile Box Style Secure Large Indoor AP Flat Surface Mount Kit
JY706A
AP-MNT-W4 White Low Profile Basic AP Flat Surface Mount Kit
Q9U25A
Step 4: Add cosmetic snap-on cover (optional)
JX990A
Page
Page 7
QuickSpecs
Aruba 207 Series Access Points
Configuration
7
Description
Part Number
Comments
207-CVR-20 20-pk for AP-207 with Holes for LED Indicators White Nonglossy Snap-on Covers
JX960A
One kit per 20 access points
Page
Page 8
QuickSpecs
Aruba 207 Series Access Points
Technical
Specifications
8
transmit chain
chain
802.11b 2.4GHz
1 Mbps
18.0
-90.0
11 Mbps
18.0
-90.0
802.11g 2.4GHz
6 Mbps
18.0
-90.0
54 Mbps
18.0
-75.0
MCS0/8
18.0
-90.0
MCS7/15
18.0
-71.0
802.11n HT40 2.4GHz
MCS0/8
18.0
-87.0
MCS7/15
18.0
-68.0
802.11a 5GHz
6 Mbps
18.0
-90.0
54 Mbps
17.5
-75.0
802.11n HT20 5 GHz
MCS0/8
18.0
-91.0
MCS7/15
17.0
-71.0
802.11n HT40 5GHz
MCS0/8
MCS7/15
17.0
-68.0
802.11ac VHT20 5GHz (SU-MIMO)
MCS0
18.0
-90.0
MCS
802.11ac VHT40 5GHz (SU-MIMO)
MCS0
18.0
-87.0
MCS9
15.0
-62.0
802.11ac VHT80 5GHz (SU-MIMO)
MCS0
18.0
-84.0
MCS9
15.0
-59.0
Maximum capability of the hardware provided (excluding antenna gain). Maximum transmit power is limited by local regulatory
settings.
RF Performance Table
802.11n HT20 2.4GHz
Maximum transmit power (dBm) per
Receiver sensitivity (dBm) per receive
8
18.0 -87.0
16.0 -67.0
Page
Page 9
QuickSpecs
Aruba 207 Series Access Points
Summary of Changes
9
Date
Version History
Action
Description of Change
07-May-2018
Version 5
Added
SKU added: Q9U25A
05-Feb-2018
Version 4
Changed
Features and Benefits updated
18-Dec-2017
Version 3
Changed
Minor changes made on Features and Benefits
23-Oct-2017
Version 2
Changed
Aruba information updated
01-Nov-2016
Version 1
Created
Document creation.
Sign up for updates
© Copyright 2018 Hewlett Packard Enterprise Development LP. The information contained herein is
subject to change without notice. The only warranties for Hewlett Packard Enterprise products and
services are set forth in the express warranty statements accompanying such pro
Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise
shall not be liable for technical or editorial errors or omissions contained herein.
To learn more, visit
c05273541
ducts and services.
: http://www.hpe.com/networking
- 15725 - Worldwide - V5 - 07-May-2018
Page
Loading...
