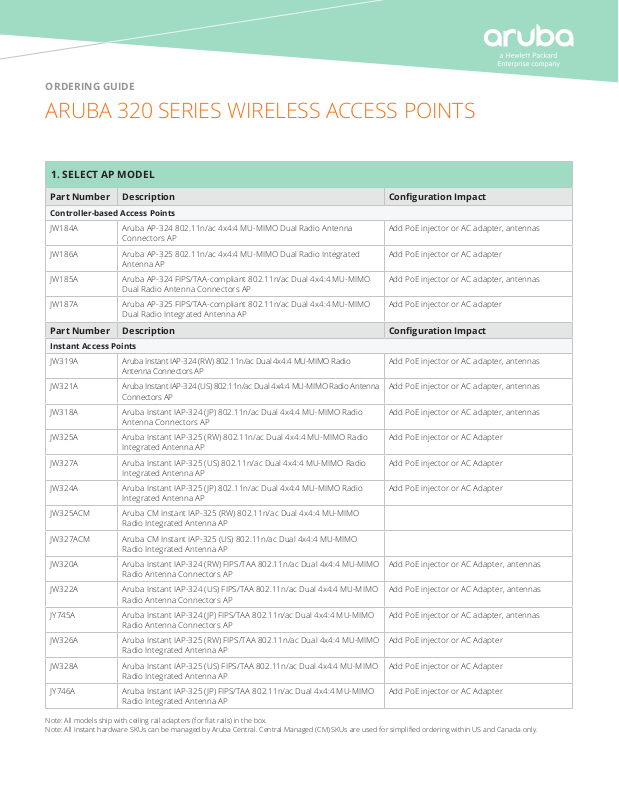

Page 1

ORDERING GUIDE

ARUBA 320 SERIES WIRELESS ACCESS POINTS

1. SELECT AP MODEL

Part Number Description Conguration Impact

Controller-based Access Points

JW184A Aruba AP-324 802.11n/ac 4x4:4 MU-MIMO Dual Radio Antenna

Connectors AP

JW186A Aruba AP-325 802.11n/ac 4x4:4 MU-MIMO Dual Radio Integrated

Antenna AP

JW185A Aruba AP-324 FIPS/TAA-compliant 802.11n/ac Dual 4x4:4 MU-MIMO

Dual Radio Antenna Connectors AP

JW187A Aruba AP-325 FIPS/TAA-compliant 802.11n/ac Dual 4x4:4 MU-MIMO

Dual Radio Integrated Antenna AP

Part Number Description Conguration Impact

Instant Access Points

JW319A Aruba Instant IAP-324 (RW) 802.11n/ac Dual 4x4:4 MU-MIMO Radio

Antenna Connectors AP

JW321A Aruba Instant IAP-324 (US) 802.11n/ac Dual 4x4:4 MU-MIMO Radio Antenna

Connectors AP

JW318A Aruba Instant IAP-324 (JP) 802.11n/ac Dual 4x4:4 MU-MIMO Radio

Antenna Connectors AP

JW325A Aruba Instant IAP-325 (RW) 802.11n/ac Dual 4x4:4 MU-MIMO Radio

Integrated Antenna AP

JW327A Aruba Instant IAP-325 (US) 802.11n/ac Dual 4x4:4 MU-MIMO Radio

Integrated Antenna AP

JW324A Aruba Instant IAP-325 (JP) 802.11n/ac Dual 4x4:4 MU-MIMO Radio

Integrated Antenna AP

JW325ACM Aruba CM Instant IAP-325 (RW) 802.11n/ac Dual 4x4:4 MU-MIMO

Radio Integrated Antenna AP

JW327ACM Aruba CM Instant IAP-325 (US) 802.11n/ac Dual 4x4:4 MU-MIMO

Radio Integrated Antenna AP

JW320A Aruba Instant IAP-324 (RW) FIPS/TAA 802.11n/ac Dual 4x4:4 MU-MIMO

Radio Antenna Connectors AP

JW322A Aruba Instant IAP-324 (US) FIPS/TAA 802.11n/ac Dual 4x4:4 MU-MIMO

Radio Antenna Connectors AP

JY745A Aruba Instant IAP-324 (JP) FIPS/TAA 802.11n/ac Dual 4x4:4 MU-MIMO

Radio Antenna Connectors AP

JW326A Aruba Instant IAP-325 (RW) FIPS/TAA 802.11n/ac Dual 4x4:4 MU-MIMO

Radio Integrated Antenna AP

JW328A Aruba Instant IAP-325 (US) FIPS/TAA 802.11n/ac Dual 4x4:4 MU-MIMO

Radio Integrated Antenna AP

JY746A Aruba Instant IAP-325 (JP) FIPS/TAA 802.11n/ac Dual 4x4:4 MU-MIMO

Radio Integrated Antenna AP

Add PoE injector or AC adapter, antennas

Add PoE injector or AC adapter

Add PoE injector or AC adapter, antennas

Add PoE injector or AC adapter

Add PoE injector or AC adapter, antennas

Add PoE injector or AC Adapter

Add PoE injector or AC Adapter, antennas

Add PoE injector or AC adapter, antennas

Add PoE injector or AC Adapter

Note: All models ship with ceiling rail adapters (for at rails) in the box. Note: All Instant hardware SKUs can be managed by Aruba Central. Central Managed (CM) SKUs are used for simplied ordering within US and Canada only.

Page 2

ARUBA 320 SERIES WIRELESS ACCESS POINTS

2. ADD POWERING ACCESSORIES (OPTIONAL)

Part Number Description Conguration Impact

Select one of the following:

JW629A PD-9001GR-AC 30W 802.3at PoE+ 10/100/1000 Ethernet Indoor

Rated Midspan Injector

R3K00A AP-AC2-12B 12V/48W AC/DC desktop style power adapter with

2.1/5.5mm connector

R3K00ACM Aruba CM AP-AC2-12B 12V/48W AC/DC desktop style power adapter

with 2.1/5.5mm connector

JW629ACM Aruba CM PD-9001GR-AC 802.3at PoE+ 10/100/1000 Ethernet Indoor

Rated Midspan Injector

Part Number Description

Select three-prong AC power cord for injector or AC adapter (no power cable needed for universal adapter):

JW113A PC-AC-ARG Argentina 220V AC 10A 2-meter AC Power Cord

JW114A PC-AC-AUS Australian AC Power Cord

JW115A PC-AC-BR Brazil AC Power Cord

JW116A PC-AC-CHN China AC Power Cord

JW117A PC-AC-DEN Denmark 220V AC 10A 2-meter AC Power Cord

JW118A PC-AC-EC Continental European/Schuko AC Power Cord

JW119A PC-AC-IN India AC Power Cord

JW120A PC-AC-IL Israel 250V AC 10A 2-meter AC Power Cord

JW121A PC-AC-IT Italian AC Power Cord

JW122A PC-AC-JP Japanese AC Power Cord

JW123A PC-AC-KOR Korea AC Power Cord

JW124A PC-AC-NA North America AC Power Cord

JW124ACM Aruba CM PC-AC-NA North America AC Power Cord

JW125A PC-AC-SWI Switzerland 220V AC 10A 2-meter AC Power Cord

JW126A PC-AC-TW Taiwan AC Power Cord

JW127A PC-AC-UK UK AC Power Cord

JW128A PC-AC-ZA South Africa 250V AC 10A 2-meter AC Power Cord

Add AC power cord

ORDERING GUIDE

Page 3

ARUBA 320 SERIES WIRELESS ACCESS POINTS

3. ADD MOUNT ACCESSORIES (OPTIONAL)

Part Number Description

JW045A AP-220-MNT-C2 2x Ceiling Grid Rail Adapter for Interlude and Silhouette Mt Kit

JW046A AP-220-MNT-W1 Flat Surface Wall/Ceiling Black AP Basic Flat Surface Mount Kit

JX961A AP-MNT-CM1 Industrial Grade Indoor Access Point Metal Suspended Ceiling Rail Mount Kit

JW047A AP-220-MNT-W1W Flat Surface Wall/Ceiling White AP Basic Flat Surface Mount Kit

JY706A AP-220-MNT-W3 White Low Prole Box Style Secure Large AP Flat Surface Mount Kit

Q9U25A AP-MNT-W4 White Low Prole Basic AP Flat Surface Mount Kit

JW045ACM Aruba CM AP-220-MNT-C2 2x Ceiling Grid Rail Adapter for Interlude and Silhouette Mt Kit

JW046ACM Aruba CM AP-220-MNT-W1 Flat Surface Wall/Ceiling Black AP Basic Flat Surface Mount Kit

JX961ACM Aruba CM AP-MNT-CM1 Metal Suspended Ceiling Rail Mount Kit

JW047ACM Aruba CM AP-220-MNT-W1W Flat Surface Wall/Ceiling White AP Basic Flat Surface Mount Kit

JY706ACM Aruba CM AP-220-MNT-W3 White Low Prole Box Style Secure Large AP Flat Surface Mount Kit

Q9U25ACM Aruba CM AP-MNT-W4 White Low Prole Basic AP Flat Surface Mount Kit

ORDERING GUIDE

4. SELECT ANTENNAS (AP-324 ONLY)

Part Number

AP-324 antenna interface: 4x RP-SMA female, concurrent dual-band.

JW009A 4 AP-ANT-1W 2.4-2.5GHz (4dBi)/4.9-

JW001A 4 AP-ANT-13B 2.4-2.5GHz (4.4dBi)/4.9-

JW004A 4 AP-ANT-19 2.4/5G Dual Band

JW011A 4 AP-ANT-20W 2.4-2.5GHz (2dBi)/4.9-

JW017A 1 AP-ANT-40 Dual Band Downtilt Omni

JW018A 1 AP-ANT-45 Dual Band 90x90deg

JW019A 1 AP-ANT-48 Dual Band 60x60deg

Qty

Needed

Description Interface(s)

1x RP-SMA male connector Indoor Direct-mount

5.875GHz (6dBi) Hi Gain Dual-band Omni-Dir Indoor Antenna

1x RP-SMA male pigtail Indoor Direct, using

5.9GHz (3.3dBi) Downtilt Smallest Omni-Dir Single Antnna

1x RP-SMA male pigtail Indoor/outdoor Direct, using Omni-Dir 3dBi/6dBi Indr/Otdr RPSMA Cnctr Ant w/36in Intgrtd Cable

1x RP-SMA male connector Indoor Direct-mount

5.875GHz (2dBi) Compact Omni-Dir DMt Indr White Antenna

4x RP-SMA male pigtail Indoor Direct, using 4dBi 4 Elmt MIMO Ceiling Mount 4xRPSMA Pigtail Antenna

4x RP-SMA male pigtail Indoor/outdoor Direct, using 5dBi 4 Element MIMO 4xRPSMA Pigtail Antenna

4x RP-SMA male pigtail Indoor/outdoor Direct, using

8.5dBi 4 Element MIMO 4xRPSMA Pigtail Antenna

Target Environment

Mounting

pigtails

Page 4

ORDERING GUIDE

ARUBA 320 SERIES WIRELESS ACCESS POINTS

5. ADD ANTENNA MOUNT KIT (OPTIONAL)

Part Number Description Comments

JW021A AP-ANT-MNT-4 AP-ANT-48 Azimuth and Elevation Adjustable Mount Kit Compatible with antenna

AP-ANT-48

JW022A AP-ANT-MNT-5 AP-ANT-45 Azimuth and Elevation Adjustable Mount Kit Compatible with antenna

AP-ANT-45

6. ADD COSMETIC SNAP-ON COVER (AP-325 ONLY, OPTIONAL)

Part Number Description Comments

JW076A AP-325-CVR-20 20-pk for AP-325 with Holes for LED Indicators White

Non-glossy Snap-on Covers

JW076ACM Aruba CM AP-325-CVR-20 20-pk White Non-glossy Snap-on Covers

1 kit per 20 access points

7. ADD OTHER ACCESSORIES (OPTIONAL)

Part Number

Other accessories

R2X45A Aruba AP-USB-ZB External USB based Dongle with Zigbee and BLE for AP Single USB dongle

R2Y09A Aruba AP-USB-ZB 10-pk External USB based Dongle with Zigbee and BLE for AP 10-pack USB dongle

R2Y10A Aruba AP-USB-ZB 50-pk External USB based Dongle with Zigbee and BLE for AP 50-pack USB dongle

Note: All Instant hardware SKUs can be managed by Aruba Central. Central Managed (CM) SKUs are used for simplied ordering within US and Canada only.

Description

Conguration

comments

© Copyright 2020 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

OG_AP320Series_SK_060320 a00045633ENW
