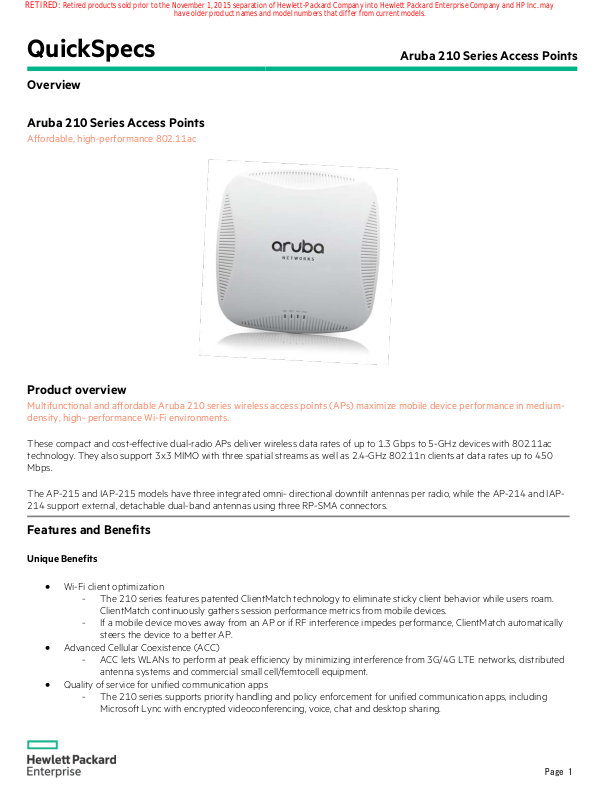

Aruba 210 Series Access Points
Overview
1
Aruba 210 Series Access Points
Affordable, high-performance 802.11ac
Product overview
Multifunctional and affordable Aruba 210 series wireless access points (APs) maximize mobile device performance in mediumdensity, h
These compact and cost
technology. They also support 3x3 MIMO with three spatial streams as well as 2.4
Mbps.
The AP
214 support external, detachable dual-band antennas using three RP-SMA connectors.
Features and Benefits
Unique Benefits
RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may
have older product names and model numbers that differ from current models.
igh- performance Wi-Fi environments.
-effective dual-radio APs deliver wireless data rates of up to 1.3 Gbps to 5-GHz devices with 802.11ac
-GHz 802.11n clients at data rates up to 450
-215 and IAP-215 models have three integrated omni- directional downtilt antennas per radio, while the AP-214 and IAP-
• Wi-Fi client optimization
- The 210 series features patented ClientMatch technology to eliminate sticky client behavior while users roam.
ClientMatch continuously gathers session performance metrics from mobile devices.
• Advanced Cellular Coexistence (ACC)
• Quality of service for unified communication apps
- If a mobile device moves away from an AP or if RF interference impedes performance, ClientMatch automatically
steers the device to a better AP.
- ACC lets WLANs to perform at peak efficiency by minimizing interference from 3G/4G LTE networks, distributed
antenna systems and commercial small cell/femtocell equipment.
- The 210 series supports priority handling and policy enforcement for unified communication apps, including
Microsoft Lync with encrypted videoconferencing, voice, chat and desktop sharing.
Page
QuickSpecs
Aruba 210 Series Access Points
Overv
2
Choose your Operating Mode
The 210 series supports your choice of operating modes to meet unique management and deployment requirements
For large installations across multiple sites, the Aruba Activate service significantly reduces deploym
provisioning, firmware upgrades, and inventory management. With Aruba Activate, Instant APs are factory
configure themselves when powered up.
AP
Advanced Features
Operating Modes
•
RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may
have older product names and model numbers that differ from current models.
iew
• Controller-managed AP or Remote AP (RAP) running ArubaOS.
When managed by Aruba Mobility Controllers, 210 series APs offer centralized configuration, data encryption, policy
enforcement and network services as well as distributed and centralized traffic forwarding. Please refer to the
Mobility Controller data sheets for more details.
• Aruba Instant AP running InstantOS.
In Aruba Instant mode, a single AP automatically distributes the network configuration to other Instant APs in the WLAN.
Simply power-up on Instant AP, configure it over the air, and plug in the other APs – the entire process takes about five
minutes.
ent time by automating device
- shipped to any site and
Aruba
210 Series Specifications
• AP-215 and IAP-215
- 2.4-GHz (450 Mbps max rate) and 5-GHz (1.3 Gbps max rate) radios, each with 3x3 MIMO and three integrated
omni-directional downtilt antennas..
• AP-214 and IAP-214
- 2.4-GHz (450 Mbps max rate) and 5-GHz (1.3 Gbps max rate) radios, each with 3x3 MIMO and three combined,
diplexed (dual-band) external RP-SMA antenna connectors.
• RF management
- Adaptive Radio Management (ARM) technology automatically assigns channel and power settings, provides
airtime fairness and ensures that APs stay clear of all sources of RF interference to deliver reliable, highperformance WLANs.
- 210 series APs can be configured to provide part-time or dedicated air monitoring for spectrum analysis and
wireless intrusion protection, VPN tunnels to extend corporate resources to remote locations, and wireless mesh
connections where Ethernet drops are not available.
• Spectrum analysis
- Capable of part-time or dedicated air monitoring, the spectrum analyzer remotely scans the 2.4-GHz and 5-GHz
radio bands to identify sources of RF interference.
• Security
- Integrated wireless intrusion protection offers thread protection and mitigation, and eliminates the need for
separate RF sensors and security appliances.
- IP reputation and security services identify, classify, and block malicious files, URL and IPs, providing
comprehensive protection against advanced online threats.
- Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys.
- SecureJack-capable for secure tunneling of wired Ethernet traffic
• Aruba Instant AP
• Mobility Controller-managed AP
• Remote AP (RAP) for branch deployments
• Air monitor (AM) for wireless IDS, rogue detection and containment
Spectrum analyzer, dedicated or hybrid
Page
QuickSpecs
Aruba 210 Series Access Points
Overv
3
•
Wireless Radio Specifications

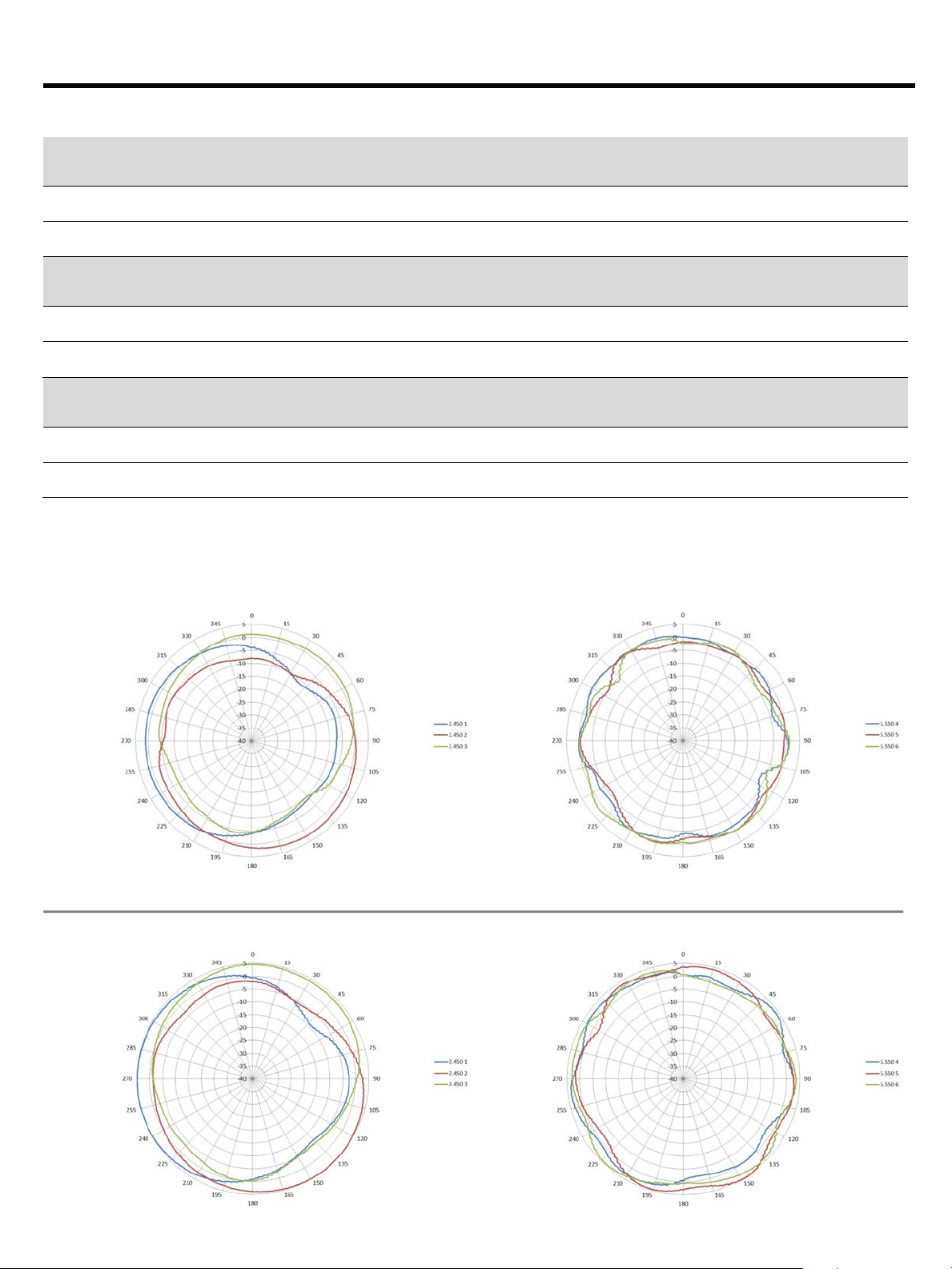

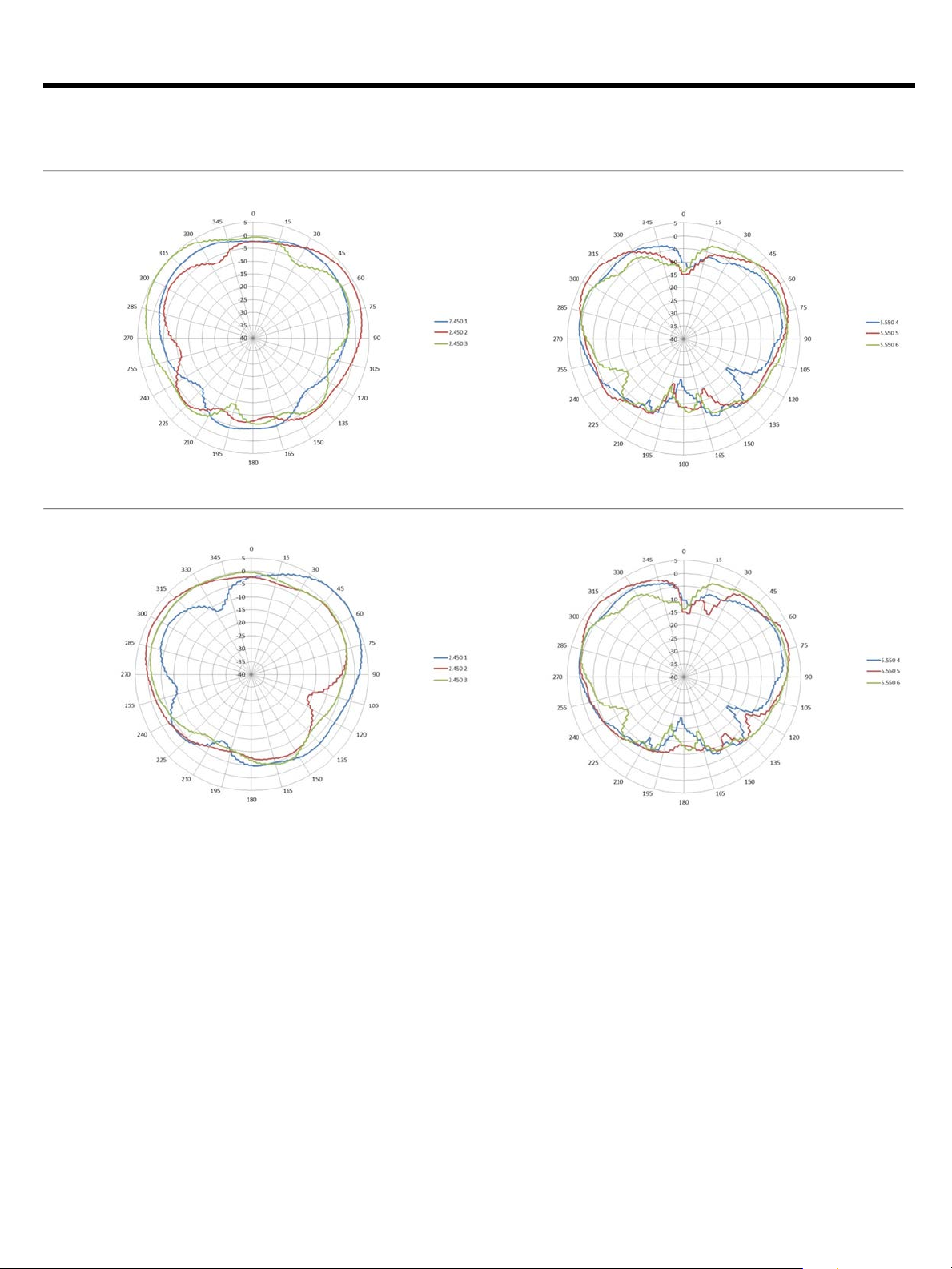

Antennas
in antennas are optimized for horizontal ceiling mounted orientation
Other Interfaces
RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may
have older product names and model numbers that differ from current models.
iew
Secure enterprise mesh
• AP type: Indoor, dual radio, 5 GHz 802.11ac and 2.4 GHz 802.11n 3x3:3
• Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
• 3x3 MIMO with three spatial streams and up to 1.3 Gbps wireless data rate
• Support for up to 255 associated client devices per radio, and up to 16 BSSIDs per radio
• Supported frequency bands (country-specific restrictions apply):
- 2.4000 GHz to 2.4835 GHz
- 5.150 GHz to 5.250 GHz
- 5.250 GHz to 5.350GHz
- 5.470 GHz to 5.725GHz
- 5.725 GHz to 5.850GHz
• Available channels: Dependent on configured regulatory domain
• Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
• Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
• Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
• Transmit power: Configurable in increments of 0.5 dBm
• Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):
- 2.4-GHz band: +23 dBm (18 dBm per chain)
- 5-GHz band: +23 dBm (18 dBm per chain)
- NOTE: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain
• Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks
• Maximum ratio combining (MRC) for improved receiver performance
• Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
• Short guard interval for 20-MHz, 40-MHz and 80-MHz channels
• Space-time block coding (STBC) for increased range and improved reception
• Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
• Transmit beamforming (TxBF) for increased signal reliability and range
• Supported data rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n: 6.5 to 450 (MCS0 to MCS23)
- 802.11ac: 6.5 to 1,300 (MCS0 to MCS9, NSS = 1 to 3)
• 802.11n high-throughput (HT) support: HT 20/40
• 802.11ac very high throughput (VHT) support: VHT 20/40/80
• 802.11n/ac packet aggregation: A-MPDU, A-MSDU
• AP-214/IAP-214: Three RP-SMA connectors for external dual-band antennas. Internal loss between radio interface and
external antenna connectors (due to diplexing circuitry): 1.0 dB in 2.4 GHz and 2.0 dB in 5 GHz.
• AP-215/IAP-215: Three integrated downtilt omni- directional antennas per radio for 3x3 MIMO with maximum antenna
gain of 5.0 dBi in 2.4 GHz and 5.0 dBi in 5 GHz. Builtof the AP. The downtilt angle for maximum gain is roughly 30 degrees.
Page
QuickSpecs
Aruba 210 Series Access Points
Overv
4
•
Power
802.3af PoE power source; for unrestricted operation with PoE power, use an
Mounting
Mechanical
Environmental
- Humidity: 5% to 95% non-condensing
RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may
have older product names and model numbers that differ from current models.
iew
One 10/100/1000BASE-T Ethernet network interface (RJ-45)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
• DC power interface, accepts 1.7/4.0-mm center-positive circular plug with 9.5-mm length
• USB 2.0 host interface (Type A connector)
• Visual indicators (LEDs):
• Reset button: factory reset (during device power-up)
• Serial console interface (RJ-45)
• Kensington security slot
- PoE-PD: 48 Vdc (nominal) 802.3af or 802.3at PoE
- Power/system status
- Ethernet link status (ENET)
- Radio status (two; RAD0, RAD1)
• Maximum (worst-case) power consumption: 14.9 watts (PoE) or 13.6 watts (DC)
- Excludes power consumed by external USB device (and internal overhead); this could add up to 6 watts (PoE) or
5.5 watts (DC) for 5W/1A USB device
• Maximum (worst-case) power consumption in idle mode: 8.2 watts (PoE) or 7.4 watts (DC)
• Direct DC source: 12 Vdc nominal, +/- 5%
• Power over Ethernet: 48 Vdc (nominal) 802.3af/802.3at compliant source
- USB port is disabled when using an
802.3at compliant source
• Power sources sold separately
• When both power sources are available, DC power takes priority
• Included with AP:
- Mounting brackets (2) for attaching to 9/16-inch or 15/16-inch T-bar drop-tile ceiling
• Spare mounting kit:
- AP-220-MNT-C1: Aruba AP mount kit contains two ceiling-grid rail adapters for flat rails
• Optional mounting kits:
- AP-220-MNT-C2: Aruba AP mount kit contains two ceiling-grid rail adapters for Interlude and Silhouette style
rails
- AP-220-MNT-W1: Aruba AP mount kit contains one basic flat-surface wall/ceiling mount bracket
- AP-200-MNT-W3: Aruba AP mount kit contains one secure flat-surface wall/ceiling mount cradle
• Dimensions/weight (unit, excluding mount accessories):
• Dimensions/weight (shipping):
• Operating:
- 180 mm x 180 mm x 45 mm (W x D x H)
- 610 g
- 220 mm x 225 mm x 55 mm (W x D x H)
- 860 g
- Temperature: 0° C to +50° C (+32° F to +122° F)
Page
