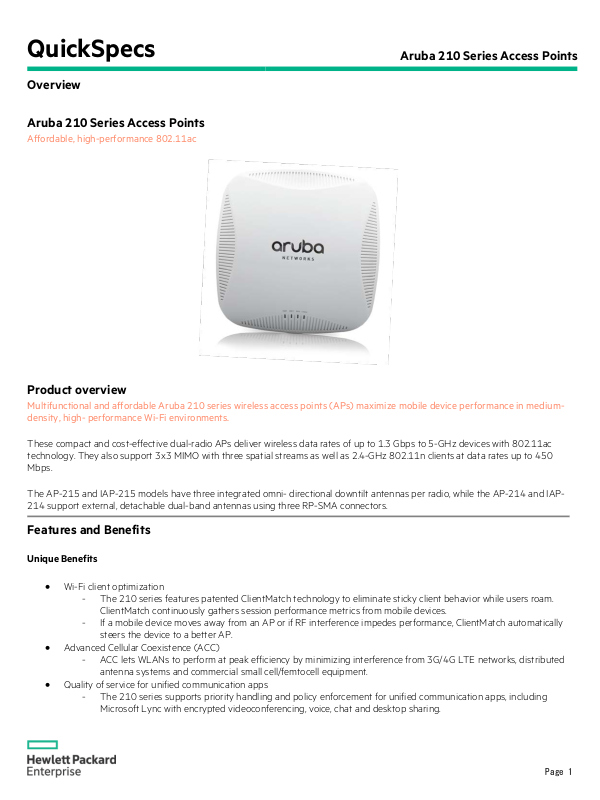

Page 1

QuickSpecs

Aruba 210 Series Access Points

Overview

Aruba 210 Series Access Points

Affordable, high-performance 802.11ac

Product overview

Multifunctional and affordable Aruba 210 series wireless access points (APs) maximize mobile device performance in mediumdensity, h

These compact and cost technology. They also support 3x3 MIMO with three spatial streams as well as 2.4 Mbps.

The AP 214 support external, detachable dual-band antennas using three RP-SMA connectors.

Features and Benefits

Unique Benefits

igh- performance Wi-Fi environments.

-effective dual-radio APs deliver wireless data rates of up to 1.3 Gbps to 5-GHz devices with 802.11ac

-GHz 802.11n clients at data rates up to 450

-215 and IAP-215 models have three integrated omni- directional downtilt antennas per radio, while the AP-214 and IAP-

• Wi-Fi client optimization

- The 210 series features patented ClientMatch technology to eliminate sticky client behavior while users roam.

ClientMatch continuously gathers session performance metrics from mobile devices.

• Advanced Cellular Coexistence (ACC)

• Quality of service for unified communication apps

- If a mobile device moves away from an AP or if RF interference impedes performance, ClientMatch automatically

steers the device to a better AP.

- ACC lets WLANs to perform at peak efficiency by minimizing interference from 3G/4G LTE networks, distributed

antenna systems and commercial small cell/femtocell equipment.

- The 210 series supports priority handling and policy enforcement for unified communication apps, including

Microsoft Lync with encrypted videoconferencing, voice, chat and desktop sharing.

Page

Page 2

QuickSpecs

Aruba 210 Series Access Points

Overv

iew

Choose your Operating Mode

The 210 series supports your choice of operating modes to meet unique management and deployment requirements

For large installations across multiple sites, the Aruba Activate service significantly reduces deploym provisioning, firmware upgrades, and inventory management. With Aruba Activate, Instant APs are factory configure themselves when powered up.

Advanced Features

Operating Modes

•

• Controller-managed AP or Remote AP (RAP) running ArubaOS.

When managed by Aruba Mobility Controllers, 210 series APs offer centralized configuration, data encryption, policy enforcement and network services as well as distributed and centralized traffic forwarding. Please refer to the Mobility Controller data sheets for more details.

• Aruba Instant AP running InstantOS.

In Aruba Instant mode, a single AP automatically distributes the network configuration to other Instant APs in the WLAN. Simply power-up on Instant AP, configure it over the air, and plug in the other APs – the entire process takes about five minutes.

ent time by automating device

- shipped to any site and

Aruba

210 Series Specifications

• AP-215 and IAP-215

- 2.4-GHz (450 Mbps max rate) and 5-GHz (1.3 Gbps max rate) radios, each with 3x3 MIMO and three integrated

omni-directional downtilt antennas..

• AP-214 and IAP-214

- 2.4-GHz (450 Mbps max rate) and 5-GHz (1.3 Gbps max rate) radios, each with 3x3 MIMO and three combined,

diplexed (dual-band) external RP-SMA antenna connectors.

• RF management

- Adaptive Radio Management (ARM) technology automatically assigns channel and power settings, provides

airtime fairness and ensures that APs stay clear of all sources of RF interference to deliver reliable, highperformance WLANs.

- 210 series APs can be configured to provide part-time or dedicated air monitoring for spectrum analysis and

wireless intrusion protection, VPN tunnels to extend corporate resources to remote locations, and wireless mesh connections where Ethernet drops are not available.

• Spectrum analysis

- Capable of part-time or dedicated air monitoring, the spectrum analyzer remotely scans the 2.4-GHz and 5-GHz

radio bands to identify sources of RF interference.

• Security

- Integrated wireless intrusion protection offers thread protection and mitigation, and eliminates the need for

separate RF sensors and security appliances.

- IP reputation and security services identify, classify, and block malicious files, URL and IPs, providing

comprehensive protection against advanced online threats.

- Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys.

- SecureJack-capable for secure tunneling of wired Ethernet traffic

• Aruba Instant AP

• Mobility Controller-managed AP

• Remote AP (RAP) for branch deployments

• Air monitor (AM) for wireless IDS, rogue detection and containment

Spectrum analyzer, dedicated or hybrid

Page

Page 3

QuickSpecs

Aruba 210 Series Access Points

Overv

iew

•

Wireless Radio Specifications

Antennas

in antennas are optimized for horizontal ceiling mounted orientation

Other Interfaces

Secure enterprise mesh

• AP type: Indoor, dual radio, 5 GHz 802.11ac and 2.4 GHz 802.11n 3x3:3

• Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)

• 3x3 MIMO with three spatial streams and up to 1.3 Gbps wireless data rate

• Support for up to 255 associated client devices per radio, and up to 16 BSSIDs per radio

• Supported frequency bands (country-specific restrictions apply):

- 2.4000 GHz to 2.4835 GHz

- 5.150 GHz to 5.250 GHz

- 5.250 GHz to 5.350GHz

- 5.470 GHz to 5.725GHz

- 5.725 GHz to 5.850GHz

• Available channels: Dependent on configured regulatory domain

• Dynamic frequency selection (DFS) optimizes the use of available RF spectrum

• Supported radio technologies:

- 802.11b: Direct-sequence spread-spectrum (DSSS)

- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)

• Supported modulation types:

- 802.11b: BPSK, QPSK, CCK

- 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

• Transmit power: Configurable in increments of 0.5 dBm

• Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):

- 2.4-GHz band: +23 dBm (18 dBm per chain)

- 5-GHz band: +23 dBm (18 dBm per chain)

- NOTE: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain

• Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks

• Maximum ratio combining (MRC) for improved receiver performance

• Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance

• Short guard interval for 20-MHz, 40-MHz and 80-MHz channels

• Space-time block coding (STBC) for increased range and improved reception

• Low-density parity check (LDPC) for high-efficiency error correction and increased throughput

• Transmit beamforming (TxBF) for increased signal reliability and range

• Supported data rates (Mbps):

- 802.11b: 1, 2, 5.5, 11

- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

- 802.11n: 6.5 to 450 (MCS0 to MCS23)

- 802.11ac: 6.5 to 1,300 (MCS0 to MCS9, NSS = 1 to 3)

• 802.11n high-throughput (HT) support: HT 20/40

• 802.11ac very high throughput (VHT) support: VHT 20/40/80

• 802.11n/ac packet aggregation: A-MPDU, A-MSDU

• AP-214/IAP-214: Three RP-SMA connectors for external dual-band antennas. Internal loss between radio interface and

external antenna connectors (due to diplexing circuitry): 1.0 dB in 2.4 GHz and 2.0 dB in 5 GHz.

• AP-215/IAP-215: Three integrated downtilt omni- directional antennas per radio for 3x3 MIMO with maximum antenna

gain of 5.0 dBi in 2.4 GHz and 5.0 dBi in 5 GHz. Builtof the AP. The downtilt angle for maximum gain is roughly 30 degrees.

Page

Page 4

QuickSpecs

Aruba 210 Series Access Points

Overv

iew

•

Power

802.3af PoE power source; for unrestricted operation with PoE power, use an

Mounting

Mechanical

Environmental

- Humidity: 5% to 95% non-condensing

One 10/100/1000BASE-T Ethernet network interface (RJ-45)

- Auto-sensing link speed and MDI/MDX

- 802.3az Energy Efficient Ethernet (EEE)

• DC power interface, accepts 1.7/4.0-mm center-positive circular plug with 9.5-mm length

• USB 2.0 host interface (Type A connector)

• Visual indicators (LEDs):

• Reset button: factory reset (during device power-up)

• Serial console interface (RJ-45)

• Kensington security slot

- PoE-PD: 48 Vdc (nominal) 802.3af or 802.3at PoE

- Power/system status

- Ethernet link status (ENET)

- Radio status (two; RAD0, RAD1)

• Maximum (worst-case) power consumption: 14.9 watts (PoE) or 13.6 watts (DC)

- Excludes power consumed by external USB device (and internal overhead); this could add up to 6 watts (PoE) or

5.5 watts (DC) for 5W/1A USB device

• Maximum (worst-case) power consumption in idle mode: 8.2 watts (PoE) or 7.4 watts (DC)

• Direct DC source: 12 Vdc nominal, +/- 5%

• Power over Ethernet: 48 Vdc (nominal) 802.3af/802.3at compliant source

- USB port is disabled when using an

802.3at compliant source

• Power sources sold separately

• When both power sources are available, DC power takes priority

• Included with AP:

- Mounting brackets (2) for attaching to 9/16-inch or 15/16-inch T-bar drop-tile ceiling

• Spare mounting kit:

- AP-220-MNT-C1: Aruba AP mount kit contains two ceiling-grid rail adapters for flat rails

• Optional mounting kits:

- AP-220-MNT-C2: Aruba AP mount kit contains two ceiling-grid rail adapters for Interlude and Silhouette style

rails

- AP-220-MNT-W1: Aruba AP mount kit contains one basic flat-surface wall/ceiling mount bracket

- AP-200-MNT-W3: Aruba AP mount kit contains one secure flat-surface wall/ceiling mount cradle

• Dimensions/weight (unit, excluding mount accessories):

• Dimensions/weight (shipping):

• Operating:

- 180 mm x 180 mm x 45 mm (W x D x H)

- 610 g

- 220 mm x 225 mm x 55 mm (W x D x H)

- 860 g

- Temperature: 0° C to +50° C (+32° F to +122° F)

Page

Page 5

QuickSpecs

Aruba 210 Series Access Points

Overv

iew

•

Regulatory

For more country

Reliability

MTBF: 538,975 hours (61.5 years) at +25° C operating temperature

Regulatory Model Number

Certifications

Warranty

Minimum

Storage and transportation:

- Temperature: -40° C to +70° C (-40° F to +158° F)

• FCC/Industry of Canada

• CE Marked

• R&TTE Directive 1999/5/EC

• Low Voltage Directive 2006/95/EC

• EN 300 328

• EN 301 489

• EN 301 893

• UL/IEC/EN 60950

• EN 60601-1-1, EN60601-1-2

-specific regulatory information and approvals, please see your Aruba representative

• AP-214 and IAP-214: APIN0214

• AP-215 and IAP-215: APIN0215

• CB Scheme Safety, cTUVus

• UL2043 plenum rating

• Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac

• Aruba Limited lifetime warranty

software Versions

• ArubaOS 6.4.2.0

• Aruba InstantOS 4.1.1.0

Page

Page 6

QuickSpecs

Aruba 210 Series Access Points

Configuration

Ordering Guide

Step 1: Select AP Model

Description

Part Number

Configuration Impact

Controller-based Access Points

Aruba AP-214 802.11n/ac Dual 3x3:3 Radio Antenna Connectors AP

JW168A

Add PoE injector or AC adapter, antennas

Aruba AP-215 802.11n/ac Dual 3x3:3 Radio Integrated Antenna AP

JW170A

Add PoE injector or AC adapter

Aruba AP-214 FIPS/TAA-compliant 802.11n/ac Dual 3x3:3 Radio Antenna Connectors AP

JW169A

Add PoE injector or AC adapter, antennas

Aruba AP-215 FIPS/TAA-compliant 802.11n/ac Dual 3x3:3 Radio Integrated Antenna AP

JW171A

Add PoE injector or AC adapter

Instant Access Points

Aruba Instant IAP-214 (RW) 802.11n/ac Dual 3x3:3 Radio Antenna Connectors AP

JW222A

Add PoE injector or AC adapter, antennas

Aruba Instant IAP-214 (US) 802.11n/ac Dual 3x3:3 Radio Antenna Connectors AP

JW223A

Add PoE injector or AC adapter, antennas

Aruba Instant IAP-214 (JP) 802.11n/ac Dual 3x3:3 Radio Antenna Connectors AP

JW221A

Add PoE injector or AC adapter, antennas

Aruba Instant IAP-214 (IL) 802.11n/ac Dual 3x3:3 Radio Antenna Connectors AP

JW220A

Add PoE injector or AC adapter, antennas

Aruba Instant IAP-215 (RW) 802.11n/ac Dual 3x3:3 Radio Integrated Antenna AP

JW228A

Add PoE injector or AC adapter

Aruba Instant IAP-215 (US) 802.11n/ac Dual 3x3:3 Radio Integrated Antenna AP

JW229A

Add PoE injector or AC adapter

Aruba Instant IAP-215 (JP) 802.11n/ac Dual 3x3:3 Radio Integrated Antenna AP

JW227A

Add PoE injector or AC adapter

Aruba Instant IAP-214 (JP) FIPS/TAA 802.11n/ac Dual 3x3:3 Radio Ant Connectors AP

JY737A

Add PoE injector or AC adapter, antennas

Aruba Instant IAP-215 (JP) FIPS/TAA 802.11n/ac Dual 3x3:3 Radio Integrated Ant AP

JY738A

Add PoE injector or AC adapter

Aruba Instant IAP-215 (IL) 802.11n/ac Dual 3x3:3 Radio Integrated Antenna AP

JW226A

Add PoE injector or AC adaptor

NOTE: All models ship with ceiling rail adapters (for flat rails) in the box.

Step 2: Add Powering Accessories (Optional)

Description

Part Number

Configuration Impact

PD-3510G-AC 15.4W 802.3af PoE 10/100/1000Base-T Ethernet Midspan Injector

JW627A

Add AC power cable

PD-9001GR-AC 30W 802.3at PoE+ 10/100/1000 Ethernet Indoor Rated Midspan Injector

JW629A

Add AC power cable

AP-AC-12V30A 12V/30W AC/DC Desktop Style

1.7/4.0/9.5mm Circular 90 Deg Plug DoE Level VI Adapter

JX989A

Add AC power cable

AP-DC-CAR 12V/18W Indoor AP Car Power US Only Adapter Kit

JW631A

For US and Japan only

Select three-prong AC power cord for injector or AC adapter (no power cable needed for universal adapter):

PC-AC-ARG Argentina 220V AC 10A 2-meter AC Power Cord

JW113A

PC-AC-AUS Australian AC Power Cord

JW114A

Page

Page 7

QuickSpecs

Aruba 210 Series Access Points

Configuration

PC-AC-BR Brazil AC Power Cord

JW115A

PC-AC-CHN China AC Power Cord

JW116A

PC-AC-DEN Denmark 220V AC 10A 2-meter AC Power Cord

JW117A

PC-AC-EC Continental European/Schuko AC Power Cord

JW118A

PC-AC-IN India AC Power Cord

JW119A

PC-AC-IL Israel 250V AC 10A 2-meter AC Power Cord

JW120A

PC-AC-IT Italian AC Power Cord

JW121A

PC-AC-JP Japanese AC Power Cord

JW122A

PC-AC-KOR Korea AC Power Cord

JW123A

PC-AC-NA North America AC Power Cord

JW124A

PC-AC-SWI Switzerland 220V AC 10A 2-meter AC Power Cord

JW125A

PC-AC-TW Taiwan AC Power Cord

JW126A

PC-AC-UK UK AC Power Cord

JW127A

PC-AC-ZA South Africa 250V AC 10A 2-meter AC Power Cord

JW128A

Step 3: Add Mount Accessories (Optional)

Description

Part Number

AP-220-MNT-C2 2x Ceiling Grid Rail Adapter for Interlude and Silhouette Mt Kit

JW045A

AP-MNT-CM1 Industrial Grade Indoor Access Point Metal Suspended Ceiling Rail Mount Kit

JX961A

AP-220-MNT-W1 Flat Surface Wall/Ceiling Black AP Basic Flat Surface Mount Kit

JW046A

AP-220-MNT-W1W Flat Surface Wall/Ceiling White AP Basic Flat Surface Mount Kit

JW047A

AP-220-MNT-W3 White Low Profile Box Style Secure Large AP Flat Surface Mount Kit

JY706A

Step 4: Select Antennas (AP-214 Only)

Description

Part

Number

Qty

Interface(s)

Target

Environment

Mounting

AP-214 antenna interface: 3x RP-SMA female, concurrent dual-band.

Antenna

JW009A

Antnna

JW001A

Antenna

JW003A

Intgrtd Cable

JW004A

Indoor/outdoor

5.875GHz

Antenna

JW011A

Antenna

JW015A

Indoor/outdoor

Antenna

JW016A

Indoor/outdoor

AP-ANT-1W 2.4-2.5GHz (4dBi)/4.9-5.875GHz (6dBi) Hi Gain Dual-band Omni-Dir Indoor

AP-ANT-13B 2.4-2.5GHz (4.4dBi)/4.9-5.9GHz (3.3dBi) Downtilt Smallest Omni-Dir Single

AP-ANT-16 2.4-2.5Ghz (3.9dBi)/4.9-5.9GHz (4.7dBi) 3 Elmt MIMO Ant w/Downtilt Omni-Dir

AP-ANT-19 2.4/5G Dual Band Omni-Dir 3dBi/6dBi Indr/Otdr RPSMA Cnctr Ant w/36in

AP-ANT-20W 2.4-2.5GHz (2dBi)/4.9(2dBi) Compact Omni-Dir DMt Indr White

AP-ANT-35A Dual Band 90x90deg 5dBi +/- 45 and V Pol 3 Element MIMO 3xRPSMA Pigtail

AP-ANT-38 Dual Band 60x60deg 8dBi +/- 45 and V Pol 3 Element MIMO 3xRPSMA Pigtail

3 1x RP-SMA male

connector

3 1x RP-SMA male pigtail

1 3x RP-SMA male pigtail

3 1x RP-SMA male pigtail

3 1x RP-SMA male

connector

1 3x RP-SMA male pigtail

Indoor

Direct, using

Indoor

Direct, using

Indoor

Direct-mount

pigtails

Direct, using

pigtails

Direct-mount

Direct, using

pigtails

Direct, using

pigtails

Page

Page 8

QuickSpecs

Aruba 210 Series Access Points

Configuration

Step 5: Add Antenna Mount Kit (Optional)

Description

Part Number

Comments

AP-ANT-MNT-3 AP-ANT-25A/28/35A/38 Azimuth and Elevation Adjustable Mount Kit

JW020A

Step 6: Add Cosmetic Snap-on Cover (AP-215 Only, Optional)

Description

Part Number

Comments

215-CVR-20 20-pk for AP-215 with Holes for LED Indicators White Non-glossy Snap-on Covers

JW074A

AP-ANT-35A and AP-ANT-38

1 kit per 20 access points

Compatible with AP-ANT-25A, AP-ANT-28,

Page

Page 9

QuickSpecs

Aruba 210 Series Access Points

Technical Specifications

RF Performance Table

Maximum transmit power (dBm)

per transmit chain

Receiver sensitivity (dBm) per

receive chain

802.11b 2.4 GHz

1 Mbps

18.0

11 Mbps 18.0

-97.0

-89.0

802.11g 2.4 GHz

6 Mbps

54 Mbps

18.0 -93.0

18.0 -75.0

802.11n HT20 2.4 GHz

MCS0/8/16 18.0 -92.0

MCS7/15/23

18.0 -72.0

802.11n HT40 2.4 GHz

MCS0/8/16 18.0 -89.0

MCS7/15/23 16.0 -69.0

802.11a 5 GHz

6 Mbps 18.0 -93.0

54 Mbps 16.5 -75.0

802.11n HT20 5 GHz

MCS0/8/16 18.0 -92.0

MCS7/15/23 16.0 -72.0

802.11n HT40 5 GHz

MCS0/8/16 18.0 -89.0

MCS7/15/23 16.0 -69.0

Page

Page 10

QuickSpecs

Aruba 210 Series Access Points

Technical Specifications

Maximum capability of the hardware provided (excluding antenna gain). Maximum transmit power is limited by local regulatory settings.

Horizontal or azimuth plane (top view, 0 degrees downtilt)

2.450 GHz

5.550 GHz

Horizontal or azimuth plane (top view, 30 degrees downtilt)

802.11ac VHT20 5 GHz

MCS0 18.0 -92.0

MCS9 14.0 -64.0

802.11ac VHT40 5 GHz

MCS0 18.0 -89.0

MCS9 14.0 -61.0

802.11ac VHT80 5 GHz

MCS0

18.0 -86.0

MCS9 14.0 -58.0

Page

Page 11

QuickSpecs

Aruba 210 Series Access Points

Technical Specifications

2.450 GHz

5.550 GHz

Elevation plane (side view, 0 degrees angle)

2.450 GHz

5.550 GHz

Elevation plane (side view, 90 degrees angle)

2.450 GHz

5.550 GHz

Page

Page 12

QuickSpecs

Aruba 210 Series Access Points

Summary of Changes

Date

Version History

Action

Description of Change

06-Mar-2017

From Version 2 to 3

Changed

Updates made on Overview and Configuration sections

07-Nov-2016

From Version 1 to 2

Added

Models added: JY737A; JY738A

01-Nov-2016

Version 1

Created

Document creation.

© Copyright 2017 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and servic Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omis

To learn more, visit

c05272666

es are set forth in the express warranty statements accompanying such products and services.

sions contained herein.

: http://www.hpe.com/networking

- 15689 - Worldwide – V3 - 06-March-2017

Page
