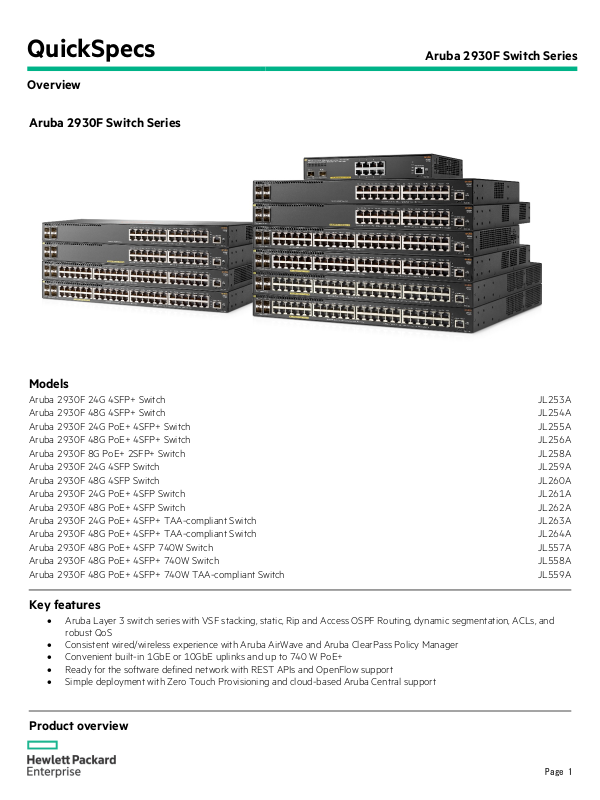

Aruba 2930F Switch Series
Overview
1
Aruba 2930F Switch Series
Models
Aruba 2930F 24G 4SFP+ Switch
JL253A
Aruba 2930F 48G 4SFP+ Switch
JL254A
Aruba 2930F 24G PoE+ 4SFP+ Switch
JL255A
Aruba 2930F 48G PoE+ 4SFP+ Switch
JL256A
Aruba 2930F 8G PoE+ 2SFP+ Switch
JL258A
Aruba 2930F 24G 4SFP Switch
JL259A
Aruba 2930F 48G 4SFP Switch
JL260A
Aruba 2930F 24G PoE+ 4SFP Switch
JL261A
Aruba 2930F 48G PoE+ 4SFP Switch
JL262A
Aruba 2930F 24G PoE+ 4SFP+ TAA-compliant Switch
JL263A
Aruba 2930F 48G PoE+ 4SFP+ TAA-compliant Switch
JL264A
Aruba 2930F 48G PoE+ 4SFP 740W Switch
JL557A
Aruba 2930F 48G PoE+ 4SFP+ 740W Switch
JL558A
Aruba 2930F 48G PoE+ 4SFP+ 740W TAA-compliant Switch
JL559A
Key features
•
Product overview
Aruba Layer 3 switch series with VSF stacking, static, Rip and Access OSPF Routing, dynamic segmentation, ACLs, and
robust QoS
• Consistent wired/wireless experience with Aruba AirWave and Aruba ClearPass Policy Manager
• Convenient built-in 1GbE or 10GbE uplinks and up to 740 W PoE+
• Ready for the software defined network with REST APIs and OpenFlow support
• Simple deployment with Zero Touch Provisioning and cloud-based Aruba Central support
Page
QuickSpecs
Aruba 2930F Switch Series
Overview
2
The Aruba 2930F Switch Series is designed for customers creating digital workplaces optimized for mobile users with an
integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced
security and netw
Central, you can quickly set up remote branch sites with little or no IT support.
performance and flexibility to me
Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The 2930F supports built
uplinks, PoE+, Access OSPF routing,
The Aruba 2930F Switch Series provides a convenient and cost
Zero Touch Provisioning. The robust basic Layer 3 feature set includes a limited lifetime warranty.
Features and benefits
Unified Wired and Wireless
automatically configures switch for different settings such as VLAN, CoS, PoE max power, and PoE priority when an Aruba
Software
Quality of Service (QoS)
sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number,
ork management tools like Aruba ClearPass Policy Manager and Aruba AirWave. With support from Aruba
• Aruba ClearPass Policy Manager support
unified wired and wireless policies using Aruba ClearPass Policy Manager
• Switch auto-configuration
access point is detected.
• User role
defines a set of switch-based policies in areas such as security, authentication, and QoS. A user role can be assigned to a
group of users or devices, using switch-based local user role or download from ClearPass
• Dynamic segmentation
provides a secured tunnel to transport network traffic on a per-port or per-user-role basis to an Aruba Controller. In peruser-role Tunneled Node, users are authenticated with ClearPass Policy Manager which can direct the traffic to be
tunneled to Aruba controller or switch locally
• HTTP redirect function
supports HPE Intelligent Management Center (IMC) bring your own device (BYOD) solution
• Static IP visibility
allows ClearPass to do accounting for clients with static IP address
A powerful Aruba ProVision ASIC delivers
et the needs of today and tomorrow's network programmability and automation requirements.
-in 1GbE or 10GbE
dynamic segmentation, robust QoS, RIP routing, and IPv6 with no software licensing required.
-effective access switch solution that can be quickly set up with
-defined networks
• REST APIs and OpenFlow
Supports multiple programmatic interfaces, including REST APIs and Openflow 1.0 and 1.3, to enable automation of
network operations, monitoring, and troubleshooting.
• Traffic prioritization (IEEE 802.1p)
allows real-time traffic classification into eight priority levels mapped to eight queues
• Layer 4 prioritization
enables prioritization based on TCP/UDP port numbers
• Class of Service (CoS)
source port, and DiffServ
• Rate limiting
sets per-port ingress enforced maximums and per-port, per-queue minimums
• Large buffers
provide graceful congestion management
• Unknown Unicast Rate Limiting
throttles unicast packets with unknown destination addresses and limits flooding on the VLAN
Page
QuickSpecs
Aruba 2930F Switch Series
Overview
3
Connectivity
compliant end device; eliminates the cost of additional electrical
Performance
selecting the number of queues and associated memory buffering that best meet the
Convergence
defines a standard extension of LLDP that stores values for parameters such as QoS and VLAN to configure automatically
assigns attributes such as VLAN and QoS using locally configured profile that can be a list of MAC prefixes
• Flexible 10 Gb/s Ethernet connectivity
• Auto-MDIX
• IEEE 802.3at Power over Ethernet (PoE+)
• Pre-standard PoE support
• IPv6
Four fixed 10 Gigabit ports (SFP+)available
provides automatic adjustments for straight-through or crossover cables on all 10/100 and 10/100/1000 ports
provides up to 30 W per port that allows support of the latest PoE+-capable devices such as IP phones, wireless access
points, and security cameras, as well as any IEEE 802.3afcabling and circuits that would otherwise be necessary in IP phone and WLAN deployments
detects and provides power to pre-standard PoE devices
− IPv6 host
enables switches to be managed in an IPv6 network
− Dual stack (IPv4 and IPv6)
transitions from IPv4 to IPv6, supporting connectivity for both protocols
− MLD snooping
forwards IPv6 multicast traffic to the appropriate interface
− IPv6 ACL/QoS
supports ACL and QoS for IPv6 network traffic
− IPv6 routing
supports static and RIPng protocols
− Security
provides RA guard, DHCPv6 protection, dynamic IPv6 lockdown, and ND snooping
• Energy-efficient design
• Aruba Provision ASIC architecture
• Selectable queue configurations
• IP multicast snooping and data-driven IGMP
• LLDP-MED (Media Endpoint Discovery)
• IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
• PoE and PoE+ allocations
• Local MAC Authentication
− 80 PLUS Silver Certified power supply
increases power efficiency and savings
− Energy-efficient Ethernet (EEE) support
reduces power consumption in accordance with IEEE 802.3az
is designed with the latest Provision ASIC, providing very low latency, increased packet buffering, and adaptive power
consumption
allows for increased performance by
requirements of the network applications
automatically prevent flooding of IP multicast traffic
network devices such as IP phones
facilitates easy mapping using network management applications with LLDP automated device discovery protocol
support multiple methods (automatic, IEEE 802.3at dynamic, LLDP-MED fine grain, IEEE 802.3af device class, or userspecified) to allocate and manage PoE/PoE+ power for more efficient energy savings
Page
QuickSpecs
Aruba 2930F Switch Series
Overview
4
• IP multicast routing
Resiliency and high availability
switches; servers or switches can be attached using standard LACP for
provides high link availability in multiple VLAN environments by allowing multiple spanning trees; provides legacy support
1
Mana
Manageability
ingress and egress port monitoring enable network problem solving
includes PIM Sparse and Dense modes to route IP multicast traffic (limited to 16 interfaces)
• Protocol Independent Multicast for IPv6
supports one-to-many and many-to-many media casting use cases such as IPTV over IPv6 networks
• Virtual Switching Framework (VSF)
creates one virtual resilient switch from up to eight
automatic load balancing and high availability; simplify network operation by reduce the need for complex protocols like
Spanning Tree Protocol (STP), Equal-Cost Multipath (ECMP), and VRRP
• Virtual Router Redundancy Protocol (VRRP)
allows groups of two routers to dynamically back each other up to create highly available routed environments for IPv4
and IPv6 networks (limited to 128 VRs)
• IEEE 802.1s Multiple Spanning Tree
for IEEE 802.1d and IEEE 802.1w
• IEEE 802.3ad link-aggregation-control protocol (LACP) and port trunking
support up to 26 static, dynamic, or distributed trunks with each trunk having up to eight links (ports) per static trunk
• SmartLink
provides easy-to-configure link redundancy of active and standby links
Requires ArubaOS-Switch 16.06 software.
gement
• SNMPv1, v2, and v3
provide complete support of SNMP; provide full support of industry-standard Management Information Base (MIB) plus
private extensions; SNMPv3 supports increased security using encryption
• Aruba Central support
cloud based management platform offers simple, secure, and cost effective way to manage switches
• Zero-Touch Provisioning (ZTP)
simplifies installation of the switch infrastructure using the Aruba Activate-based or a DHCP-based process with AirWave
Network Management
• Multiple programmatic interfaces
support for REST APIs and Openflow 1.0 and 1.3, to enable automation of network operations, monitoring, and
troubleshooting.
1
• Dual flash images
• Friendly port names
• Find-Fix-Inform
• Multiple configuration files
• Software updates
• RMON, XRMON, and sFlow
• Troubleshooting
provides independent primary and secondary operating system files for backup while upgrading
allow assignment of descriptive names to ports
finds and fixes common network problems automatically, then informs administrator
allow multiple configuration files to be stored to a flash image
free downloads from the Web
provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events
Page
QuickSpecs
Aruba 2930F Switch Series
Overview
5
• Unidirectional link detection (UDLD)
Layer 2 switching
Layer 3 services
Layer 3 routing
Security
• Authentication flexibility
monitors the link between two switches and blocks the ports on both ends of the link if the link goes down at any point
between the two devices
• IP service level agreements (SLA) for voice
monitor quality of voice traffic using the UDP jitter and UDP jitter for VoIP tests
• VLAN Support and Tagging
supports IEEE 802.1Q (4094 VLAN IDs) and 2K VLANs simultaneously
• Jumbo packet support
improves the performance of large data transfers; supports frame size of up to 9220 bytes
• IEEE 802.1v protocol VLANs
isolate select non-IPv4 protocols automatically into their own VLANs
• Rapid Per-VLAN Spanning Tree (RPVST+)
allows each VLAN to build a separate spanning tree to improve link bandwidth usage; is compatible with PVST+
• GVRP and MVRP
allows automatic learning and dynamic assignment of VLANs
• VxLAN
encapsulation (tunneling) protocol for overlay network that enables a more scalable virtual network deployment
• DHCP server
centralizes and reduces the cost of IPv4 address management
• Static IP routing
provides manually configured routing; includes ECMP capability
• 256 static and 10,000 RIP routes
facilitate segregation of user data, without adding external hardware
• Routing Information Protocol (RIP)
provides RIPv1, RIPv2, and RIPng routing
• Access OSPF
provide OSPFv2 and OSPFv3 protocols for routing between access and the next layer on the LAN. Only one OSPF area
and up to 8 interfaces are supported
• Policy-based routing
uses a classifier to select traffic that can be forwarded based on policy set by the network administrator (limited to 16
next-hop routes)
• Control Plane Policing set rate limit on control protocols to protect CPU overload from DOS attacks
• Multiple user authentication methods
− IEEE 802.1X
uses an IEEE 802.1X supplicant on the client in conjunction with a RADIUS server to authenticate in accordance
with industry standards
− Web-based authentication
provides a browser-based environment, similar to IEEE 802.1X, to authenticate clients that do not support the
IEEE 802.1X supplicant
− MAC-based authentication
authenticates the client with the RADIUS server based on the client's MAC address
Page
QuickSpecs
Aruba 2930F Switch Series
Overview
6
− Multiple IEEE 802.1X users per port
provide IP Layer 3 filtering based on source/destination IP address/subnet and source/destination TCP/UDP port number
to stay authenticated by pinning client MAC addresses to the port until the clients logoff
Monitor and diagnostics
provides authentication of multiple IEEE 802.1X users per port; prevents a user from "piggybacking" on another
user's IEEE 802.1X authentication
− Concurrent IEEE 802.1X, Web, and MAC authentication schemes per port
switch port will accept up to 32 sessions of IEEE 802.1X, Web, and MAC authentications
• Access control lists (ACLs)
• Source-port filtering
allows only specified ports to communicate with each other
• RADIUS/TACACS+
eases switch management security administration by using a password authentication server
• Secure shell
encrypts all transmitted data for secure remote CLI access over IP networks
• Secure Sockets Layer (SSL)
encrypts all HTTP traffic, allowing secure access to the browser-based management GUI in the switch
• Port security
allows access only to specified MAC addresses, which can be learned or specified by the administrator
• MAC address lockout
prevents particular configured MAC addresses from connecting to the network
• Secure FTP
allows secure file transfer to and from the switch; protects against unwanted file downloads or unauthorized copying of a
switch configuration file
• Switch management logon security
helps secure switch CLI logon by optionally requiring either RADIUS or TACACS+ authentication
• Custom banner
displays security policy when users log in to the switch
• STP BPDU port protection
blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks
• DHCP protection
blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacks
• Dynamic ARP protection
blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data
• STP root guard
protects the root bridge from malicious attacks or configuration mistakes
• Identity-driven ACL
enables implementation of a highly granular and flexible access security policy and VLAN assignment specific to each
authenticated network user
• Per-port broadcast throttling
Configures broadcast control selectively on heavy traffic port uplinks
• Private VLAN
provides network security by restricting peer-to-peer communication to prevent a variety of malicious attacks; typically a
switch port can only communicate with other ports in the same community and/or an uplink port, regardless of VLAN ID
or destination MAC address
• Open authentication role
simplifies first-time deployment of AAA in brownfield deployments by allowing full network access for failed clients and
provides instant connectivity as soon as a client is plugged-in
• Critical authentication role
ensures that important infrastructure devices such as IP phones are allowed network access even in the absence of a
RADIUS server
• MAC pinning
allows non-chatty legacy devices
or get disconnected
Page
QuickSpecs
Aruba 2930F Switch Series
Overview
7
• Digital optical monitoring of SFP+ and 1000BASE-T transceivers
Warranty and support
; for details on the software releases
allows detailed monitoring of the transceiver settings and parameters
• Limited Lifetime Warranty
see http://www.hpe.com/networking/warrantysummary
product purchase.
• Software releases
to find software for your product, refer to http://www.hpe.com/networking/support
available with your product purchase, refer to http://www.hpe.com/networking/warrantysummary
for warranty and support information included with your
Page
QuickSpecs
Aruba 2930F Switch Series
Configuration
8
Build To Order:
BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution.
Aruba 2930F 24G 4SFP+ Switch
JL253A
•
See Configuration
PDU Cable NA/MEX/TW/JP
JL253A#B2B
•
PDU Cable ROW
JL253A#B2C
• C15 PDU Jumper Cord (ROW)
High Volt Switch to Wall Power Cord
JL253A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
Aruba 2930F 48G 4SFP+ Switch
JL254A
• 48 RJ-45 autosensing 10/100/1000 ports
See Configuration
PDU Cable NA/MEX/TW/JP
JL254A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JL254A#B2C
• C15 PDU Jumper Cord (ROW)
High Volt Switch to Wall Power Cord
JL254A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
Aruba 2930F 24G PoE+ 4SFP+ Switch
JL255A
•
See Configuration
24 RJ-45 autosensing 10/100/1000 ports
• 4 SFP/SFP+ 1G/10G ports
• min=0 \\ max=4 SFP/SFP+ Transceivers
• 1U - Height
C15 PDU Jumper Cord (NA/MEX/TW/JP)
NOTE: 1, 2, 3
• 4 SFP/SFP+ 1G/10G ports
• min=0 \\ max=4 SFP/SFP+ Transceivers
• 1U - Height
24 RJ-45 PoE+ autosensing 10/100/1000 ports
• 4 SFP/SFP+ 1G/10G ports
• min=0 \\ max=4 SFP/SFP+ Transceivers
• 1U - Height
NOTE: 1, 2, 3
NOTE: 1, 2, 3
Page
QuickSpecs
Aruba 2930F Switch Series
Configuration
9
PDU Cable NA/MEX/TW/JP
JL255A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JL255A#B2C
• C15 PDU Jumper Cord (ROW)
High Volt Switch to Wall Power Cord
JL255A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
Aruba 2930F 48G PoE+ 4SFP+ Switch
JL256A
• 48 RJ-45 PoE+ autosensing 10/100/1000 ports
See Configuration
PDU Cable NA/MEX/TW/JP
JL256A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JL256A#B2C
• C15 PDU Jumper Cord (ROW)
High Volt Switch to Wall Power Cord
JL256A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
Aruba 2930F 8G PoE+ 2SFP+ Switch
JL258A
• 8 RJ-45 PoE+ autosensing 10/100/1000 ports
See Configuration
PDU Cable NA/MEX/TW/JP
JL258A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JL258A#B2C
• C15 PDU Jumper Cord (ROW)
High Volt Switch to Wall Power Cord
JL258A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
• 4 SFP/SFP+ 1G/10G ports
• min=0 \\ max=4 SFP/SFP+ Transceivers
• 1U - Height
NOTE: 1, 2, 3
• 2 SFP/SFP+ 1G/10G ports
• min=0 \\ max=2 SFP/SFP+ Transceivers
• 1U - Height
NOTE: 1, 2, 3
Page
QuickSpecs
Aruba 2930F Switch Series
Configuration
10
Aruba 2930F 24G 4SFP Switch
JL259A
• 24 RJ-45 autosensing 10/100/1000 ports
See Configuration
PDU Cable NA/MEX/TW/JP
JL259A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JL259A#B2C
• C15 PDU Jumper Cord (ROW)
High Volt Switch to Wall Power Cord
JL259A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
Aruba 2930F 48G PoE+ 4SFP 740W Switch
JL557A
• 48 RJ-45 autosensing 10/100/1000 ports
See Configuration
PDU Cable NA/MEX/TW/JP
JL557A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JL557A#B2C
• C15 PDU Jumper Cord (ROW)
High Volt Switch to Wall Power Cord
JL557A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
No Power Cord
JL557A#AC3
• No Localized Power Cord Selected
Aruba 2930F 48G 4SFP Switch
JL260A
• 48 RJ-45 autosensing 10/100/1000 ports
See Configuration
• 4 SFP 1G ports
• min=0 \\ max=4 SFP Transceivers
• 1U - Height
• 4 SFP 1G ports
• min=0 \\ max=4 SFP Transceivers
• 1U - Height
NOTE: 1, 3
NOTE: 1, 3
• 4 SFP 1G ports
• min=0 \\ max=4 SFP Transceivers
• 1U - Height
NOTE: 1, 3
Page
QuickSpecs
Aruba 2930F Switch Series
Configuration
11
PDU Cable NA/MEX/TW/JP
JL260A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JL260A#B2C
•
High Volt Switch to Wall Power Cord
JL260A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
Aruba 2930F 24G PoE+ 4SFP Switch
JL261A
• 24 RJ-45 PoE+ autosensing 10/100/1000 ports
See Configuration
PDU Cable NA/MEX/TW/JP
JL261A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JL261A#B2C
• C15 PDU Jumper Cord (ROW)
High Volt Switch to Wall Power Cord
JL261A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
Aruba 2930F 48G PoE+ 4SFP+ 740W Switch
JL558A
• 48 RJ-45 PoE+ autosensing 10/100/1000 ports
See Configuration
PDU Cable NA/MEX/TW/JP
JL558A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JL558A#B2C
•
High Volt Switch to Wall Power Cord
JL558A#B2E
C15 PDU Jumper Cord (ROW)
• 4 SFP 1G ports
• min=0 \\ max=4 SFP Transceivers
• 1U - Height
NOTE: 1, 3
• 4 SFP 1G ports
• min=0 \\ max=4 SFP Transceivers
• 1U - Height
C15 PDU Jumper Cord (ROW)
NOTE: 1, 3
Page
QuickSpecs
Aruba 2930F Switch Series
Configuration
12
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
No Power Cord
JL558A#AC3
• No Localized Power Cord Selected
Aruba 2930F 48G PoE+ 4SFP Switch
JL262A
• 48 RJ-45 PoE+ autosensing 10/100/1000 ports
See Configuration
PDU Cable NA/MEX/TW/JP
JL262A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JL262A#B2C
• C15 PDU Jumper Cord (ROW)
High Volt Switch to Wall Power Cord
JL262A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
TAA Compliant Chassis
Aruba 2930F 24G PoE+ 4SFP+ TAA-compliant Switch
JL263A
•
• 1U - Height
See Configuration
PDU Cable NA/MEX/TW/JP
JL263A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JL263A#B2C
• C15 PDU Jumper Cord (ROW)
High Volt Switch to Wall Power Cord
JL263A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
Aruba 2930F 48G PoE+ 4SFP+ 740W TAA-compliant Switch
JL559A
•
• 1U - Height
See Configuration
PDU Cable NA/MEX/TW/JP
JL559A#B2B
• 4 SFP 1G ports
• min=0 \\ max=4 SFP Transceivers
• 1U - Height
24 RJ-45 PoE+ autosensing 10/100/1000 ports
• 4 SFP/SFP+ 1G/10G ports
• min=0 \\ max=4 SFP/SFP+ Transceivers
NOTE: 1, 3
NOTE: 1, 2, 3, 4
48 RJ-45 PoE+ autosensing 10/100/1000 ports
• 4 SFP/SFP+ 1G/10G ports
• min=0 \\ max=4 SFP/SFP+ Transceivers
NOTE: 1, 2, 3, 4
Page
QuickSpecs
Aruba 2930F Switch Series
Configuration
13
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JL559A#B2C
• C15 PDU Jumper Cord (ROW)
High Volt Switch to Wall Power Cord
JL559A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
No Power Cord
JL559A#AC3
• No Localized Power Cord Selected
Aruba 2930F 48G PoE+ 4SFP+ TAA-compliant Switch
JL264A
•
• 1U - Height
See Configuration
PDU Cable NA/MEX/TW/JP
JL264A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JL264A#B2C
• C15 PDU Jumper Cord (ROW)
High Volt Switch to Wall Power Cord
JL264A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
Configuration Rules:
NOTE 1
The following Transceivers install into this Chassis :
HPE X121 1G SFP LC SX Transceiver
J4858C
HPE X121 1G SFP LC LX Transceiver
J4859C
HPE X121 1G SFP LC LH Transceiver
J4860C
HPE X121 1G SFP RJ45 T Transceiver
J8177C
HPE X111 100M SFP LC FX Transceiver
J9054C
Aruba 1G SFP LC SX 500m OM2 MMF Transceiver
J4858D
Aruba 1G SFP LC LX 10km SMF Transceiver
J4859D
Aruba 1G SFP LC LH 70km SMF Transceiver
J4860D
Aruba 1G SFP RJ45 T 100m Cat5e Transceiver
J8177D
Aruba 100M SFP LC FX 2km MMF Transceiver
J9054D
NOTE 2
The following Transceivers install into this Switch:
HPE X132 10G SFP+ LC ER Transceiver
J9153A
HPE X132 10G SFP+ LC SR Transceiver
J9150A
HPE X132 10G SFP+ LC LR Transceiver
J9151A
Aruba 10G SFP+ LC SR 300m OM3 MMF Transceiver
J9150D
Aruba 10G SFP+ LC LR 10km SMF Transceiver
J9151D
Aruba 10G SFP+ LC ER 40km SMF Transceiver
J9153D
Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable
J9281D
Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
J9283D
48 RJ-45 PoE+ autosensing 10/100/1000 ports
• 4 SFP/SFP+ 1G/10G ports
• min=0 \\ max=4 SFP/SFP+ Transceivers
NOTE: 1, 2, 3, 4
Page
QuickSpecs
Aruba 2930F Switch Series
Configuration
14
HPE X242 10G SFP+ to SFP+ 1m Direct Attach Copper Cable
J9281B
HPE X242 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
J9283B
NOTE 3
Localization required on orders without #B2B, #B2C or #B2E options.
NOTE 4
TAA Switch Chassis are available in the US, UK, Israel, Vietnam, South Korea, India and Taiwan only.
Remarks:
Drop down under power supply should offer the following options and results:
Switch/Router/Power Supply to PDU Power Cord
#B2C ROW. (Watson Default B2B or B2C for Rack Level CTO)
Switch/Router/Power Supply to Wall Power Cord
CTO)
#AC3 - No Power Cord
Rack Level Integration CTO Models
Aruba 2930F 24G 4SFP+ Switch
JL253A
• 24 RJ-45 autosensing 10/100/1000 ports
See Configuration
PDU Cable NA/MEX/TW/JP
JL253A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JL253A#B2C
• C15 PDU Jumper Cord (ROW)
High Volt Switch to Wall Power Cord
JL253A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
Aruba 2930F 48G 4SFP+ Switch
JL254A
• 48 RJ-45 autosensing 10/100/1000 ports
See Configuration
PDU Cable NA/MEX/TW/JP
JL254A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JL254A#B2C
- #B2B in North America, Mexico, Taiwan, and Japan or
- Localized Option (Watson Default for BTO and Box Level
• 4 SFP/SFP+ 1G/10G ports
• min=0 \\ max=4 SFP/SFP+ Transceivers
• 1U - Height
NOTE: 1, 2, 3, 4, 5
• 4 SFP/SFP+ 1G/10G ports
• min=0 \\ max=4 SFP/SFP+ Transceivers
• 1U - Height
NOTE: 1, 2, 3, 4, 5
Page
QuickSpecs
Aruba 2930F Switch Series
Configuration
15
• C15 PDU Jumper Cord (ROW)
High Volt Switch to Wall Power Cord
JL254A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
Aruba 2930F 24G PoE+ 4SFP+ Switch
JL255A
• 24 RJ-45 PoE+ autosensing 10/100/1000 ports
See Configuration
PDU Cable NA/MEX/TW/JP
JL255A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JL255A#B2C
• C15 PDU Jumper Cord (ROW)
High Volt Switch to Wall Power Cord
JL255A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
Aruba 2930F 48G PoE+ 4SFP+ Switch
JL256A
• 48 RJ-45 PoE+ autosensing 10/100/1000 ports
See Configuration
PDU Cable NA/MEX/TW/JP
JL256A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JL256A#B2C
•
High Volt Switch to Wall Power Cord
JL256A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
Aruba 2930F 24G 4SFP Switch
JL259A
• 24 RJ-45 autosensing 10/100/1000 ports
• min=0 \\ max=4 SFP Transceivers
See Configuration
• 4 SFP/SFP+ 1G/10G ports
• min=0 \\ max=4 SFP/SFP+ Transceivers
• 1U - Height
• 4 SFP/SFP+ 1G/10G ports
• min=0 \\ max=4 SFP/SFP+ Transceivers
• 1U - Height
NOTE: 1, 2, 3, 4, 5
NOTE: 1, 2, 3, 4, 5
C15 PDU Jumper Cord (ROW)
• 4 SFP 1G ports
NOTE: 1, 3, 4, 5
Page
QuickSpecs
Aruba 2930F Switch Series
Configuration
16
• 1U - Height
PDU Cable NA/MEX/TW/JP
JL259A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JL259A#B2C
• C15 PDU Jumper Cord (ROW)
High Volt Switch to Wall Power Cord
JL259A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
Aruba 2930F 48G PoE+ 4SFP 740W Switch
JL557A
• 48 RJ-45 autosensing 10/100/1000 ports
See Configuration
PDU Cable NA/MEX/TW/JP
JL557A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JL557A#B2C
• C15 PDU Jumper Cord (ROW)
High Volt Switch to Wall Power Cord
JL557A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
No Power Cord
JL557A#AC3
• No Localized Power Cord Selected
Aruba 2930F 48G 4SFP Switch
JL260A
• 48 RJ-45 autosensing 10/100/1000 ports
See Configuration
PDU Cable NA/MEX/TW/JP
JL260A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JL260A#B2C
• 4 SFP 1G ports
• min=0 \\ max=4 SFP Transceivers
• 1U - Height
NOTE: 1, 3
• 4 SFP 1G ports
• min=0 \\ max=4 SFP Transceivers
• 1U - Height
NOTE: 1, 3, 4, 5
Page
QuickSpecs
Aruba 2930F Switch Series
Configuration
17
• C15 PDU Jumper Cord (ROW)
High Volt Switch to Wall Power Cord
JL260A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
Aruba 2930F 24G PoE+ 4SFP Switch
JL261A
• 24 RJ-45 PoE+ autosensing 10/100/1000 ports
See Configuration
PDU Cable NA/MEX/TW/JP
JL261A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JL261A#B2C
• C15 PDU Jumper Cord (ROW)
High Volt Switch to Wall Power Cord
JL261A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
Aruba 2930F 48G PoE+ 4SFP+ 740W Switch
JL558A
• 48 RJ-45 PoE+ autosensing 10/100/1000 ports
See Configuration
PDU Cable NA/MEX/TW/JP
JL558A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JL558A#B2C
•
High Volt Switch to Wall Power Cord
JL558A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
No Power Cord
JL558A#AC3
•
Aruba 2930F 48G PoE+ 4SFP Switch
JL262A
• 4 SFP 1G ports
• min=0 \\ max=4 SFP Transceivers
• 1U - Height
• 4 SFP 1G ports
• min=0 \\ max=4 SFP Transceivers
• 1U - Height
NOTE: 1, 3, 4, 5
NOTE: 1, 3
C15 PDU Jumper Cord (ROW)
No Localized Power Cord Selected
Page
QuickSpecs
Aruba 2930F Switch Series
Configuration
18
• 48 RJ-45 PoE+ autosensing 10/100/1000 ports
See Configuration
PDU Cable NA/MEX/TW/JP
JL262A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JL262A#B2C
• C15 PDU Jumper Cord (ROW)
High Volt Switch to Wall Power Cord
JL262A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
TAA Compliant Chassis
Aruba 2930F 24G PoE+ 4SFP+ TAA-compliant Switch
JL263A
•
• 1U - Height
See Configuration
PDU Cable NA/MEX/TW/JP
JL263A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JL263A#B2C
• C15 PDU Jumper Cord (ROW)
High Volt Switch to Wall Power Cord
JL263A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
Aruba 2930F 48G PoE+ 4SFP+ 740W TAA-compliant Switch
JL559A
•
• 1U - Height
See Configuration
PDU Cable NA/MEX/TW/JP
JL559A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JL559A#B2C
• C15 PDU Jumper Cord (ROW)
High Volt Switch to Wall Power Cord
JL559A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
• 4 SFP 1G ports
• min=0 \\ max=4 SFP Transceivers
• 1U - Height
24 RJ-45 PoE+ autosensing 10/100/1000 ports
• 4 SFP/SFP+ 1G/10G ports
• min=0 \\ max=4 SFP/SFP+ Transceivers
NOTE: 1, 3, 4, 5
NOTE: 1, 2, 3, 4, 5, 6
48 RJ-45 PoE+ autosensing 10/100/1000 ports
• 4 SFP/SFP+ 1G/10G ports
• min=0 \\ max=4 SFP/SFP+ Transceivers
NOTE: 1, 2, 3, 4, 5, 6
Page
QuickSpecs
Aruba 2930F Switch Series
Configuration
19
No Power Cord
JL559A#AC3
• No Localized Power Cord Selected
Aruba 2930F 48G PoE+ 4SFP+ TAA-compliant Switch
JL264A
•
•
See Configuration
PDU Cable NA/MEX/TW/JP
JL264A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JL264A#B2C
• C15 PDU Jumper Cord (ROW)
High Volt Switch to Wall Power Cord
JL264A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
Configuration Rules:
NOTE 1
The following Transceivers install into this Chassis :
HPE X121 1G SFP LC SX Transceiver
J4858C
HPE X121 1G SFP LC LX Transceiver
J4859C
HPE X121 1G SFP LC LH Transceiver
J4860C
HPE X121 1G SFP RJ45 T Transceiver
J8177C
HPE X111 100M SFP LC FX Transceiver
J9054C
Aruba 1G SFP LC SX 500m OM2 MMF Transceiver
J4858D
Aruba 1G SFP LC LX 10km SMF Transceiver
J4859D
Aruba 1G SFP LC LH 70km SMF Transceiver
J4860D
Aruba 1G SFP RJ45 T 100m Cat5e Transceiver
J8177D
Aruba 100M SFP LC FX 2km MMF Transceiver
J9054D
NOTE 2
The following Transceivers install into this Switch:
HPE X132 10G SFP+ LC ER Transceiver
J9153A
HPE X132 10G SFP+ LC SR Transceiver
J9150A
HPE X132 10G SFP+ LC LR Transceiver
J9151A
Aruba 10G SFP+ LC SR 300m OM3 MMF Transceiver
J9150D
Aruba 10G SFP+ LC LR 10km SMF Transceiver
J9151D
Aruba 10G SFP+ LC ER 40km SMF Transceiver
J9153D
Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable
J9281D
Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
J9283D
HPE X242 10G SFP+ to SFP+ 1m Direct Attach Copper Cable
J9281B
HPE X242 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
J9283B
NOTE 3
If this switch is factory installed in HPE Racks, Then the J9583A#0D1 is required.
CLIC Only - Allow the J9583AZ in all regions.
48 RJ-45 PoE+ autosensing 10/100/1000 ports
• 4 SFP/SFP+ 1G/10G ports
• min=0 \\ max=4 SFP/SFP+ Transceivers
1U - Height
NOTE: 1, 2, 3, 4, 5, 6
Page
QuickSpecs
Aruba 2930F Switch Series
Configuration
20
NOTE 4
Localization required on orders without #B2B, #B2C, #B2E options.
NOTE 5
If this Switch Chassis is selected for Rack Level Integration, Then the Switch Chassis needs to integrate (with
#0D1) to the HPE Rack.
NOTE 6
TAA Switch Chassis are available in the US, UK, Israel, Vietnam, South Korea, India and Taiwan only.
Remarks:
Drop down under power supply should offer the following options and results:
Switch/Router/Power Supply to PDU Power Cord
#B2C ROW. (Watson Default B2B or B2C for Rack Level CTO)
Switch/Router/Power Supply to Wall Power Cord
CTO)
#AC3 - No Power Cord
Enter the following menu selections as integrated to the CTO Model X server above if order is factory built.
Transceivers
SFP Transceivers
HPE X111 100M SFP LC FX Transceiver
J9054C
Aruba 100M SFP LC FX 2km MMF Transceiver
J9054D
HPE X121 1G SFP LC LH Transceiver
J4860C
HPE X121 1G SFP LC LX Transceiver
J4859C
HPE X121 1G SFP LC SX Transceiver
J4858C
HPE X121 1G SFP RJ45 T Transceiver
J8177C
Aruba 1G SFP LC SX 500m OM2 MMF Transceiver
J4858D
Aruba 1G SFP LC LX 10km SMF Transceiver
J4859D
Aruba 1G SFP LC LH 70km SMF Transceiver
J4860D
Aruba 1G SFP RJ45 T 100m Cat5e Transceiver
J8177D
SFP+ Transceivers
HPE X132 10G SFP+ LC ER Transceiver
J9153A
HPE X132 10G SFP+ LC SR Transceiver
J9150A
HPE X132 10G SFP+ LC LR Transceiver
J9151A
Aruba 10G SFP+ LC SR 300m OM3 MMF Transceiver
J9150D
Aruba 10G SFP+ LC LR 10km SMF Transceiver
J9151D
Aruba 10G SFP+ LC ER 40km SMF Transceiver
J9153D
Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable
J9281D
Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
J9283D
HPE X242 10G SFP+ to SFP+ 1m Direct Attach Copper Cable
J9281B
HPE X242 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
J9283B
Cables
Console Cables
(std 0 // max 99) User Selection (min 0 // max 99) per switch
- #B2B in North America, Mexico, Taiwan, and Japan or
- Localized Option (Watson Default for BTO and Box Level
Page
QuickSpecs
Aruba 2930F Switch Series
Configuration
21
Aruba X2C2 RJ45 to DB9 Console Cable
JL448A
Multi-Mode Cables
(std 0 // max 99) User Selection (min 0 // max 99) per switch
HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable
AJ833A
HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable
AJ834A
HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable
AJ835A
HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable
AJ836A
HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable
AJ837A
HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable
AJ838A
HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable
AJ839A
HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable
QK732A
HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable
QK733A
HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable
QK734A
HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable
QK735A
HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable
QK736A
HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable
QK737A
Switch Enclosure Options
Mounting Kit
(std 0 // max 1) User Selection (min 0 // max 1) per switch
HPE X410 1U Universal 4-post Rackmount Kit
J9583A
See Configuration
NOTE:
Configuration Rules:
NOTE 1
If this Mounting Kit is order with #0D1 then it integrates to the HPE Universal Rack. (not the switch)
NOTE 2
This Rack Mount Kit is not compatible with JL258A
1, 2
Page
QuickSpecs
Aruba 2930F Switch Series
Configuration
22
Accessories
For JL258A System (std 0 // max 1) User Selection (min 0 // max 1) per switch
Aruba 2930F 8-port Cable Guard
JL311A
Aruba 2930F 8-port Power Shelf
JL312A
Page
QuickSpecs
Aruba 2930F Switch Series
Technical Specifications
23
Aruba 2930F 24G 4SFP+ Switch (JL253A)
I/O ports and slots
24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type
4 SFP+ 1/10GbE ports; PHY-less
Additional ports and slots
1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics
Dimensions
17.42(w) x 7.88(d) x 1.73(h) in (44.25 x 20.02 x 4.39 cm) (1U height)
Weight
5.31 lb (2.41 kg)
Memory and processor
Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB
4.5MB Ingress/7.875MB Egress, 4 GB eMMC
Performance
1000 Mb Latency
< 3.8 µ
10 Gbps Latency
< 1.6 µs (64-byte packets)
Throughput
up to 95.2 Mpps
Switching capacity
128 Gbps
Routing table size
2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
MAC address table size
32768 entries
Environment
Operating temperature
32°F to 113°F (0°C to 45°C); up to 5000 Feet, - 0C to 40C (32F to
104F) up to 10000 Feet
Operating relative
15% to 95% @ 104°F (40°C), noncondensing
Nonoperating/Storage
temperature
-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
Nonoperating/Storage
temperature
15% to 95% @ 149°F (65°C), noncondensing
Acoustic
Power: 49.7 dB, Pressure: 37.1 dB
Airflow direction
Side-to-side
Electrical characteristics
Maximum heat
dissipation
100 BTU/hr (105.5 kJ/hr)
Voltage
100 - 127 / 200 - 240 VAC, rated
Current
0.6/0.4 A
Maximum power rating
29.3 W
Idle power
19.5 W
Frequency
50/60 Hz
Notes
Idle power is the actual power consumption of the device with no
ports
Maximum power rating and maximum heat dissipation are the worst
case theoretical maximum numbers provided for planning the
infrastructure with fully loaded PoE (if equipped), 100% traffic, all
ports plugged in, and all modules populated.
Safety
UL 60950-1, 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC
60825-1:2014 Class 1
Emissions
EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A;
CNS 13438
Immunity
Generic
EN 55024:2010/CISPR 24
100BASE-TX, IEEE 802.3ab Type 1000BASE-T)
Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
humidity
s (64-byte packets)
connected..
60950-1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825-1:2014 / IEC
-
.
Page
QuickSpecs
Aruba 2930F Switch Series
Technical Specifications
24
ESD
IEC 61000-4-2
Radiated
IEC 61000-4-3
EFT/Burst
IEC 61000-4-4
Surge
IEC 61000-4-5
Conducted
IEC 61000-4-6
Power frequency
magnetic field
IEC 61000-4-8
Voltage dips and
interruptions
IEC 61000-4-11
Harmonics
IEC/EN 61000-3-2
Flicker
IEC/EN 61000-3-3
Management
Aruba AirWave Network Management; IMC – Intelligent Management Center; Command-line
Services
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services
Aruba 2930F 48G 4SFP+ Switch (JL254A)
I/O ports and slots
48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type
1000BASE-T: full only
4 SFP+ 1/10GbE ports; PHY-less
Additional ports and slots
1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics
Dimensions
17.42(w) x 9.7(d) x 1.73(h) in (44.25 x 24.63 x 4.39 cm) (1U height)
Weight
6.83 lb (3.10 kg)
Memory and processor
Dual Core ARM Coretex @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB
Ingress/7.875MB Egress, 4 GB eMMC
Performance
1000 Mb Latency
< 3.8 µ
10 Gbps Latency
< 1.6 µs (64-byte packets)
Throughput
up to 112.0 Mpps
Switching capacity
176 Gbps
Routing table size
2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
MAC address table size
32768 entries
Environment
Operating temperature
32°F to 113°F (0°C to 45°C); up to 5000 Feet, - 0C to 40C (32F to
104F) up to 10000
Operating relative
humidity
15% to 95% @ 104°F (40°C), noncondensing
Nonoperating/Storage
temperature
-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
Nonoperating/Storage
temperature
15% to 95% @ 149°F (65°C), noncondensing
Acoustic
Power: 54.1 dB, Pressure: 40.2 dB
Airflow direction
Side-to-side
Electrical characteristics
Maximum heat
dissipation
157.2 BTU/hr (165.8 KJ/hr)
Voltage
100 - 127 / 200 - 240 VAC, rated
interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band
management (serial RS-232C or micro USB)
for details on the service-level descriptions and product numbers. For details about services and
response times in your area, please contact your local Hewlett Packard Enterprise sales office.
100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full;
s (64-byte packets)
Feet
Page
QuickSpecs
Aruba 2930F Switch Series
Technical Specifications
25
Current
0.9/0.6 A
Maximum power rating
46.6 W
Idle power
32.7 W
Frequency
50/60 Hz
Notes
Idle power is the actual power consumption of the device with no
ports connected..
Maximum power rating and maximum heat dissipation are the worst
case theoretical maximum numbers provided for planning the
infrastructure with ful
ports plugged in, and all modules populated..
Safety
UL 60950-1, 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC
60825-1:2014 Class 1
Emissions
EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A;
CNS 13438
Immunity
Generic
EN 55024:2010/CISPR 24
ESD
IEC 61000-4-2
Radiated
IEC 61000-4-3
EFT/Burst
IEC 61000-4-4
Surge
IEC 61000-4-5
Conducted
IEC 61000-4-6
Power frequency
magnetic field
IEC 61000-4-8
Voltage dips and
interruptions
IEC 61000-4-11
Harmonics
IEC/EN 61000-3-2
Flicker
IEC/EN 61000-3-3
Management
Aruba AirWave Network Management; IMC – Intelligent Management Center; Command-line
management (serial RS-232C or micro USB)
Services
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services
response times in your area, please contact your local Hewlett Packard Enterprise sales office.
Aruba 2930F 24G PoE+ 4SFP+ Switch (JL255A)
I/O ports and slots
24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type
T/100BASE-TX: half or full; 1000BASE-T: full only
4 SFP+ 1/10GbE ports; PHY-less
Additional ports and slots
1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics
Dimensions
17.42(w) x 11.98(d) x 1.73(h) in (44.25 x 30.42 x 4.39 cm) (1U
height)
Weight
8.6 lb (3.9 kg)
Memory and processor
Dual Core ARM Coretex @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5 MB
Ingress/7.875MB Egress, 4 GB eMMC
Performance
1000 Mb Latency
< 3.8 µ
10 Gbps Latency
< 1.6 µs (64-byte packets)
Throughput
up to 95.2 Mpps
60950-1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825-1:2014 / IEC
-
ly loaded PoE (if equipped), 100% traffic, all
interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band
for details on the service-level descriptions and product numbers. For details about services and
100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-
s (64-byte packets)
Page
QuickSpecs
Aruba 2930F Switch Series
Technical Specifications
26
Switching capacity
128 Gbps
Routing table size
2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
MAC address table size
32768 entries
Environment
Operating temperature
32°F to 113°F (0°C to 45°C); up to 5000 Feet, - 0C to 40C (32F to
104F) up to 10000 Feet
Operating relative
humidity
15% to 95% @ 104°F (40°C), noncondensing
Nonoperating/Storage
temperature
-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
Nonoperating/Storage
temperature
15% to 95% @ 149°F (65°C), noncondensing
Acoustic
Power: 54.1 dB, Pressure: 40.2 dB
Airflow direction
Side-to-side
Electrical characteristics
80plus.org Certification
Silver
Maximum heat
dissipation
258.0 BTU/hr (272.2 KJ/hr)
Voltage
100 - 127 / 200 - 240 VAC, rated
Current
4.9/2.4 A
Maximum power rating
445 W
Idle power
36.8 W
PoE power
370 W PoE+
Frequency
50/60 Hz
Notes
Idle power is the actual power consumption of the device with no
ports connected..
Maximum power rating and maximum heat dissipation are the worst
case
infrastructure with fully loaded PoE (if equipped), 100% traffic, all
ports plugged in, and all modules populated..
Safety
UL 60950-1 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC
60825-1:2014 Class 1
Emissions
EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A;
CNS 13438
Immunity
Generic
EN 55024:2010/CISPR 24
ESD
IEC 61000-4-2
Radiated
IEC 61000-4-3
EFT/Burst
IEC 61000-4-4
Surge
IEC 61000-4-5
Conducted
IEC 61000-4-6
Power frequency
magnetic field
IEC 61000-4-8
Voltage dips and
IEC 61000-4-11
Harmonics
IEC/EN 61000-3-2
Flicker
IEC/EN 61000-3-3
theoretical maximum numbers provided for planning the
60950-1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825-1:2014 / IEC
interruptions
-
Page
QuickSpecs
Aruba 2930F Switch Series
Technical Specifications
27
Management
Aruba AirWave Network Management; IMC – Intelligent Management Center; Command-line
management (serial RS-232C or micro USB)
Services
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services
response times in your area, please contact your local Hewlett Packard Enterprise sales office.
Aruba 2930F 48G PoE+ 4SFP+ Switch (JL256A)
I/O ports and slots
48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type
4 SFP+ 1/10GbE ports; PHY-less
Additional ports and slots
1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics
Dimensions
17.42(w) x 11.98(d) x 1.73(h) in (44.25 x 30.42 x 4.39 cm) (1U
height)
Weight
9.83 lb (4.46 kg)
Memory and processor
Dual Core ARM Coretex @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB
Ingress/7.875MB Egress, 4 GB eMMC
Performance
1000 Mb Latency
< 3.8 µs (64-byte packets)
10 Gbps Latency
< 1.6 µs (64-byte packets)
Throughput
up to 112.0 Mpps
Switching capacity
176 Gbps
Routing table size
2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
MAC address table size
32768 entries
Environment
Operating temperature
32°F to 113°F (0°C to 45°C); up to 5000 Feet, - 0C to 40C (32F to
104F) up to 10000 Feet
Operating relative
humidity
15% to 95% @ 104°F (40°C), noncondensing
Nonoperating/Storage
temperature
-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
Nonoperating/Storage
15% to 95% @ 149°F (65°C), noncondensing
Acoustic
Power: 55.7 dB, Pressure: 41.7 dB
Airflow direction
Side-to-side
Electrical characteristics
80plus.org Certification
Silver
Maximum heat
dissipation
293.0 BTU/hr (309.1 kJ/hr)
Voltage
100 - 127 / 200 - 240 VAC, rated
Current
5.1/2.5 A
Maximum power rating
459 W
Idle power
48.6 W
PoE power
370 W PoE+
Frequency
50/60 Hz
Notes
Idle power is the actual power consumption of the device with no
ports connected..
Maximum power rating and maximum heat dissipation are the worst
case theoretical maximum numbers provided for planning the
interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band
for details on the service-level descriptions and product numbers. For details about services and
100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASET/100BASE-TX: half or full; 1000BASE-T: full only
temperature
-
Page
QuickSpecs
Aruba 2930F Switch Series
Technical Specifications
28
infrastructure with fully loaded PoE (if equipped), 100% traffic, all
ports plugged in, and all modules populated..
Safety
UL 60950-1 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC
60825-1:2014 Class 1
Emissions
EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A;
CNS 13438
Immunity
Generic
EN 55024:2010/CISPR 24
ESD
IEC 61000-4-2
Radiated
IEC 61000-4-3
EFT/Burst
IEC 61000-4-4
Surge
IEC 61000-4-5
Conducted
IEC 61000-4-6
Power frequency
magnetic field
IEC 61000-4-8
Voltage dips and
interruptions
IEC 61000-4-11
Harmonics
IEC/EN 61000-3-2
Flicker
IEC/EN 61000-3-3
Management
Aruba AirWave Network Management; IMC – Intelligent Management Center; Command-line
management (serial RS-232C or micro USB)
Services
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services
response times in your area, please contact your local Hewlett Packard Enterprise sales office.
Aruba 2930F 8G PoE+ 2SFP+ Switch (JL258A)
I/O ports and slots
8 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type
T/100BASE-TX: half or full; 1000BASE-T: full only
2 SFP+ 1/10GbE ports; PHY-less
Additional ports and slots
1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics
Dimensions
10(w) x 10(d) x 1.73(h) in (25.4 x 25.4 x 4.39 cm) (1U height)
Weight
4.41 lb (2.0 kg)
Memory and processor
Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB
4.5MB Ingress/7.785 Egress, 4 GB eMMC
Performance
1000 Mb Latency
< 3.8 µs (64-byte packets)
10 Gbps Latency
< 1.6 µ
Throughput
up to 41.7 Mpps
Switching capacity
56 Gbps
Routing table size
2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
MAC address table size
32768 entries
Environment
Operating temperature
32°F to 113°F (0°C to 45°C); up to 5000 Feet, - 0C to 40C (32F to
104F) up to 10000 Feet
Operating relative
humidity
15% to 95% @ 104°F (40°C), noncondensing
60950-1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825-1:2014 / IEC
interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band
for details on the service-level descriptions and product numbers. For details about services and
100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-
s (64-byte packets)
Page
QuickSpecs
Aruba 2930F Switch Series
Technical Specifications
29
Nonoperating/Storage
temperature
-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
Nonoperating/Storage
temperature
15% to 95% @ 149°F (65°C), noncondensing
Acoustic
Power: 0 dB, Pressure: 0 dB Fanless
Electrical characteristics
Description
Power supply meets DoE VI certification.
Maximum heat
dissipation
58.6 BTU/hr (61.8 kJ/hr)
Voltage
90 - 264 VAC, rated
Current
2.6 A
Maximum power rating
155 W
PoE power
125 W PoE+
Frequency
50/60 Hz
Notes
Maximum power rating and maximum heat dissipation are the worstcase theoretical maximum numbers provided for planning the
infrastructure with fully loaded PoE (if equipped), 100% traffic, all
ports plugged
PoE Power is the power supplied by the internal power supply, it is
dependent on the type and quantity of power supplies and may be
supplemented with the use of a External Power Supply (EPS).
Safety
UL 60950-1 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC
60825-1:2014 Class 1
Emissions
EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A;
CNS 13438
Immunity
Generic
EN 55024:2010/CISPR 24
ESD
IEC 61000-4-2
Radiated
IEC 61000-4-3
EFT/Burst
IEC 61000-4-4
Surge
IEC 61000-4-5
Conducted
IEC 61000-4-6
Power frequency
magnetic field
IEC 61000-4-8
Voltage dips and
interruptions
IEC 61000-4-11
Harmonics
IEC/EN 61000-3-2
Flicker
IEC/EN 61000-3-3
Management
Aruba AirWave Network Management; IMC – Intelligent Management Center; Command-line
management (serial RS-232C or micro USB)
Services
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services
response times in your area, please contact your local Hewlett Packard Enterprise sales office.
Aruba 2930F 24G 4SFP Switch (JL259A)
I/O ports and slots
24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type
1000BASE-T: full only
in, and all modules populated.
60950-1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825-1:2014 / IEC
interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band
for details on the service-level descriptions and product numbers. For details about services and
100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full;
Page
QuickSpecs
Aruba 2930F Switch Series
Technical Specifications
30
4 SFP
Additional ports and slots
1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics
Dimensions
17.42(w) x 7.88(d) x 1.73(h) in (44.25 x 20.02 x 4.39 cm) (1U height)
Weight
5.31 lb (2.41 kg)
Memory and processor
Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB
4.5MB Ingress/7.785 Egress, 4 GB eMMC
Performance
1000 Mb Latency
< 3.8 µs (64-byte packets)
Throughput
up to 41.7 Mpps
Switching capacity
56 Gbps
Routing table size
2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
MAC address table size
32768 entries
Environment
Operating temperature
32°F to 113°F (0°C to 45°C); up to 5000 Feet, - 0C to 40C (32F to
104F) up to 10000 Feet
Operating relative
humidity
15% to 95% @ 104°F (40°C), noncondensing
Nonoperating/Storage
-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
Nonoperating/Storage
temperature
15% to 95% @ 149°F (65°C), noncondensing
Acoustic
Power: 49.7 dB, Pressure: 37.1 dB
Airflow direction
Side-to-side
Electrical characteristics
Maximum heat
dissipation
100 BTU/hr (105.5 kJ/hr)
Voltage
100 - 127 / 200 - 240 VAC, rated
Current
0.6/0.4 A
Maximum power rating
29.3 W
Idle power
19.5 W
Frequency
50/60 Hz
Notes
Idle power is the actual power consumption of the device with no
ports connected.
Maximum power rating and maximum heat dissipation are the worst
case theoretical maximum numbers provided for planning the
infrastructure with fully loaded PoE (if equipped), 100% traffic, all
ports plugged in, and all modules populated.
Safety
UL 60950-1 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC
60825-1:2014 Class 1
Emissions
EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A;
CNS 13438
Immunity
Generic
EN 55024:2010/CISPR 24
ESD
IEC 61000-4-2
Radiated
IEC 61000-4-3
EFT/Burst
IEC 61000-4-4
Surge
IEC 61000-4-5
Conducted
IEC 61000-4-6
Power frequency
magnetic field
IEC 61000-4-8
temperature
60950-1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825-1:2014 / IEC
-
Page
QuickSpecs
Aruba 2930F Switch Series
Technical Specifications
31
Voltage dips and
IEC 61000-4-11
Harmonics
IEC/EN 61000-3-2
Flicker
IEC/EN 61000-3-3
Management
Aruba AirWave Network Management; IMC – Intelligent Management Center; Command-line
Services
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services
response times in your area, please contact your local Hewlett Packard Enterprise sales office.
Aruba 2930F 48G 4SFP Switch (JL260A)
I/O ports and slots
48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type
4 SFP
Additional ports and slots
1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics
Dimensions
17.42(w) x 9.7(d) x 1.73(h) in (44.25 x 24.63 x 4.39 cm) (1U height)
Weight
6.83 lb (3.10 kg)
Memory and processor
Dual Core ARM Coretex @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB
Ingress/7.875MB Egress, 4 GB eMMC
Performance
1000 Mb Latency
< 3.8 µ
Throughput
up to 77.4 Mpps
Switching capacity
104 Gbps
Routing table size
2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
MAC address table size
32768 entries
Environment
Operating temperature
32°F to 113°F (0°C to 45°C); up to 5000 Feet, - 0C to 40C (32F to
104F) up to 10000 Feet
Operating relative
humidity
15% to 95% @ 104°F (40°C), noncondensing
Nonoperating/Storage
temperature
-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
Nonoperating/Storage
temperature
15% to 95% @ 149°F (65°C), noncondensing
Acoustic
Power: 54.1 dB, Pressure: 40.2 dB
Airflow direction
Side-to-side
Electrical characteristics
Maximum heat
dissipation
100.0 BTU/hr (105.5 kJ/hr)
Voltage
100 - 127 / 200 - 240 VAC, rated
Current
0.9/0.6 A
Maximum power rating
46.6 W
Idle power
32.7 W
Frequency
50/60 Hz
Notes
Idle power is the actual power consumption of the device with no
ports connected.
Maximum power rating and maximum heat dissipation are the worst
case theoretical maximum numbers provided for planning the
interruptions
interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band
management (serial RS-232C or micro USB)
for details on the service-level descriptions and product numbers. For details about services and
100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full;
1000BASE-T: full only
s (64-byte packets)
-
Page
QuickSpecs
Aruba 2930F Switch Series
Technical Specifications
32
infrastructure with fully loaded PoE (if equipped), 100% traffic, all
ports plugged in, and all modules populated.
Safety
UL 60950-1, 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC
60825-1:2014 Class 1
Emissions
EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A;
CNS 13438
Immunity
Generic
EN 55024:2010/CISPR 24
ESD
IEC 61000-4-2:
Radiated
IEC 61000-4-3
EFT/Burst
IEC 61000-4-4
Surge
IEC 61000-4-5
Conducted
IEC 61000-4-6
Power frequency
magnetic field
IEC 61000-4-8
Voltage dips and
IEC 61000-4-11
Harmonics
IEC/EN 61000-3-2
Flicker
IEC/EN 61000-3-3
Management
Aruba AirWave Network Management; IMC – Intelligent Management Center; Command-line
management (serial RS-232C or micro USB)
Services
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services
response times in your area, please contact your local Hewlett Packard Enterprise sales office.
Aruba 2930F 24G PoE+ 4SFP Switch (JL261A)
I/O ports and slots
24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type
T/100BASE-TX: half or full; 1000BASE-T: full only
4 SFP
Additional ports and slots
1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics
Dimensions
17.42(w) x 11.98(d) x 1.73(h) in (44.25 x 30.42 x 4.39 cm) (1U
height)
Weight
8.6 lb (3.9 kg)
Memory and processor
Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB
4.5MB Ingress/7.785 Egress, 4 GB eMMC
Performance
1000 Mb Latency
< 3.8 µ
Throughput
up to 41.7 Mpps
Switching capacity
56 Gbps
Routing table size
2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
MAC address table size
32768 entries
Environment
Operating temperature
32°F to 113°F (0°C to 45°C); up to 5000 Feet, - 0C to 40C (32F to
104F) up to 10000 Feet
Operating relative
humidity
15% to 95% @ 104°F (40°C), noncondensing
60950-1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825-1:2014 / IEC
interruptions
interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band
for details on the service-level descriptions and product numbers. For details about services and
100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-
s (64-byte packets)
Page
QuickSpecs
Aruba 2930F Switch Series
Technical Specifications
33
Nonoperating/Storage
temperature
-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
Nonoperating/Storage
temperature
15% to 95% @ 149°F (65°C)
Acoustic
Power: 54.1 dB, Pressure: 40.6 dB
Airflow direction
Side-to-side
Electrical characteristics
80plus.org Certification
Silver
Maximum heat
dissipation
258.0 BTU/hr (272.2 kJ/hr)
Voltage
100 - 127 / 200 - 240 VAC, rated
Current
4.9/2.4 A
Maximum power rating
445 W
Idle power
36.8 W
PoE power
370 W PoE+
Frequency
50/60 Hz
Notes
Idle power is the actual power consumption of the device with no
ports connected.
Maximum power rating and maximum heat dissipation are the worst
case theoretical maximum numbers provided for planning the
infrastructure with fully loaded PoE (if equipped), 100% traffic, all
ports plugged in, and all modules populated.
Safety
UL 60950-1 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC
Emissions
EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A;
CNS 13438
Immunity
Generic
EN 55024:2010/CISPR 24
ESD
IEC 61000-4-2:
Radiated
IEC 61000-4-3
EFT/Burst
IEC 61000-4-4
Surge
IEC 61000-4-5
Conducted
IEC 61000-4-6
Power frequency
magnetic field
IEC 61000-4-8
Voltage dips and
IEC 61000-4-11
Harmonics
IEC/EN 61000-3-2
Flicker
IEC/EN 61000-3-3
Management
Aruba AirWave Network Management; IMC – Intelligent Management Center; Command-line
management (serial RS-232C or micro USB)
Services
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services
response times in your area, please contact your local Hewlett Packard Enterprise sales office.
Aruba 2930F 48G PoE+ 4SFP Switch (JL262A)
60950-1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825-1:2014 / IEC
60825-1:2014 Class 1
interruptions
-
interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band
for details on the service-level descriptions and product numbers. For details about services and
Page
QuickSpecs
Aruba 2930F Switch Series
Technical Specifications
34
I/O ports and slots
48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type
T/100BASE-TX: half or full; 1000BASE-T: full only
4 SFP
Additional ports and slots
1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics
Dimensions
17.42(w) x 11.98(d) x 1.73(h) in (44.25 x 30.42 x 4.39 cm) (1U
height)
Weight
9.83 lb (4.46 kg)
Memory and processor
Dual Core ARM Coretex @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB
Ingress/7.875MB Egress, 4 GB eMMC
Performance
1000 Mb Latency
< 3.8 µs (64-byte packets)
Throughput
up to 77.4 Mpps
Switching capacity
104 Gbps
Routing table size
2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
MAC address table size
32768 entries
Environment
Operating temperature
32°F to 113°F (0°C to 45°C); up to 5000 Feet, - 0C to 40C (32F to
104F) up to 10000 Feet
Operating relative
humidity
15% to 95% @ 104°F (40°C), noncondensing
Nonoperating/Storage
temperature
-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
Nonoperating/Storage
temperature
15% to 95% @ 149°F (65°C)
Acoustic
Power: 55.7 dB, Pressure: 41.7 dB
Airflow direction
Side-to-side
Electrical characteristics
80plus.org Certification
Silver
Maximum heat
dissipation
293.0 BTU/hr (309.1 kJ/hr)
Voltage
100 - 127 / 200 - 240 VAC, rated
Current
5.1/2.5 A
Maximum power rating
459 W
Idle power
48.6 W
PoE power
370 W PoE+
Frequency
50/60 Hz
Notes
Idle power is the actual power consumption of the device with no
ports connected.
Maximum power rating and maximum heat dissipation are the
case theoretical maximum numbers provided for planning the
infrastructure with fully loaded PoE (if equipped), 100% traffic, all
ports plugged in, and all modules populated.
Safety
UL 60950-1 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC
60825-1:2014 Class 1
Emissions
EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A;
Immunity
Generic
EN 55024:2010/CISPR 24
ESD
IEC 61000-4-2
100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-
worst-
60950-1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825-1:2014 / IEC
CNS 13438
Page
QuickSpecs
Aruba 2930F Switch Series
Technical Specifications
35
Radiated
IEC 61000-4-3
EFT/Burst
IEC 61000-4-4
Surge
IEC 61000-4-5
Conducted
IEC 61000-4-6
Power frequency
magnetic field
IEC 61000-4-8
Voltage dips and
IEC 61000-4-11
Harmonics
IEC/EN 61000-3-2
Flicker
IEC/EN 61000-3-3
Management
Aruba AirWave Network Management; IMC – Intelligent Management Center; Command-line
management (serial RS-232C or micro USB)
Services
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services
response times in your area, please contact your local Hewlett Packard Enterprise sales office.
Aruba 2930F 24G PoE+ 4SFP+ TAA-compliant Switch (JL263A)
I/O ports and slots
24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type
T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports; PHY-less
Additional ports and slots
1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics
Dimensions
17.42(w) x 11.98(d) x 1.73(h) in. (44.25 x 30.42 x 4.39 cm) (1U
height)
Weight
8.6 lb (3.9 kg)
Memory and processor
Dual Core ARM® Cortex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB; 4.5
MB Ingress/7.785 MB Egress, 4 GB eMMC
Performance
1000 Mb Latency
< 3.8 μ
10 Gbps Latency
< 1.6 μs (64-byte packets)
Throughput
Up to 95.2 Mpps
Switching capacity
128 Gbps
Routing table size
2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
MAC address table size
32,768 entries
Environment
Operating temperature
32°F to 113°F (0°C to 45°C); up to 5000 Feet, -0°C to 40°C (32°F to
104°F) up to 10000 Feet
Operating relative
humidity
15% to 95% @ 104°F (40°C), noncondensing
Nonoperating/Storage
temperature
-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
Nonoperating/Storage
temperature
15% to 95% @ 149°F (65°C)
Acoustic
Power: 54.1 dB, Pressure: 40.6 dB
Airflow direction
Side-to-side
Electrical characteristics
80plus.org Certification
Silver
Maximum heat
dissipation
258.0 BTU/hr (272.2kJ/hr)
interruptions
interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band
for details on the service-level descriptions and product numbers. For details about services and
100BASETX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-
s (64-byte packets)
Page
QuickSpecs
Aruba 2930F Switch Series
Technical Specifications
36
Voltage
100-127 / 200-240 VAC, rated
Current
4.9/2.4 A
Maximum power rating
445 W
Idle power
36.8 W
PoE power
370 W PoE+
Frequency
50/60 Hz
Notes
Idle power is the actual power consumption of the device with no
ports connected.
Maximum power rating and maximum heat dissipation are the worst
case theoretical maximum numbers provided for planning the
infrastructure with fully loaded
ports plugged in, and all modules populated.
Safety
UL 69050-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC
Emissions
EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A;
CNS 13438
Immunity
Generic
EN 55024:2010/CISPR 24
ESD
IEC 61000-4-2
Radiated
IEC 61000-4-3
EFT/Burst
IEC 61000-4-4
Surge
IEC 61000-4-5
Conducted
IEC 61000-4-6
Power frequency
magnetic field
IEC 61000-4-8
Voltage dips and
IEC 61000-4-11
Harmonics
IEC/EN 61000-3-2
Flicker
IEC/EN 61000-3-3
Management
Aruba AirWave Network Management; IMC – Intelligent Management Center; Command-line
management (serial RS-232C or micro USB)
Services
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services
response times in your area, please contact your local Hewlett Packard Enterprise sales office.
Aruba 2930F 48G PoE+ 4SFP+ TAA-compliant Switch (JL264A)
I/O ports and slots
48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type
T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports; PHY-less
Additional ports and slots
1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics
Dimensions
17.42(w) x 11.98(d) x 1.73(h) in. (44.25 x 30.42 x 4.39 cm) (1U
height)
Weight
9.83 lb (4.46 kg)
Memory and processor
Dual Core ARM® Cortex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB; 4.5
MB Ingress/7.785 MB Egress, 4 GB eMMC
Performance
1000 Mb Latency
< 3.8 μ
-
PoE (if equipped), 100% traffic, all
60950-1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825-1:2014 / IEC
60825-1:2014 Class 1
interruptions
interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band
for details on the service-level descriptions and product numbers. For details about services and
100BASETX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-
s (64-byte packets)
Page
QuickSpecs
Aruba 2930F Switch Series
Technical Specifications
37
10 Gbps Latency
< 1.6 μs (64-byte packets)
Throughput
Up to 112.0 Mpps
Switching capacity
176 Gbps
Routing table size
2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
MAC address table size
32,768 entries
Environment
Operating temperature
32°F to 113°F (0°C to 45°C); up to 5000 Feet, -0°C to 40°C (32°F to
104°F) up to 10000 Feet
Operating relative
humidity
15% to 95% @ 104°F (40°C), noncondensing
Nonoperating/Storage
temperature
-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
Nonoperating/Storage
temperature
15% to 95% @ 149°F (65°C)
Acoustic
Power: 55.7 dB, Pressure: 41.7 dB
Airflow direction
Side-to-side
Electrical characteristics
80plus.org Certification
Silver
Maximum heat
dissipation
293.0 BTU/hr (309.1 kJ/hr)
Voltage
100-127 / 200-240 VAC, rated
Current
5.1/2.5 A
Maximum power rating
459 W
Idle power
48.6 W
PoE power
370 W PoE+
Frequency
50/60 Hz
Notes
Idle power is the actual power consumption of the device with no
ports
Maximum power rating and maximum heat dissipation are the worst
case theoretical maximum numbers provided for planning the
infrastructure with fully loaded PoE (if equipped), 100% traffic, all
ports plugged in, and all modules populated.
Safety
UL 69050-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC
60825-1:2014 Class 1
Emissions
EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A;
CNS 13438
Immunity
Generic
EN 55024:2010/CISPR 24
ESD
IEC 61000-4-2
Radiated
IEC 61000-4-3
EFT/Burst
IEC 61000-4-4
Surge
IEC 61000-4-5
Conducted
IEC 61000-4-6
Power frequency
IEC 61000-4-8
Voltage dips and
IEC 61000-4-11
Harmonics
IEC/EN 61000-3-2
connected.
60950-1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825-1:2014 / IEC
-
magnetic field
interruptions
Page
QuickSpecs
Aruba 2930F Switch Series
Technical Specifications
38
Flicker
IEC/EN 61000-3-3
Management
Aruba AirWave Network Management; IMC – Intelligent Management Center; Command-line
management (serial RS-232C or micro USB)
Services
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services
response times in your area, please contact your local Hewlett Packard Enterprise sales office.
Aruba 2930F 48G PoE+ 4SFP 740W Switch (JL557A)
I/O ports and slots
48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type
T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP
Additional ports and slots
1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics
Dimensions
17.42 (w) x 12.77 (d) x 1.73 (h) in
(44.25 x 32.42 x 4.39 cm)
(1U height)
Weight
10.56 lb (4.79 kg)
Memory and processor
Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB
4.5MB Ingress/7.785 Egress,4 GB eMMC
Performance
1000 Mb Latency
< 3.8 μ
Throughput
up to 77.4 Mpps
Switching capacity
104 Gbps
Routing table size
2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
MAC address table size
32,768
Environment
Operating temperature
32°F to 113°F (0°C to 45°C);
up to 5,000 Feet,
0°C to 40°C (32°F to 104°F)
up to 10,000 Feet
Operating relative
humidity
15% to 95% @ 104°F (40°C), noncondensing
Nonoperating/Storage
-40°F to 158°F (-40°C to 70°C); up to 15,000 Feet
Nonoperating/Storage
temperature
15% to 95% @ 149°F (65°C)
Acoustic (power and
pressure) in decibals
Power: 55.1 dB, Pressure: 41.1 dB
Airflow direction
Side to side
Electrical characteristics
80plus.org Certification
Gold
Maximum heat
dissipation
420.9 BTU/hr (444.1 kJ/hr)
Voltage
100-127 / 200-240 VAC, rated
Current
9.2 / 4.9 A
Maximum power rating
980W
Idle power
49.9W
PoE power
740 W PoE+
Frequency
50/60 Hz
interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band
for details on the service-level descriptions and product numbers. For details about services and
100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-
s (64-byte packets)
temperature
Page
QuickSpecs
Aruba 2930F Switch Series
Technical Specifications
39
Notes
Idle power is the actual power consumption of the device with no
ports connected.
Maximum power rating and maximum heat dissipation are the worst
case theoretical maximum numbers provided for planning the
infrastructure with fully loaded PoE (if equipped), 100% traffic, all
ports plugged in, and all modules populated.
Safety
UL 69050-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC
60825-1:2014 Class 1
Emissions
EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A;
Immunity
Generic
EN 55024:2010/CISPR 24
ESD
IEC 61000-4-2
Radiated
IEC 61000-4-3
EFT/Burst
IEC 61000-4-4
Surge
IEC 61000-4-5
Conducted
IEC 61000-4-6
Power frequency
magnetic field
IEC 61000-4-8
Voltage dips and
IEC 61000-4-11
Harmonics
IEC/EN 61000-3-2
Flicker
IEC/EN 61000-3-3
Management
Aruba AirWave Network Management; IMC – Intelligent Management Center; Command-line
management (serial RS-232C or micro USB)
Services
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services
response times in your area, please contact your local Hewlett Packard Enterprise sales office.
Aruba 2930F 48G PoE+ 4SFP+ 740W Switch (JL558A)
I/O ports and slots
48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type
T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports; PHY-less
Additional ports and slots
1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics
Dimensions
17.42 (w) x 12.77 (d) x 1.73 (h) in
(44.25 x 32.42 x 4.39 cm)
(1U height)
Weight
10.56 lb (4.79 kg)
Memory and processor
Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB
4.5MB Ingress/7.785 Egress,4 GB eMMC
Performance
1000 Mb Latency
< 3.8 μ
10Gbps latency
< 1.6 μs (64-byte packets)
Throughput
up to 112.0 Mpps
Switching capacity
176 Gbps
Routing table size
2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
MAC address table size
32,768
-
60950- 1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825- 1:2014 / IEC
CNS 13438
interruptions
interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band
for details on the service-level descriptions and product numbers. For details about services and
100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-
s (64-byte packets)
Page
QuickSpecs
Aruba 2930F Switch Series
Technical Specifications
40
Environment
Operating temperature
32°F to 113°F (0°C to 45°C);
up to 5,000 Feet,
0°C to 40°C (32°F to 104°F)
up to 10,000 Feet
Operating relative
humidity
15% to 95% @ 104°F (40°C), noncondensing
Nonoperating/Storage
temperature
-40°F to 158°F (-40°C to 70°C); up to 15,000 Feet
Nonoperating/Storage
temperature
15% to 95% @ 149°F (65°C)
Acoustic (power and
pressure) in decibals
Power: 55.1 dB, Pressure: 41.1 dB
Airflow direction
Side to side
Electrical characteristics
80plus.org Certification
Gold
Maximum heat
dissipation
420.9 BTU/hr (444.1 kJ/hr)
Voltage
100-127 / 200-240 VAC, rated
Current
9.2 / 4.9 A
Maximum power rating
980W
Idle power
49.9W
PoE power
740 W PoE+
Frequency
50/60 Hz
Notes
Idle power is the actual power consumption of the device with no
ports connected.
Maximum power rating and maximum heat dissipation are the worst
case theoretical maximum numbers provided for planning the
infrastructure with fully loaded PoE (if
ports plugged in, and all modules populated.
Safety
UL 69050-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC
60825-1:2014 Class 1
Emissions
EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A;
CNS 13438
Immunity
Generic
EN 55024:2010/CISPR 24
ESD
IEC 61000-4-2
Radiated
IEC 61000-4-3
EFT/Burst
IEC 61000-4-4
Surge
IEC 61000-4-5
Conducted
IEC 61000-4-6
Power frequency
magnetic field
IEC 61000-4-8
Voltage dips and
IEC 61000-4-11
Harmonics
IEC/EN 61000-3-2
Flicker
IEC/EN 61000-3-3
-
equipped), 100% traffic, all
60950- 1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825- 1:2014 / IEC
interruptions
Page
QuickSpecs
Aruba 2930F Switch Series
Technical Specifications
41
Management
Aruba AirWave Network Management; IMC – Intelligent Management Center; Command-line
management (serial RS-232C or micro USB)
Services
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services
response times in your area, please contact your local Hewlett Packard Enterprise sales office.
Aruba 2930F 48G PoE+ 4SFP+ 740W TAA-compliant Switch (JL559A)
I/O ports and slots
48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type
T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports; PHY-less
Additional ports and slots
1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics
Dimensions
17.42 (w) x 12.77 (d) x 1.73 (h) in
(44.25 x 32.42 x 4.39 cm)
(1U height)
Weight
10.56 lb (4.79 kg)
Memory and processor
Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB
4.5MB Ingress/7.785 Egress,4 GB eMMC
Performance
1000 Mb Latency
< 3.8 μ
10Gbps latency
< 1.6 μs (64-byte packets)
Throughput
up to 112.0 Mpps
Switching capacity
176 Gbps
Routing table size
2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
MAC address table size
32,768
Environment
Operating temperature
32°F to 113°F (0°C to 45°C);
up to 5,000 Feet,
0°C to 40°C (32°F to 104°F)
up to 10,000 Feet
Operating relative
humidity
15% to 95% @ 104°F (40°C), noncondensing
Nonoperating/Storage
temperature
-40°F to 158°F (-40°C to 70°C); up to 15,000 Feet
Nonoperating/Storage
temperature
15% to 95% @ 149°F (65°C)
Acoustic (power and
Power: 55.1 dB, Pressure: 41.1 dB
Airflow direction
Side to side
Electrical characteristics
80plus.org Certification
Gold
Maximum heat
dissipation
420.9 BTU/hr (444.1 kJ/hr)
Voltage
100-127 / 200-240 VAC, rated
Current
9.2 / 4.9 A
Maximum power rating
980W
Idle power
49.9W
PoE power
740 W PoE+
Frequency
50/60 Hz
Notes
Idle power is the actual power consumption of the device with no
ports connected.
interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band
for details on the service-level descriptions and product numbers. For details about services and
100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-
s (64-byte packets)
pressure) in decibals
Page
QuickSpecs
Aruba 2930F Switch Series
Technical Specifications
42
Maximum power rating and maximum heat dissipation are the worstcase theoretical maximum numbers provided for planning the
infrastructure with fully loaded PoE (if equipped), 100% traffic, all
ports plugged in, and all modules populated.
Safety
UL 69050-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC
60825-1:2014 Class 1
Emissions
EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A;
CNS 13438
Immunity
Generic
EN 55024:2010/CISPR 24
ESD
IEC 61000-4-2
Radiated
IEC 61000-4-3
EFT/Burst
IEC 61000-4-4
Surge
IEC 61000-4-5
Conducted
IEC 61000-4-6
Power frequency
magnetic field
IEC 61000-4-8
Voltage dips and
IEC 61000-4-11
Harmonics
IEC/EN 61000-3-2
Flicker
IEC/EN 61000-3-3
Management
Aruba AirWave Network Management; IMC – Intelligent Management Center; Command-line
management (serial RS-232C or micro USB)
Services
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services
response times in your area, please contact your local Hewlett Packard Enterprise sales office.
Standards and protocols (applies to all products in series)
Denial of service
protection
CPU DoS Protection
Device Management
RFC 1155 Structure and Mgmt Information (SMIv1)
HTTP, SSHv1, and Telnet
60950- 1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825- 1:2014 / IEC
interruptions
interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band
for details on the service-level descriptions and product numbers. For details about services and
RFC 1157 SNMPv1/v2c
RFC 1591 DNS (client)
RFC 1901 (Community based SNMPv2)
RFC 1901-1907 SNMPv2c, SMIv2 and Revised MIB-II
RFC 1908 (SNMP v1/2 Coexistence)
RFC 2576 (Coexistence between SNMP V1, V2, V3)
RFC 2578-2580 SMIv2
RFC 2579 (SMIv2 Text Conventions)
RFC 2580 (SMIv2 Conformance)
RFC 2819 (RMON groups Alarm, Event, History and Statistics only)
RFC 3416 (SNMP Protocol Operations v2)
RFC 3417 (SNMP Transport Mappings)
HTML and telnet management
Page
QuickSpecs
Aruba 2930F Switch Series
Technical Specifications
43
Multiple Configuration Files
Web UI
General Protocols
IEEE 802.1AX-2008 Link Aggregation
RFC 3575 IANA Considerations for RADIUS
Multiple Software Images
SNMP v3 and RMON RFC support
SSHv1/SSHv2 Secure Shell
TACACS/TACACS+
IEEE 802.1D MAC Bridges
IEEE 802.1p Priority
IEEE 802.1Q VLANs
IEEE 802.1s Multiple Spanning Trees
IEEE 802.1v VLAN classification by Protocol and Port
IEEE 802.1w Rapid Reconfiguration of Spanning Tree
IEEE 802.3ab 1000BASE-T
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3af Power over Ethernet
IEEE 802.3at PoE+
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3x Flow Control
RFC 768 UDP
RFC 783 TFTP Protocol (revision 2)
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 TELNET
RFC 868 Time Protocol
RFC 951 BOOTP
RFC 1058 RIPv1
RFC 1256 ICMP Router Discovery Protocol (IRDP)
RFC 1350 TFTP Protocol (revision 2)
RFC 1519 CIDR
RFC 1542 BOOTP Extensions
RFC 1918 Address Allocation for Private Internet
RFC 2030 Simple Network Time Protocol (SNTP) v4
RFC 2131 DHCP
RFC 2236 IGMP Snooping
RFC 2453 RIPv2
RFC 2865 Remote Authentication Dial In User Service (RADIUS)
RFC 2866 RADIUS Accounting
RFC 3046 DHCP Relay Agent Information Option
RFC 3411 An Architecture for Describing Simple Network Management Protocol (SNMP)
Management Frameworks
RFC 3412 Message Processing and Dispatching for the Simple Network Management Protocol
(SNMP)
RFC 3413 Simple Network Management Protocol (SNMP) Applications
RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management
Protocol (SNMPv3)
RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol
(SNMP)
RFC 3416 Protocol Operations for SNMP
RFC 3417 Transport Mappings for the Simple Network Management Protocol (SNMP)
RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol
(SNMP)
Page
QuickSpecs
Aruba 2930F Switch Series
Technical Specifications
44
RFC 3576 Ext to RADIUS (CoA only)
UDLD (Uni-directional Link Detection)
IP Multicast
RFC 1112 IGMP
Discovery (MLD) Snooping Switches
IPv6
RFC 1981 IPv6 Path MTU Discovery
RFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations (Ping
draft-ietf-savi-mix
MIBs
IEEE 802.1ap (MSTP and STP MIB's only)
RFC 1156 (TCP/IP MIB)
RFC 4541 Considerations for Internet Group Management Protocol (IGMP) and Multicast Listener
Discovery (MLD) Snooping Switches
RFC 4675 RADIUS VLAN & Priority
RFC 4861 Neighbor Discovery for IP version 6 (IPv6)
RFC 4862 IPv6 Stateless Address Autoconfiguration
RFC 5905 Network Time Protocol Version 4: Protocol and Algorithms Specification
RFC 2236 IGMPv2
RFC 2710 Multicast Listener Discovery (MLD) for IPv6
RFC 3376 IGMPv3
RFC 4541 Considerations for Internet Group Management Protocol (IGMP) and Multicast Listener
RFC 2080 RIPng for IPv6
RFC 2081 RIPng Protocol Applicability Statement
RFC 2082 RIP-2 MD5
RFC 2460 IPv6 Specification
RFC 2464 Transmission of IPv6 over Ethernet Networks
RFC 2710 Multicast Listener Discovery (MLD) for IPv6
only)
RFC 2925 Remote Operations MIB (Ping only)
RFC 3019 MLDv1 MIB
RFC 3315 DHCPv6 (client and relay)
RFC 3484 Default Address Selection for IPv6
RFC 3513 IPv6 Addressing Architecture
RFC 3596 DNS Extension for IPv6
RFC 3810 MLDv2 for IPv6
RFC 4022 MIB for TCP
RFC 4113 MIB for UDP
RFC 4251 SSHv6 Architecture
RFC 4252 SSHv6 Authentication
RFC 4253 SSHv6 Transport Layer
RFC 4254 SSHv6 Connection
RFC 4291 IP Version 6 Addressing Architecture
RFC 4293 MIB for IP
RFC 4419 Key Exchange for SSH
RFC 4443 ICMPv6
RFC 4541 IGMP & MLD Snooping Switch
RFC 4861 IPv6 Neighbor Discovery
RFC 4862 IPv6 Stateless Address Auto-configuration
RFC 5095 Deprecation of Type 0 Routing Headers in IPv6
RFC 6620 FCFS SAVI
IEEE 8021-Bridge-MIB (2008)
IEEE 8021-Q-Bridge-MIB (2008)
RFC 1155 Structure & ID of Mgmt Info for TCP/IP Internets
Page
QuickSpecs
Aruba 2930F Switch Series
Technical Specifications
45
RFC 1157 A Simple Network Management Protocol (SNMP)
RFC 4836 Managed Objects for 802.3 Medium Attachment Units (MAU)
Network Management
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
XRMON
RFC 1213 MIB II
RFC 1493 Bridge MIB
RFC 1724 RIPv2 MIB
RFC 2021 RMONv2 MIB
RFC 2578 Structure of Management Information Version 2 (SMIv2)
RFC 2579 Textual Conventions for SMIv2
RFC 2580 Conformance Statements for SMIv2
RFC 2613 SMON MIB
RFC 2618 RADIUS Client MIB
RFC 2620 RADIUS Accounting MIB
RFC 2665 Ethernet-Like-MIB
RFC 2668 802.3 MAU MIB
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON MIB
RFC 2863 The Interfaces Group MIB
RFC 2925 Ping MIB
RFC 2932 IP (Multicast Routing MIB)
RFC 2933 IGMP MIB
RFC 3414 SNMP-User based-SM MIB
RFC 3415 SNMP-View based-ACM MIB
RFC 3417 Simple Network Management Protocol (SNMP) over IEEE 802 Networks
RFC 3418 MIB for SNMPv3
RFC 1155 Structure of Management Information
RFC 1157 SNMPv1
RFC 2021 Remote Network Monitoring Management Information Base Version 2 using SMIv2
RFC 2576 Coexistence between SNMP versions
RFC 2578 Structure of Management Information Version 2 (SMIv2)
RFC 2579 Textual Conventions for SMIv2
RFC 2580 Conformance Statements for SMIv2
RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events)
RFC 2819 Remote Network Monitoring Management Information Base
RFC 2856 Textual Conventions for Additional High Capacity Data Types
RFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations
RFC 3164 BSD syslog Protocol
RFC 3176 sFlow
RFC 3411 SNMP Management Frameworks
RFC 3412 Message Processing and Dispatching for the Simple Network Management Protocol
(SNMP)
RFC 3413 Simple Network Management Protocol (SNMP) Applications
RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management
Protocol (SNMPv3)
RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol
(SNMP)
RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol
(SNMP)
RFC 5424 Syslog Protocol
ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED)
SNMPv1/v2c/v3
Page
QuickSpecs
Aruba 2930F Switch Series
Technical Specifications
46
QoS/CoS
IEEE 802.1p (CoS)
Ingress Rate Limiting
Security
IEEE 802.1X Port Based Network Access Control
Web Authentication
RFC 2474 DiffServ Precedence, including 8 queues/port
RFC 2475 DiffServ Architecture
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2598 DiffServ Expedited Forwarding (EF)
RFC 1321 The MD5 Message-Digest Algorithm
RFC 1334 PPP Authentication Protocols (PAP)
RFC 1492 An Access Control Protocol, Sometimes Called TACACS
RFC 1492 TACACS+
RFC 1994 PPP Challenge Handshake Authentication Protocol (CHAP)
RFC 2082 RIP-2 MD5 Authentication
RFC 2104 Keyed-Hashing for Message Authentication
RFC 2138 RADIUS Authentication
RFC 2139 RADIUS Accounting
RFC 2246 Transport Layer Security (TLS)
RFC 2548 Microsoft Vendor-specific RADIUS Attributes
RFC 2618 RADIUS Authentication Client MIB
RFC 2620 RADIUS Accounting Client MIB
RFC 2698 A Two Rate Three Color Marker
RFC 2716 PPP EAP TLS Authentication Protocol
RFC 2818 HTTP Over TLS
RFC 2865 RADIUS (client only)
RFC 2865 RADIUS Authentication
RFC 2866 RADIUS Accounting
RFC 2867 RADIUS Accounting Modifications for Tunnel Protocol Support
RFC 2868 RADIUS Attributes for Tunnel Protocol Support
RFC 2869 RADIUS Extensions
RFC 2882 NAS Requirements: Extended RADIUS Practices
RFC 3162 RADIUS and IPv6
RFC 3576 Dynamic Authorization Extensions to RADIUS
RFC 3579 RADIUS Support For Extensible Authentication Protocol (EAP)
RFC 3580 IEEE 802.1X RADIUS
RFC 3580 IEEE 802.1X Remote Authentication Dial In User Service (RADIUS) Usage Guidelines
RFC 4675 RADIUS Attributes
Access Control Lists (ACLs)
draft-grant-tacacs-02 (TACACS)
Guest VLAN for 802.1X
MAC Authentication
MAC Lockdown
MAC Lockout
Port Security
Secure Sockets Layer (SSL)
SSHv2 Secure Shell
Page
QuickSpecs
Aruba 2930F Switch Series
Accessories
47
Aruba 2930F Switch Series accessories
Transceivers
Aruba 100M SFP LC FX 2km MMF Transceiver
J9054D
Aruba 1G SFP RJ45 T 100m Cat5e Transceiver
J8177D
Aruba 1G SFP LC SX 500m OM2 MMF Transceiver
J4858D
Aruba 1G SFP LC LX 10km SMF Transceiver
J4859D
Aruba 1G SFP LC LH 70km SMF Transceiver
J4860D
Aruba 10G SFP+ LC SR 300m OM3 MMF Transceiver
J9150D
Aruba 10G SFP+ LC LR 10km SMF Transceiver
J9151D
Aruba 10G SFP+ LC ER 40km SMF Transceiver
J9153D
Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable
J9281D
Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
J9283D
NOTE: no support for J9152D 10G LRM, nor J9285D 10G 7m DAC
Cables
Aruba X2C2 RJ45 to DB9 Console Cable
JL448A
HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable
AJ833A
HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable
AJ834A
HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable
AJ835A
HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable
AJ836A
HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable
AJ837A
HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable
AJ838A
HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable
AJ839A
HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable
QK732A
HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable
QK733A
HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable
QK734A
HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable
QK735A
HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable
QK736A
HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable
QK737A
Aruba 2930F 24G 4SFP+ Switch (JL253A)
HPE X410 1U Universal 4-post Rackmount Kit
J9583A
Aruba 2930F 48G 4SFP+ Switch (JL254A)
HPE X410 1U Universal 4-post Rackmount Kit
J9583A
Aruba 2930F 24G PoE+ 4SFP+ Switch (JL255A)
HPE X410 1U Universal 4-post Rackmount Kit
J9583A
Aruba 2930F 48G PoE+ 4SFP+ Switch (JL256A)
HPE X410 1U Universal 4-post Rackmount Kit
J9583A
Page
QuickSpecs
Aruba 2930F Switch Series
Accessories
48
Aruba 2930F 8G PoE+ 2SFP+ Switch (JL258A)
Aruba 2930F 8-port Cable Guard
JL311A
Aruba 2930F 8-port Power Shelf
JL312A
Aruba 2930F 24G 4SFP Switch (JL259A)
HPE X410 1U Universal 4-post Rackmount Kit
J9583A
Aruba 2930F 48G 4SFP Switch (JL260A)
HPE X410 1U Universal 4-post Rackmount Kit
J9583A
Aruba 2930F 24G PoE+ 4SFP Switch (JL261A)
HPE X410 1U Universal 4-post Rackmount Kit
J9583A
Aruba 2930F 48G PoE+ 4SFP Switch (JL262A)
HPE X410 1U Universal 4-post Rackmount Kit
J9583A
Aruba 2930F 24G PoE+ 4SFP+ TAA-compliant Switch (JL263A)
HPE X410 1U Universal 4-post Rackmount Kit
J9583A
Aruba 2930F 48G PoE+ 4SFP+ TAA-compliant Switch (JL264A)
HPE X410 1U Universal 4-post Rackmount Kit
J9583A
Aruba 2930F 48G PoE+ 4SFP 740W Switch (JL557A)
HPE X410 1U Universal 4-post Rackmount Kit
J9583A
Aruba 2930F 48G PoE+ 4SFP+ 740W Switch (JL558A)
HPE X410 1U Universal 4-post Rackmount Kit
J9583A
Aruba 2930F 48G PoE+ 4SFP+ 740W TAA-compliant Switch (JL559A)
HPE X410 1U Universal 4-post Rackmount Kit
J9583A
Page
QuickSpecs
Aruba 2930F Switch Series
Accessory Product Details
49
NOTE: Details are not available for all accessories. The following specifications were available at the time of publication.
Aruba 2930F 8-port
Cable Guard
The Cable Guard secures
cables that are connected
to the switch and provides
extra security against theft
or tampering with the
switch and its cables after
it is installed
Product Type
Mounting Kit
Physical characteristics
Dimensions: 1.42(w) x 4.33(d) x 0.69(h) in (3.6 x 11 x 1.75 cm)
Weight: 1.28 lb (0.58 kg)
Notes
Dimensions: 10.94" x 3.62" x 1.69" or 27.8cm x 9.2cm x 4.3cm w/ears
10.94" x 1.69" x 1.69" or 27.8cm x 4.3cm x 4.3cm without ears
Weight: 1.262 lbs or 57 kg (including faceplate, ears, and screws) 1.026 lbs
or . 47 kg (faceplate only)
Warranty
Limited Lifetime Warranty:
See
and support information included with your product purchase.
Services
Refer to the Hewlett Packard Enterprise website
at
level descriptions and product numbers. For details about services and
response times in your area, please contact your local Hewlett Packard
Enterprise sales office.
Aruba 2930F 8-port
Power Shelf
An easy
for attaching the external
power adapter to any of
the Aruba 2530 8
switches.
Product Type
Mounting Kit
Physical characteristics
Dimensions: 10.75(w) x 6(d) x 2(h) in (27.31 x 15.24 x 5.08 cm)
Weight: 0.93 lb (0.42 kg)
Overall Positioning
Statement
The Aruba 2930F 8-port Power Shelf provides an easy to use solution for
attaching the external power adapter to the Aruba 2930F 8G 2SFP+ PoE+
Switch. The power adapter shelf can be quickly attached on the rear of the
Aruba 2930F 8G PoE+ 2SFP+ Sw
power adapter shelf is designed for wall, table or rack deployments.
Key Features
•
Notes
The Aruba 2930F 8-port Power Shelf is an accessory for the Aruba 2930F
8G PoE+ 2SFP+ Switch. The shelf mounts on the back of the switch
providing a place to hold the external power adapter.
Warranty
Limited Lifetime Warranty:
See
and support information included with your product purchase.
Services
Refer to the Hewlett Packard Enterprise website
at
level descriptions and product numbers. For details about services and
response times in your area, please contact your local Hewlett Packard
Enterprise sales office.
HPE X121 1G SFP LC SX
Transceiver
A small form
pluggable (SFP) Gigabit
SX
transceiver that provides a
full-duplex Gigabit solution
Ports
1 LC 1000BASE-SX port; Duplex: full only
Physical characteristics
Dimensions: 2.24(d) x 0.54(w) x 0.48(h) in. (5.69 x 1.37 x 1.22 cm)
Weight: 0.04 lb. (0.02 kg)
Transceiver form factor: SFP
Environment
Operating temperature: 32°F to 158°F (0°C to 70°C)
Operating relative humidity: 5% to 85%, noncondensing
Nonoperating/Storage temperature: -40°F to 203°F (-40°C to 85°C)
Altitude: up to 10,000 ft. (3 km)
(JL311A)
-to-use solution
(JL312A)
-port
http://www.hpe.com/networking/warrantysummary for warranty
http://www.hpe.com/networking/services for details on the service-
itch and the adapter fit into place. This
Quickly attach external power adapter to 8 port switch
• Designed for use with Aruba 2930F 8G PoE+ 2SFP+ Switch
http://www.hpe.com/networking/warrantysummary for warranty
http://www.hpe.com/networking/services for details on the service-
(J4858C)
-factor
Page
QuickSpecs
Aruba 2930F Switch Series
Accessory Product Details
50
up to 550 m on multimode
fiber.
Electrical characteristics
Power consumption typical: 0.4 W
Power consumption maximum: 0.7 W
Cabling
Type:
Maximum distance:
Cable length: 2-550m
Fiber type: Multi Mode
Services
Refer to the Hewlett Packard Enterprise website
at
level descriptions and product numbers. For details about services and
response time
Enterprise sales office.
HPE X121 1G SFP LC LX
Transceiver
HPE X121 1G SFP LC LX
Transceiver
format
gigabit transceiver with LC
connectors using LX
technology.
Ports
1 LC 1000BASE-LX port (IEEE 802.3z Type 1000BASE-LX); Duplex: full
only
Physical characteristics
Dimensions: 2.24(d) x 0.54(w) x 0.486(h) in. (5.69 x 1.37 x 1.23 cm)
Weight:0.04 lb. (0.02 kg)
Environment
Operating temperature: 32°F to 158°F (0°C to 70°C)
Operating relative humidity: 0% to 85%, noncondensing
Nonoperating/Storage temperature: -40°F to 212°F (-40°C to 100°C)
Altitude: up to 10,000 ft. (3 km)
Cabling
Type:
Maximum distance
Notes
A mode conditioning patch cord may be needed in some multimode fiber
installations.
• 62.5/125 µm or 50/125 µm (core/cladding) diameter, graded-
index, low metal content, multimode fiber optic, complying with
ITU-T G.651 and ISO/IEC 793-2 Type A1b or A1a, respectively;
• 2-220 m (62.5 µm core diameter, 160 MHz*km bandwidth
• 2-275 m (62.5 µm core diameter, 200 MHz*km bandwidth
• 2-500 m (50 µm core diameter, 400 MHz*km bandwidth)
• 2-550 m (50 µm core diameter, 500 MHz*km bandwidth)
http://www.hpe.com/networking/services for details on the service-
s in your area, please contact your local Hewlett Packard
(J4859C)
: An SFP
• Either single mode or multimode; 62.5/125 µm or 50/125 µm
(core/cladding) diameter, graded-index, low metal content,
multimode fiber optic, complying with ITU-T G.651 and ISO/IEC
793-2 Type A1b or A1a, respectively; Low metal content, singlemode fiber-optic, complying with ITU-T G.652 and ISO/IEC 793-2
Type B1;
:
• 2-550 m (multimode 62.5 µm core diameter, 500 MHz*km
bandwidth)
• 2-550 m (multimode 50 µm core diameter, 400 MHz*km
bandwidth)
• 2-550 m (multimode 50 µm core diameter, 500 MHz*km
bandwidth)
• 2-10,000 m (single-mode fiber)
Page
QuickSpecs
Aruba 2930F Switch Series
Accessory Product Details
51
Wavelength: 1310nm
Power Consumption: < 500mW Typical
Services
Refer to the Hewlett Packard Enterprise website
at
level descriptions and product numbers. For details about services and
response times in your area, please contact your local Hewlett Packard
Enterprise sales office.
HPE X121 1G SFP LC LH
Transceiver
A small form
pluggable (SFP) Gigabit
LH transceiver that
provides a full
Gigabit solution up to 70
km on single
Ports
1 LC 1000BASE-LH port (no IEEE standard exists for 1550 nm optics);
Duplex: full only
Physical characteristics
Dimensions: 2.17(d) x 0.60(w) x 0.46(h) in. (5.5 x 1.53 x 1.18 cm)
Weight: 0.04 lb. (0.02 kg)
Environment
Operating temperature: -40°F to 185°F (-40°C to 85°C)
Operating relative humidity: 0% to 95% @ 77°F (25°C), noncondensing
Nonoperating/Storage temperature: -40°F to 185°F (-40°C to 85°C)
Altitude: up to 10,000 ft. (3 km)
Cabling
Cable type:
Maximum distance:
Notes
Power consumption is 0.8 watts typical with 1 watt maximum at 100%
utilization.
For distances less than 20 km, a 10 dB attenuator must be used.
For distances between 20 km and 40 km, a 5 dB attenuator must be used.
Attenuators can be purchased from most cable vendors.
Services
Refer to the Hewlett Packard Enterprise website
at
level descriptions and product numbers. For details about services and
response times in your area, please contact your local Hewlett Packard
Enterprise sales office.
HPE X111 100M SFP LC
FX Transceiver
HP X111 100
FX Transceiver: An SFP
format 100
transceiver with LC
connectors using FX
technology.
Ports
1 LC 100BASE-FX port (IEEE 802.3u Type 100BASE-FX); Duplex: half or
full
Physical characteristics
Dimensions: 2.7(d) x 0.54(w) x 0.48(h) in. (6.86 x 1.38 x 1.22 cm)
Weight: 0.06 lb. (0.03 kg)
Environment
Operating temperature: 32°F to 158°F (0°C to 70°C)
Operating relative humidity: 5% to 95%
Nonoperating/Storage temperature: -40°F to 185°F (-40°C to 85°C)
Nonoperating/Storage relative humidity: 5% to 85%
Altitude: up to 10,000 ft. (3 km)
Cabling
Cable type:
62.5/125 ìm or 50/125 ìm (core/cladding) diameter, graded
metal content, multimode fiber optic, complying with ITU
ISO/IEC 793
• 2 km (full duplex) or 412 m (half duplex)
Notes
Transmitter wavelength: 1310nm
Power consumption is 1.1 watt maximum.
http://www.hpe.com/networking/services for details on the service-
(J4860C)
-factor
-duplex
-mode fiber.
(J9054C)
M SFP LC
-megabit
• Low metal content, single-mode fiber-optic, complying with ITU-T
G.652 and ISO/IEC 793-2 Type B1;
• 10-70,000 m (single-mode fiber)
http://www.hpe.com/networking/services for details on the service-
-index, low
-T G.651 and
-2 Type A1b or A1a, respectively; Maximum distance:
Page
QuickSpecs
Aruba 2930F Switch Series
Accessory Product Details
52
For supported platforms and minimum software requirements to support
this product, see the
LC Transceiver" on the "ProCurve Mini-GBICs and SFPs" Manuals Web page.
Services
Refer to the Hewlett Packard Enterprise website
at
level descriptions and product numbers. For details about services and
response times in your area, please contact your local Hewlett Packard
Enterprise sales office.
HPE LC to LC Multi-
Cabling
Cable type:
50/125
modal bandwidth of 2000 MHz/km as detailed in TIA
distances of up to 300 m
Maximum
10Gbps Transfer Rate (Ethernet): 300m
Notes
Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um
fiber optic cable and Ethernet assembly with LC duplex connectors on one
end and LC duplex connectors on other end.
Services
Refer to the Hewlett Packard Enterprise website
at
level descriptions and product numbers. For details about services and
response times in your area, please contact your local Hewlett Packard
Enterprise sales office.
HPE Premier Flex LC/LC
Notes
Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+
50/125um duplex cable and Ethernet assembly with LC duplex connectors
• Bandwidth: 3000 MHz-km @ 850nm (Laser)
document titled "Support for the J9054C 100-FX SFP-
http://www.hpe.com/networking/services for details on the service-
mode OM3 2-Fiber 0.5m
µm (core/cladding) diameter, mulitimode fiber optic, with effective
1-Pack Fiber Optic Cable
(AJ833A)
distance:
• Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ±
2.0um Coating diameter: 245 ± 10um
• Optical glass: Bandwidth: For LED sources: 1500/500 MHz-km
@850/1300nm.
• Optical glass: Bandwidth: For Laser sources: 2000/500 MHz-km
@850/1300nm. VCSEL Laser sources: 600 / 600 meters
@850/1300nm for Gigabit Ethernet compliant links.
• CABLE: The cable is duplex zipcord graded index 50/125um
multimode optical fiber and designed to work in both the 850 and
1300 nm wavelength windows.
• BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
• Jacket Material: Riser Grade - Low Smoke Zero Halogen
thermoplastic.
• Jacket Color: Aqua for OM3 multimode per TIA 598
• Boot Color: White
• Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003
dB/M added for lengths > 30 meters.
• Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @
1310 nm @ 23°C as tested in accordance with EIA 455-46.
• Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg
-492AAAC for
http://www.hpe.com/networking/services for details on the service-
Multi-mode OM4 2 fiber
1m Cable (QK732A)
on each end.
• Core Diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating
diameter: 245 ± 10um
Page
QuickSpecs
Aruba 2930F Switch Series
Accessory Product Details
53
• Jacket Color: Blue
Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal
Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm
@ 23°C as tested in accordance with EIA 455-45
Services
Refer to the Hewlett Packard Enterprise website
Enterprise sales office.
HPE Premier Flex LC/LC
Notes
Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+
50/125um duplex cable and Ethernet assembly with LC duplex connectors
, cUL, OFN FT4, ROHS. Cable also has a longitudinal
@ 1310nm
@ 23°C as tested in accordance with EIA 455-45
Services
Refer to the Hewlett Packard Enterprise website
Enterprise sales office.
HPE Premier Flex LC/LC
Notes
Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+
50/125um duplex cable and Ethernet assembly with LC duplex connectors
Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal
Multi-mode OM4 2 fiber
2m Cable (QK733A)
• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH)
thermoplastic
• Boot Color: White
• Outer Jacket Print: HPE PremierFlex OM3+ Fiber Optic Cable, 50/125um,
white stripe that runs the entire length of the cable.
• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m
added for lengths >30m
•
at http://www.hpe.com/networking/services for details on the servicelevel descriptions and product numbers. For details about services and
response times in your area, please contact your local Hewlett Packard
on each end.
• Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating
diameter: 245 ± 10um
• Bandwidth: 3000 MHz-km @ 850nm (Laser)
• Jacket Color: Blue
• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH)
thermoplastic
• Boot Color: White
• Outer Jacket Print: HPE PremierFlex OM3+ Fiber Optic Cable, 50/125um,
Type OFNR (UL), LSZH
white stripe that runs the entire length of the cable.
• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m
added for lengths >30m
• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km
at http://www.hpe.com/networking/services for details on the servicelevel descriptions and product numbers. For details about services and
response times in your area, please contact your local Hewlett Packard
Multi-mode OM4 2 fiber
5m Cable (QK734A)
on each end.
• Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating
diameter: 245 ± 10um
• Bandwidth: 3000 MHz-km @ 850nm (Laser)
• Jacket Color: Blue
• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH)
thermoplastic
• Boot Color: White
• Outer Jacket Print: HPE PremierFlex OM3+ Fiber Optic Cable, 50/125um,
Page
QuickSpecs
Aruba 2930F Switch Series
Accessory Product Details
54
white stripe that runs the entire length of the cable.
• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm
@ 23°C as tested in accordance with EIA 455-45
Services
Refer to the Hewlett Packard Enterprise website
Enterprise sales office.
HPE Premier Flex LC/LC
Notes
Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+
50/125um duplex cable and Ethernet assembly with LC duplex connectors
Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal
• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm
@ 23°C as tested in accordance with EIA 455-45
Services
Refer to the Hewlett Packard Enterprise website
Enterprise sales office.
HPE Premier Flex LC/LC
Notes
Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+
Ethernet assembly with LC duplex connectors
Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal
• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm
@ 23°C as tested in accordance with EIA 455-45
Multi-mode OM4 2 fiber
15m Cable (QK735A)
• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m
added for lengths >30m
at http://www.hpe.com/networking/services for details on the servicelevel descriptions and product numbers. For details about services and
response times in your area, please contact your local Hewlett Packard
on each end.
• Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating
diameter: 245 ± 10um
• Bandwidth: 3000 MHz-km @ 850nm (Laser)
• Jacket Color: Blue
• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH)
thermoplastic
• Boot Color: White
• Outer Jacket Print: HPE PremierFlex OM3+ Fiber Optic Cable, 50/125um,
white stripe that runs the entire length of the cable.
• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m
added for lengths >30m
at http://www.hpe.com/networking/services for details on the servicelevel descriptions and product numbers. For details about services and
response times in your area, please contact your local Hewlett Packard
Multi-mode OM4 2 fiber
30m Cable (QK736A)
50/125um duplex cable and
on each end.
• Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating
diameter: 245 ± 10um
• Bandwidth: 3000 MHz-km @ 850nm (Laser)
• Jacket Color: Blue
• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH)
thermoplastic
• Boot Color: White
• Outer Jacket Print: HPE PremierFlex OM3+ Fiber Optic Cable, 50/125um,
white stripe that runs the entire length of the cable.
• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m
added for lengths >30m
Page
QuickSpecs
Aruba 2930F Switch Series
Accessory Product Details
55
Services
Refer to the Hewlett Packard Enterprise website
Enterprise sales office.
HPE Premier Flex LC/LC
Notes
Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+
Ethernet assembly with LC duplex connectors
Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal
• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm
@ 23°C as tested in accordance with EIA 455-45
Services
Refer to the Hewlett Packard Enterprise website
Enterprise sales office.
Multi-mode OM4 2 fiber
50m Cable (QK737A)
at http://www.hpe.com/networking/services for details on the servicelevel descriptions and product numbers. For details about services and
response times in your area, please contact your local Hewlett Packard
50/125um duplex cable and
on each end.
• Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating
diameter: 245 ± 10um
• Bandwidth: 3000 MHz-km @ 850nm (Laser)
• Jacket Color: Blue
• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH)
thermoplastic
• Boot Color: White
• Outer Jacket Print: HPE PremierFlex OM3+ Fiber Optic Cable, 50/125um,
white stripe that runs the entire length of the cable.
• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m
added for lengths >30m
at http://www.hpe.com/networking/services for details on the servicelevel descriptions and product numbers. For details about services and
response times in your area, please contact your local Hewlett Packard
Page
QuickSpecs
Aruba 2930F Switch Series
Summary of Changes
56
Date
Version History
Action
Description of Change:
02-Jul-2018
Version 9
Changed
Software feature update
15-Jan-2018
Version 8
Changed
Minor changes made on Technical Specifications
08-Jan-2018
Version 7
Added
Models added: JL557A, JL558A, JL559A
03-Jul-2017
Version 6
Added
SKU added:
20-Jan-2017
Version 5
Changed
Minor changes made on Standards and protocols
07-Nov-2016
Version 4
Changed
Product overview, Features and Benefits, Technical
Specifications updated
02-Sep-2016
Version 3
Changed
Product description updated.
24-June-2016
Version 2
Changed
Updated B2E Attribute Description for all switches on the
Configuration section.
06-Jun-2016
Version 1
Creation
Document creation
Sign up for updates
© Copyright 2018 Hewlett Packard Enterprise Development LP. The information contained herein is
subject to change without notice. The only warranties for Hewlett Packard Enterprise products and
services are set forth in the express warranty statements accompanying such pro
Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise
shall not be liable for technical or editorial errors or omissions contained herein.
To learn more, visit:
c05052929
JL448A
ducts and services.
http://www.hpe.com/networking
- 15576 - Worldwide - V9 - 2-July-2018
Page
Loading...
