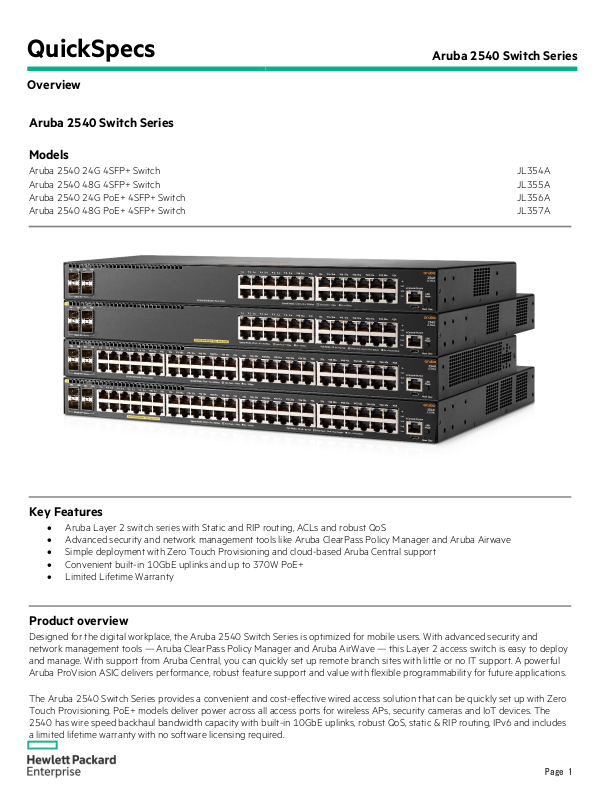

Aruba 2540 Switch Series
Overview
1
Aruba 2540 Switch Series
Models
Aruba 2540 24G 4SFP+ Switch
JL354A
Aruba 2540 48G 4SFP+ Switch
JL355A
Aruba 2540 24G PoE+ 4SFP+ Switch
JL356A
Aruba 2540 48G PoE+ 4SFP+ Switch
JL357A
Key Features
• Aruba Layer 2 switch series with Static and RIP routing, ACLs and robust QoS
Product overview
Designed for the digital workplace, the Aruba 2540 Switch Series is optimized for mobile users. With advanced security and
network management tools
this Layer 2 access switch is easy to deploy
and manage
Aruba ProVision ASIC delivers performance, robust feature support and value with flexible programmability for future applicat
The Ar
Touch Provisioning. PoE+ models deliver power across all access ports for wireless APs, security cameras and IoT devices. The
2540 ha
a limited lifetime warranty with no software licensing required.
• Advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba Airwave
• Simple deployment with Zero Touch Provisioning and cloud-based Aruba Central support
• Convenient built-in 10GbE uplinks and up to 370W PoE+
• Limited Lifetime Warranty
— Aruba ClearPass Policy Manager and Aruba AirWave —
. With support from Aruba Central, you can quickly set up remote branch sites with little or no IT support. A powerful
uba 2540 Switch Series provides a convenient and cost-effective wired access solution that can be quickly set up with Zero
s wire speed backhaul bandwidth capacity with built-in 10GbE uplinks, robust QoS, static & RIP routing, IPv6 and includes
ions.
Page
QuickSpecs
Aruba 2540 Switch Series
Overview
2
Features and Benefits
Unified Wired and Wireless
automatically configures switch for different settings such as VLAN, CoS, PoE max power, and PoE priority when an Aruba
Quality of Service (QoS)
sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number,
Connectivity
compliant end device; eliminates the cost of additional electrical
supports static and RIPng protocols
• ClearPass Policy Manager support
unified wired and wireless policies using Aruba ClearPass Policy Manager
• Switch auto-configuration
access point is detected
• User role
defines a set of switch-based policies in areas such as security, authentication, and QoS. A user role can be assigned to a
group of users or devices, using switch-based local user role or download from ClearPass
• Static IP Visibility
provides a way for ClearPass to do accounting for clients with static IP address
• Traffic prioritization (IEEE 802.1p)
allows real-time traffic classification into eight priority levels mapped to eight queues
• Layer 4 prioritization
enables prioritization based on TCP/UDP port numbers
• Class of Service (CoS)
• Rate limiting
• Large buffers
• Flexible 10 Gb/s Ethernet connectivity
• Auto-MDIX
• IEEE 802.3at Power over Ethernet (PoE+)
• Pre-standard PoE support
• IPv6
source port, and DiffServ
sets per-port ingress enforced maximums and per-port, per-queue minimums
Provide graceful congestion management
four fixed 10 Gigabit ports (SFP+) available
provides automatic adjustments for straight-through or crossover cables on all 10/100 and 10/100/1000 ports
provides up to 30 W per port that allows support of the latest PoE+-capable devices such as IP phones, wireless access
points, and security cameras, as well as any IEEE 802.3afcabling and circuits that would otherwise be necessary in IP phone and WLAN deployments
detects and provides power to pre-standard PoE devices
− IPv6 host
enables switches to be managed in an IPv6 network
− Dual stack (IPv4 and IPv6)
transitions from IPv4 to IPv6, supporting connectivity for both protocols
− MLD snooping
forwards IPv6 multicast traffic to the appropriate interface
− IPv6 ACL/QoS
supports ACL and QoS for IPv6 network traffic
− IPv6 routing
Page
QuickSpecs
Aruba 2540 Switch Series
Overview
3
− Security
Performance
allows for increased performance by selecting the number of queues and associated memory buffering that best meet the
Convergence
defines a standard extension of LLDP that stores values for parameters such as QoS and VLAN to configure automatically
Resiliency and high availability
provides high link availability in multiple VLAN environments by allowing multiple spanning trees; provides legacy support
Management
platform without ripping and replacing switching infrastructure
• Energy-efficient design
• Aruba ProVision ASIC architecture
• Selectable queue configurations
• IP multicast snooping and IGMP
• IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
• LLDP-MED (Media Endpoint Discovery)
provides RA guard, DHCPv6 protection, dynamic IPv6 lockdown, and ND snooping
− 80 PLUS Silver Certified power supply:
increases power efficiency and savings
− Energy-efficient Ethernet (EEE) support
reduces power consumption in accordance with IEEE 802.3az
is designed with the latest Aruba ProVision ASIC, providing very low latency, increased packet buffering, and adaptive
power consumption
requirements of the network applications
automatically prevent flooding of IP multicast traffic
facilitates easy mapping using network management applications with LLDP automated device discovery protocol
network devices such as IP phones
• PoE and PoE+ allocations
support multiple methods (automatic, IEEE 802.3at dynamic, LLDP-MED fine grain, IEEE 802.3af device class, or userspecified) to allocate and manage PoE/PoE+ power for more efficient energy savings
• Local MAC Authentication
assigns attributes such as VLAN and QoS using locally configured profile that can be a list of MAC prefixes
• IEEE 802.1s Multiple Spanning Tree
for IEEE 802.1d and IEEE 802.1w
• IEEE 802.3ad link-aggregation-control protocol (LACP) and port trunking
support up to 26 static or dynamic trunks with each trunk having up to eight links (ports) per static trunk
• SmartLink
provides easy-to-configure link redundancy of active and standby links
• SNMPv1, v2, and v3
provide complete support of SNMP; provide full support of industry-standard Management Information Base (MIB) plus
private extensions; SNMPv3 supports increased security using encryption
• Zero-Touch ProVisioning (ZTP)
simplifies installation of the switch infrastructure using the Aruba Activate-based or a DHCP-based process with AirWave
Network Management
• Flexible management with same hardware
supports both cloud-based Central and on-premise AirWave with the same hardware ensuring change management
Page
QuickSpecs
Aruba 2540 Switch Series
Overview
4
• Aruba Central support
Manageability
Layer 2 switching
Layer 3 services
Layer
cloud based management platform offers simple, secure, and cost effective way to manage switches
• Dual flash images
provides independent primary and secondary operating system files for backup while upgrading
• Friendly port names
allow assignment of descriptive names to ports
• Find-Fix-Inform
finds and fixes common network problems automatically, then informs administrator
• Multiple configuration files
allow multiple configuration files to be stored to a flash image
• Software updates
free downloads from the Web
• RMON, XRMON, and sFlow
provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events
• Troubleshooting
ingress and egress port monitoring enable network problem solving
• Uni-Directional Link Detection (UDLD)
monitors the link between two switches and blocks the ports on both ends of the link if the link goes down at any point
between the two devices
• IP SLA for voice
monitor quality of voice traffic using the UDP Jitter and UDP Jitter for VoIP tests.
• Jumbo packet support
improves the performance of large data transfers; supports frame size of up to 9220 bytes
• IEEE 802.1v protocol VLANs
isolate select non-IPv4 protocols automatically into their own VLANs
• Rapid Per-VLAN Spanning Tree (RPVST+)
allows each VLAN to build a separate spanning tree to improve link bandwidth usage; is compatible with PVST+
• GVRP and MVRP
allows automatic learning and dynamic assignment of VLANs
• VLAN support and tagging
supports IEEE 802.1Q (4094 VLAN IDs) and 512 VLANs simultaneously
• DHCP server
centralizes and reduces the cost of IPv4 address management
3 routing
• Static IP routing
provides manually configured routing; includes ECMP capability
• 256 static and 2,000 RIP route
facfacilitate segregation of user data, without adding external hardware
• Routing Information Protocol (RIP)
provides RIPv1, RIPv2, and RIPng routing
Page
QuickSpecs
Aruba 2540 Switch Series
Overview
5
Security
provide IP Layer 3 filtering based on source/destination IP address/subnet and source/destination TCP/UDP port number
Monitor and diagnostics
• Multiple user authentication methods
− IEEE 802.1X
uses an IEEE 802.1X supplicant on the client in conjunction with a RADIUS server to authenticate in accordance
with industry standards
− Web-based authentication
provides a browser-based environment, similar to IEEE 802.1X, to authenticate clients that do not support the
IEEE 802.1X supplicant
− MAC-based authentication
authenticates the client with the RADIUS server based on the client's MAC address
• Authentication flexibility
− Multiple IEEE 802.1X users per port
provides authentication of multiple IEEE 802.1X users per port; prevents a user from "piggybacking" on another
user's IEEE 802.1X authentication
− Concurrent IEEE 802.1X, Web, and MAC authentication schemes per port
switch port will accept up to 32 sessions of IEEE 802.1X, Web, and MAC authentications
• Access control lists (ACLs)
• Source-port filtering
allows only specified ports to communicate with each other
• RADIUS/TACACS+
eases switch management security administration by using a password authentication server
• Secure shell
encrypts all transmitted data for secure remote CLI access over IP networks
• Secure Sockets Layer (SSL)
encrypts all HTTP traffic, allowing secure access to the browser-based management GUI in the switch
• Port security
allows access only to specified MAC addresses, which can be learned or specified by the administrator
• MAC address lockout
prevents particular configured MAC addresses from connecting to the network
• Secure FTP
allows secure file transfer to and from the switch; protects against unwanted file downloads or unauthorized copying of a
switch configuration file
• Switch management logon security
helps secure switch CLI logon by optionally requiring either RADIUS or TACACS+ authentication
• STP BPDU port protection
blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks
• DHCP protection
blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacks
• Dynamic ARP protection
blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data
• Dynamic IP lockdown
works with DHCP protection to block traffic from unauthorized hosts, preventing IP source address spoofing
• STP Root Guard
protects the root bridge from malicious attacks or configuration mistakes
• Identity-driven ACL
enables implementation of a highly granular and flexible access security policy and VLAN assignment specific to each
authenticated network user
• Per-port broadcast throttling
configures broadcast control selectively on heavy traffic port uplinks
Page
QuickSpecs
Aruba 2540 Switch Series
Overview
6
• Digital optical monitoring of SFP+ and 1000BASE-T transceivers
Warranty and support
; for details on the software releases
allows detailed monitoring of the transceiver settings and parameters
• Limited Lifetime Warranty
see http://www.hpe.com/networking/warrantysummary
product purchase.
• Software releases
to find software for your product, refer to http://www.hpe.com/networking/support
available with your product purchase, refer to http://www.hpe.com/networking/warrantysummary
for warranty and support information included with your
Page
QuickSpecs
Aruba 2540 Switch Series
Configuration
7
Build To Order:
BTO is a standalone unit with no integration. BTO products ship
Shippable solution.
Aruba 2540 24G 4SFP+ Switch
JL354A
• 24 RJ-45 autosensing 10/100/1000 ports
See Configuration
PDU Cable NA/MEX/TW/JP
JL354A #B2B
• HPE 2M C14 to C13 Power Cord (J9959A)
PDU CABLE ROW
JL354A #B2C
• HPE 2M C14 to C13 Power Cord (J9959A)
High Volt Switch to Wall Power Cord
JL354A #B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
No Power Cord
JL354A #AC3
• No Localized Power Cord Selected
Aruba 2540 48G 4SFP+ Switch
JL355A
•
See Configuration
PDU Cable NA/MEX/TW/JP
JL355A#B2B
• HPE 2M C14 to C13 Power Cord (J9959A)
PDU CABLE ROW
JL355A#B2C
•
High Volt Switch to Wall Power Cord
JL355A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
No Power Cord
JL355A#AC3
• No Localized Power Cord Selected
standalone are not part of a CTO or Rack-
• 4 SFP/SFP+ 1G/10G ports
• min=0 \\ max=4 SFP/SFP+ Transceivers
• 1U - Height
48 RJ-45 autosensing 10/100/1000 ports
• 4 SFP/SFP+ 1G/10G ports
• min=0 \\ max=4 SFP/SFP+ Transceivers
• 1U - Height
NOTE: 1, 2, 3
NOTE: 1, 2, 3
HPE 2M C14 to C13 Power Cord (J9959A)
Page
QuickSpecs
Aruba 2540 Switch Series
Configuration
8
Aruba 2540 24G PoE+ 4SFP+ Switch
JL356A
• 24 RJ-45 PoE+ autosensing 10/100/1000 ports
See Configuration
PDU Cable NA/MEX/TW/JP
JL356A#B2B
• HPE 2M C14 to C13 Power Cord (J9959A)
PDU CABLE ROW
JL356A#B2C
• HPE 2M C14 to C13 Power Cord (J9959A)
High Volt Switch to Wall Power Cord
JL356A#B2E
•
No Power Cord
JL356A#AC3
Aruba 2540 48G PoE+ 4SFP+ Switch
JL357A
• 24 RJ-45 PoE+ autosensing 10/100/1000 ports
See Configuration
PDU Cable NA/MEX/TW/JP
JL357A#B2B
• HPE 2M C14 to C13 Power Cord (J9959A)
PDU CABLE ROW
JL357A#B2C
• HPE 2M C14 to C13 Power Cord (J9959A)
High Volt Switch to Wall Power Cord
JL357A#B2E
• HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
No Power Cord
JL357A#AC3
Configuration Rules
NOTE 1
The following Transceivers install into this Module Switch:
Aruba 1G SFP LC SX 500m OM2 MMF Transceiver
J4858D
Aruba 1G SFP LC LX 10km SMF Transceiver
J4859D
Aruba 1G SFP LC LH 70km SMF Transceiver
J4860D
Aruba 1G SFP RJ45 T 100m Cat5e Transceiver
J8177D
Aruba 100M SFP LC FX 2km MMF Transceiver
J9054D
• 4 SFP/SFP+ 1G/10G ports
• min=0 \\ max=4 SFP/SFP+ Transceivers
• 1U - Height
HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
• 4 SFP/SFP+ 1G/10G ports
• min=0 \\ max=4 SFP/SFP+ Transceivers
• 1U - Height
NOTE: 1, 2, 3
NOTE: 1, 2, 3
Page
Loading...
