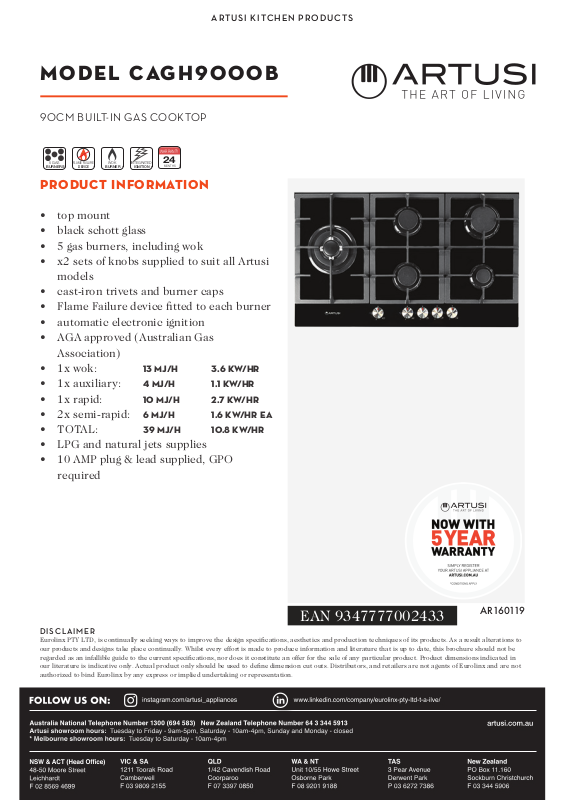

Artusi CAGH9000B Specifications Sheet
ARTUSI KITCHEN PRODUCTS
MODEL CAGH9000B
90CM BUILT-IN GAS COOKTOP
WARRANTY
5 GAS
BURNERS
FLAME FAILURE
DEVICE
WOK
BURNER
INTEGRATED
IGNITION
PRODUCT INFORMATION
• top mount
• black schott glass
• 5 gas burners, including wok
• x2 sets of knobs supplied to suit all Artusi
models
• cast-iron trivets and burner caps
• Flame Failure device fitted to each burner
• automatic electronic ignition
• AGA approved (Australian Gas
24
MONTHS
Association)
• 1x wok:
13 MJ/h 3.6 kW/hr
• 1x auxiliary: 4 MJ/h 1.1 kW/hr
• 1x rapid: 10 MJ/h 2.7 kW/hr
• 2x semi-rapid: 6 MJ/h 1.6 kW/hr Ea
• TOTAL: 39 MJ/h 10.8 kW/hr
• LPG and natural jets supplies
• 10 AMP plug & lead supplied, GPO
required
EAN 9347777002433
DISCLAIMER
Eurolinx PTY LTD, is continually seeking ways to improve the design specifications, aesthetics and production techniques of its products. As a result alterations to
our products and designs take place continually. Whilst every effort is made to produce information and literature that is up to date, this brochure should not be
regarded as an infallible guide to the current specifications, nor does it constitute an offer for the sale of any particular product. Product dimensions indicated in
our literature is indicative only. Actual product only should be used to define dimension cut outs. Distributors, and retailers are not agents of Eurolinx and are not
authorized to bind Eurolinx by any express or implied undertaking or representation.
A R1 6 0119
ARTUSI KITCHEN PRODUCTS
MODEL CAGH9000B
90CM BUILT-IN GAS COOKTOP
WARRANTY
5 GAS
BURNERS
FLAME FAILURE
DEVICE
WOK
BURNER
INTEGRATED
IGNITION
TECHNICAL DIAGRAM
24
MONTHS
•
•
•
650–750mm
•
•
•
•
•
•
NB: drawings are not to scale — they are to be used for detailed installation instructions, please refer to user guide.
Technical Information CAGH9000B Built-in Gas Cooktop
Gas consumption (natural gas): 39 MJ/h / 10.8 KW/HR
EAN 9347777002433
Size: 874W x 510D x 100H CUTOUT: 827W x 475D
Electrical Connection: 220-240V/50Hz
AR16 0 119
10 AMP plug & lead supplied, GPO required
