Congratulations

Congratulations and thanks for choosing our
integrated barbecue. We are confident that it will
be a pleasure for you to use our new barbecue.
Before using the barbecue, we recommend
reading the entire user guide, which provides
a description of the barbecue and its functions.
To avoid those risks that are always present
when using a gas appliance, it is important to
install it correctly and carefully read the safety
instructions in order to avoid misuse and
hazards.
We recommend you keep this instruction
booklet for future reference and pass it to
any subsequent owners. After removing the
barbecue from its packaging, check to see that
it is not damaged. If in doubt, do not use the
appliance and contact your nearest customer
service centre.

GB

English

EN

Contents

Product description..........................................4

Components....................................................6

Important safety instructions........................... 8

Assembling the barbecue................................11

Gas cylinder safety information.......................20

Installation instructions....................................21

Application of the thin cover or cooking hood..31

Usage instructions...........................................33

Cleaning and care........................................... 37

Maintenance....................................................40

Troubleshooting...............................................41

Suggestion for the
environment
Disposal information for users

• Most of the packaging material is recyclable.
These materials should be disposed of through
a local recycling centre or by putting them in
appropriate collection containers.

• If you want to discard the product, contact
your local authorities and ask about the correct
method of disposal.

• Remove all transit and packaging material
before use.

3
4

EN

Product description

Integrated barbecue with thin cover

1. Thin cover

2. Battery compartment cover

3. Gas connection point

4. Burner controls

5. Grill groups (2 sets)

6. Cooking plate

7. Removable oil collection drip plan located in front of the barbecue (not shown)

8. Flame diffusers (2 pcs.) located under the grills (not shown)

7

1

2

3

4

5

6

5

EN

Integrated barbecue high cover

9. High cover

10. Heating racks

11. Battery compartment cover

12. Gas connection point

13. Burner controls

14. Grill group

15. Cooking plate

16. Removable oil collection drip plan located in front of the cooking surface (not shown)

17. Flame diffusers (2 pcs.) located under the grills (not shown)

16

9

11

12

13

14

15

10

6

EN

DESCRIPTION QTY

Burner box and external profile 1

Burners 4

Flame diffusers 2

Flame diffusers (optional) 2

Oil tray 1

Solid cooking plate 1

Components

7

EN

Grill groups 2

Universal LPG regulator and hose 1

Natural gas regulator 1

CONFIGURATION 1

High cover for cooking 1

CONFIGURATION 2

Low cover 1

Important safety instructions

For your own safety, you should read this manual before operating the barbecue.

Use

Carefully read the user manual and keep it in a handy place for future reference.

EN

Below, we explain the meaning of the symbols used in this manual:

ATTENTION

This symbol indicates information relating to the user’s personal safety

WARNING

This symbol indicates information on how to prevent damage to the appliance

TIPS AND INFORMATION

This symbol indicates tips and information about the use of the appliance

SUGGESTION FOR THE ENVIRONMENT

This symbol indicates information for the economical and ecological use of the appliance

This symbol indicates a prohibited action

ATTENTION

The appliance MUST only be installed and serviced by qualified and authorized
personnel.
Improper installation, modification, adjustment or maintenance can cause personal injury
or property damage.
Contact your nearest Service Centre for further information.

NOTE FOR THE INSTALLER:
THIS MANUAL MUST BE LEFT WITH THE OWNER FOR FUTURE REFERENCE
Only use a licensed gasfitter to install this barbecue and other trades as applicable;
electrician, carpenter, bricklayer.

8

ATTENTION

IF YOU SMELL GAS, do not try to light the barbecue. Perform the leak test procedure
described in this manual. Locate the leak and tighten theleaking fitting; if it is the cylinder
fitting, also replace the gasket seal.
If the leak persists, turn off the gas supply and call for technical assistance.

Do not lean over barbecue while lighting.

Do not leave the barbecue unattended when it is on.

Do not delay ignition once the gas is opened.

Do not store or use aerosol sprays near the barbecue.

Do not store inflammable liquids near the barbecue.

Do not use abrasive or caustic detergents on the barbecue.

Do not operate the barbecue with the cover closed.

Do not attempt to disassemble or adjust the control valves.

Do not attempt to disassemble or adjust the cylinder regulator (not supplied) but, if
necessary, replace with a new one.

Do not use an open flame to check for leaks.

Do not modify the structure of the appliance and do not modify the dimensions of
the injector orifice.

Do not obstruct the ventilation openings of the barbecue.

EN

Do not allow children to operate the barbecue or play near it.

Do not use the barbecue if inflammable materials are within a radius of about 60
cm from the top, bottom, rear or sides of the appliance.

Keep any electrical wires and fuel hoses away from hot surfaces.

Never store a spare gas cylinder near the barbecue.

Do not use or store flammable materials near this appliance.

Do not spray aerosols in the vicinity of this appliance while it is in operation.

Do not use this appliance as a space heater.

9

EN

Do not modify this appliance.

Do not place articles on or against this appliance.

This appliance reaches high temperatures. Be especially careful when children and
elderly persons are present

Do not move the barbecue when it is on.

Wear protective gloves when using the barbecue.

Keep children under the age of eight years away, if not constantly supervised.

Never attempt to extinguish a flame/fire with water: turn off the appliance and cover
the flame with a cover or a fire blanket.

Be careful when handling gas cylinders even if they appear empty, in compliance
with current safety rules.

Do not use dented or rusty gas cylinders

Do not disconnect the gas cylinder from the appliance when it is on. Perform any
service on the gas cylinder far away from the appliance.

Only turn the burners on with the cover lifted

If the knob becomes difficult to rotate, have the taps checked by an authorized
service centre.

Lower the cover, accompanying it with your hand and make sure that nothing is
obstructing its proper closure.

When cooking with the cover closed keep an eye on the thermometer: if the
temperature exceeds 350 °C, lift the cover to prevent dangerous overheating.

Do not leave objects on the cooking surfaces.

Never use the appliance to heat the area.

Always close the valve of the gas cylinder after use.

The manufacturer’s liability:

The manufacturer will not be liable for personal injury or property damage caused by:

• any use of the appliance other than anticipated;

• failure to follow the instructions of the user manual;

• tampering with any part of the appliance;

• use of other than original parts.

10

11

EN

Tools needed for assembly:

- Phillips screwdriver

1. Remove all components from the box.

2. Place the flame diffusers in the desired positions (under the points (A) in which the grill
sections will be placed) and attach the rear edge of the flame diffuser to the rear of the
body of the barbecue.

Assembling the barbecue

BACK

BACK

FRONT

FRONT

12

EN

3. Apply the oil drip pans to the front of the barbecue.

BACK

FRONT

FRONT

BACK

13

EN

4. Place the cooking plate and grill sections in the desired positions, making sure that the
flame diffusers are under the grill sections.

NOTE: Make sure that the grill groups are correctly oriented so that the surface of the grill
is tilted forward to allow the oil to drain into the drip pan.

5. After installation in the counter, connect the thin cover or cooking hood area as described
in the chapter “Application of the thin cover or cooking hood” in this manual.

BACK

FRONT

14

EN

Gas Type

NATURAL

GAS

UNIVERSAL

LPG

Nominal heat input (MJ/h) 52 52

Injector diameter (1/100mm) 170 100

Number of injectors 4 4

Pressure (kPa) 1 2,75

Primary air regulation (mm)

X

2 All open

Adapting to different types of gas

If the appliance is configured for a different type of gas than that available, you have to replace
the injectors with ones corresponding to the type of gas to be used (see tables on the preceding
pages). The replacement will be made using an adequate 7 mm key after having lowered the
burners as in the following images. After replacing the injector, regulate the air to 1mm for natural
gas and to the maximum if LPG.
To adjust the minimum, after lighting the burner, remove the knob and the gasket below and
rotate the screw of the tap (B - see page 70), which should be totally closed for LPG and opened
about 3/4 turn for natural gas, keeping in mind that a flame lower than 3 mm may not even be
“perceived” by the thermocouple of the tap. After regulating the minimums, replace the gaskets
and knobs.

1 - Unscrew the fixing screws of the burner.

BACK

FRONT

15

EN

2 - Lower the burner and replace the injector.

BACK

FRONT

FRONT

NOTES

• The appliance MUST only be installed and serviced by qualified and authorized personnel.

• The product is exclusively intended for outdoor use.

• The product must be installed according to the instructions, which require ventilation
openings to allow the grill to work properly. The lack of adequate ventilation to supply air to
the appliance can lead to poor operation of the burners or excessive heat build-up in the
installation compartment.

• The unit’s ventilation openings must not be covered during installation.

EN

Gas connection

Connect the appliance to the cylinder or system according to the requirements of current law,
making sure that the appliance is configured for the type of gas available. If not, see: “Adapting
to different types of gas”. Also check that the feed pressure falls within the values shown in the
table: “Gas specifications”.

Rigid and semi-rigid metal and rubber hose connection

Make the hook-up with metal fittings and pipes (even flexible hoses) so as not to stress the
components inside the appliance.
A rubber hose connection complies with current law only if the hose can be inspected along its
entire length and easily replaced near the expiration indicated on the hose.
NOTE: - After installation, use soapy water to check the perfect seal of the entire connection
system. DO NOT USE AN OPEN FLAME TO CHECK THE GAS SEAL.

16

17

EN

Universal LPG regulator and braided hose 1

50 45490

AG 5601/AG 601

Test point adaptor-
Ensure arrow is pointing
In the right direction

Hose with tapered
thread (thread tape
required)

18

I

CONVERSION PROCEDURE

Normal LPG to NG

Regulator - ensure
arrow is pointing
the right direction

Hose with tapered
thread - thread tape
required

• Disconnect and disassembled/remove trivet, burners etc.

• Remove regulator. Ensure provision is left for measuring gas pressure e.g test point. A

separate fitting may have to fitted.

• Remove injectors and replace with correct sizes for each burner.

• Adjust aeration (X) per every burner

• Re-assemble burners.

• Turn gas on and test for leaks, repair if necessary.

• Light the burners and set the pression to 1,00kPa.

• Turn burner “Low” setting and adjust setting accordingly.

• Chek operation of ignition etc.

• Ensure data plate is changed with the new data plates supplied in the product.

For Natural Gas connection a bayonet connection point should be installed by a licensed
gas fitter prior to installing the barbecue unit.

19

EN

X

Gas cylinder safety information

• When converted for the use of universal LPG, the appliance is designed to use different
types of cylinders depending on the installation made. See the chapters on Installation
Preparation and Connection of the cylinder.

• The gas cylinder must be manufactured and marked in accordance with the specifications

EN

for LPG cylinders.

• The shut-off valve must be closed when the appliance is not in use.

• The gas cylinders must be kept in an approved housing out of the reach of children.

• When you disconnect the gas cylinder, make sure all the control valves are in the “OFF” (O)
position.

• Before disconnecting, remove the cylinder from any housing in which it may be located.

• When you reconnect the hose to the cylinder, make sure all the connections are tight before
placing it back in its compartment.

• After each connection of a cylinder, perform a leak test as described below.

Leak testing procedure

• Make sure that all the gas taps are in the “OFF” (O) position.

• Mix a solution of water and detergent or soap in a small container.

• After connecting the hose, open the valve on the gas cylinder or gas system tap.

• Using a brush, paint the solution on the gas connection points and check for bubbles.

• Bubbles indicate a leak.

• Close the valve and tighten the fitting, possibly inserting a new gasket. Repeat the leak test.

• If the leak persists, turn off the gas and contact an authorized gas system maintenance
technician to repair the leak.

20

Installation instructions and warnings

ATTENTION

• The appliance must only be used above ground level, in open air and natural ventilation
without stagnant areas where leaking gas and combustion products are rapidly dispersed by
the wind or natural convection. This barbecue is designed exclusively for outdoor use. Refer
to the drawings below.

• Never install the barbecue inside buildings, garages, sheds or covered walkways, or in a
boat, camper or caravan. This prevents the creation of fires or carbon monoxide with toxic
effects or asphyxiation.

• The compartment in which the appliance is installed must conform to one of the following
requirements:

• A compartment with walls on all sides, but with at least one permanent opening at

ground level and without upper cover.

• In a partial compartment that has a top cover and not more than two walls.

• In a partial compartment that has a top cover and not more than two walls; in this case,

the following principle applies:

• At least 25% of the total area of the walls is completely open and at least 30% of the

remaining area of the walls is open and free.

• In the case of balconies, at least 20% of the total area of the side, front and rear walls must
be and remain open and free.

External surface area example 1

External surface area example 2

EN

External surface area example 3

both ends open

21

External surface area example 4

EN

open side for at least 25% of the
total area of the walls

External surface area example 5

open side for at least 25% of the
total area of the walls

in total 30% or more of the remai­ning surface of the walls is open
and free

in total 30% or more of the remai­ning surface of the walls is open
and free

Selection of the point of installation

• The appliance must not be installed on combustible materials. The minimum distance from
combustible materials is 200 mm (600mm overhead).

• The free space above the cooking surface with respect to combustible materials must be at
least 600 mm.

• The appliance must be installed in accordance with standards and local deviations.

• When using LPG, ventilation must be ensured in the compartment. The gas is highly
explosive and can cause serious personal injury and property damage if it is left to
accumulate and then ignited.

• Avoid locations exposed to the wind as this may affect cooking and the efficiency of the
burners. If you cannot avoid such a location, screens may be necessary.

Installation compartment

•The barbecue requires a non-combustible barrier beneath it to prevent reaching an
excessive temperature. The panel that acts as a barrier must be positioned 30/35 mm below
the base of the unit.

•The installation compartment must be made of non-combustible materials. Materials suitable
for its construction include brick, granite, marble, Hardiplank® and Villaboard® on a metal or
brick structure.

•The appliance requires ventilation openings in the front wall of the compartment. See the
drawing on page 27 for details.

•The appliance unit can be mounted in an island counter or a counter with splash guard.
Read the specific requirements for each type of mounting.

22

Island-mounted

200

• If the appliance is installed in an island, it can be placed in the centre. Pay particular
attention to the overall dimensions of the top of the island, taking into account the open
cooking hood and its projection. See page 24.

• The required dimensions of the cut-out are 1025 mm x 502 mm (see drawing).

Installation in a counter in a special context

• The context must be made of non-combustible material.

• When mounting the appliance against a wall or a fence, it is essential to insulate combustible
materials. All combustible materials must be kept at least 600 mm away from the barbecue.

• The required dimensions of the cut-out are 1025 mm x 505 mm (see drawing).

• Models with high cooking cover require a specific free space on the back of the barbecue
between the splash guard and the cut-out of the counter of at least 70 mm. This, so that the
hood has the free space needed to open.

EN

23
24

EN

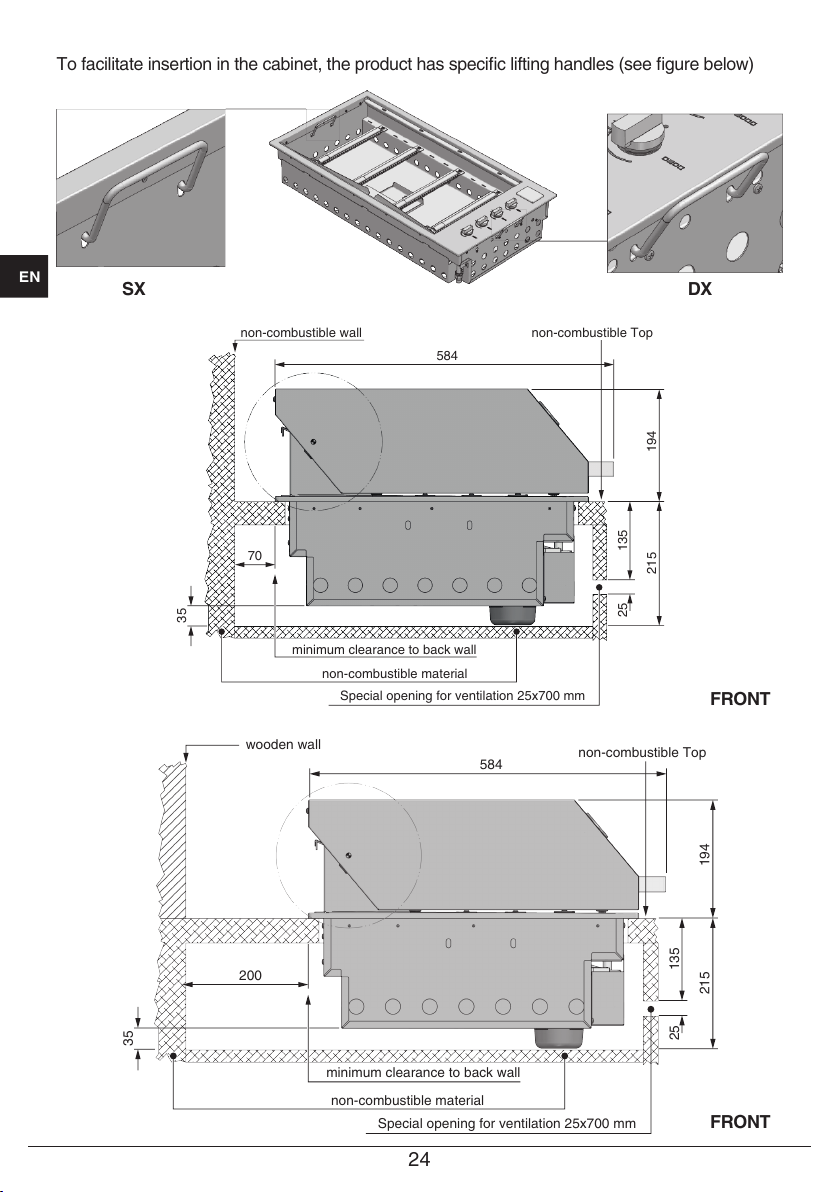

To facilitate insertion in the cabinet, the product has specific lifting handles (see figure below)

SX DX

non-combustible wall

non-combustible material

non-combustible Top

70

25 135

215

35

194

584

minimum clearance to back wall

Special opening for ventilation 25x700 mm

non-combustible material

wooden wall

non-combustible Top

200

25 135

215

35

minimum clearance to back wall

584

194

Special opening for ventilation 25x700 mm

FRONT

FRONT

25

EN

10

non-combustible material

Wall

70

35

25 135

215

non-combustible Top

air inlet

minumum clearance to back wall

non-combustible material

non-combustible Wall

70

564

35

25 135

215

54

non-combustible Top

Special opening for ventilation 25x700 mm

minumum clearance to back wall

woonden Wall

200

35

25 135

215

non-combustible Top

minumum clearance to back wall

non-combustible material

564

54

Special opening for ventilation 25x700 mm

FRONT

FRONT

FRONT

26

EN

ATTENTION

• The appliance requires adequate ventilation. An open area must be provided as shown
below. A ventilation grate can be applied, if desired. This ventilation surface allows air
to enter the compartment for the proper combustion of the gas and aspiration of the
combustion products. In the case of LPG, the gas is heavier than air; in the event of a leak
the vent allows the gas to leave the compartment. The air vent must be at least 700 mm x 25
mm and placed in a central position 135 mm below the mounting surface. (See drawing).

50570

35 180 567

505

70

35 180 625

FRONT

Minimum distance
From wall for cover rotation

1025

600

70 min

505

Cut out

27

EN

Island-mounted

700

135

240

660

25

105

505

1025

important opening for ventilation

grille or ventilation holes

28

EN

ATTENTION

• The LPG cylinder in the compartment below the barbecue unit, must be isolated from it by a
non-combustible panel. The compartment must comply with the requirements of EN 498.

• The ventilation requirements of EN 498 for the cylinder compartment are:

• In case of a sheet metal, or similar impenetrable, structure, ventilation openings must be
made on the top and bottom the compartment or cavity, each of which must provide a free
surface of at least 200 cm2 per cylinder housed; the openings also serve as inspection
points if a rubber hose is used.

minimum distance from
the rear wall 55mm

Min 20 mm

920

18035

29

EN

Min 300 mm

Min

200 mm

Min
200 mm

Min 300 mm

215 mm

MAX 1,5 mt

non-combustible barrier necessary
under the barbecue

cut a hole in the non-combustible

barrier only for the hose

front of the compartment emoved for clarity

The LPG cylinder may be connected inside the object-holder compartment of barbecue
only if it has the dimensions shown in the guidelines. The safe use of a cylinder inside the
object-holder compartment of the barbecue depends on several factors:
A) The base of the cylinder must be properly inserted between the plates and be horizontal
on the base panel.

EN

Dimensions of the cylinder

Max height 465 mm
Width 289 mm - (rectangular section) or 318 mm (circular section) maximum B) Capacity of
the cylinder max 6 kg
There are several models of cylinders with approved dimensions (2).

WARNING: if the LPG cylinder purchased does not have the required dimensions, do not
attempt to connect it inside the object-holder compartment. Fix the cylinder to the bracket
or rest it on the floor. Failure to follow these instructions could damage the hose and cause
fire or explosion, with serious injury or death and property damage.

30

31

EN

Application of the low cover

• Remove the thin cover from the packaging.

• Attach the hinges to the outer frame and secure it with the special screw provided.

Application of the thin cover

LEFT

RIGHT

32

EN

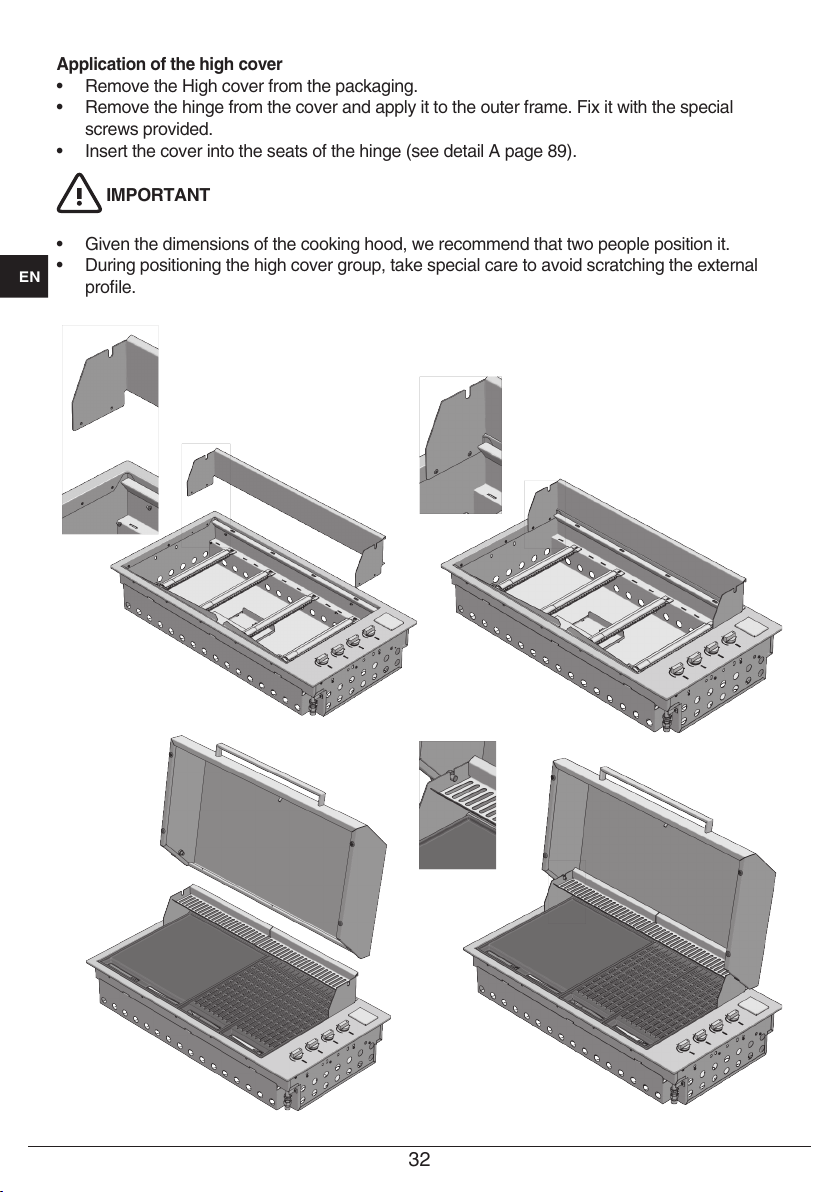

Application of the high cover

• Remove the High cover from the packaging.

• Remove the hinge from the cover and apply it to the outer frame. Fix it with the special
screws provided.

• Insert the cover into the seats of the hinge (see detail A page 89).

IMPORTANT

• Given the dimensions of the cooking hood, we recommend that two people position it.

• During positioning the high cover group, take special care to avoid scratching the external
profile.

33

EN

IMPORTANT

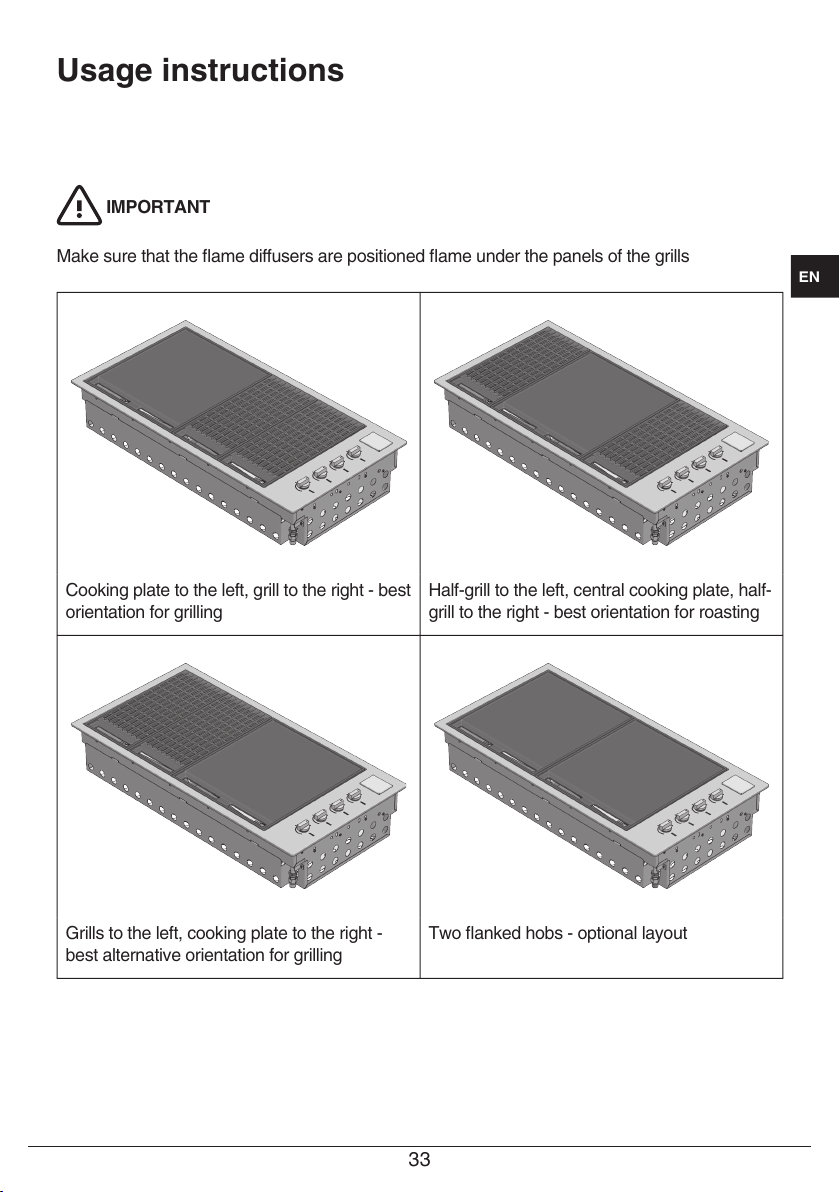

Make sure that the flame diffusers are positioned flame under the panels of the grills

Cooking plate to the left, grill to the right - best
orientation for grilling

Half-grill to the left, central cooking plate, half-
grill to the right - best orientation for roasting

Grills to the left, cooking plate to the right -
best alternative orientation for grilling

Two flanked hobs - optional layout

Usage instructions

Control functions

OFF

Before lighting the barbecue:

• Check that all the gas hoses and fittings are tight.

• Open the thin or high cover.

EN

Gas leakage detection test

Never use a match or flame, use soapy water solution and spray or brush the solution onto all
connections. Carefully check for bubbles which indicate a gas leak. If leaks are detected, turn
the gas off and retighten connection(s), then repeat test. The fittings must be thoroughly rinsed
with clean water after testing.

NOTE: The thin cover is intended to protect against the weather. The cover is not intended to
be used as a cooking hood.

• Make sure that all the control knobs are in the closed (O) position.

• Make sure that the cooking surfaces are clean.

• Open the main gas valve.

Ignition instructions

• Do not light the burners with the cooking surfaces covered.

• To light a burner, press the knob and turn it to the “MAX” (fast pre-heating) position.

• Hold it for 5 seconds (count to 10), release it and check the flame from the slots in the front.

• If the burner is not lit, turn the knob to the closed (O) position. Allow the gas to disperse, and
then repeat the ignition procedure.

MAX

MIN

34

35

EN

Manual lighting

• If the automatic ignition system is not working, the barbecue can be lit manually.

• To turn it on manually, use a long match (28cm). Pass the lit match between the inspection
slots under the front part of the hob, approaching it to the burner, then turn the knob and
hold it pressed on MAX (quick preheating) in order to perform the ignition. If it does not light,
close the control valve and wait a few minutes for the gas to disperse before trying to light
the barbecue again.

• Once one burner is lit, repeat the procedure for the others, if necessary.

• Incorrect lighting of the barbecue can result in serious injury, fire, explosion or death. If the
burner does not light, turn the gas off, wait 5 minutes to allow the gas to disperse before
attempting to light appliance again.

Inspection slits

Pre-heating cooking areas

• The barbecue is equipped with high-power burners. Under most conditions, it will only be
necessary to pre-heat the barbecue for just 5 minutes before starting to cook.

• As with most things, experience will teach the user the effectiveness and interval necessary
for reaching the best pre-heating time for obtaining the ideal cooking temperature. Don’t
forget that this also depends on the type of food, its thickness and how you want to cook it.

• Tests have shown that you can reduce the heat of the burners for satisfactory cooking.

• If the barbecue has a thin cover, you should remove it in the presence of wind.

• If the appliance is not working properly, refer to the chapter “Troubleshooting”.

• If you let the cooking areas overheat, there will be excessive smoke during cooking and the
food will burn.

• While cooking, avoid leaning over the open grill or placing the hands or fingers on the edge
of the oven.

36

EN

• In case of uncontrolled sudden flames, remove the food from the fire until the flame is
damped.

• To roast with the high cover closed, it is sufficient to adjust the 4 burners to the minimum
power (MIN) for satisfactory cooking

To turn off the burner

• When done cooking, turn the knob fully clockwise so that the mark on the knob is in the
closed (O) position.

Remember to always close the valve of the gas cylinder after use.

Remember to shut-off the gas before closing the cover.

ATTENTION

THE COVER MUST NOT BE CLOSED WHEN THE BURNERS ARE LIT.
If the cover is closed while the burners are lit, the cover and barbecue can be discoloured and
damaged.

Cleaning and care

Care and cleaning of the appliance

To preserve its original appearance, we recommend cleaning the cooking surfaces after each
use.

ATTENTION

Make sure the barbecue is turned off and has cooled down before executing the instructions
shown below.

Cleaning of cooking parts

• Remove from the grill and from the cooking burners all the solid materials and the excess
grease using a scraper or a metal brush with brass bristles

• Use a clean, dry cloth to make sure all surfaces are dry.

Other stainless steel surfaces

WARNING

Do not use caustic or abrasive detergents, steel wool or metal scrapers on these stainless steel
surfaces because they can scratch and permanently damage the barbecue.

• Wash all stainless steel parts, including the thin cover, high cover and control knobs, with a
soft cloth and warm soapy water

• Clean the surfaces, making sure to rub/dry in the direction of the grain in order not to
damage the stainless steel.

• The inside of the barbecue can be cleaned with a soft cloth soaked in warm soapy water.
The front panel/tray placed inside can be removed for an easy cleaning.

• Use a clean, dry cloth to make sure all surfaces are dry.

EN

Cleaning the cooking grills made of cast iron

• Clean with an adequate brass bristle brush. If necessary, remove from barbecue, wash with
warm soapy water, rinse with water and dry carefully.
Important: After cooking and cleaning, the cast-iron grids should be oiled. Apply a thin layer
of vegetable oil using a cloth or brush. Afterwards, use a cloth to rub the cookware as if you
want clean the oil you just placed on it.

WARNING

Pay particular attention (especially when cleaning the knobs and around the knobs) to avoid
water and soap residue from entering the control panel containing the valves or in the burners.
Also, be careful not to touch the ignition electrode and thermocouple. There must be 3 mm
of space between the electrode and the burners (see drawing on the next page). If the unit is
exposed to the elements we recommend you use the optional vinyl cover.

37
38

EN

3 mm

3 mm

Cleaning the grease drip pan

The integrated barbecue has a unique oil management system that uses overlapping channels
to convey all the oil towards the front to easily removable drip pans, which must be cleaned after
each use.

• To remove the drip pan, pull them upwards from the front of the barbecue; dispose of their
contents in a responsible way. Wash the collection pans in hot soapy water or, if you want,
you can put them in the dishwasher.

1 - To remove the drip pan

39

EN

2 - Move the drawer

3 - Raise up the pan up

Burners

The burners should be checked at least once a year and cleaned if necessary. Inspect the
burners to make sure that no residue deposits and that the gas connections are free.

SUGGESTIONS AND INFORMATION

Special note on “tea staining”

Sometimes stainless steel surfaces are affected by a colour change called “tea staining”.
This usually occurs in areas where high heat is used and can be removed using stainless
steel cleaning agents. For best results, we recommend that you regularly use stainless steel
cleaner on all stainless steel parts. These cleaners are available in all hardware stores and
supermarkets.

40

EN

Ignition system

To change the battery, remove the battery cover by lifting the battery holder flap on the left side
and pull out the battery. Replace it with a new D battery and replace the cover. Perform a test
by pressing the knob; you should hear a click.

Ventilation openings

The ventilation openings of the installation compartment must be inspected before each use of
the appliance to make sure that there are no obstructions that could impede the free flow of air.

Maintenance

Troubleshooting

For service enquires please contact us at [e-mail] or 1300 85 64 11

PROBLEM POSSIBLE CAUSE SOLUTION

The barbecue doesn’t light No gas Check that the shut-off valve is open (ON)

Gas cylinder empty - refill or change the
cylinder

Excessive smoke from the
cooking surface

Odour of gas
DON NOT TRY TO LIGHT THE
APPLIANCE

The ignition system is not
working

Gas tap regulated too high Clean and delicately dry the electrode

Gas valve set too high Lower the gas or turn off some of the

Gas leak Close the gas with the shut-off valves

Check the battery - you should hear a
clicking sound when you press the knob

Replace the battery

Light the barbecue manually

making sure that its position is correct

burners

Check for leaks, tighten the fittings

If the problem persists, call the Service
Centre

EN

41

EN

The manufacturer declares that, depending on their type, the products in this catalogue conform to the

fundamental requirements of European Directives and, for this reason, the product bears the CE mark, for

which this declaration of conformity was issued and made available to market supervisory bodies.

At the end of their useful life, these appliances may not be disposed of with normal urban waste but must be
given to an electronic and electrical equipment collection and recycling point. This is indicated by the symbol

shown on the product, in the instruction manual or on the packing materials.

The materials used in this appliance can be reused in conformity with their intended use. Thanks to the

reuse, recycling or other forms of recovery of unusable appliances, you will make a contribution to protecting

You can obtain information about the disposal points for unusable appliances from your local authorities.

The manufacturer will not be liable for inaccuracies in this manual due to typographic errors. We reserve

the right to make improvements or indispensable modifications to products without altering their essential

specifications. Products can be modified following requests for improvements and CE standards.

MANUFACTURER’S DECLARATION

DISPOSAL OF USED APPLIANCES

our natural environment.

42

Warranty Card

Worldwide Appliances Pty Limited
A.B.N. 45868077422
Oce:
48-50 Moore Street, Leichhardt N.S.W 2040

Post:
Locked Bag 3000, Annandale, N.S.W 2038
P: 1300 694 583
WARRANTY REGISTRATION

Your ongoing satisfaction with your artusi
product is important to us. We ask that you
complete the enclosed Warranty Registration
Card and return it to us so that we have a record
of the artusi product purchased by you.

PRIVACY

Worldwide Appliances respects your
privacy and is committed to handling your
personal information in accordance with the
National Privacy Principles and the Privacy
Act 1988 (Cth). A copy of the Worldwide
Appliances Privacy Policy is available at
www.artusi.com.au. Worldwide Appliances will
not disclose any personal information set out
in the Warranty Registration Card (“Personal
Information”) without your consent unless
required by:

1. law;

2. any Worldwide Appliances related company;

3. any service provider which provide services
to artusi or assist artusi in providing services
(including repair and warranty services) to
customers. Our purpose in collecting the
Personal Information is

to keep a record of the artusi product purchased
by you, in order to provide a better warranty
service to you in the unlikely event that there is
a problem with your artusi product. Worldwide
Appliances may contact you at any one or more
of the address, email address or telephone
numbers set out in the Warranty Registration
Card. Please contact artusi on 1300 694
583 should you not wish to be contacted by
Worldwide Appliances.

WARRANTY

1. Warranty
Worldwide Appliances warrants that each artusi

product will remain, for a period of either 12
months or 24 months of warranty. All Warranties
are valid from the original date of purchase, And
warranty claims must be accompanied by the
proof of purchase.

24 months warranty products:

All Built-in Appliances – Limited to Ovens,
Gas, Induction and Electric Cooktops, and All
Rangehoods

Freestanding Cookers - Gas and Electric Models
(900mm Width)

artusi.com.au

Dishwashers - Freestanding, Fully Integrated,
Semi Integrated and built-in

12 months warranty products:

Freestanding Cookers - Gas and Electric Models
in 50cm, 54cm and 60cm Widths

Portable Appliances* – Benchtop Models and
Portable Gas Models

2. What is not Covered by the Warranty.
The Warranty does not apply if an artusi product

is defective by a factor other than a defect arising
in the manufacture of the artusi product, including
but not limited to:

(a) damage through misuse (including failure
to maintain, service or use with proper care),
neglect, accident or ordinary wear and tear
(including deterioration of parts and accessories
and glass breakage);

(b) use for purpose for which the artusi product
was not sold or designed;

(c) use or installation which is not in accordance

with any specied instructions for use or

installation;
(d) use or operation after a defect has occurred or

been discovered;
(e) damage through freight, transportation or

handling in transit (other than when Worldwide
Appliances is responsible);

(f) damage through exposure to chemicals, dusts,
residues, excessive voltage, heat, atmospheric
conditions or other forces or environmental
factors outside the control or Worldwide
Appliances;

(g) repair, modication or tampering by the

purchaser or any person other than Worldwide
Appliances, an employee of Worldwide
Appliances or an authorised artusi service
contractor*;

(h) use of parts, components or accessories

which have not been supplied or specically

approved by artusi.
(i) damage to surface coatings caused by cleaning

or maintenance using products not recommended
in the artusi product handbook provided to the
purchaser upon purchase of the artusi product;

(j) damage to the base of an electric oven due to
items having been placed on the base of the oven
cavity or covering the base, such as aluminium
foil (this impedes the transfer of heat from the
element to the oven cavity and can result in
irreparable damage); or

(k) damages, dents or other cosmetic

imperfections not aecting the performance of the

artusi in respect of an artusi product purchased
as a “factory second” or from display

The Warranty does not extend to light globes
used in artusi products.

3. Domestic Use
Each artusi product is made for domestic use.

This Warranty may not extend to artusi products
used for commercial purposes.

Continued over...

Warranty Card continued

artusi.com.au

4. Time for Claim under the Warranty
You must make any claim under this Warranty

within twenty eight (28) days after the occurrence
of an event which gives rise to a claim pursuant
to the Warranty, by booking a service call on the
telephone number below.

5. Proof of Purchase
Customers must retain proof of purchase in order

to be eligible to make a warranty claim in respect
of an artusi product.

6. Claiming under the Warranty
Customers will bear the cost of claiming under

this Warranty unless Worldwide Appliances
determines the expenses are reasonable, in which
case the customer must claim those expenses
by providing written evidence of each expense
to Worldwide Appliances at the address on the
Warranty Registration Card.

7. Statutory Rights

(a) These terms and conditions do not aect your

statutory rights.
(b) The limitations on the Warranty set out in this

document do not exclude or limit the application
of the consumer guarantees set out in the Act or
any other equivalent or corresponding legislation
in the relevant jurisdiction where to do so would:

(i) contravene the law of the relevant jurisdiction;
or

(ii) cause any part of the Warranty to be void.
(c) Worldwide Appliances excludes indirect or

consequential loss of any kind (including, without
limitation, loss of use of the artusi product) and
(other than expressly provided for in these terms
and conditions) subject to all terms,

conditions and warranties implied by custom, the
general law, the Act or other statute.

(d) The liability of Worldwide Appliances to you

Warranty Card tear off

for a breach of any express or non-excludable
implied term, condition or warranty is limited at
the option of Worldwide Appliances to:

(i) replacing or repairing the defective part of the
artusi product;

(ii) paying the cost of replacing or repairing the
defective part of the artusi product;

(iii) replacing the artusi product; or
(iv) paying the cost of replacing the artusi

product.
(e) Our goods come with guarantees that cannot

be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund
for a major failure and for compensation for any
other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a
major failure.

8. Defects
Any part of an artusi product deemed to be

defective and replaced by Worldwide Appliances
is the property of Worldwide Appliances.
Worldwide Appliances reserves the right to
inspect and test artusi products in order to
determine the extent of any defect and the
validity of a claim under the Warranty.

*To locate your closest artusi authorised service
agent please contact us on 1300 652 100 or visit
www.artusi.com.au

ALL SERVICE CALLS MUST BE BOOKED
THROUGH AN AUTHORISED DEALER OR
WARRANTY DEPARTMENT ON 1300 652 100
OR stokesaps.com.au/artusi-service

01032014

WARRANTY REGISTRATION CARD
01052013

Last Name: First Name:

Address:

State: Postcode: Email:

Home Phone: Mobile:

Purchase Date: / / (Please attach proof of purchase to validate warranty)

MODEL NUMBER

1

2

3

4

Please complete and send to ARTUSI at: REPLY PAID 83617

LEICHHARDT NSW 2040

SERIAL NUMBER

(if you cannot locate the serial number please call ARTUSI on 1300 694 583)

01032014

4

DISCLAIMER

Worldwide Appliances PTY LTD, trading as ARTUSI, is continually seeking ways to improve the design specifications, aesthetics and production
techniques of its products. As a result alterations to our products and designs take place continually. Whilst every effort is made to produce
information and literature that is up to date, this brochure should not be regarded as an infallible guide to the current specifications, nor does it
constitute an offer for the sale of any particular product. Product dimensions indicated in our literature is indicative only. Actual product only
should be used to define dimension cutouts. Distributors, and retailers are not agents of ARTUSI and are not authorised to bind ARTUSI by any
express or implied undertaking or representation.

ARTUSI OFFICES ARE OPEN DAILY FROM 9AM–5PM AND SATURDAYS 10AM–4PM

NSW & ACT (HEAD OFFICE)
48-50 MOORE STREET
LEICHHARDT
F 02 8569 4699

P: 13 00 6 49 5 83

VIC, TAS & SA
1211 TOORAK ROAD

CAMBERWELL
F 03 9809 2155

QLD
1/42 CAVENDISH ROAD
COORPAROO
F 07 3397 0850

WA & NT
UNIT 10/55 HOWE STREET
OSBORNE PARK
F 08 9201 9188

NZ
PO BOX 11.160
SOCKBURN CHRISTCHURCH
F 03 344 5906

ARTUSI.COM.AU
