Art-Net deskontroller LITE 96, deskontroller LITE 32, deskontroller LITE 48, deskontroller LITE 80, deskontroller LITE 64 User Manual

deskontroller LITE – user manual

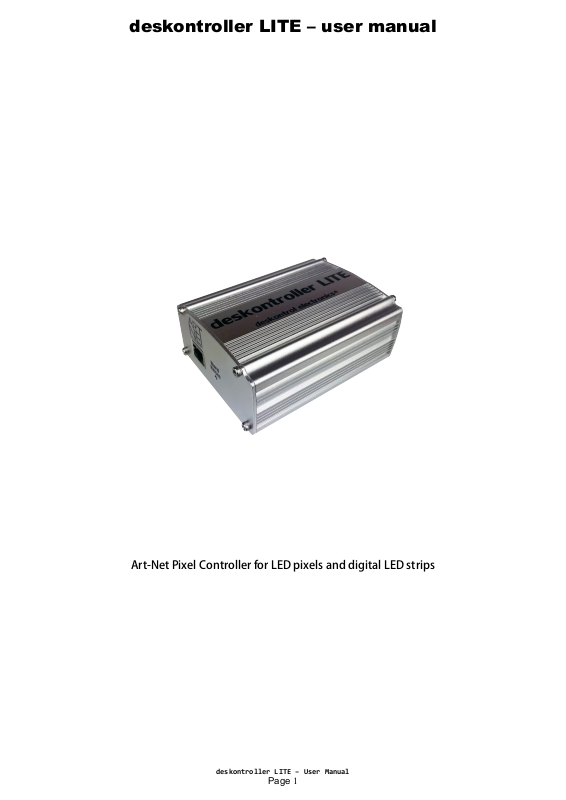

Art-Net Pixel Controller for LED pixels and digital LED strips

deskontroller LITE – User Manual

Page 1

deskontroller LITE – user manual

LED types supported

APA102, DM413, D705, D707, D708

GE8812, GS8206, GS8208, LPD1101, LPD6803, LPD6813, LPD8803, LPD8806

P9813, P9816, SK6812, SK9822, SM16703, SM16716, SM16726

TM1803, TM1809, TM1812, TM1814, TM1903, TM1914

UCS1903, UCS1903B, UCS2903, UCS2909, UCS2912

UCS3903, UCS5903, UCS6909, UCS6912, UCS7009, UCS8903

WS2801, WS2803, WS2811, WS2812, NEOPIXEL, WS2812B, WS2812S, WS2813, WS2813A, WS2813B,

WS2813C, WS2813D, WS2815, WS2818

Custom (Custom chipset timming T0H and T1H)

Models availables

Model Outputs

Universes

per output

Total

universes

deskontroller LITE 16 16 1 16

deskontroller LITE 32 16 2 32

deskontroller LITE 48 16 3 48

deskontroller LITE 64 16 4 64

deskontroller LITE 80 16 5 80

deskontroller LITE 96 16 6 96

Included

- Art-Net Pixel Controller deskontroller LITE

- Power supply 7,5v 1,3A (Connector available for EU, UK, US, AU)

- 8 pcs RJ45/screew terminal adapter for outputs

deskontroller LITE – User Manual

Page 2

deskontroller LITE – user manual

Safety information & Maintenance

Read this manual before powering or installing the device, follow the safety precautions listed
below and observe all warnings in this manual.

• Be sure that the local power outlet matches that of the required voltage of the power supply
included with this device.

• To reduce the risk of fire or electrical shock, do not expose the unit to rain or high levels of
moisture.

• Do not spill water or other liquids into or on your unit.

• Do not open the unit as there are no user serviceable parts inside.

• Do not dismantle or modify the unit, as this voids all warranties.

• Do not attempt repairs. Repairs by unqualified people could cause damage or faulty operation.

• Unplug this unit when not used for long periods of time.

• Clean only with dry cloth.

• Handle this unit carefully. Any strong shock or vibration may result in malfunction.

deskontroller LITE – User Manual

Page 3

deskontroller LITE – user manual

Features

- Integrated SPI Controller Art-Net for led pixels and digital LED strips.

- 16 outputs (each RJ45 have two outputs A-B).

- 50 fps (framerate) 20 mS.

- Configuration through web browser (Accessing the deskontroller's IP).

- Allows the gamma correction setting.

- Simple color, RGB and RGBW color order.

- Configuration Art-Net NET and Subnet by steps 4 universes.

- Data turbo mode (increases led strip data speed up to 50%).

- Custom mode (To manually configure strip times T0H, T1H).

- Configurable number of universes by output.

- Test of individual outputs and pixel by pixel (easier to test led installations).

- Test effects to work stand alone to check installations.

- Art-Net discover (To detect and configure devices in the Art-Net network).

- Art-Net Rx quality (To check the Art-Net signal quality).

- Support synchronization mode.

- Electronics manufactured in Europe under ISO9001

Works with any software or console that supports the Art-Net protocol as MADRIX, Resolume,
MadMapper, Lightjams, Enttec light mapper, Jinx, Mapio, Xlights, Touchdesigner, and others.

deskontroller LITE – User Manual

Page 4

deskontroller LITE – user manual

Art-Net Network configuration:

Art-Net uses as hardware ethernet networks, their messages use UDP port 6454. There are two
ranges of IPs defined for use: 2.x.x.x/8 and 10.x.x.x/8 (If you connect through a router or a computer
connected to the Internet), the subnet mask should always be 255.0.0.0

The default node IP address is indicated on the label of the controller, if we use a computer as a
controller needs to be set in the same IP range (eg: IP = 2.0.0.1 subnet mask = 255.0.0.0 Gateway =

2.0.0.1)

Recommended to use in the network must be Gigabit Ethernet.

Preferably ethernet network must be exclusive use for Art-Net. There should be no Art-Net network
connection to Internet (because the IP range 2.0.0.0 is also assigned on the Internet), if there is a
router on network with Internet access, the packets sent to addresses Art-Net 2.x.x.x are routed to
Internet, and deskontroller LITE will not work.

Art-Net Network configuration.

deskontroller LITE – User Manual

Page 5

deskontroller LITE – user manual

deskontroller LITE configuration:

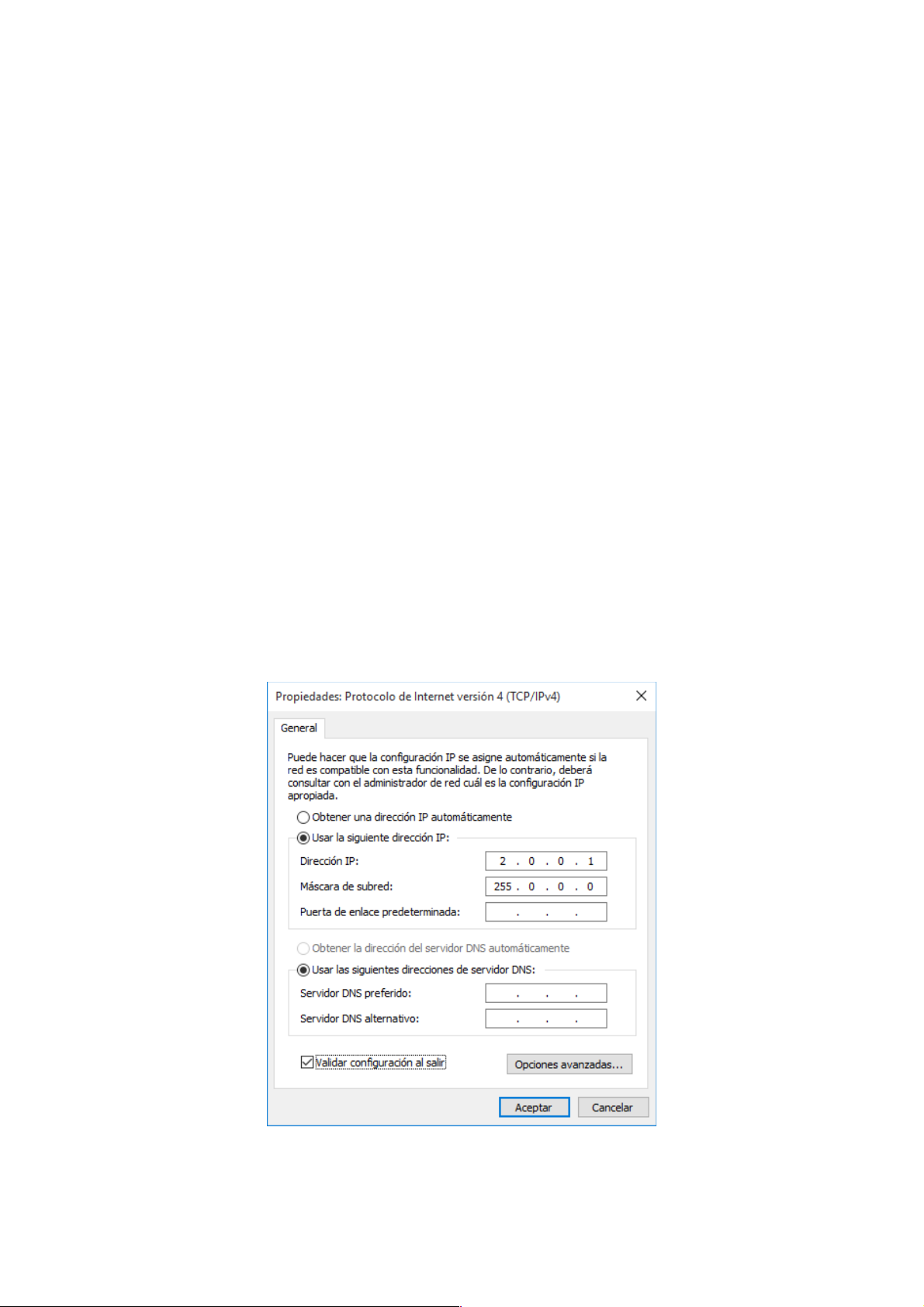

Put your computer on Art-Net Network. IP=2.0.0.1 MASK=255.0.0.0
Connect network cable from your computer to deskontroller LITE Ethernet Art-Net input.
If you have more than one deskontroller LITE, connect it through a Gigabit Ethernet switch.
In your usual web browser, put the deskontroller LITE's IP to access the setup and tools.
Look at the label on the bottom of the deskontroller LITE.

Configuration Tools, and Additional Features:

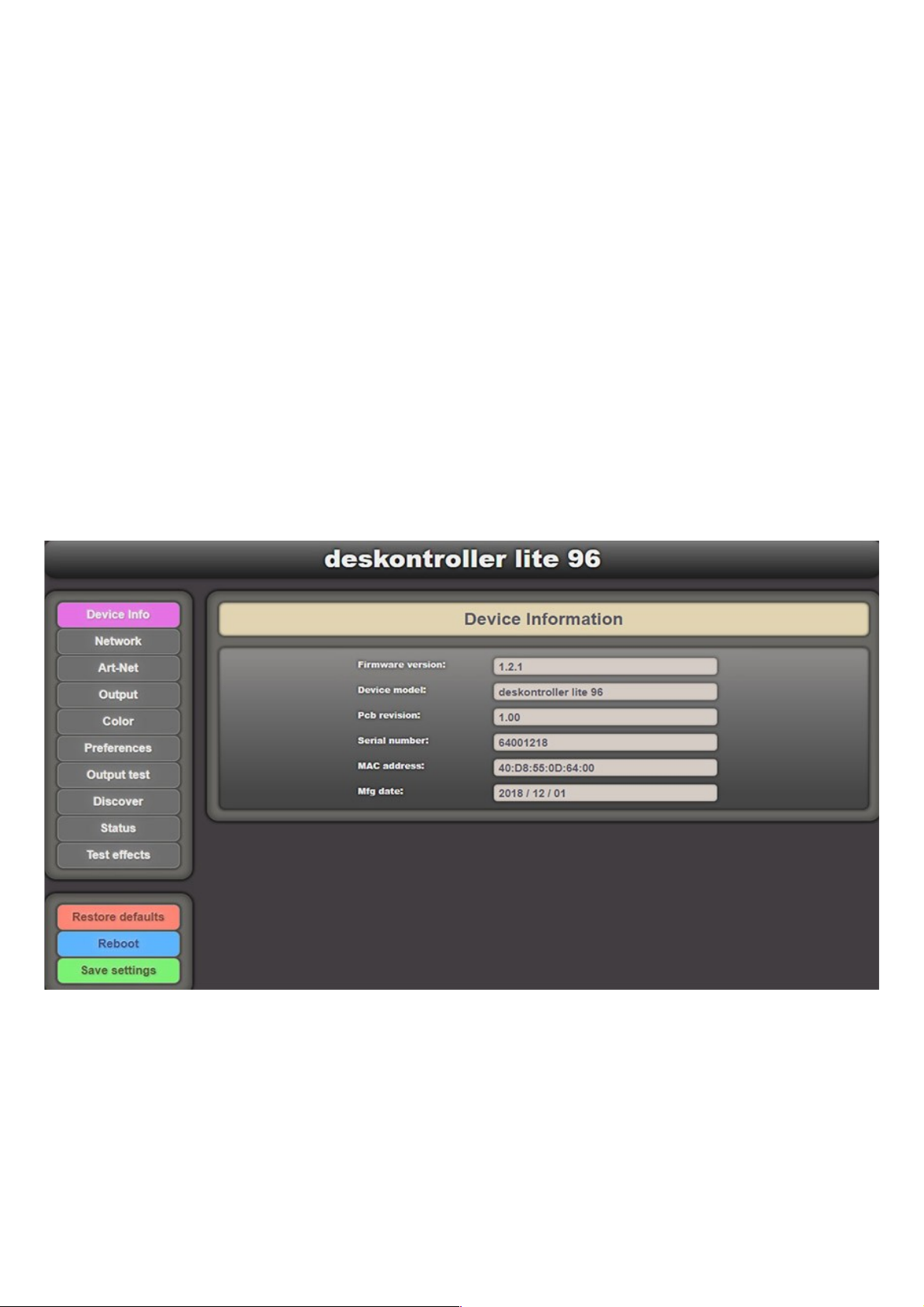

Device information

Information firmware version, serial number, MAC, etc.

deskontroller LITE – User Manual

Page 6

deskontroller LITE – user manual

Network configuration

IP Configuration, use to change the IP range, Subnet mask and Gateway.

Art-Net Address

Universe number configuration, you can select the first universe by steps of 4 universes.

deskontroller LITE – User Manual

Page 7

deskontroller LITE – user manual

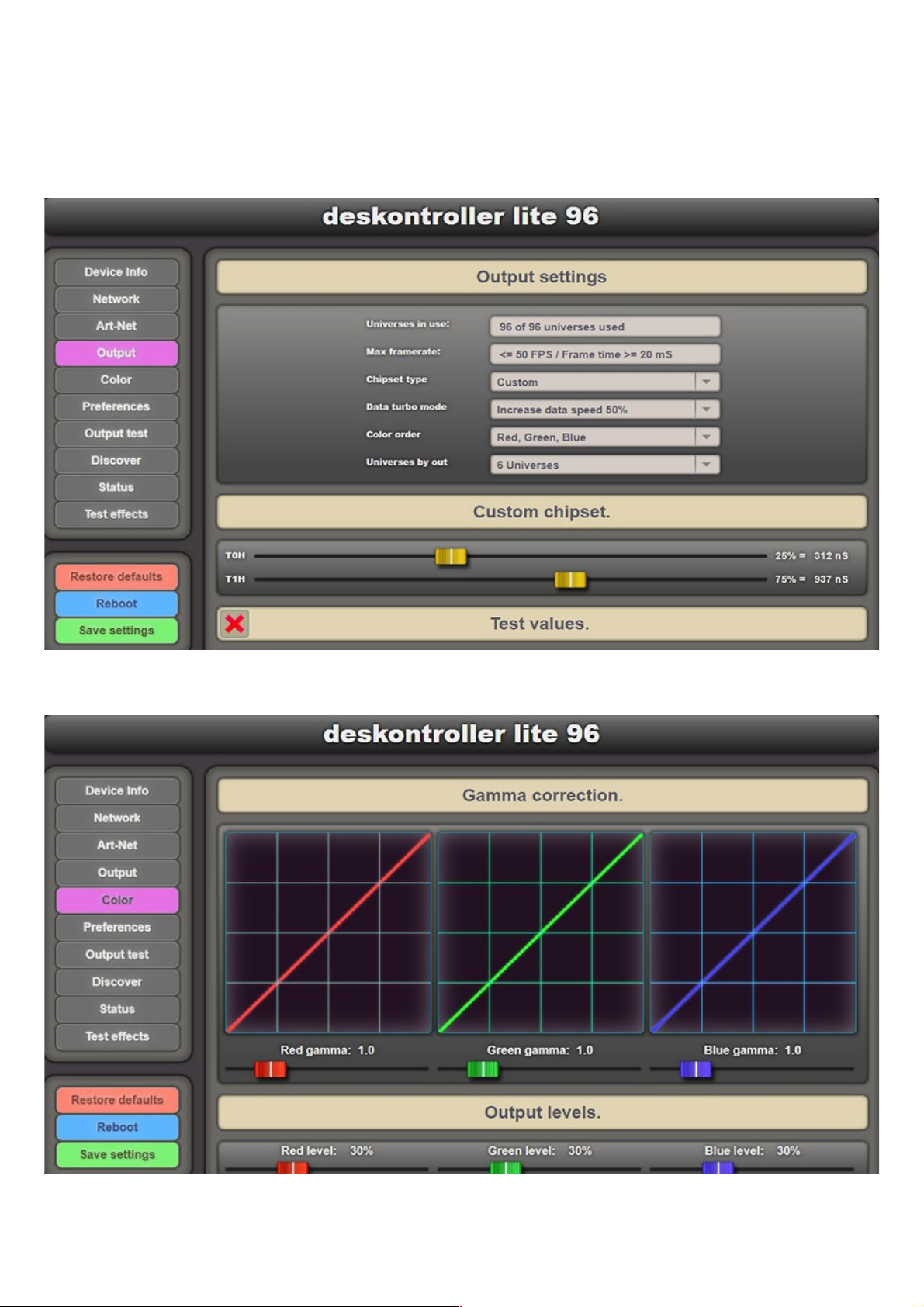

Output settings

IC configuration, color order RGB-RGBW-Single Color, universes per output. Extra clock.
Manual configuration custom IC times. Turbo mode up to 50% more speed.

Gamma correction

Color gamma correction. Color settings, gamma setting, levels RGBW, etc.

deskontroller LITE – User Manual

Page 8

deskontroller LITE – user manual

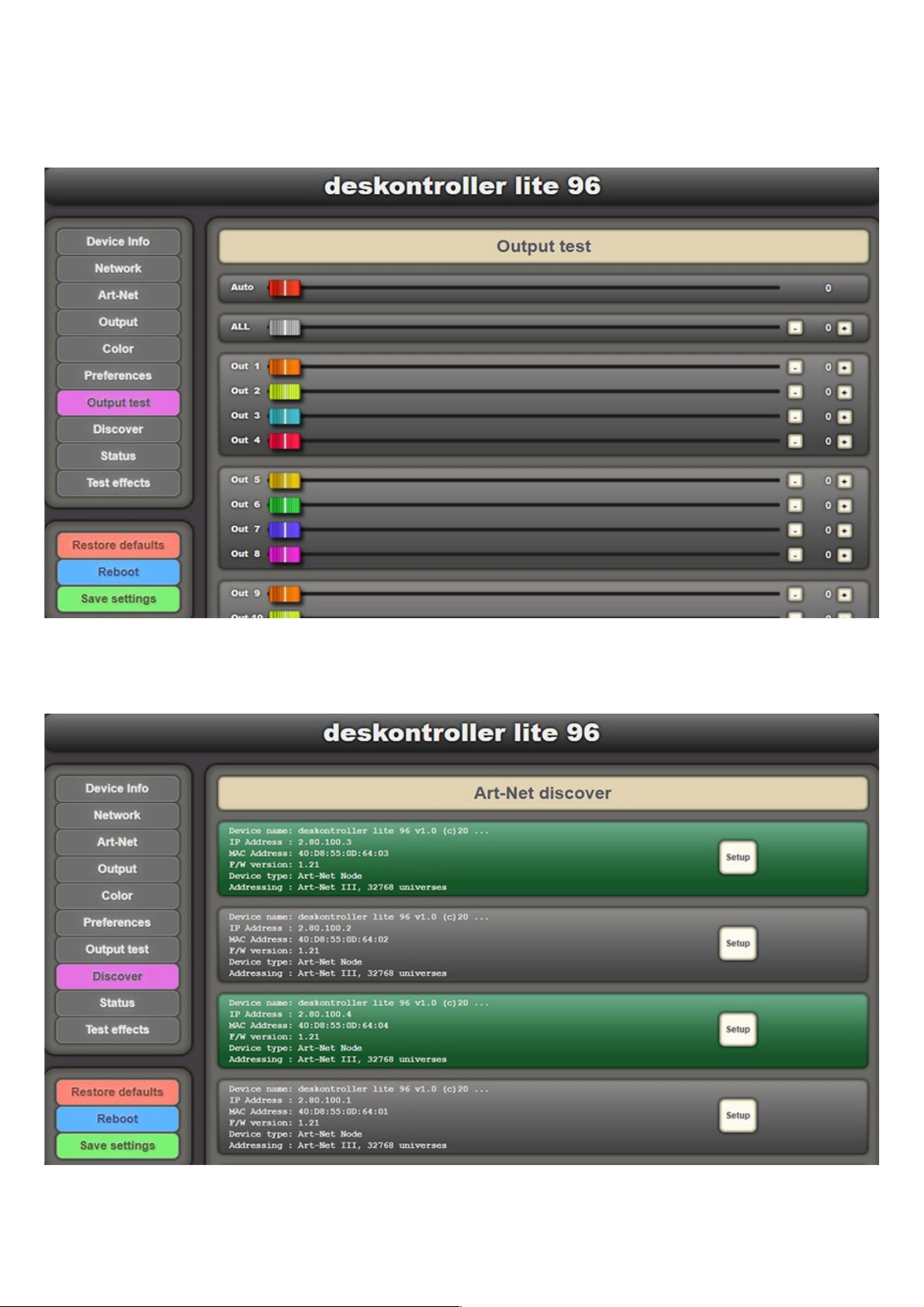

Outputs test

Automatic test, and individual test of each output and each pixel.

Art-Net Discover

Information of the devices connected to the network, and access to the configuration

deskontroller LITE – User Manual

Page 9

deskontroller LITE – user manual

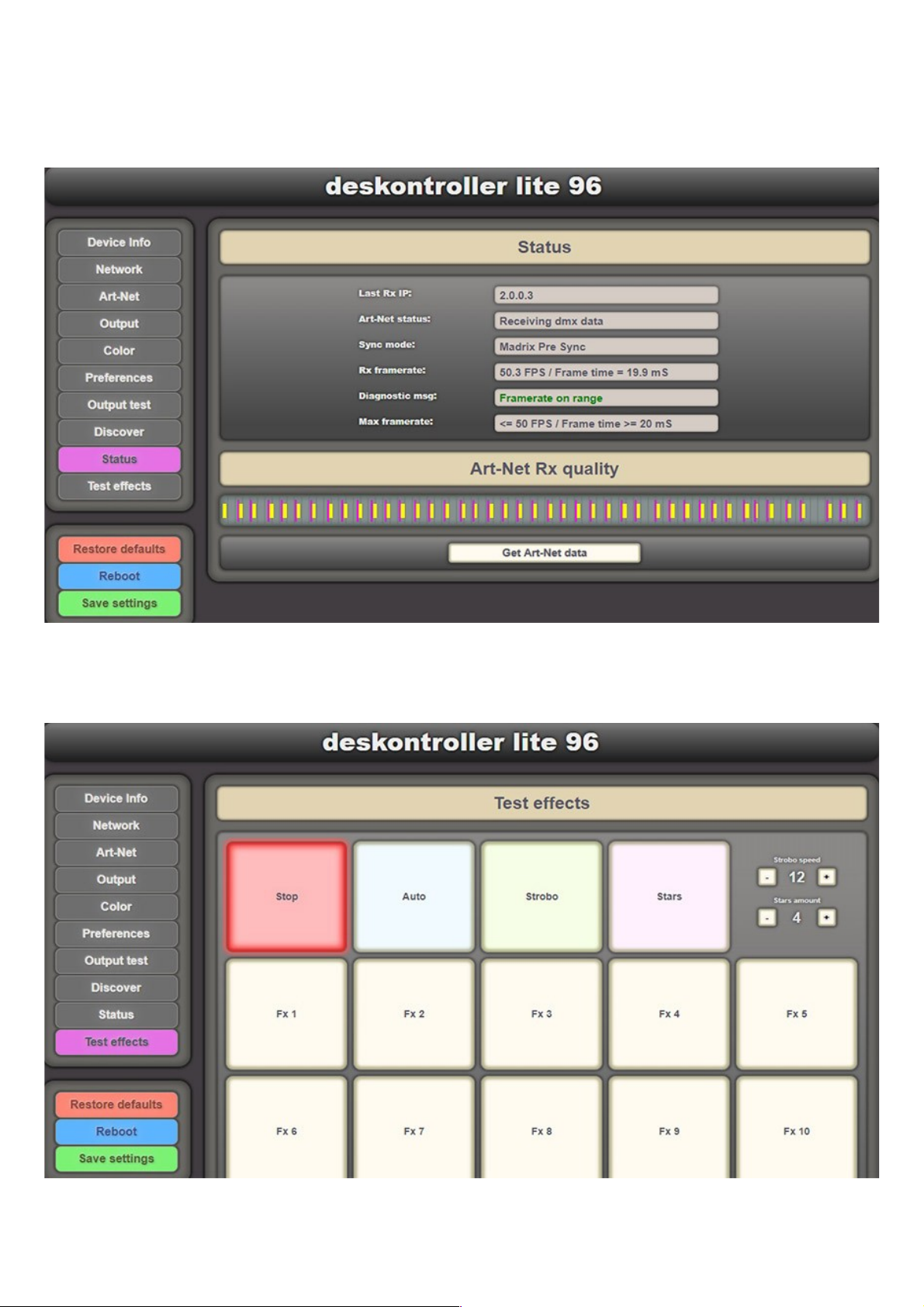

Status

Art-Net network information, frames, and signal quality. Real-time frames received.

Test Effects

Synchronized preprogrammed effects in all the deskontroller LITE of the network.

deskontroller LITE – User Manual

Page 10

deskontroller LITE – user manual

Outputs connections

deskontroller LITE outputs (back)

PIN connection Standard UTP cable CAT5, CAT6 - Crossover cable Not use it

Use standard network cable from deskontroller LITE outputs to adapter.

deskontroller LITE includes 8xRJ45 connectors for outputs on the back.
Each RJ45 connector are 2 outputs first universes A and next universes B.

deskontroller LITE adapter (8pcs included)

deskontroller LITE – User Manual

Page 11

deskontroller LITE – user manual

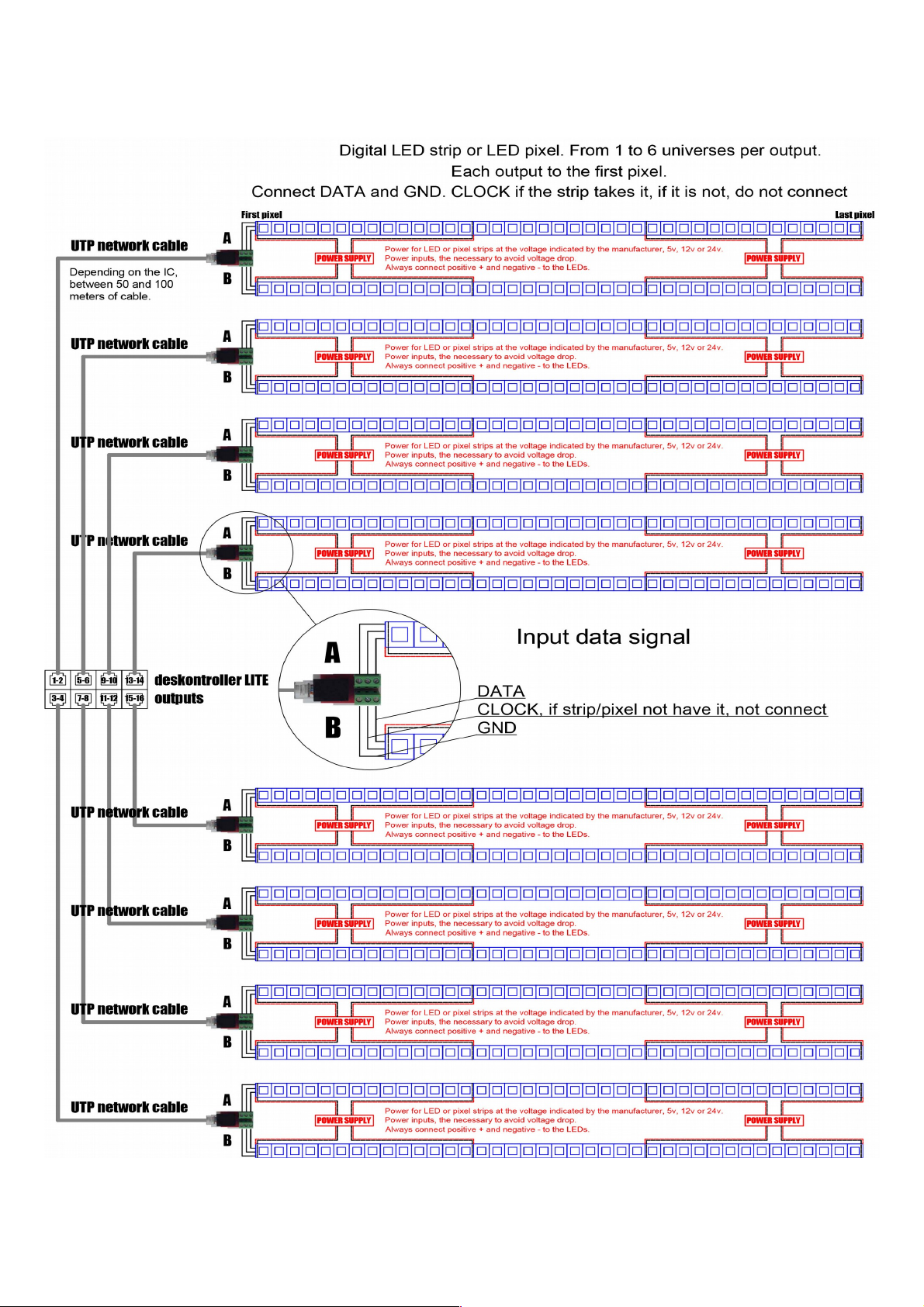

How to connect LED strips and LED pixels

deskontroller LITE – User Manual

Page 12

deskontroller LITE – user manual

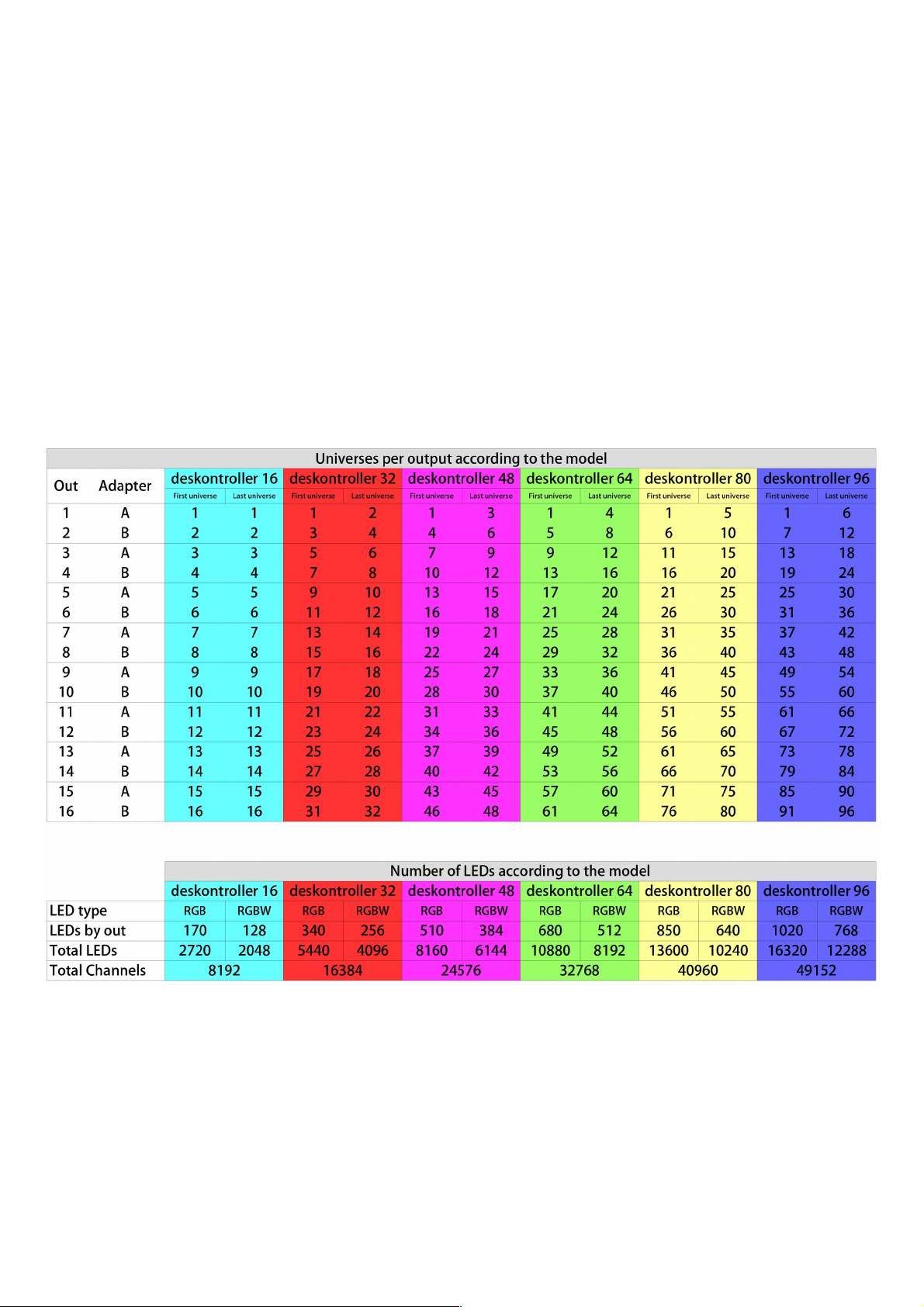

Outputs universes by output (according to the model)

Initial values whenever the controller starts in the universe 1.
If you change the first universe in the configuration, add previous universes to the values.

If you patch RGB pixels, they are 170 pixels per universe (170 x RGB = 510 channels, your software
must discards the last two channels of each universe)
If you patch RGBW or Single Color pixels, they are 128 pixels per universe (128 x RGBW = 512
channels)

deskontroller LITE – User Manual

Page 13

deskontroller LITE – user manual

Hard Reset:

Reset the controller to factory settings

Press the hard reset button and hold down the button 2-4 seconds or until the green LED on the
network, blinks.
If after doing so the led does not blink, then No power, press the hard reset button
Connect the power supply 7,5vdc and hold down the button 2-4 seconds or until the green LED on
the network, blinks.

Specifications:

– Power supply: 7,5 VDC
– Network protocol: Art-Net I, Art-Net II, Art-Net III, Art-Net IV
– Dimensions: 120 x 85 x 46 mm – 4,72 x 3,34 x 1,81 inch. (LxWxH)
– Weight: 300 g. – 10,58 oz. – 0,66 pounds

- Art-Net™ Designed by and Copyright Artistic Licence Holdings Ltd.

- The Art-Net protocol documentation is copyright Artistic Licence Holdings Ltd.

- All other company names and/or product names are trademarks and/or entered trademarks of their respective
holders.

deskontroller LITE – User Manual

Page 14

where you purchased the product.

This symbol on the product or in its packaging indicates that this product shall not be
trated as household waste. Instead it shall be handed over the applicable collection
point for the recycling of electrical and electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent potential negative consequences for
the enviroment and human health, which could otherwise be caused by inappropiate
waste handling of this product. The recycling of materials will help to conserve
natural resources. For more detailed information about recycling this product, please
contact your local city office, your household waste disposal service or the shop

deskontroller LITE – user manual

CE And RoHS Declaration Of Conformity

The device complies with the requirements set forth in the council Directive of the law of the
Member States relating to electromagnetic compatibility 2004/108/EC, and the Directive on the
restriction of the use of certain hazardous substances in electrical and electronic equipment EU
ROHS Directive 2011/65/EU (RoHS). The compliance with these three Directives has been evaluated
in accordance with the following standards: EN 61000-6-3: 2007+A1:2011, EN 61000-6-1: 2007

FCC Declaration Of Conformity

The device has passed the following tests of compliance:

FCC (2003) Rules and regulations - Title 47, Part 15, Subpart B, class B, Radio frequency devices. This
device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

Copyright Information And Disclaimer

© 2016 deskontrol electronics. All rights reserved. Information is subject to change at any time and
without prior notice. Errors and omissions excepted. Reproduction, adaptation, or translation
without prior written permission is prohibited. deskontrol electronics does not grant guarantee on
validity for a particular reason, the marketability, or other properties of the product. There is no
way to assert a claim to deskontrol electronics, neither in the legal way nor in other ways.
deskontrol electronics is not responsible for damages, including all disadvantages that are not just
limited to the loss of sales, but that are caused due to the use of the product, due to the loss of
serviceability of the product, due to misuse, happenings, circumstances, or actions that deskontrol
electronics does not have influence on, no matter if the damages as well as consequential damages
are direct or indirect; whether they are special damages or others, nor if the damage is caused by
the owner of the warranty or a third person.

deskontroller LITE – User Manual

Page 15

deskontroller LITE – user manual

WARRANTY

OTHER WARRANTY RIGHTS AND NATIONAL LAW

This warranty does not exclude or limit the buyer's statutory rights provided by national law, in
particular, any such rights against the seller that arise from a legally effective purchase contract.

The warranty regulations mentioned herein are applicable unless they constitute an infringement
of national warranty law.

deskontrol electronics warrants the mechanical and electronic components of this product to be
free of defects in material and workmanship for a period of Two years from the original date of
purchase, in accordance with the warranty regulations described below. If the product shows any
defects within the specified warranty period that are not excluded from this warranty, deskontrol
electronics shall, at its discretion, either replace or repair the product using suitable new or
reconditioned parts. In the case that other parts are used which constitute an improvement,
deskontrol electronics may, at its discretion, charge the customer for the additional cost of these
parts.

If the warranty claim proves to be justified, the product will be returned to the user freight prepaid.
Warranty claims other than those indicated above are expressly excluded.

WARRANTY REGULATIONS

Warranty services will be furnished only if the product is accompanied by a copy of the original
invoice.

Any product deemed eligible for repair or replacement under the terms of this warranty will be
repaired or replaced.

If the product needs to be modified or adapted in order to comply with applicable technical or
safety standards on a national or local level, in any country which is not the country for which the
product was originally developed and manufactured, this modification/adaptation shall not be
considered a defect in materials or workmanship.

deskontroller LITE – User Manual

Page 16

deskontroller LITE – user manual

The warranty does not cover any such modification/adaptation, irrespective of whether it was
carried out properly or not. Under the terms of this warranty, deskontrol electronics shall not be
held responsible for any cost resulting from such a modification/adaptation.

Free inspections and maintenance/repair work are expressly excluded from this warranty, in
particular, if caused by improper handling of the product by the user. This also applies to defects
caused by normal wear and tear.

Damages/defects caused by the following conditions are not covered by this warranty:

- improper handling, neglect or failure to operate the unit in compliance with the instructions
given in deskontrol electronics user manual.

- connection or operation of the unit in any way that does not comply with the technical or safety
regulations applicable in the country where the product is used.

- damages/defects caused by force majeure or any other condition that is beyond the control of
deskontrol electronics.

Any repair or opening of the unit carried out by unauthorized personnel (user included) will void
the warranty.

If an inspection of the product by deskontrol electronics shows that the defect in question is not
covered by the warranty, the inspection costs are payable by the customer.

Products which do not meet the terms of this warranty will be repaired exclusively at the buyer’s
expense. deskontrol electronics will inform the buyer of any such circumstance. If the buyer fails to
submit a written repair order within 3 weeks after notification, deskontrol electronics will return
the unit with a separate invoice for freight and packing. Such costs will also be invoiced separately
when the buyer has sent in a written repair order.

WARRANTY TRANSFERABILITY

This warranty is extended exclusively to the original buyer (customer of retail dealer) and is not
transferable to anyone who may subsequently purchase this product. No other person (retail
dealer, etc.) shall be entitled to give any warranty promise on behalf of deskontrol electronics.

deskontroller LITE – User Manual

Page 17

deskontroller LITE – user manual

CLAIM FOR DAMAGES

Failure of deskontrol electronics to provide proper warranty service shall not entitle the buyer to
claim (consequential) damages.
In no event shall the liability of deskontrol electronics exceed the invoiced value of the product.

Technical specifications and appearance subject to change without notice. The information
contained herein is correct at the time of printing. The names of companies, institutions or
publications pictured or mentioned and their respective logos are registered trademarks of their
respective owners. Their use neither constitutes a claim of the trademarks by deskontrol
electronics nor affiliation of the trademark owners with deskontrol electronics . deskontrol® ®
electronics accepts no liability for any loss which may be suffered by any person who relies either®
wholly or in part upon any description, photograph or statement contained herein. Colours and
specification may vary from product. Products are sold through our authorised dealers and
www.deskontrol.net. Distributors and dealers are not agents of deskontrol electronics and have®
absolutely no authority to bind deskontrol electronics by any express or implied undertaking or®
representation. No part of this manual may be reproduced or transmitted in any form or by any
means, electronic or mechanical, including photocopying and recording of any kind, for any
purpose, without the express written permission of deskontrol electronics.

ALL RIGHTS RESERVED. 2018
deskontrol electronics
Av. Del Port, 158-9ª
46023 Valencia
Spain
[email protected]
Tel. [phone]

MADE IN EU - TWO YEARS WARRANTY

deskontroller LITE – User Manual

Page 18
