Page 1
GAS TANK SLIDING
SHELF INCLUDED
REMOVABLE SHELVES
GAS TANK SHOWN
AS REFERENCE
(CUSTOMER SUPPLIED)
SPECIFICATIONS:
BTUH: 60,000
FUEL: NG @ 5 W.C. OR LP @ 10 W.C.
ELECTRICAL POWER: 9 VDC IGNITION SYSTEM
GAS CONNECTION: 1/2" NPT (NG) OR 3/8" ODF (LP)
12
3
61
"
8
1
22
13
34
"
16
5
26
16
5
"
8
1
"
11
16
PIPING LOCATION
FOR NG SYSTEMS
(ON BACK)
12
15
5
"
8
11
"
16
13
35
1
8
7
8
"
49"
"
"
2
"
7
58
"
16
Artisan
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
LAST SAVED BY: »» adrian «« Tuesday, March 19, 2013 1:51:46 PM
1
36
" CART BODY
16
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
DRAWN BY:
CREATED:
ADRIAN CRISCI
3/19/2013 1:18:24 PM
3" CASTERS
PROJECT TITLE:
ARTISAN GRILLS
DRAWING TITLE:

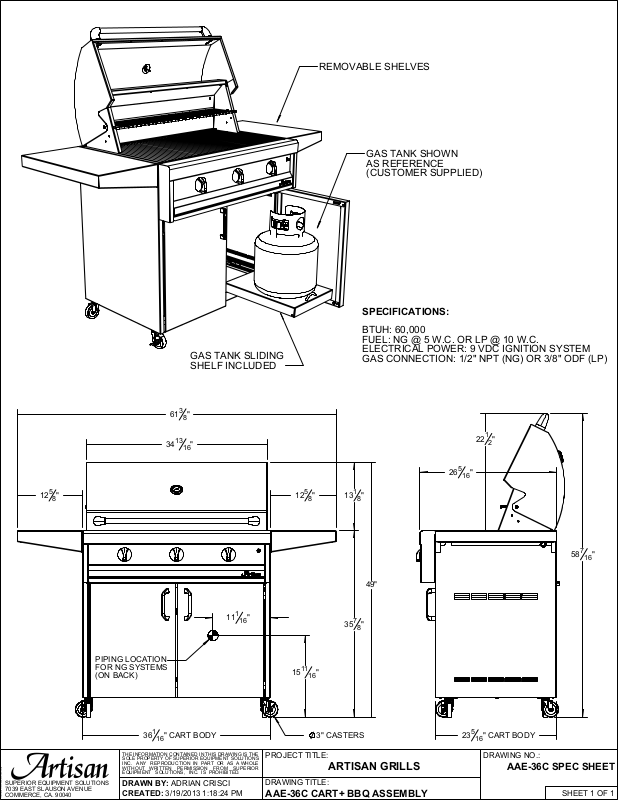

AAE-36C CART+ BBQ ASSEMBLY
23
5
16
" CART BODY
DRAWING NO.:
AAE-36C SPEC SHEET
SHEET 1 OF 1
