Page 1

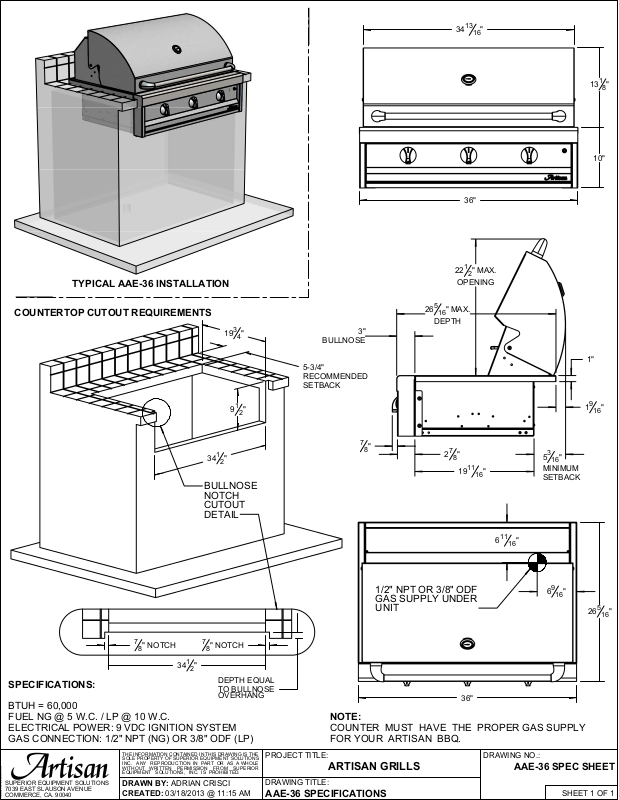

TYPICAL AAE-36 INSTALLATION
COUNTERTOP CUTOUT REQUIREMENTS
19
13
34
"
16
1
"
13
8
10"
36"
1
22
" MAX.
2
OPENING
5
26
" MAX.
16
3
"
4
BULLNOSE
3"
DEPTH
9
1
34
"
2
BULLNOSE
NOTCH
CUTOUT
DETAIL
SPECIFICATIONS:
7
"
NOTCH
8
34
7
"
NOTCH
8
1
"
2
DEPTH EQUAL
TO BULLNOSE
OVERHANG
BTUH = 60,000
FUEL NG @ 5 W.C. / LP @ 10 W.C.
ELECTRICAL POWER: 9 VDC IGNITION SYSTEM
GAS CONNECTION: 1/2" NPT (NG) OR 3/8" ODF (LP)
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
Artisan
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
LAST SAVED BY: »» adrian «« Monday, March 18, 2013 11:13:41 AM
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
DRAWN BY:
CREATED:
ADRIAN CRISCI
03/18/2013 @ 11:15 AM
5-3/4"
RECOMMENDED
SETBACK
1
"
2
7
"
8
1/2" NPT OR 3/8" ODF
GAS SUPPLY UNDER
2
7
"
8
19
3
5
11
"
16
11
"
6
16
16
MINIMUM
SETBACK
9
6
UNIT
36"
1"
9
"
1
16
"
"
16
5
"
26
16
NOTE:
COUNTER MUST HAVE THE PROPER GAS SUPPLY
FOR YOUR ARTISAN BBQ.
PROJECT TITLE:
ARTISAN GRILLS
DRAWING TITLE:
AAE-36 SPECIFICATIONS
DRAWING NO.:
AAE-36 SPEC SHEET
SHEET 1 OF 1
