Page 1
Specification:
Speaker Back Panel Diagram:
System Connection Diagram:

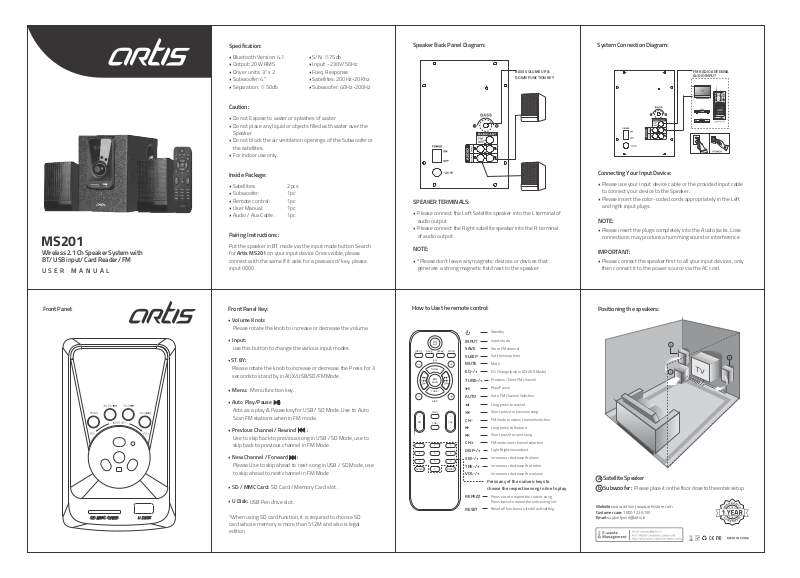

MS201
Wireless 2.1 Ch Speaker System with
BT/ USB input/ Card Reader/ FM
U S E R M A N U A L
• Bluetooth Version: 4.1
• Output: 20W RMS
• Driver units: 3” x 2
• Subwoofer: 4”
• Separation: ≧50db
• S/N: ≧75db
• Input: ~230V/50Hz
• Freq. Response:
• Satellites: 200Hz-20Khz
• Subwoofer: 40Hz-200Hz
Caution:
• Do not Expose to water or splashes of water
• Do not place any liquid or objects filled with water over the
Speaker
• Do not block the air ventilation openings of the Subwoofer or
the satellites.
• For Indoor use only.
Inside Package:
• Satellites: 2pcs
• Subwoofer: 1pc
• Remote control: 1pc
• User Manual: 1pc
• Audio / Aux Cable : 1pc
Pairing Instructions :
Put the speaker in BT mode via the input mode button Search
for Artis MS201 on your input device Once visible, please
connect with the same If it asks for a password/ key, please
input 0000.
BASS VOLUME UP &
DOWN FUNCTION KEY
SPEAKER TERMINALS:
• Please connect the Left Satellite speaker into the L terminal of
audio output
• Please connect the Right satellite speaker into the R terminal
of audio output
NOTE:
• *Please don't leave any magnetic devices or devices that
generate a strong magnetic field next to the speaker
FM RADIO ANTENNA
AUDIO INPUT
Connecting Your Input Device:
• Please use your input device cable or the provided input cable
to connect your device to the Speaker.
• Please insert the color-coded cords appropriately in the Left
and right input plugs.
NOTE:
• Please insert the plugs completely into the Audio Jacks. Lose
connections may produce a humming sound or interference
IMPORTANT:
• Please connect the speaker first to all your input devices, only
then connect it to the power source via the AC cord.
Front Panel:
Front Panel Key: Positioning the speakers:
How to Use the remote control:
• Volume Knob:
Please rotate the knob to increase or decrease the volume.
• Input:
use this button to change the various input modes.
• ST.BY:
Please rotate the knob to increase or decrease the Press for 3
seconds to stand by in AUX/USB/SD/FMMode .
• Menu:
Menu function key.
• Auto Play/Pause :
Acts as a play & Pause key for USB / SD Mode. Use to Auto
Scan FM stations when in FM mode.
• Previous Channel / Rewind :
Use to skip back to previous song in USB / SD Mode, use to
skip back to previous channel in FM Mode.
• New Channel / Forward :
Please Use to skip ahead to next song in USB / SD Mode, use
to skip ahead to next channel in FM Mode
• SD / MMC Card:
• U Disk:
USB Pen drive slot.
SD Card / Memory Card slot .
*When using SD card function, it is required to choose SD
lNPUT
+
SW
-
1 2
4
7
SAVE
EQ
TUNE+
AUTO
TUNE-
DISP
TRE+
TRE-
INPUT
SAVE
MU ET
SLEEP
5
0
SLEEP
MUTE
EQ-/+
TUNE-/+
AUTO
+
CH-
VOL
-
CH+
3
DISP-/+
6
SW-/+
98
TRE-/+
RESETREPEAT
VOL-/+
REPEAT
RESET
Standby
Input mode
Store FM channel
Set the sleep time
Mute
EQ Change (only in SD/USB Mode)
Previous / Next FM channel
Play/Pause
Auto FM Channel Selection
Long press to rewind
Short press for previous song
FM mode previous channel selection
Long press to forward
Short press for next song
FM mode next channel selection
Light Brightness adjust
Increase or decrease the bass
Increase or decrease the treble
Increase or decrease the volume
Press any of the numeric keys to
choose the respective song in line to play
Press once to repeat the current song
Press twice to repeat the entire song list
Reset all functions to its default setting
a Satellite Speaker
b Subwoofer: Please place it on the floor close to the entire setup.
Website: www.artis.in | www.artisstore.com
Customer care: 1800 123 8195
Email: supportpune@artis.in
card whose memory is more than 512M and also is legal
edition.
