Arthur martin AMN2811BOW User Manual

AMN2811BOW

	EN	Fridge Freezer			User Manual	2
	FR	Réfrigérateur/congélateur			Notice d'utilisation	15
	DE	Kühl - Gefrierschrank			Benutzerinformation	30

2

CONTENTS

Safety information	2	Care and cleaning	9
Safety instructions	3	Troubleshooting	10
Operation	5	Installation	13
Daily use	5	Technical data	14
Hints and tips	8

Subject to change without notice.

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

•This appliance can be used by children aged 8 years and above and by persons with reduced capabilities provided that they have been given instruction and/or supervision regarding the safe use of the appliance and understand the potential hazards involved.

•Do not let children play with the appliance.

•Children shall not carry out cleaning and user maintenance of the appliance without supervision.

•Keep all packaging away from children and dispose of it appropriately.

General Safety

•This appliance is intended to be used in household and similar applications such as:

–Farm houses; staff kitchen areas in shops, offices and other working environments

–By clients in hotels, motels, bed and breakfast and other residential type environments

•Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

3

•Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

•Do not damage the refrigerant circuit.

•Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

•Do not use water spray and steam to clean the appliance.

•Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

•Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

•If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

SAFETY INSTRUCTIONS

Installation

WARNING! Only a qualified person must install this appliance.

•Remove all the packaging and the transit bolts.

•Do not install or use a damaged appliance.

•Follow the installation instruction supplied with the appliance.

•Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

•Make sure the air can circulate around the appliance.

•Wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor.

•Do not install the appliance close to radiators or cookers, oven or hobs.

•The rear of the appliance must stand against the wall.

•Do not install the appliance where there is direct sunlight.

•Do not install this appliance in areas that are too humid or too colds, such as the construction appendices, garages or wine cellars.

•When you move the appliance, lift it by the front edge to avoid scratching the floor.

Electrical connection

WARNING! Risk of fire and electrical shock.

•The appliance must be earthed.

•Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.

•Always use a correctly installed shockproof socket.

•Do not use multi-plug adapters and extension cables.

•Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable, compressor). Contact the Authorised Service Centre or an

4

electrician to change the electrical components.

•The mains cable must stay below the level of the mains plug.

•Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

•Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

Use

WARNING! Risk of injury, burns, electrical shock or fire.

•Do not change the specification of this appliance.

•Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.

•Be careful not to cause damage to the refrigerant circuit. It contains isobutane (R600a), a natural gas with a high level of environmental compatibility. This gas is flammable.

•If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.

•Do not let hot items to touch the plastic parts of the appliance.

•Do not put soft drinks in the freezer compartment. This will create pressure on the drink container.

•Do not store flammable gas and liquid in the appliance.

•Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

•Do not touch the compressor or the condenser. They are hot.

•Do not remove or touch items from the freezer compartment if your hands are wet or damp.

•Do not freeze again food that has been thawed.

•Obey the storage instructions on the packaging of frozen food.

Internal light

•The type of lamp used for this appliance is not suitable for household room illumination

Care and cleaning

WARNING! Risk of injury or damage to the appliance.

•Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

•This appliance contains hydrocarbons in the cooling unit. Only a qualified person must do the maintenance and the recharging of the unit.

•Regularly examine the drain of the appliance and if necessary, clean it. If the drain is blocked, defrosted water collects in the bottom of the appliance.

Disposal

WARNING! Risk of injury or suffocation.

•Disconnect the appliance from the mains supply.

•Cut off the mains cable and discard it.

•Remove the door to prevent children and pets to be closed inside of the appliance.

•The refrigerant circuit and the insulation materials of this appliance are ozonefriendly.

•The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly.

•Do not cause damage to the part of the cooling unit that is near the heat exchanger.

5

OPERATION

Switching on

1.Insert the plug into the wall socket.

2.Turn the Temperature regulator clockwise to a medium setting.

Switching off

To turn off the appliance, turn the temperature regulator to the "O" position.

Temperature regulation

The temperature is regulated automatically.

A medium setting is generally the most suitable.

However, the exact setting should be chosen keeping in mind that the temperature inside the appliance depends on:

•room temperature,

•how often the door is opened,

•the quantity of food stored,

•the location of the appliance.

1.Turn the Temperature regulator toward lower settings to obtain the minimum coldness.

2.Turn the Temperature regulator toward higher settings to obtain the maximum coldness.

CAUTION! If the ambient temperature is high or the appliance is fully loaded, and the appliance is set to the lowest temperatures, it may run continuously causing frost to form on the rear wall. In this case the dial must be set to a higher temperature to allow automatic defrosting and therefore reduced energy consumption.

DAILY USE

WARNING! Refer to Safety chapters.

Cleaning the interior

Before using the appliance for the first time, the interior and all internal accessories should be washed with lukewarm water and some neutral soap to remove the typical smell of a brand-new product, then dried thoroughly.

CAUTION! Do not use detergents, abrasive powders, chlorine or oil-based cleaners as they will damage the finish.

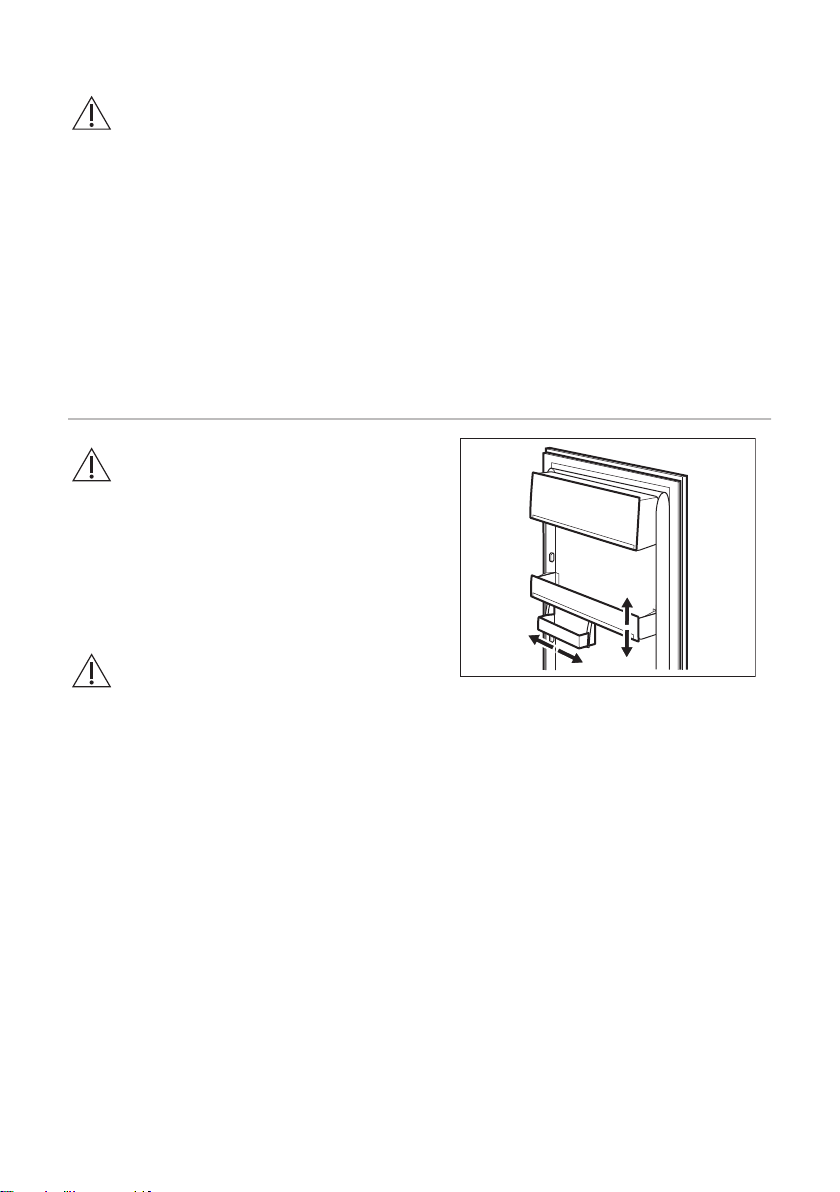

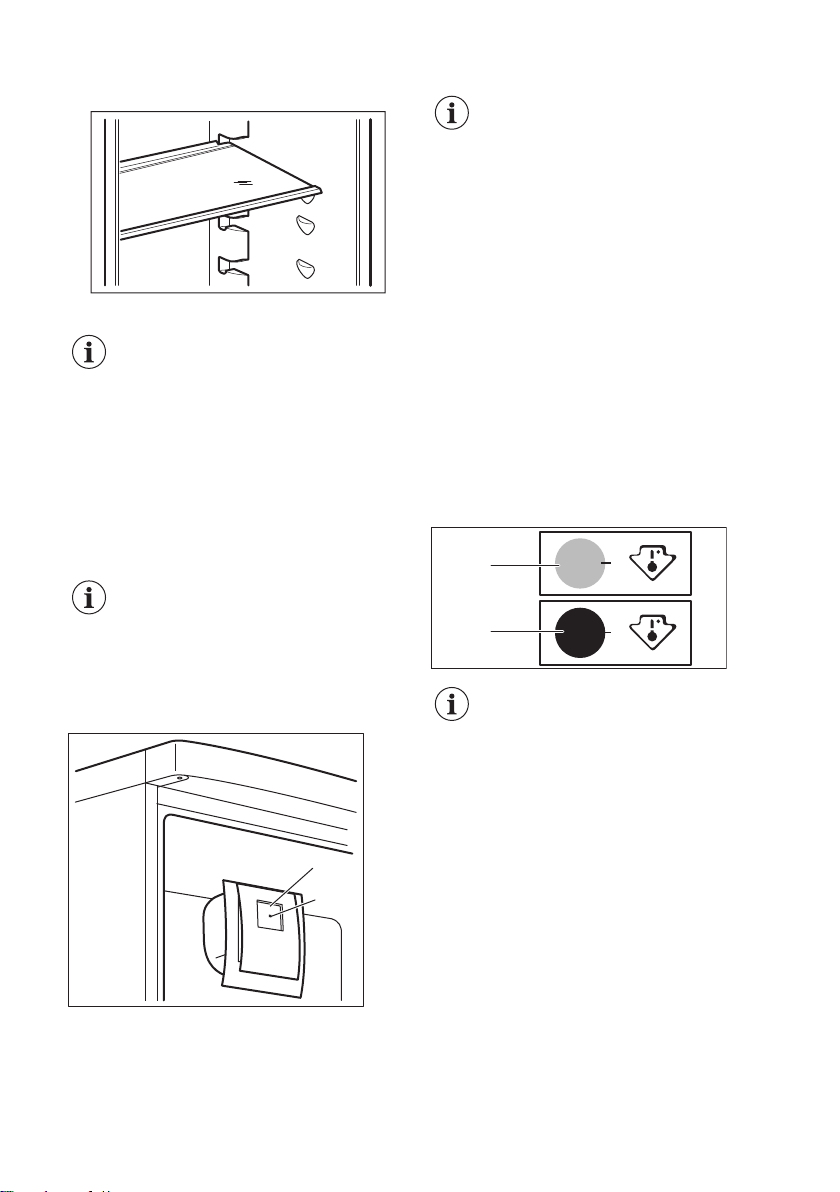

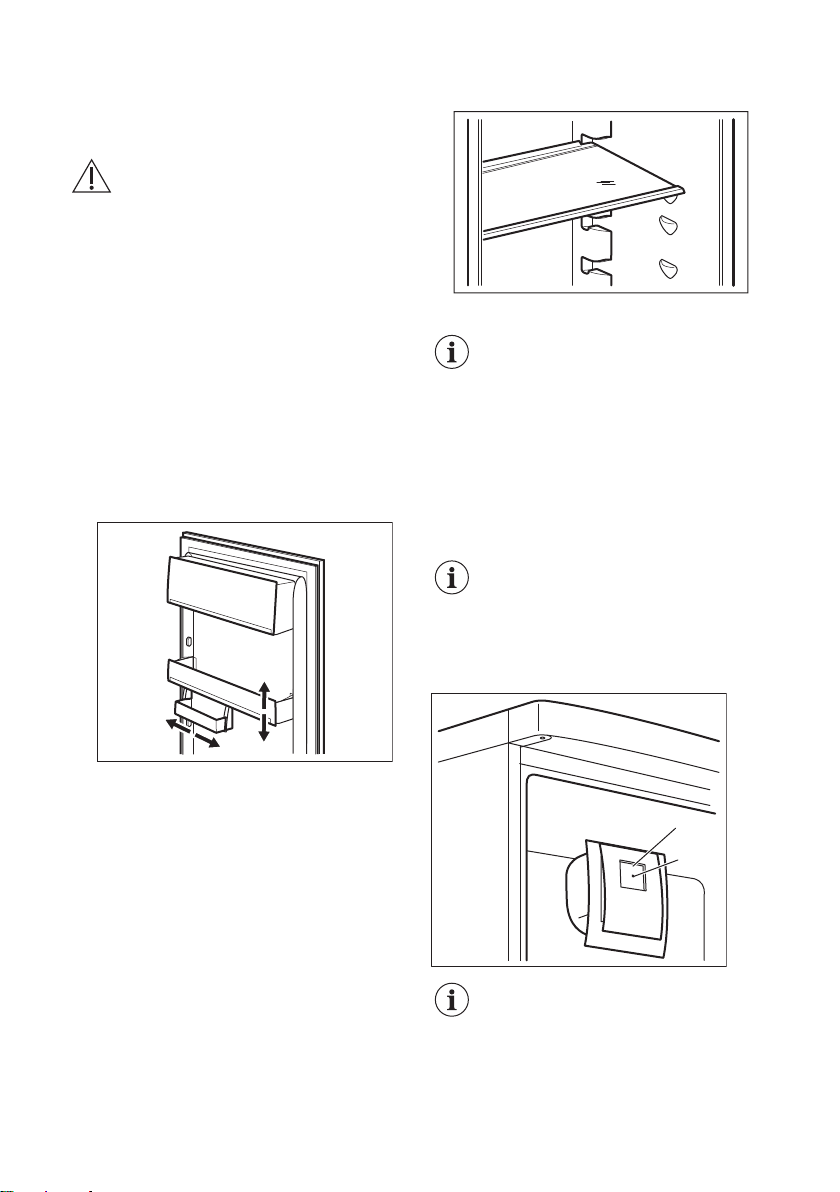

Positioning the door shelves

To permit storage of food packages of various sizes, the door shelves can be placed at different heights.

1.Gradually pull the shelf in the direction of the arrows until it comes free.

2.Reposition as required.

6

This model is equipped with a variable storage box which can be moved sideways.

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Do not move the glass shelf above the vegetable drawer to ensure correct air circulation.

Fan function

The Fan function lets the food cool quickly and keeps more uniform temperature in the compartment.

Switch on the Fan when the ambient temperature exceeds 25°C.

Press the switch (A) to switch on the fan. The green light (B) comes on.

A

B

When you switch off the appliance remember to turn off the fan by pressing the button

(A). The green light (B) comes off.

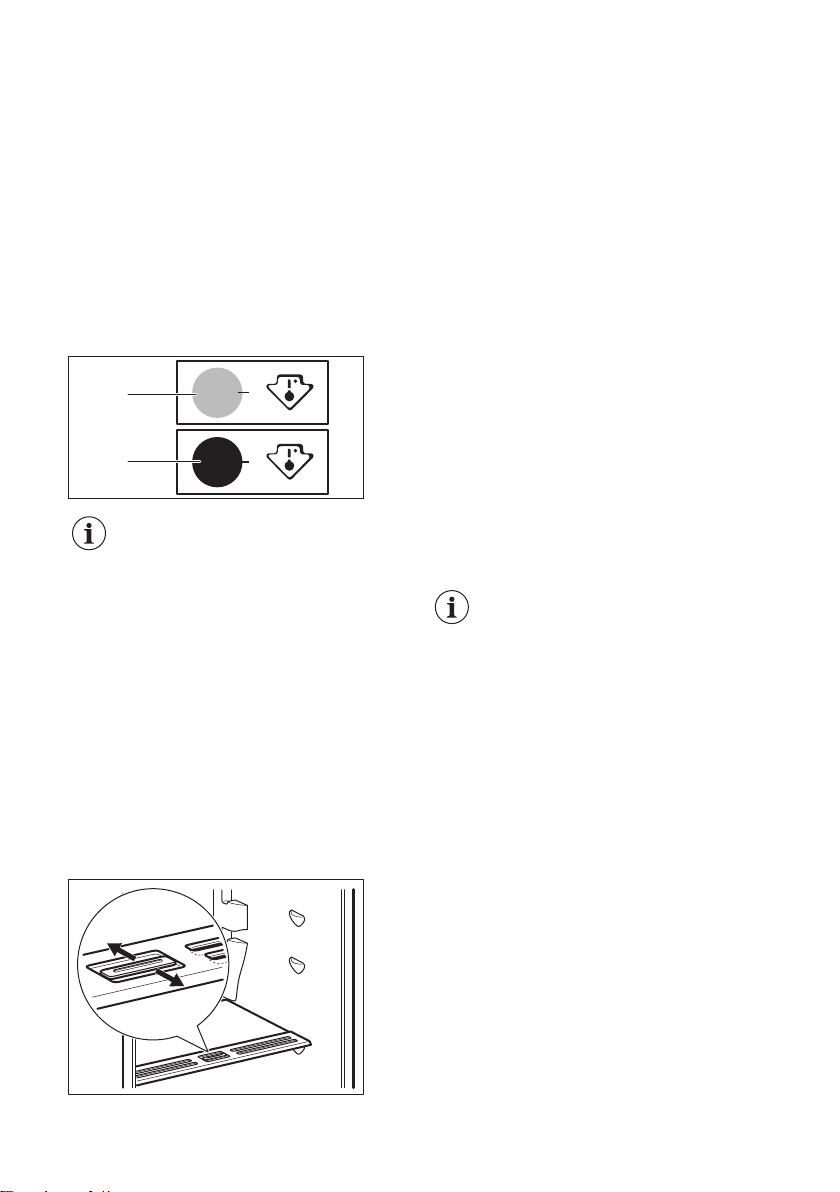

Temperature indicator

For proper storage of food the refrigerator is equipped with the temperature indicator. The symbol on the side wall of the appliance indicates the coldest area in the refrigerator.

If OK is displayed (A), put fresh food into area indicated by symbol, if not (B), adjust the temperature controller to a colder setting and wait 12 hours before checking the temperature indicator again.

AOK

BOK

After putting fresh food into the appliance or after opening the door repeatedly or for a long period, it is normal for the indicator not to show OK; wait at least 12 hours before readjusting the temperature controller.

Humidity control

The glass shelf incorporates a device with slits (adjustable by means of a sliding lever), which makes it possible to regulate the humidity in the vegetable drawer(s).

When the ventilation slots are closed:

the natural moisture content of the food in the fruit and vegetable compartments is preserved for longer.

When the ventilation slots are opened:

more air circulation results in a lower air moisture content in the fruit and vegetable compartments.

Freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.

To freeze fresh foods it is not necessary to change the medium setting.

However, for a faster freezing operation, turn the temperature regulator toward higher settings to obtain the maximum coldness.

In this condition, the refrigerator compartment temperature might drop below 0°C. If this occurs reset the temperature regulator to a warmer setting.

Place the fresh food to be frozen in the middle compartmenton the shelf of the freezer compartment that is the coldest place.

7

The maximum amount of food that can be frozen in 24 hours is specified on the rating plate, a label located on the inside of the appliance.

The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Storage of frozen food

When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 2 hours on the higher settings.

In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooling).

Thawing

Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.

Ice-cube production

This appliance is equipped with one or more trays for the production of ice-cubes.

Do not use metallic instruments to remove the trays from the freezer.

1.Fill these trays with water

2.Put the ice trays in the freezer compartment.

8

HINTS AND TIPS

Normal operating sounds

The following sounds are normal during operation:

•A faint gurgling and bubbling sound from coils sound when refrigerant is pumped.

•A whirring and pulsating sound from the compressor when refrigerant is pumped.

•A sudden cracking noise from inside appliance caused by thermic dilatation (a natural and not dangerous physical phenomenon).

•A faint click noise from the temperature regulator when the compressor switches on or off.

Hints for energy saving

•Do not open the door frequently or leave it open longer than absolutely necessary.

•If the ambient temperature is high and the Temperature Regulator is set to low temperature and the appliance is fully loaded, the compressor may run continuously, causing frost or ice on the evaporator. If this happens, set the Temperature Regulator toward warmer settings to allow automatic defrosting and so a saving in electricity consumption.

Hints for fresh food refrigeration

To obtain the best performance:

•do not store warm food or evaporating liquids in the refrigerator

•do cover or wrap the food, particularly if it has a strong flavour

•position food so that air can circulate freely around it

Hints for refrigeration

Useful hints:

•Meat (all types): wrap in a suitable packaging and place it on the glass

shelf above the vegetable drawer. Store meat for at most 1-2 days.

•Cooked foods, cold dishes: cover and place on any shelf.

•Fruit and vegetables: clean thoroughly and place in a special drawer. Bananas, potatoes, onions and garlic must not be kept in the refrigerator if not packed.

•Butter and cheese: place in a special airtight container or wrap in an aluminium foil or a polythene bag to exclude as much air as possible.

•Bottles: close with a cap and place on the door bottle shelf, or (if available) on the bottle rack.

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

•the maximum quantity of food which can be frozen in 24 hours is shown on the rating plate;

•the freezing process takes 24 hours no further food to be frozen should be added during this period;

•freeze only top quality, fresh and thoroughly cleaned, foodstuffs;

•prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;

•wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;

•do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;

•lean foods store better and longer than fatty ones; salt reduces the storage life of food;

•water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

•it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

•make sure that the commercially frozen foodstuffs were adequately stored by the retailer;

9

•be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;

•not open the door frequently or leave it open longer than absolutely necessary;

•once defrosted, food deteriorates rapidly and cannot be refrozen;

•do not exceed the storage period indicated by the food manufacturer.

CARE AND CLEANING

WARNING! Refer to Safety chapters.

General warnings

CAUTION! Unplug the

appliance before carrying out any maintenance operation.

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

The accessories and parts of the appliance are not suitable for washing in a dishwasher.

Periodic cleaning

CAUTION! Do not pull, move or damage any pipes and/or

cables inside the cabinet.

CAUTION! Take care of not to damage the cooling system.

CAUTION! When moving the cabinet, lift it by the front edge to avoid scratching the floor.

The equipment has to be cleaned regularly:

1.Clean the inside and accessories with lukewarm water and some neutral soap.

2.Regularly check the door seals and wipe clean to ensure they are clean and free from debris.

3.Rinse and dry thoroughly.

4.If accessible, clean the condenser and the compressor at the back of the appliance with a brush.

This operation will improve the performance of the appliance and save electricity consumption.

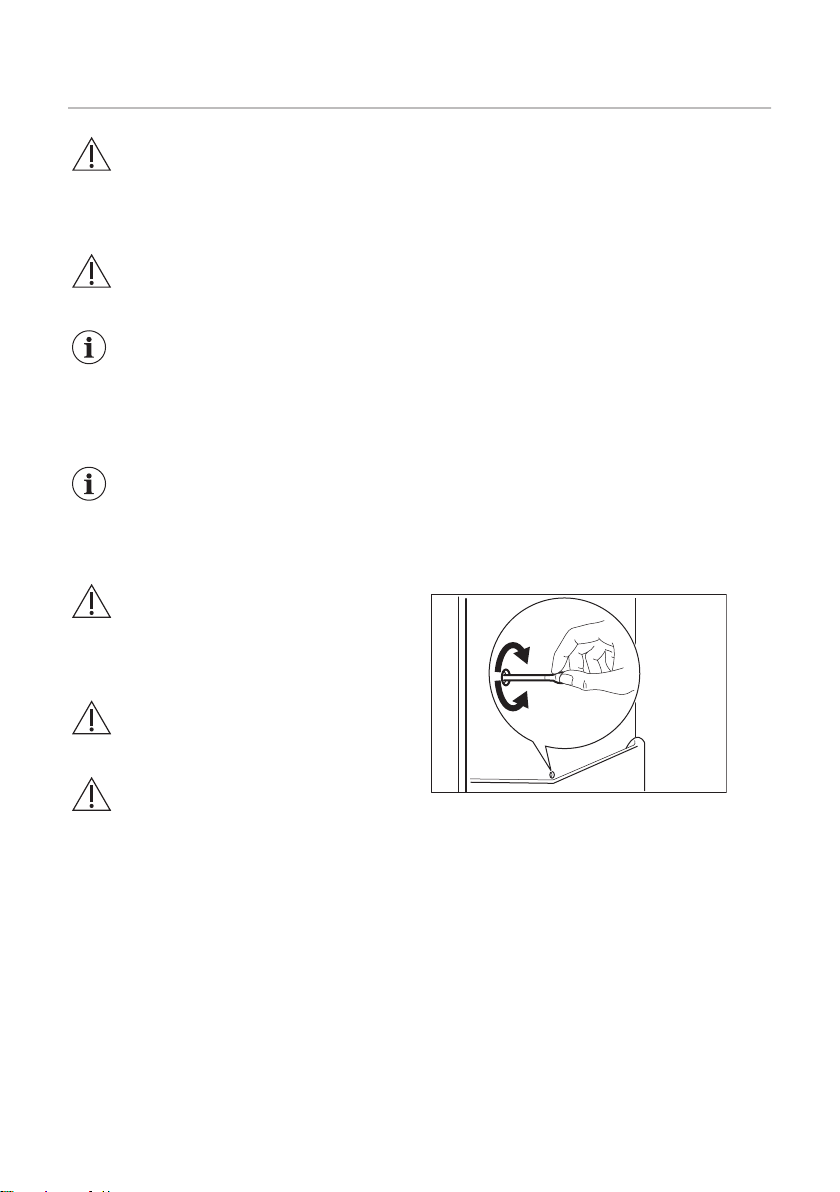

Defrosting of the refrigerator

Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.

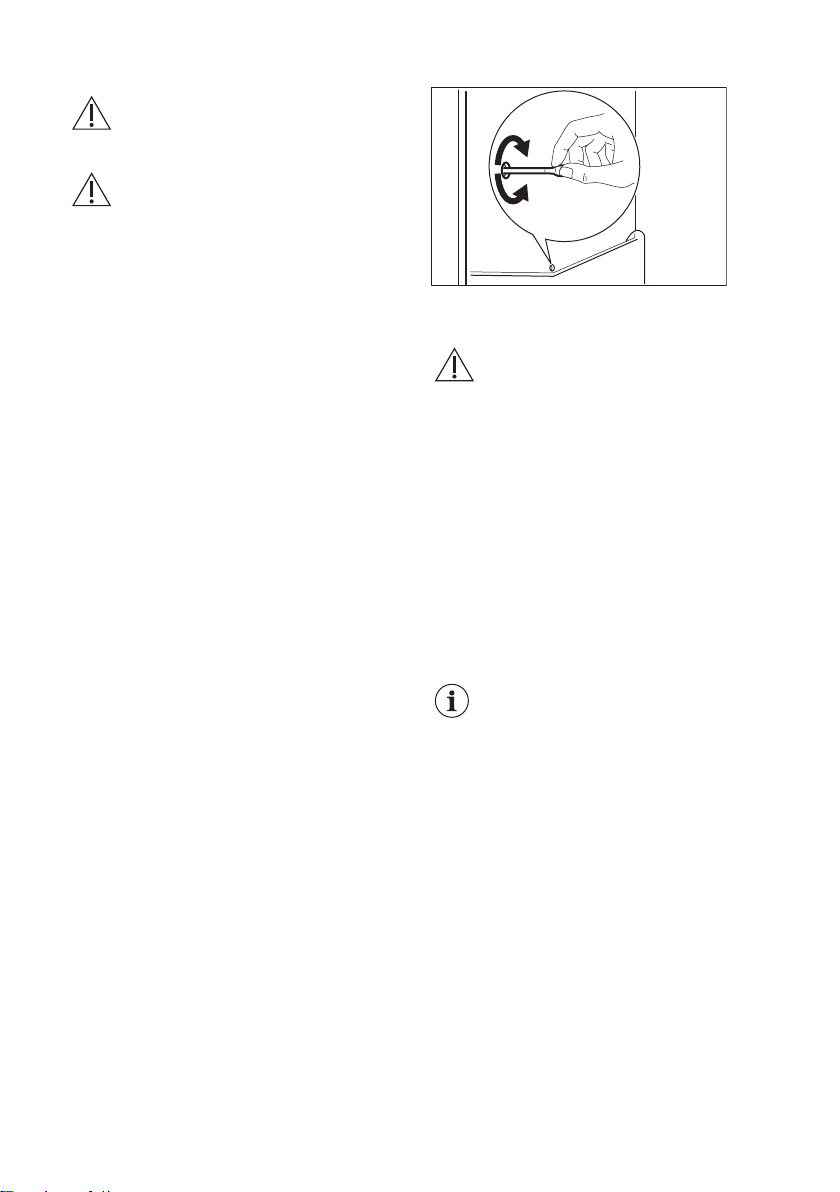

It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping onto the food inside.

10

Defrosting the freezer

CAUTION! Never use sharp metal tools to scrape off frost from the evaporator as you could damage it. Do not use a

mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer. A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.

About 12 hours prior to defrosting, set a lower temperature, in order to build up sufficient chill reserve for the interruption in operation.

A certain amount of frost will always form on the freezer shelves and around the top compartment.

Defrost the freezer when the frost layer reaches a thickness of about 3-5 mm.

1.Switch off the appliance, or pull out the electrical plug from the wall socket.

2.Remove any stored food, wrap it in several layers of newspaper and put it in a cool place.

WARNING! Do not touch frozen food with wet hands. Hands can freeze to the goods.

3.Leave the door open and protect the floor from the defrosting water e.g. with a cloth or a flat vessel.

In order to speed up the defrosting process, place a pot of warm water in the freezer compartment. In addition, remove pieces of ice with an ice scraper before defrosting is complete.

4.When defrosting is completed, dry the interior thoroughly.

5.Switch on the appliance.

Wait at least 3 hours before putting the food back into the freezer compartment.

Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

1.Disconnect the appliance from electricity supply.

2.Remove all food.

3.Defrost (if necessary) and clean the appliance and all accessories.

4.Clean the appliance and all accessories.

5.Leave the door/doors open to prevent unpleasant smells.

WARNING! If you want to keep the appliance switched on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

TROUBLESHOOTING

WARNING! Refer to Safety chapters.

What to do if...

Problem	Possible cause	Solution
The appliance does not op	The appliance is switched	Switch on the appliance.
erate.	off.

		11
Problem	Possible cause	Solution
	The mains plug is not con	Connect the mains plug to the
	nected to the mains sock	mains socket correctly.
	et correctly.
	There is no voltage in the	Connect a different electrical
	mains socket.	appliance to the mains socket.
		Contact a qualified electrician.
The appliance is noisy.	The appliance is not sup	Check if the appliance stands
	ported properly.	stable.
The lamp does not work.	The lamp is in stand-by.	Close and open the door.
	The lamp is defective.	Refer to "Replacing the lamp".
The compressor operates	Temperature is set incor	Refer to "Operation".
continually.	rectly.
	Many food products were	Wait some hours and then
	put in at the same time.	check the temperature again.
	The room temperature is	Refer to climate class chart on
	too high.	the rating plate.
	Food products placed in	Allow food products to cool to
	the appliance were too	room temperature before stor
	warm.	ing.
	The door is not closed cor	Refer to "Closing the door".
	rectly.
There is too much frost and	The door is not closed cor	Refer to "Closing the door".
ice.	rectly or the gasket is de
	formed/dirty.
	The water drainage plug is	Position the water drainage
	not correctly positioned.	plug in the correct way.
	Food products are not	Wrap the food products better.
	wrapped properly.
	Temperature is set incor	Refer to "Operation" .
	rectly.
Water flows on the rear	During the automatic de	This is correct.
plate of the refrigerator.	frosting process, frost
	melts on the rear plate.
Water flows inside the refrig	The water outlet is clog	Clean the water outlet.
erator.	ged.
	Food products prevent	Make sure that food products
	that water flows into the	do not touch the rear plate.
	water collector.

12
Problem	Possible cause	Solution
Water flows on the floor.	The melting water outlet is	Attach the melting water outlet
	not connected to the evap	to the evaporative tray.
	orative tray above the
	compressor.
The temperature in the ap	The temperature regulator	Set a higher/lower tempera
pliance is too low/too high.	is not set correctly.	ture.
	The door is not closed cor	Refer to "Closing the door".
	rectly.
	The food products' tem	Let the food products temper
	perature is too high.	ature decrease to room tem
		perature before storage.
	Many food products are	Store less food products at the
	stored at the same time.	same time.
	The thickness of the frost	Defrost the appliance.
	is greater than 4-5 mm.
	The door has been	Open the door only if necessa
	opened often.	ry.
	There is no cold air circu	Make sure that there is cold
	lation in the appliance.	air circulation in the appliance.

If the advice does not lead to	1
the desired result, contact the
nearest Authorised Service
Centre.

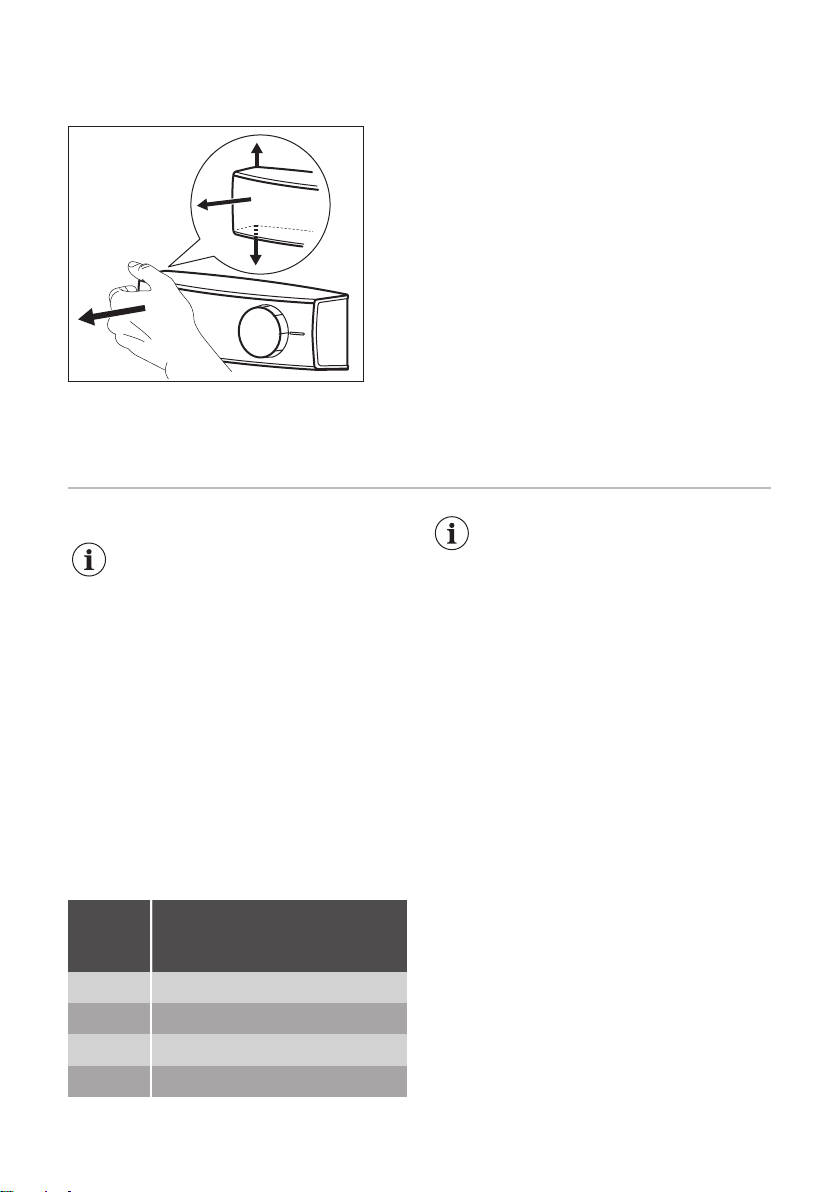

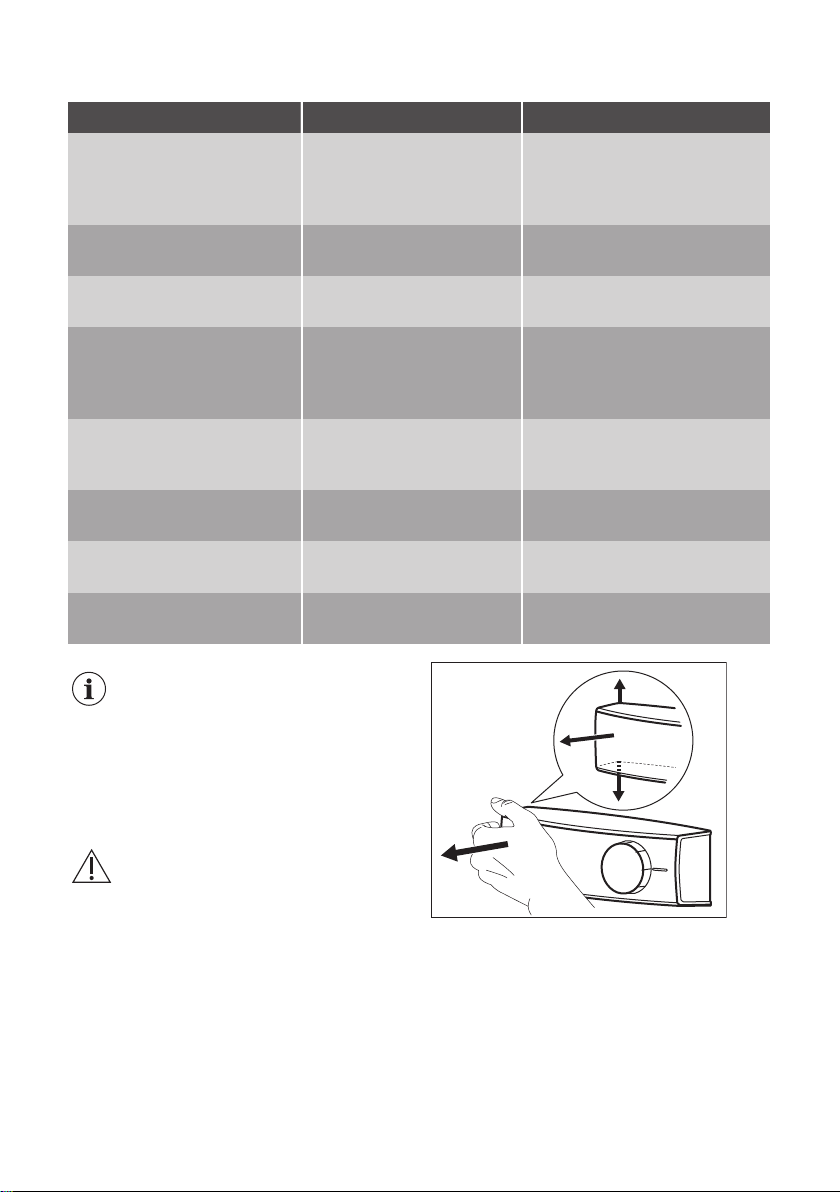

Replacing the lamp	2
	1
CAUTION! Disconnect the plug
from the mains socket.
1. Pull the left side of the lamp cover with
your fingers to unlock it. Remove the
cover by pulling it towards yourself.

2. Replace the lamp with one of the same power and shape, specifically designed for household appliances. The maximum power is shown on the light bulb cover.

3. Install the lamp cover.

4. Connect the plug to the mains socket.

5. Open the door.

Make sure that the light switches on.

Closing the door

1. Clean the door gaskets.

13

2.If necessary, adjust the door. Refer to assembly instructions.

3.If necessary, replace the defective door gaskets. Contact the Authorised Service Centre.

INSTALLATION

Location

Refer to the assembly instructions for the installation.

To ensure best performance, install the appliance well away from sources of heat such as radiators, boilers, direct sunlight etc. Make sure that air can circulate freely around the back of the cabinet.

Positioning

Install the appliance in a dry, well ventilated indoors where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance.

Cli	Ambient temperature
mate
class
SN	+10°C to + 32°C
N	+16°C to + 32°C
ST	+16°C to + 38°C

T+16°C to + 43°C

Some functional problems might occur for some types of models when operating outside of that range. The correct operation can only be guaranteed within the specified temperature range. If you have any doubts regarding where to install the appliance, please turn to the vendor, to our customer service or to the nearest Authorised Service Centre.

Electrical connection

•Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.

•The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

•The manufacturer declines all responsibility if the above safety precautions are not observed.

•This appliance complies with the E.E.C. Directives.

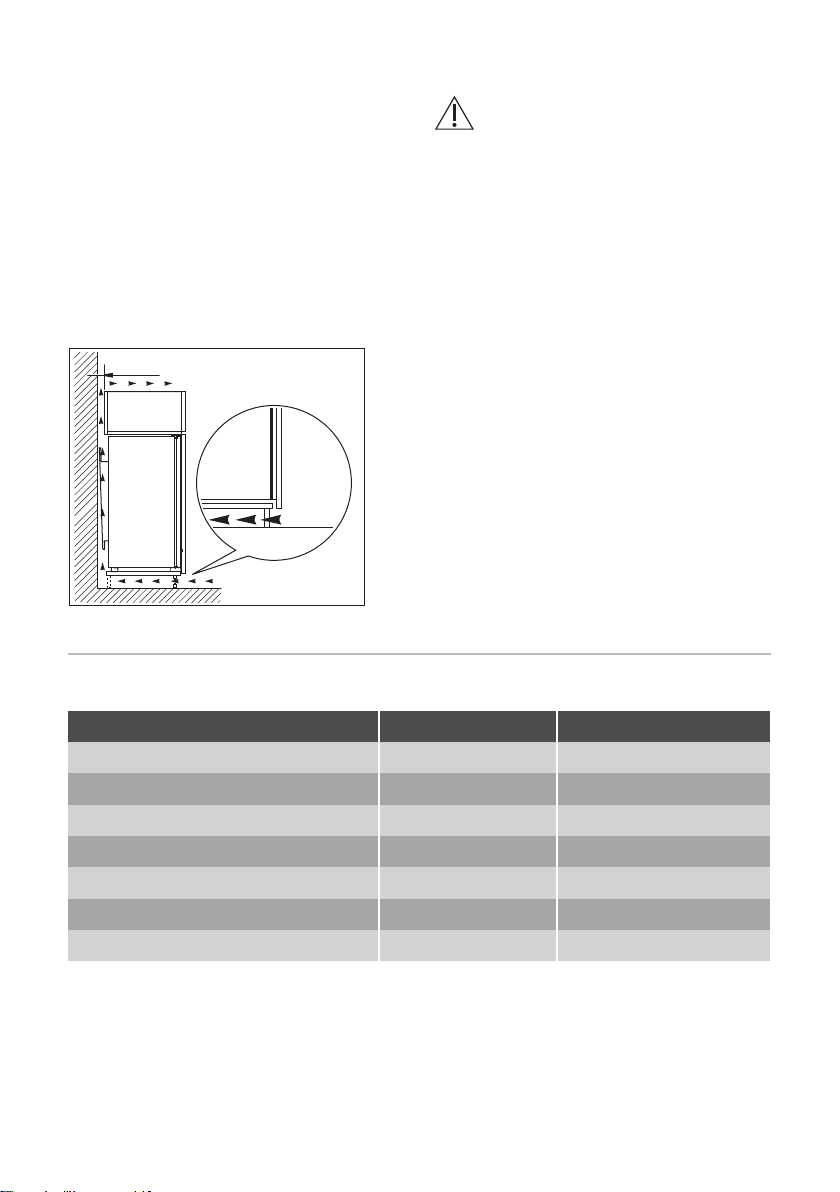

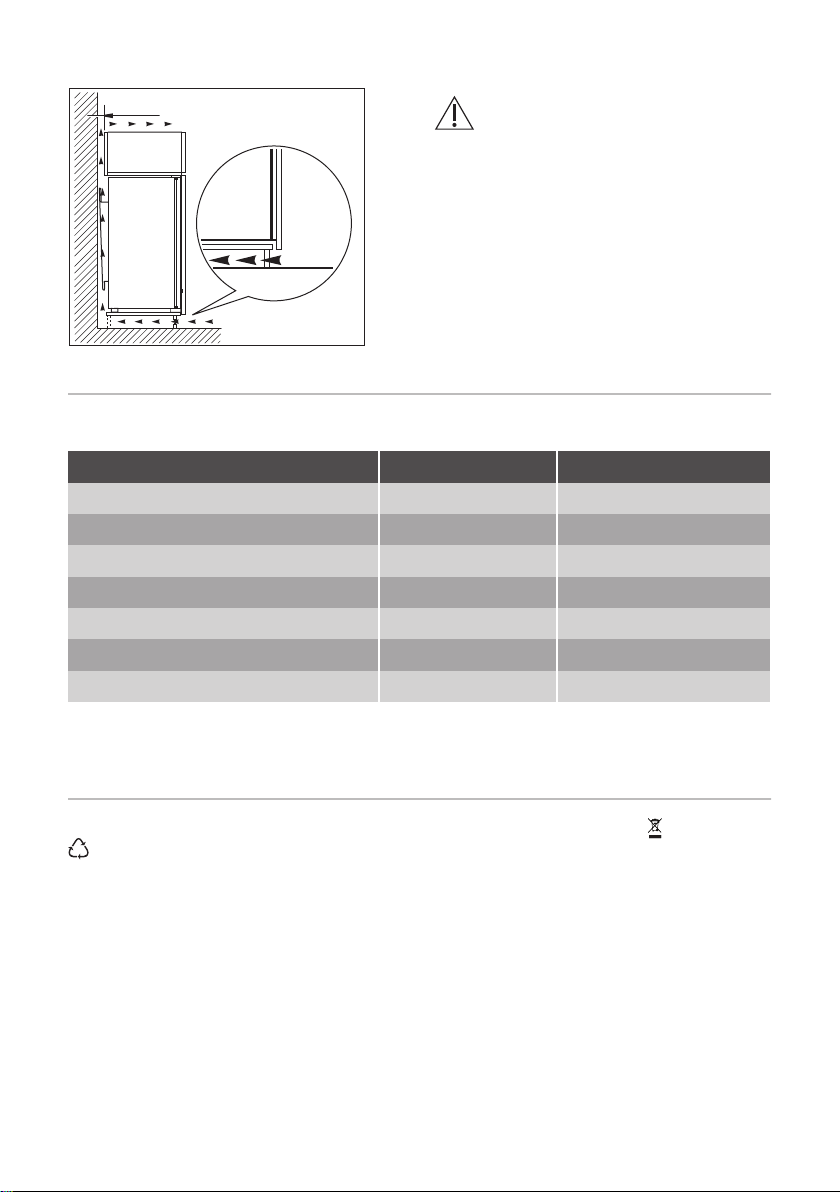

Ventilation requirements

The airflow behind the appliance must be sufficient.

5 CM	MIN.
	200 CM2
	MIN.
	200 CM2

CAUTION! Refer to the assembly instructions for the installation.

14

TECHNICAL DATA

Technical data

Dimensions of the recess
Height	mm	1780
Width	mm	560
Depth	mm	550
Rising time	Hours	22
Voltage	Volts	230-240
Frequency	Hz	50

The technical information is situated in the rating plate, on the external or internal

side of the appliance and in the energy label.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol . Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do

not dispose of appliances marked with the

symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

				15
	TABLE DES MATIÈRES
	Informations de sécurité	15	Entretien et nettoyage	23
Consignes de sécurité		16	En cas d'anomalie de fonctionnement	24
Fonctionnement		18	Installation	27
Utilisation quotidienne		18	Caractéristiques techniques	28
Conseils		21

Sous réserve de modifications.

INFORMATIONS DE SÉCURITÉ

Avant d'installer et d'utiliser cet appareil, lisez soigneusement les instructions fournies. Le fabricant ne pourra être tenu pour responsable des blessures et dégâts résultant d'une mauvaise installation ou utilisation. Conservez toujours les instructions dans un lieu sûr et accessible pour vous y référer ultérieurement.

Sécurité des enfants et des personnes vulnérables

•Cet appareil peut être utilisé par des enfants de plus de 8 ans et par des personnes dont les capacités sont réduites, à condition qu'ils soient surveillés ou qu'ils aient reçu des instructions concernant l'utilisation sécurisée de l'appareil et qu'ils comprennent les risques encourus.

•Ne laissez pas les enfants jouer avec l'appareil.

•Les enfants ne doivent pas nettoyer ni entreprendre une opération de maintenance sur l'appareil sans surveillance.

•Ne laissez pas les emballages à la portée des enfants et jetez-les convenablement.

Consignes générales de sécurité

•Cet appareil est conçu uniquement pour un usage domestique et des utilisations telles que :

–dans les bâtiments de ferme, dans des cuisines réservées aux employés dans des magasins, bureaux et autres lieux de travail ;

–pour une utilisation privée, par les clients, dans des hôtels et autres lieux de séjour.
