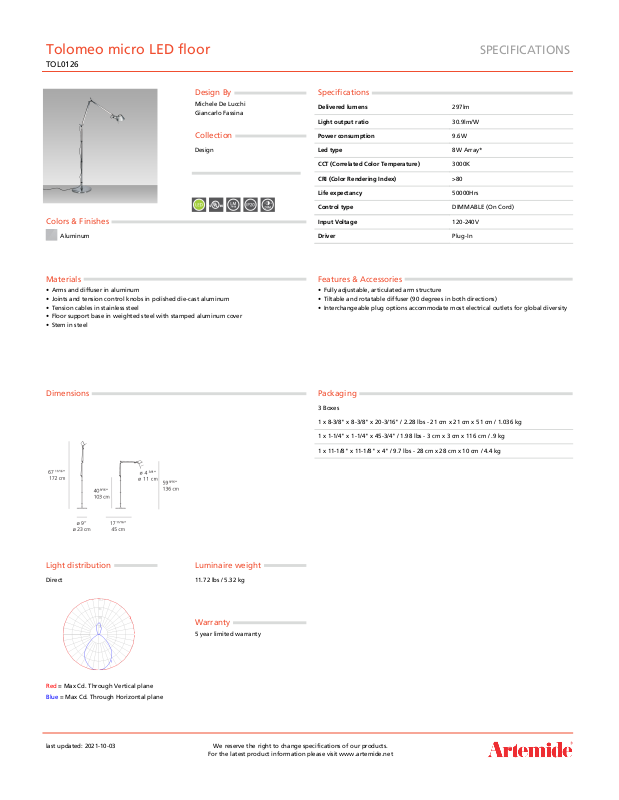

Tolomeo micro LED floor
TOL0126
SPECIFICATIONS
Design By
Michele De Lucchi
Giancarlo Fassina
Collection
Design
Colors & Finishes
Aluminum
Materials
• Arms and diffuser in aluminum
• Joints and tension control knobs in polished die-cast aluminum
• Tension cables in stainless steel
• Floor support base in weighted steel with stamped aluminum cover
• Stem in steel
Specifications
Delivered lumens 297lm
Light output ratio 30.9lm/W
Power consumption 9.6W
Led type 8W Array*
CCT (Correlated Color Temperature) 3000K
CRI (Color Rendering Index) >80
Life expectancy 50000Hrs
Control type DIMMABLE (On Cord)
Input Voltage 120-240V
Driver Plug-In
Features & Accessories
• Fully adjustable, articulated arm structure
• Tiltable and rotatable diffuser (90 degrees in both directions)
• Interchangeable plug options accommodate most electrical outlets for global diversity
Dimensions
Light distribution
Direct
Red = Max Cd. Through Vertical plane
Blue = Max Cd. Through Horizontal plane
Packaging
3 Boxes
1 x 8-3/8" x 8-3/8" x 20-3/16" / 2.28 lbs - 21 cm x 21 cm x 51 cm / 1.036 kg
1 x 1-1/4" x 1-1/4" x 45-3/4" / 1.98 lbs - 3 cm x 3 cm x 116 cm / .9 kg
1 x 11-1/8" x 11-1/8" x 4" / 9.7 lbs - 28 cm x 28 cm x 10 cm / 4.4 kg
Luminaire weight
11.72 lbs / 5.32 kg
Warranty
5 year limited warranty
last updated: 2021-10-03 We reserve the right to change specifications of our products.
For the latest product information please visit www.artemide.net
