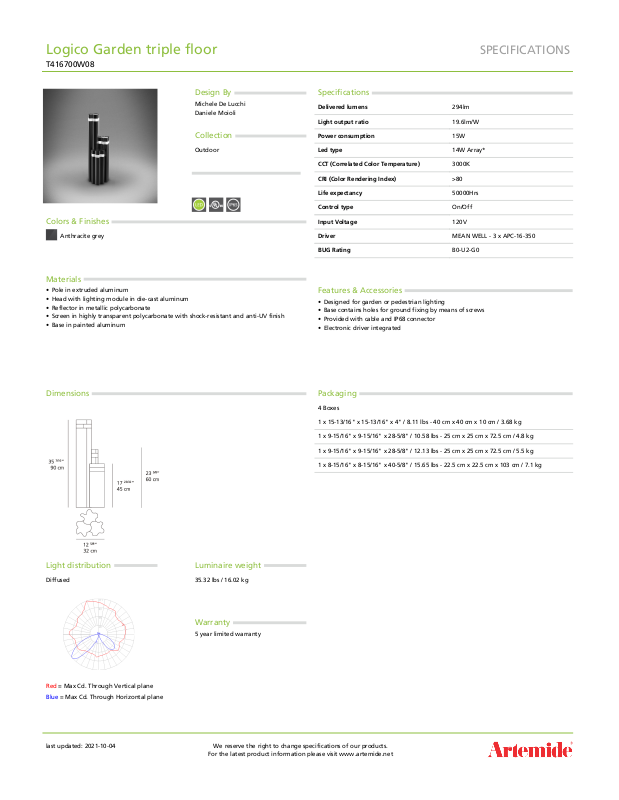

Logico Garden triple floor
T416700W08
SPECIFICATIONS
Design By
Michele De Lucchi
Daniele Moioli
Collection
Outdoor
Colors & Finishes
Anthracite grey
Materials
• Pole in extruded aluminum
• Head with lighting module in die-cast aluminum
• Reflector in metallic polycarbonate
• Screen in highly transparent polycarbonate with shock-resistant and anti-UV finish
• Base in painted aluminum
Specifications
Delivered lumens 294lm
Light output ratio 19.6lm/W
Power consumption 15W
Led type 14W Array*
CCT (Correlated Color Temperature) 3000K
CRI (Color Rendering Index) >80
Life expectancy 50000Hrs
Control type On/Off
Input Voltage 120V
Driver MEAN WELL - 3 x APC-16-350
BUG Rating B0-U2-G0
Features & Accessories
• Designed for garden or pedestrian lighting
• Base contains holes for ground fixing by means of screws
• Provided with cable and IP68 connector
• Electronic driver integrated
Dimensions
Light distribution
Diffused
Red = Max Cd. Through Vertical plane
Blue = Max Cd. Through Horizontal plane
Packaging
4 Boxes
1 x 15-13/16" x 15-13/16" x 4" / 8.11 lbs - 40 cm x 40 cm x 10 cm / 3.68 kg
1 x 9-15/16" x 9-15/16" x 28-5/8" / 10.58 lbs - 25 cm x 25 cm x 72.5 cm / 4.8 kg
1 x 9-15/16" x 9-15/16" x 28-5/8" / 12.13 lbs - 25 cm x 25 cm x 72.5 cm / 5.5 kg
1 x 8-15/16" x 8-15/16" x 40-5/8" / 15.65 lbs - 22.5 cm x 22.5 cm x 103 cm / 7.1 kg
Luminaire weight
35.32 lbs / 16.02 kg
Warranty
5 year limited warranty
last updated: 2021-10-04 We reserve the right to change specifications of our products.
For the latest product information please visit www.artemide.net
