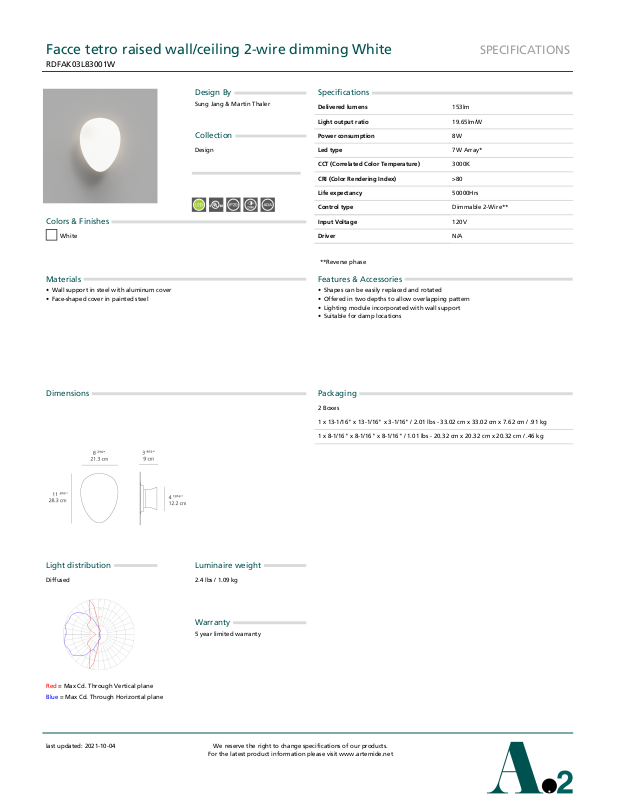

Facce tetro raised wall/ceiling 2-wire dimming White
RDFAK03L83001W
SPECIFICATIONS
Colors & Finishes
White
Materials
• Wall support in steel with aluminum cover
• Face-shaped cover in painted steel
Design By
Sung Jang & Martin Thaler
Collection
Design
Specifications
Delivered lumens 153lm
Light output ratio 19.65lm/W
Power consumption 8W
Led type 7W Array*
CCT (Correlated Color Temperature) 3000K
CRI (Color Rendering Index) >80
Life expectancy 50000Hrs
Control type Dimmable 2-Wire**
Input Voltage 120V
Driver N/A
**Reverse phase
Features & Accessories
• Shapes can be easily replaced and rotated
• Offered in two depths to allow overlapping pattern
• Lighting module incorporated with wall support
• Suitable for damp locations
Dimensions
Light distribution
Diffused
Red = Max Cd. Through Vertical plane
Blue = Max Cd. Through Horizontal plane
Packaging
2 Boxes
1 x 13-1/16" x 13-1/16" x 3-1/16" / 2.01 lbs - 33.02 cm x 33.02 cm x 7.62 cm / .91 kg
1 x 8-1/16" x 8-1/16" x 8-1/16" / 1.01 lbs - 20.32 cm x 20.32 cm x 20.32 cm / .46 kg
Luminaire weight
2.4 lbs / 1.09 kg
Warranty
5 year limited warranty
last updated: 2021-10-04 We reserve the right to change specifications of our products.
For the latest product information please visit www.artemide.net
