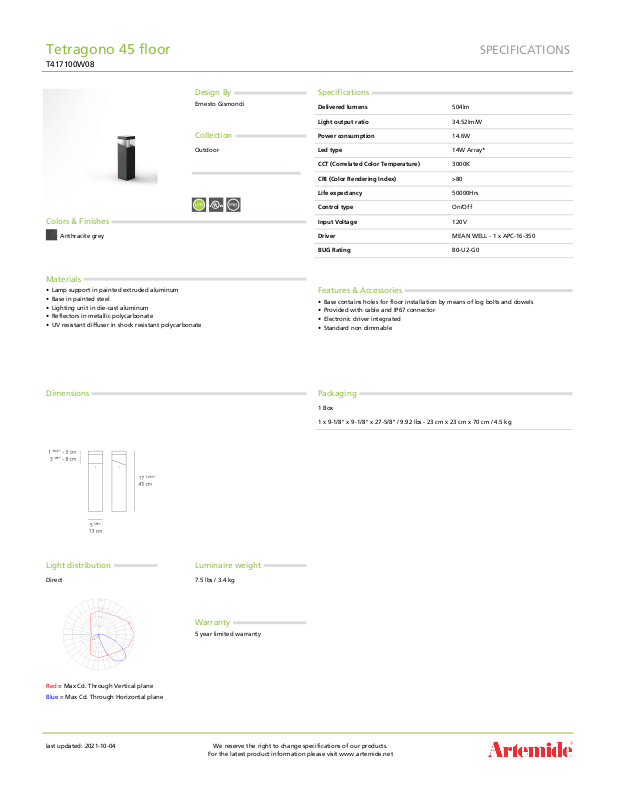

Page 1
Tetragono 45 floor
T417100W08
SPECIFICATIONS
Colors & Finishes
Anthracite grey
Materials
• Lamp support in painted extruded aluminum
• Base in painted steel
• Lighting unit in die-cast aluminum
• Reflectors in metallic polycarbonate
• UV resistant diffuser in shock resistant polycarbonate
Design By
Ernesto Gismondi
Collection
Outdoor
Specifications
Delivered lumens 504lm
Light output ratio 34.52lm/W
Power consumption 14.6W
Led type 14W Array*
CCT (Correlated Color Temperature) 3000K
CRI (Color Rendering Index) >80
Life expectancy 50000Hrs
Control type On/Off
Input Voltage 120V
Driver MEAN WELL - 1 x APC-16-350
BUG Rating B0-U2-G0
Features & Accessories
• Base contains holes for floor installation by means of log bolts and dowels
• Provided with cable and IP67 connector
• Electronic driver integrated
• Standard non dimmable
Dimensions
Light distribution
Direct
Red = Max Cd. Through Vertical plane
Blue = Max Cd. Through Horizontal plane
Packaging
1 Box
1 x 9-1/8" x 9-1/8" x 27-5/8" / 9.92 lbs - 23 cm x 23 cm x 70 cm / 4.5 kg
Luminaire weight
7.5 lbs / 3.4 kg
Warranty
5 year limited warranty
last updated: 2021-10-04 We reserve the right to change specifications of our products.
For the latest product information please visit www.artemide.net
