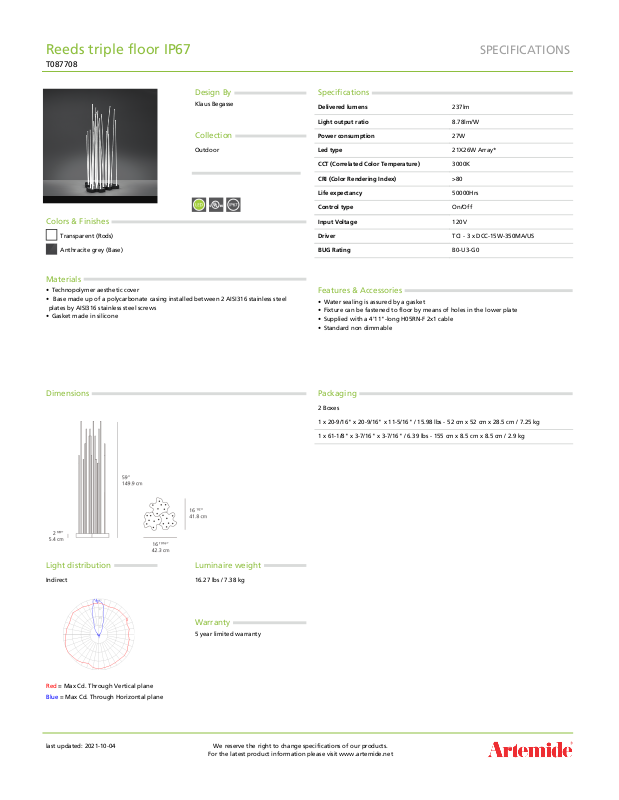

Reeds triple floor IP67
T087708
SPECIFICATIONS
Design By
Klaus Begasse
Collection
Outdoor
Colors & Finishes
Transparent (Rods)
Anthracite grey (Base)
Materials
• Technopolymer aesthetic cover
• Base made up of a polycarbonate casing installed between 2 AISI316 stainless steel
plates by AISI316 stainless steel screws
• Gasket made in silicone
Specifications
Delivered lumens 237lm
Light output ratio 8.78lm/W
Power consumption 27W
Led type 21X26W Array*
CCT (Correlated Color Temperature) 3000K
CRI (Color Rendering Index) >80
Life expectancy 50000Hrs
Control type On/Off
Input Voltage 120V
Driver TCI - 3 x DCC-15W-350MA/US
BUG Rating B0-U3-G0
Features & Accessories
• Water sealing is assured by a gasket
• Fixture can be fastened to floor by means of holes in the lower plate
• Supplied with a 4'11"-long H05RN-F 2x1 cable
• Standard non dimmable
Dimensions
Light distribution
Indirect
Red = Max Cd. Through Vertical plane
Blue = Max Cd. Through Horizontal plane
Packaging
2 Boxes
1 x 20-9/16" x 20-9/16" x 11-5/16" / 15.98 lbs - 52 cm x 52 cm x 28.5 cm / 7.25 kg
1 x 61-1/8" x 3-7/16" x 3-7/16" / 6.39 lbs - 155 cm x 8.5 cm x 8.5 cm / 2.9 kg
Luminaire weight
16.27 lbs / 7.38 kg
Warranty
5 year limited warranty
last updated: 2021-10-04 We reserve the right to change specifications of our products.
For the latest product information please visit www.artemide.net
