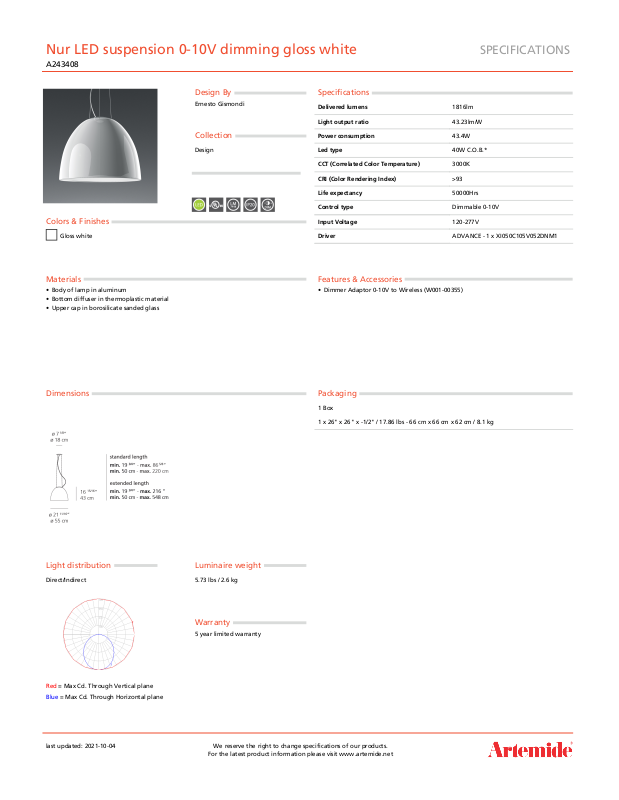

Nur LED suspension 0-10V dimming gloss white
A243408
SPECIFICATIONS
Colors & Finishes
Gloss white
Materials
• Body of lamp in aluminum
• Bottom diffuser in thermoplastic material
• Upper cap in borosilicate sanded glass
Design By
Ernesto Gismondi
Collection
Design
Specifications
Delivered lumens 1816lm
Light output ratio 43.23lm/W
Power consumption 43.4W
Led type 40W C.O.B.*
CCT (Correlated Color Temperature) 3000K
CRI (Color Rendering Index) >93
Life expectancy 50000Hrs
Control type Dimmable 0-10V
Input Voltage 120-277V
Driver ADVANCE - 1 x XI050C105V052DNM1
Features & Accessories
• Dimmer Adaptor 0-10V to Wireless (W001-00355)
Dimensions
Light distribution
Direct/Indirect
Red = Max Cd. Through Vertical plane
Blue = Max Cd. Through Horizontal plane
Packaging
1 Box
1 x 26" x 26" x -1/2" / 17.86 lbs - 66 cm x 66 cm x 62 cm / 8.1 kg
Luminaire weight
5.73 lbs / 2.6 kg
Warranty
5 year limited warranty
last updated: 2021-10-04 We reserve the right to change specifications of our products.
For the latest product information please visit www.artemide.net
