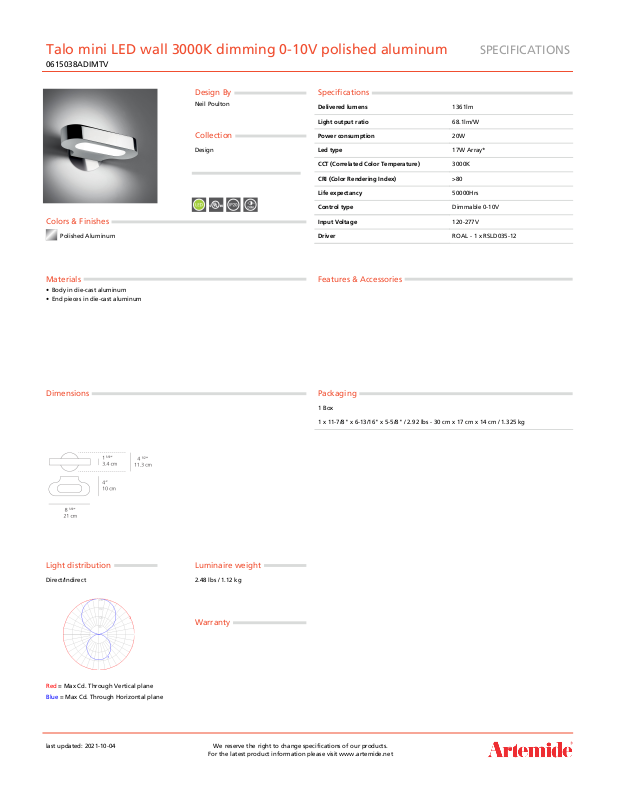

Talo mini LED wall 3000K dimming 0-10V polished aluminum
0615038ADIMTV
SPECIFICATIONS
Colors & Finishes
Polished Aluminum
Materials
• Body in die-cast aluminum
• End pieces in die-cast aluminum
Design By
Neil Poulton
Collection
Design
Specifications
Delivered lumens 1361lm
Light output ratio 68.1lm/W
Power consumption 20W
Led type 17W Array*
CCT (Correlated Color Temperature) 3000K
CRI (Color Rendering Index) >80
Life expectancy 50000Hrs
Control type Dimmable 0-10V
Input Voltage 120-277V
Driver ROAL - 1 x RSLD035-12
Features & Accessories
Dimensions
Light distribution
Direct/Indirect
Red = Max Cd. Through Vertical plane
Blue = Max Cd. Through Horizontal plane
Packaging
1 Box
1 x 11-7/8" x 6-13/16" x 5-5/8" / 2.92 lbs - 30 cm x 17 cm x 14 cm / 1.325 kg
Luminaire weight
2.48 lbs / 1.12 kg
Warranty
last updated: 2021-10-04 We reserve the right to change specifications of our products.
For the latest product information please visit www.artemide.net
