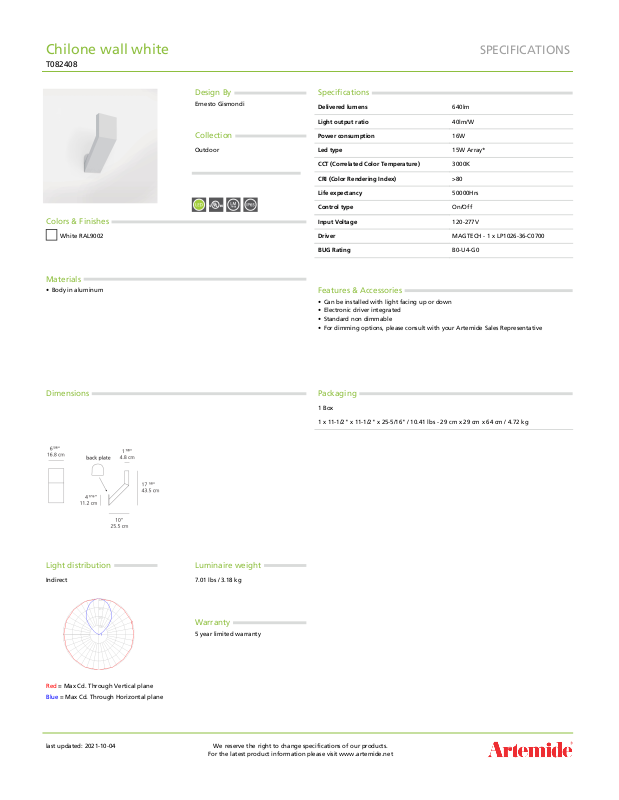

Chilone wall white
T082408
SPECIFICATIONS
Colors & Finishes
White RAL9002
Materials
• Body in aluminum
Design By
Ernesto Gismondi
Collection
Outdoor
Specifications
Delivered lumens 640lm
Light output ratio 40lm/W
Power consumption 16W
Led type 15W Array*
CCT (Correlated Color Temperature) 3000K
CRI (Color Rendering Index) >80
Life expectancy 50000Hrs
Control type On/Off
Input Voltage 120-277V
Driver MAGTECH - 1 x LP1026-36-C0700
BUG Rating B0-U4-G0
Features & Accessories
• Can be installed with light facing up or down
• Electronic driver integrated
• Standard non dimmable
• For dimming options, please consult with your Artemide Sales Representative
Dimensions
Light distribution
Indirect
Red = Max Cd. Through Vertical plane
Blue = Max Cd. Through Horizontal plane
Packaging
1 Box
1 x 11-1/2" x 11-1/2" x 25-5/16" / 10.41 lbs - 29 cm x 29 cm x 64 cm / 4.72 kg
Luminaire weight
7.01 lbs / 3.18 kg
Warranty
5 year limited warranty
last updated: 2021-10-04 We reserve the right to change specifications of our products.
For the latest product information please visit www.artemide.net
