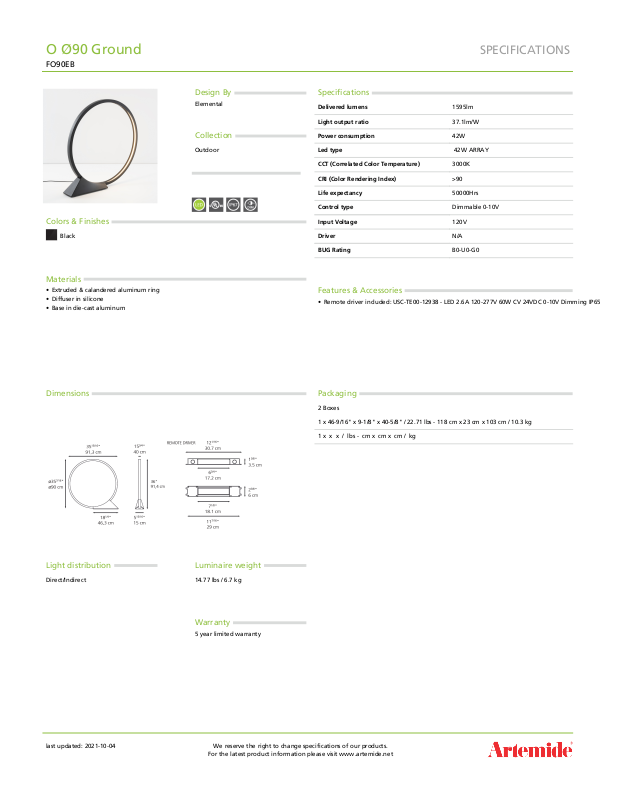

Page 1
O Ø90 Ground
FO90EB
SPECIFICATIONS
Colors & Finishes
Black
Materials
• Extruded & calandered aluminum ring
• Diffuser in silicone
• Base in die-cast aluminum
Design By
Elemental
Collection
Outdoor
Specifications
Delivered lumens 1595lm
Light output ratio 37.1lm/W
Power consumption 42W
Led type 42W ARRAY
CCT (Correlated Color Temperature) 3000K
CRI (Color Rendering Index) >90
Life expectancy 50000Hrs
Control type Dimmable 0-10V
Input Voltage 120V
Driver N/A
BUG Rating B0-U0-G0
Features & Accessories
• Remote driver included: USC-TE00-12938 - LED 2.6A 120-277V 60W CV 24VDC 0-10V Dimming IP65
Dimensions
Light distribution
Direct/Indirect
Packaging
2 Boxes
1 x 46-9/16" x 9-1/8" x 40-5/8" / 22.71 lbs - 118 cm x 23 cm x 103 cm / 10.3 kg
1 x x x / lbs - cm x cm x cm / kg
Luminaire weight
14.77 lbs / 6.7 kg
Warranty
5 year limited warranty
last updated: 2021-10-04 We reserve the right to change specifications of our products.
For the latest product information please visit www.artemide.net
