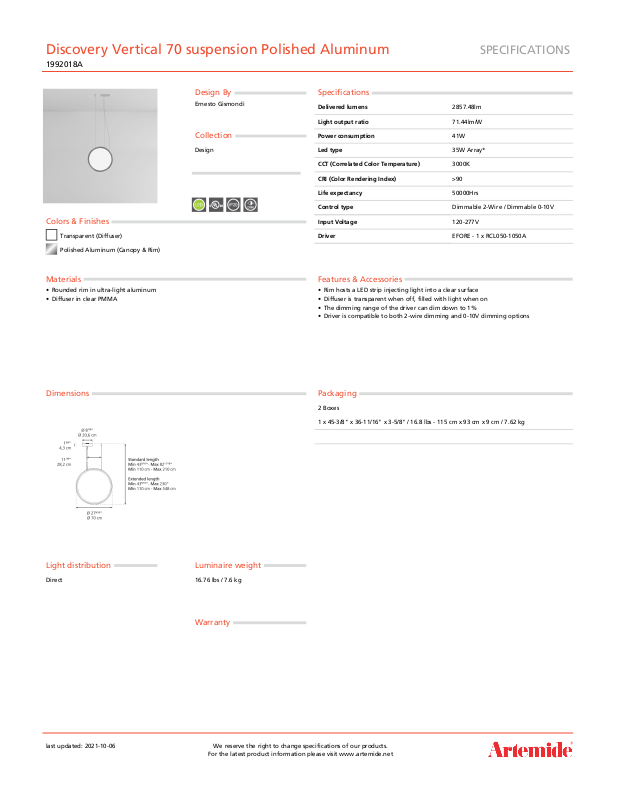

Discovery Vertical 70 suspension Polished Aluminum
1992018A
SPECIFICATIONS
Colors & Finishes
Transparent (Diffuser)
Polished Aluminum (Canopy & Rim)
Materials
• Rounded rim in ultra-light aluminum
• Diffuser in clear PMMA
Design By
Ernesto Gismondi
Collection
Design
Specifications
Delivered lumens 2857.48lm
Light output ratio 71.44lm/W
Power consumption 41W
Led type 35W Array*
CCT (Correlated Color Temperature) 3000K
CRI (Color Rendering Index) >90
Life expectancy 50000Hrs
Control type Dimmable 2-Wire / Dimmable 0-10V
Input Voltage 120-277V
Driver EFORE - 1 x RCL050-1050A
Features & Accessories
• Rim hosts a LED strip injecting light into a clear surface
• Diffuser is transparent when off, filled with light when on
• The dimming range of the driver can dim down to 1%
• Driver is compatible to both 2-wire dimming and 0-10V dimming options
Dimensions
Light distribution
Direct
Packaging
2 Boxes
1 x 45-3/8" x 36-11/16" x 3-5/8" / 16.8 lbs - 115 cm x 93 cm x 9 cm / 7.62 kg
Luminaire weight
16.76 lbs / 7.6 kg
Warranty
last updated: 2021-10-06 We reserve the right to change specifications of our products.
For the latest product information please visit www.artemide.net
