MANUAL
FiberLink
7220 Series
RGB and Stereo Audio over one
single mode or multimode fiber.
Installation and Operations
Manual
WWW.ARTEL.COM
Page 2
FiberLink 7220 Series
Contents
Contents
Welcome ................................................................. 3
Features ..................................................................3
Package Contents .........................................................3
Technical Specications ...................................................4
Installation Instructions ...................................................6
Alarm Switch Settings .....................................................7
Video Pin Out .............................................................8
Indicator LEDs ............................................................9
Operating Pointers .......................................................10
Troubleshooting .........................................................10
Maintenance and Repairs ................................................11
Certications ............................................................11
Page 2 FiberLink 7220 Series User’s Manual
Page 3
FiberLink 7220 Series
Welcome | Features | Package Contents
Welcome
The FiberLink 7220 Series is a transmitter/receiver pair that transmits a single channel of
RGBHV video and two audio channels over one single mode or multimode ber. It is
available as a freestanding box unit or as a card version for use in the rackmountable
6000A card cage.
The system’s all digital encoding delivers noise-free transmissions that retain all of their
initial parameters, regardless of ber optic cable attenuation. System operation may be
easily monitored using integral indicator LEDs on each unit that continuously signify the
presence of baseband video and audio signals.
Features
• Supports VGA, SVGA, XGA and WXGA (640 x 480 up to 1366 x 768)
• Supports HDTV resolutions of 480p, 720p and 1080i (RGBHV format only)
• Uses all digital processing with no compression for crystal clear signals and no color
pixel skewing
• Requires no adjustments, equalization or de-skewing during installation
• Transmits signals over one single mode or multimode ber optic core at 1310 nm
• wavelength
• Low audio/video skew, <300 uSec
• Use with FiberLink 8000 and 8100 Series Optical DAs for complex point-to-multipoint
distribution
• RoHS Compliant
Package Contents
• One FiberLink 7220 or 7221
• This User’s Manual
Page 3FiberLink 7220 Series User’s Manual
Page 4
FiberLink 7220 Series
Technical Specications
Technical Specications
Model Part Number Specication
Unit Type Part Number
Transmitter Box 7220-B7S
Transmitter Rack Card 7220-C7S
Receiver Box 7221-B7S
Receiver Rack Card 7221-C7S
Video Specications
Input Impedance RGB: 75 Ohms; H&V: Hi-Z
Input Level RGB: 714 mV p-p; H&V: 3 to 5 V p-p
H Sync Frequency Range 31.5 to 60 kHz
V Sync Frequency Range 30 to 85 Hz
Number of Video Channels 1 RGBHV
RGB Format Supported RGB with separate H and V
Signal Connectors HD-15F
RGB Processing 24 bits, no compression or scaling
Audio Specications
Number of Audio Channels 2, unbalanced
Frequency Response +0/-0.5 dB, 20 Hz to 20 kHz
Input Impedance >24 k Ohms
Output Impedance <1 Ohm
Maximum Audio Level +10 dBu
THD+N 0.005%; 20 Hz - 20 kHz
SNR (A-Weighted) 95 dB
Channel Phase Dierential +/-0.1o
Crosstalk Min. 95 dB (1 kHz)
Signal Connectors 3.5mm Stereo jack
Audio to Video Di. Delay (skew) <300 uS
Page 4 FiberLink 7220 Series User’s Manual
Page 5
FiberLink 7220 Series
Technical Specications
Technical Specications
Optical Specications
Operating Wavelength 1310 nm; MM or SM
Optical Fiber 62.5/125 microns MM,
50/125 microns MM or
8-10/125 microns SM
Optical Connector ST
General Specications
LED Indicators Power, Video, Audio
Alarm LED (Card Version Only)
Power 9-24 volts AC or DC, 5 watts
Operating Temp. Range -20 to +60º C
Dimensions 5 W x 1.15 H x 5.25 L (inches)
127 W x 29 H x 133 L (mm)
Page 5FiberLink 7220 Series User’s Manual
Page 6
FiberLink 7220 Series
Installation Instructions
Installation Instructions
The FiberLink 7220 Series transmission systems ready for immediate use with with no
special conguration or installation. The following instructions describe the typical
installation procedure and the function of the LED indicators.
The following instructions describe the typical installation procedure:
1) Connect the video source to the video input HD-15F connector on the transmitter unit.
2) Connect the video output on the receiver unit to the HD-15F connector.
3) Connect the ber optic cable between the two Pure Digital FiberLink units.
4) Connect the audio input signals to the transmitter stereo jack and the audio output
to the receiver stereo jack.
5) Apply power to both FiberLink units. For box versions using DC power connections,
refer to Figure 1.
6) When power is applied, the green POWER LED will light, indicating the presence of
operating power. The VIDEO LED will give an indication as described on Page 8.
7) The green AUDIO LED will give an indication as stated on Page 8.
8) The system should now be operational.
Note: The Rack Card version has an additional red LED for indicating the presence of an alarm
condition (loss of signal). Refer to Indicator LED’s and Alarm Circuitry sections of this manual.

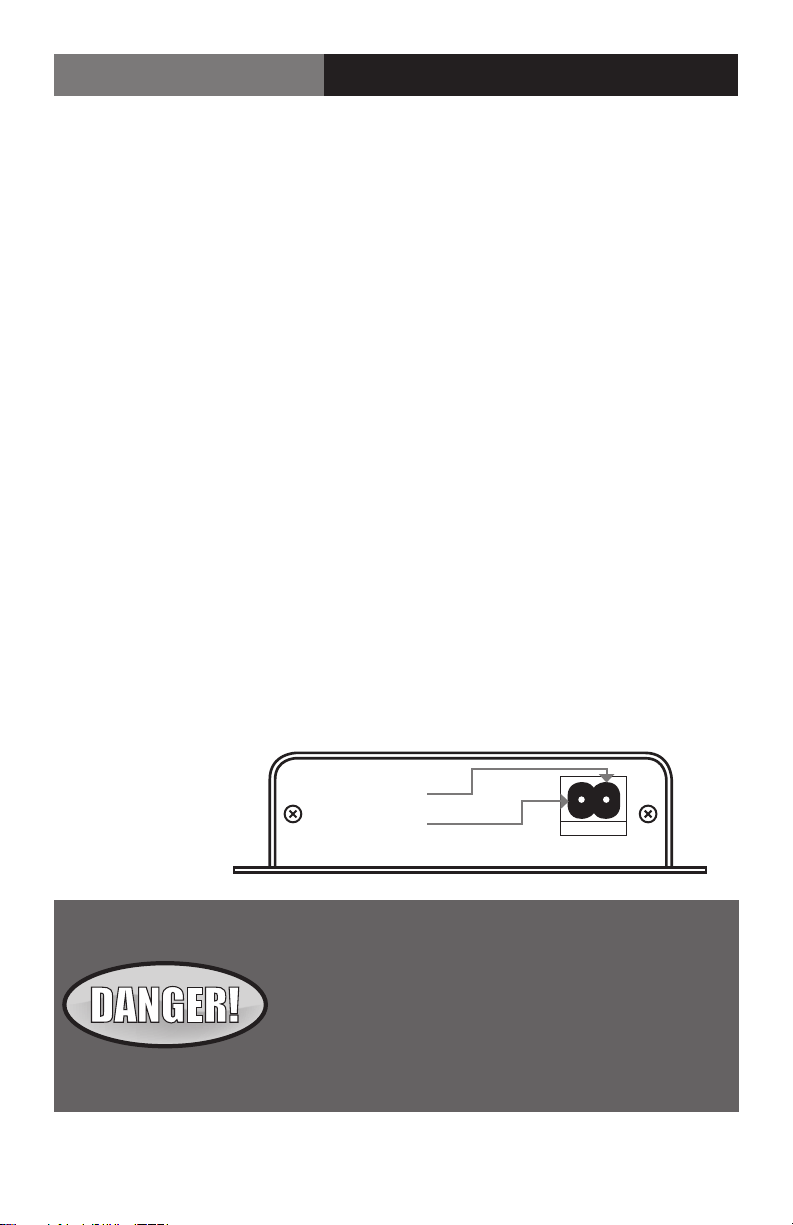

Figure 1:
Power Connector
DC Input Polarity
Page 6 FiberLink 7220 Series User’s Manual
(+) Positive
( - ) Negative
9-24 Volts
AC or DC
The transmitting element in the FiberLink 7220 transmitter
unit contains a solid state Laser Diode located in the optical
connector. This device emits invisible infrared electromagnetic radiation which can be harmful to human eyes. The
radiation from this optical connector, if viewed at close
range with no ber optic cable connected to the optical
connector, may be sucient intensity to cause
instantaneous damage to the retina of the eye. Direct
viewing of this radiation should be avoided at all times!
Page 7
FiberLink 7220 Series
Alarm Switch Settings
Alarm Switch Settings
The rack card version of this product has an additional red indicator LED that lights when
an alarm condition exists. The rack card unit also provides an output to drive a model 6020
Alarm Sensing Module which provides an audible tone and activates a set of contacts for
external signaling purposes.
Transmitter Card
Switch Alarm Indication On O
Position
1 Loss of Video Enabled Disabled
2 N/A N/A N/A
Receiver Card
Switch Alarm Indication On O
Position
1 Loss of Signal Enabled Disabled
2 Loss of Video Enabled Disabled
Page 7FiberLink 7220 Series User’s Manual
Page 8
FiberLink 7220 Series
Video Pin Out
Video Pin Out
Video Pin Out Transmitter Receiver
1 Red Red
2 Green Green
3 Blue Blue
4 N/C N/C
5 Ground Ground
6 Ground Ground
7 Ground Ground
8 Ground Ground
9 N/C N/C
10 Ground Ground
11 N/C N/C
12 N/C N/C
13 Hor. Sync. In Hor. Sync Out
14 Vert. Sync In Vert. Sync Out
15 N/C N/C
Page 8 FiberLink 7220 Series User’s Manual
Page 9
FiberLink 7220 Series
LED Indicators
Indicator LEDs
The FiberLink 7220 Series has indicator LEDs that are used to monitor the state of the unit.
Card versions have an additional Alarm LED.
Transmitter LEDs
LED Status Denition
Power On Indicates that correct power has been applied.
Video O Indicates no video present on the input
On Indicates the presence of video
Audio O Indicates no audio input detected
(1-4) Blinking Indicates audio input detected
Alarm On Loss of audio data (card version only)
Receiver LEDs
LED Status Denition
Power On Indicates that correct power has been applied.
Video O Indicates no video present on the ber
On Indicates the presence of video
Audio O Indicates no audio detected on the ber
(1-4) Blinking Indicates audio detected on the ber
Alarm On Loss of audio data (card version only)
Page 9FiberLink 7220 Series User’s Manual
Page 10
FiberLink 7220 Series
Operating Pointers | Troubleshooting
Operating Pointers
Remember to check attenuation of the ber optic cable. The system will only operate
properly if these specications fall within the range of the system’s loss budget.
Troubleshooting
Multimode ber optic cable contains an optical ber with a light carrying “core” that is
only .0025 inches (62.5 microns) in diameter. Single mode ber optic cable has an even
smaller “core,” only .00032 to .0004 inches (8-10 microns). This is smaller than a human hair!
Therefore, any minute particles of dirt or dust can easily block the ber from accepting or
radiating light. To prevent this from happening, always use the provided dust caps when
ever optical connectors are exposed to air. It is also a good idea to gently clean the tip of an
optical connector with a lint-free cloth moistened with alcohol whenever dust is suspected.
The status of the LEDs should provide the rst clue as to the origin of any operational
failure. If these are o, it usually means that the ber is broken or has too much attenuation.
Next, be certain that the input and output signal connections are correct.
An optical power meter, such as the FiberLink 6650, a visible light source, such as the
FiberLink 6656, and a Three Wavelength Light Source, such as the FiberLink 6652, can
greatly assist and expedite troubleshooting of ber optic transmission systems and are
recommended tools all installers should have available.
Finally, although multimode and single mode devices may look the same, they will not
operate properly together. Using the wrong device or ber can easily add more attenuation
than specied, resulting in poor overall performance. It should be noted that some of our
ber optic products support both single mode and multimode ber in the same unit.
If, after reviewing the above possibilities, the system is still not operating, please contact
the Customer Service Department for further assistance. If you suspect your problem is
caused by the optics or the ber optic cable, and you have an optical power meter, please
take the appropriate measurements prior to contacting support.
Page 10 FiberLink 7220 Series User’s Manual
Page 11
FiberLink 7220 Series
Maintenance and Repairs | Certications
Maintenance and Repairs
The FiberLink 7220 Series has been manufactured using the latest semiconductor devices
and techniques that electronic technology has to oer. They have been designed for long,
reliable and trouble-free service and are not normally eld repairable.
Should diculty be encountered, Artel Video Systems maintains a complete
service facility to render accurate, timely and reliable service of all products.
The only maintenance that can be provided by the user is to ascertain that optical
connectors are free of dust or dirt that could interfere with light transmission and that
electrical connections are secure and accurate. Please see the Troubleshooting section of
this manual for additional information.
An optical power meter, such as the FiberLink 6650, a visible light source, such as the
FiberLink 6656, and a Three Wavelength Light Source, such as the FiberLink 6652, can
greatly assist and expedite troubleshooting of ber optic transmission systems and are
recommended tools all installers should have available.
All other questions or comments should be directed to our Customer Service Department.
It should be noted that many “problems” can easily be solved by a simple telephone call.
If you suspect your problem is caused by the optics or the ber optic cable, and you have
an optical power meter, please take the appropriate measurements prior to contacting
support.
Certications
Page 11FiberLink 7220 Series User’s Manual
Page 12
Proven Products, Unrivaled
Service, and Great Support
• High performance plug and play products
• Stand alone and card cage versions available
• Solutions for most video, audio, and data formats
• Multimode and single mode versions
• Designed and manufactured in the USA
• Training and installation support available
• 24x7x365 technical support available
Artel Video Systems Corp.
5B Lybert y Way,
Westford, MA 01886 USA
T: 978-263-5775
F: 978-263-9755
[email protected]
[email protected]
www.artel.com
All specifications subject to
change without notice. ©2016
Updated 02/16/2016
CS200-122995-00_I
Loading...
