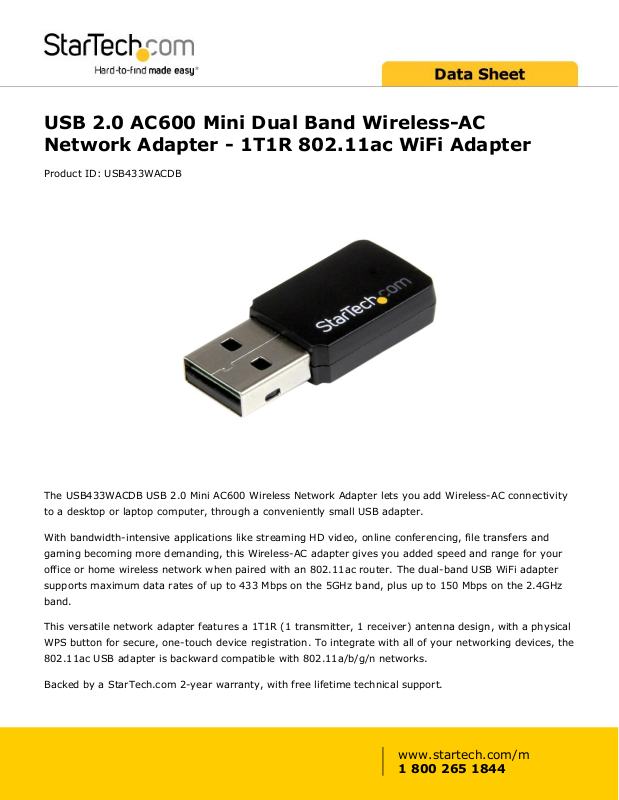

USB 2.0 AC600 Mini Dual Band Wireless-AC
Network Adapter - 1T1R 802.11ac WiFi Adapter
Product ID: USB433WACDB
The USB433WACDB USB 2.0 Mini AC600 Wireless Network Adapter lets you add Wireless-AC connectivity
to a desktop or laptop computer, through a conveniently small USB adapter.
With bandwidth-intensive applications like streaming HD video, online conferencing, file transfers and
gaming becoming more demanding, this Wireless-AC adapter gives you added speed and range for your
office or home wireless network when paired with an 802.11ac router. The dual-band USB WiFi adapter
supports maximum data rates of up to 433 Mbps on the 5GHz band, plus up to 150 Mbps on the 2.4GHz
band.
This versatile network adapter features a 1T1R (1 transmitter, 1 receiver) antenna design, with a physical
WPS button for secure, one-touch device registration. To integrate with all of your networking devices, the
802.11ac USB adapter is backward compatible with 802.11a/b/g/n networks.
Backed by a StarTech.com 2-year warranty, with free lifetime technical support.
www.startech.com/m
1 800 265 1844
Page 2
Certifications, Reports
and Compatibility
Applications
• Replace or upgrade the wireless capabilities of your desktop or laptop
to the latest standard
• Connect to the less congested 5 GHz WiFi band to avoid interference
from common wireless devices such as cordless phones
• Conference online, transfer files, stream HD video or game without
lag, through faster wireless performance
Features
• Wireless AC600 compatible (433 + 150 Mbps)
• Compliant with 802.11 a/b/g/n/ac standards
• USB 2.0 host interface
• Dual band 2.4 / 5 GHz support (802.11ac is 5 GHz only)
• 1 Transmitter / 1 Receiver (1x1:1) antenna configuration
• Supports WEP (64-128-bit), WPA and WPA2 wireless security
• WPS hardware button
• Supports WMM Quality of Service
• Compact design
www.startech.com/m
1 800 265 1844
Page 3
Warranty 2 Years
Hardware Antenna Configuration 1x1:1 (TxR:S)
Bus Type USB 2.0
Chipset ID Realtek - RTL8811AU
Industry Standards IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a,
IEEE 802.11b
Interface Wireless Ethernet
Performance Frequency Range 2.4000~2.4835GHz
5.150~5.825GHz
Full Duplex Support Yes
Maximum Data Transfer Rate 433 Mbps (5 GHz)
150 Mbps (2.4 GHz)
Modulation DSSS with DBPSK and DQPSK, CCK with long and short
preamble, OFDM with BPSK, QPSK, 16QAM and 64QAM,
256QAM
Security Features WEP Data Encryption
WPA and WPA2-PSK Data Encryption
TKIP/AES
WPA and WPA2 Enterprise Data Encryption
Connector(s) Connector Type(s) 1 - USB A (4 pin) Male
1 - Wireless AC (IEEE 802.11ac)
Software OS Compatibility Windows® XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2016
Mac OS X® 10.6 to 10.12
Special Notes /
Requirements
System and Cable Requirements Available USB port
Indicators LED Indicators 1 - Link / Activity
Power Power Source USB-Powered
Environmental Humidity 0~90% RH
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Physical
Characteristics
Color Black
Enclosure Type Plastic
Product Height 0.3 in [7 mm]
www.startech.com/m
1 800 265 1844
Page 4
Product Length 1.4 in [35 mm]
Product Weight 0.1 oz [4 g]
Product Width 0.6 in [15 mm]
Packaging
Information
Shipping (Package) Weight 3.6 oz [101 g]
What's in the Box Included in Package 1 - USB Wireless Adapter
1 - Driver CD
1 - Instruction Manual
Product appearance and specifications are subject to change without notice.
