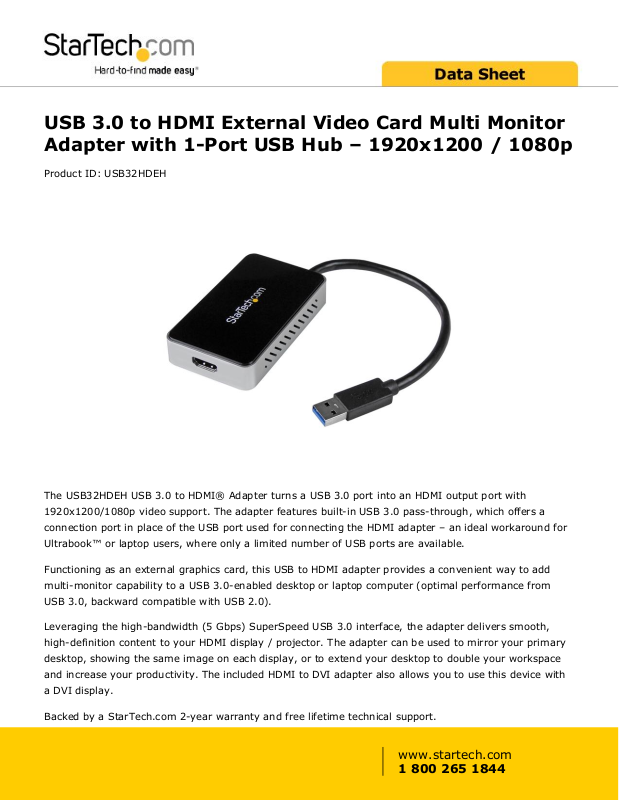

USB 3.0 to HDMI External Video Card Multi Monitor
Adapter with 1-Port USB Hub – 1920x1200 / 1080p
Product ID: USB32HDEH
The USB32HDEH USB 3.0 to HDMI® Adapter turns a USB 3.0 port into an HDMI output port with
1920x1200/1080p video support. The adapter features built-in USB 3.0 pass-through, which offers a
connection port in place of the USB port used for connecting the HDMI adapter – an ideal workaround for
Ultrabook™ or laptop users, where only a limited number of USB ports are available.
Functioning as an external graphics card, this USB to HDMI adapter provides a convenient way to add
multi-monitor capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from
USB 3.0, backward compatible with USB 2.0).
Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter delivers smooth,
high-definition content to your HDMI display / projector. The adapter can be used to mirror your primary
desktop, showing the same image on each display, or to extend your desktop to double your workspace
and increase your productivity. The included HDMI to DVI adapter also allows you to use this device with
a DVI display.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
www.startech.com
1 800 265 1844
Recommended System Requirements:
CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher
www.startech.com
1 800 265 1844
Certifications, Reports
and Compatibility
Applications
• Add a secondary HDMI display with full HD capability
• Add multi-monitor capability to a single computer, to create engaging
multimedia presentations
• View large or multiple spreadsheets across several displays
• Use the adapter to connect your PC to your HDMI-equipped projector
or display for viewing family pictures and movies
• Great for researchers and writers offering the ability to have
reference material on one display and a working document copy on
the other
• Run multiple applications on different screens - check your email on
one display and search the web on the other
Features
• High-Definition resolution support (up to 1920x1200/1080p)
• Built in 1-Port USB 3.0 Hub
• SuperSpeed USB 3.0 (5 Gbps) Interface, backward compatible with
USB 2.0
• Quick, easy installation
• USB-powered - No external power adapter required
• Choose between Mirrored, Extended or Primary display configurations
• Driver software supports display rotation
• Supports the use of multiple USB32HDEH adapters on a single
system (up to 5)
www.startech.com
1 800 265 1844
Warranty 2 Years
Hardware Audio Yes
Chipset ID MCT Trigger 5 T5-302
Industry Standards SuperSpeed USB 3.0, USB 2.0
Memory 16MB DDR II
Output Signal HDMI
USB Pass-Through Yes
Performance Audio Specifications 2-Channel Stereo (48Khz)
General Specifications This USB video adapter uses a Trigger family chipset. If
you’re connecting this device to a computer along with
additional USB video adapters or docking stations, please
avoid using devices with a DisplayLink or Fresco family
chipset.
Maximum Digital Resolutions 1920x1200
Supported Resolutions Widescreen(16/32 bit):
1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900,
1360x768, 1280x800, 1280x768, 1280x720
Standard(16/32 bit):
1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864,
1024x768, 800x600
Wide Screen Supported Yes
Connector(s) Connector A 1 - USB Type-A (9 pin) USB 3.0 Male
Connector B 1 - HDMI (19 pin) Female
1 - USB Type-A (9 pin) USB 3.0 Female
Software Microsoft WHQL Certified Yes
OS Compatibility Windows® 10 (32/64)
Windows 8 / 8.1 (32/64)
Windows 7(32/64)
Windows Vista (32/64)
Windows XP (32/64)
Special Notes /
Requirements
Note Connect a maximum of five USB32HDEH adapters on a
single PC - See manual for system requirements
System and Cable Requirements CPU: i3 Dual core 2.8GHz
RAM: 2GB or higher
Full HD Video:
CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher
www.startech.com
1 800 265 1844
Power Power Source USB-Powered
Environmental Humidity < 85% non-condensing
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -10°C to 75°C (14°F to 167°F)
Physical
Characteristics
Cable Length 6.3 in [160 mm]
Color Black
Enclosure Type Plastic
Product Height 0.7 in [17 mm]
Product Length 3.3 in [85 mm]
Product Weight 2.6 oz [75 g]
Product Width 1.9 in [49 mm]
Packaging
Information
Shipping (Package) Weight 0.5 lb [0.2 kg]
What's in the Box Included in Package 1 - USB 3.0 to HDMI Adapter
1 - HDMI to DVI adapter
1 - Software CD
1 - Manual
Product appearance and specifications are subject to change without notice.
