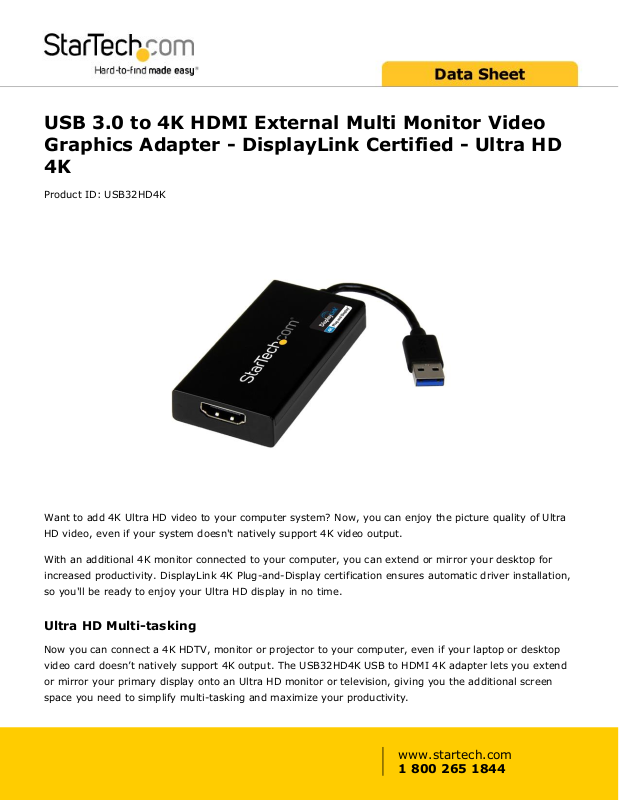

Page 1
USB 3.0 to 4K HDMI External Multi Monitor Video
Graphics Adapter - DisplayLink Certified - Ultra HD
4K
Product ID: USB32HD4K
Want to add 4K Ultra HD video to your computer system? Now, you can enjoy the picture quality of Ultra
HD video, even if your system doesn't natively support 4K video output.
With an additional 4K monitor connected to your computer, you can extend or mirror your desktop for
increased productivity. DisplayLink 4K Plug-and-Display certification ensures automatic driver installation,
so you'll be ready to enjoy your Ultra HD display in no time.
Ultra HD Multi-tasking
Now you can connect a 4K HDTV, monitor or projector to your computer, even if your laptop or desktop
video card doesn’t natively support 4K output. The USB32HD4K USB to HDMI 4K adapter lets you extend
or mirror your primary display onto an Ultra HD monitor or television, giving you the additional screen
space you need to simplify multi-tasking and maximize your productivity.
www.startech.com
1 800 265 1844
Page 2
Astonishing 4K Picture Quality
At four times the resolution of high-definition 1080p, you’ll be amazed at the picture quality of a 4K
monitor or television; the USB32HD4K lets you harness the impressive bandwidth capability of a USB 3.0
connection to deliver the astonishing quality of Ultra HD to your 4K display. Plus, the adapter is backward
compatible with 1080p displays, which makes it a great accessory for home, office or other workspace
applications.
DisplayLink 4K Plug-and-Display Certified
Installation has never been easier. When you connect this DisplayLink 4K Plug-and-Display certified
adapter to a web-enabled Windows® 7, Windows® 8 or Windows® 10 computer, it automatically
downloads and installs the most up-to-date drivers for you, so you won’t have to.
www.startech.com
1 800 265 1844
Page 3
The USB32HD4K is backed by a StarTech.com 2-
year warranty and free lifetime technical support.
www.startech.com
1 800 265 1844
Page 4
Certifications, Reports
and Compatibility
Applications
• Connect a 4K television, monitor or projector to your computer
system
• View large or multiple spreadsheets across multiple displays
• Increase productivity by running multiple applications on different
displays; check your email on one display while editing a document
on the other
Features
• Add Ultra HD 4K video support to your computer system through an
available USB 3.0 port
• Astonishing picture quality with support for resolutions up to 4K
• DisplayLink 4K Plug-and-Display certified - automatic driver
installation and updates
• USB 3.0 host connection provides maximum bandwidth for 4K Ultra
HD output
• USB-powered performance - no additional power supply required
www.startech.com
1 800 265 1844
Page 5
Warranty 2 Years
Hardware Audio Yes
Cabling HDMI
Chipset ID DisplayLink - DL5500
Memory DDR 1Gb
Output Signal HDMI
Ports 1
USB Pass-Through No
Performance Audio Specifications 2-channel stereo
General Specifications This USB video adapter uses a DisplayLink family chipset. If
you’re connecting this device to a computer along with
additional USB video adapters or docking stations, please
avoid using devices with a Trigger or Fresco family chipset.
Maximum Digital Resolutions 4K x 2K @ 30Hz
Supported Resolutions Widescreen(16/32 bit):
3840×2160, 2048x1152, 1920x1200, 1920x1080,
1680x1050, 1366x768, 1280x800, 1280x768, 1280x720
Standard(16/32 bit):
1600x1200, 1400x1050, 1280x1024, 1024x768, 800x600,
640X480
Wide Screen Supported Yes
Connector(s) Connector A 1 - USB Type-A (9 pin) USB 3.0 Male
Connector B 1 - HDMI (19 pin) Female
Software Microsoft WHQL Certified Yes
OS Compatibility Windows® 2000, XP, Vista, 7, 8, 8.1, 10
MacOS® 10.6 to 10.12
Ubuntu 14.04, 16.04
Special Notes /
Requirements
System and Cable Requirements CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher
Power Power Source USB-Powered
Environmental Humidity <85% RH Non-Condensing
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 80°C (14°F to 167°F)
Physical
Characteristics
Cable Length 2.5 in [63.5 mm]
Color Black
www.startech.com
1 800 265 1844
Page 6
Enclosure Type Plastic
Product Height 0.6 in [15 mm]
Product Length 7.9 in [200 mm]
Product Weight 2.3 oz [65 g]
Product Width 1.8 in [45 mm]
Packaging
Information
Shipping (Package) Weight 0.5 lb [0.2 kg]
What's in the Box Included in Package 1 - USB 3.0 to HDMI External Video Card
1 - Software Installation Disc
1 - Instruction Manual
Product appearance and specifications are subject to change without notice.
