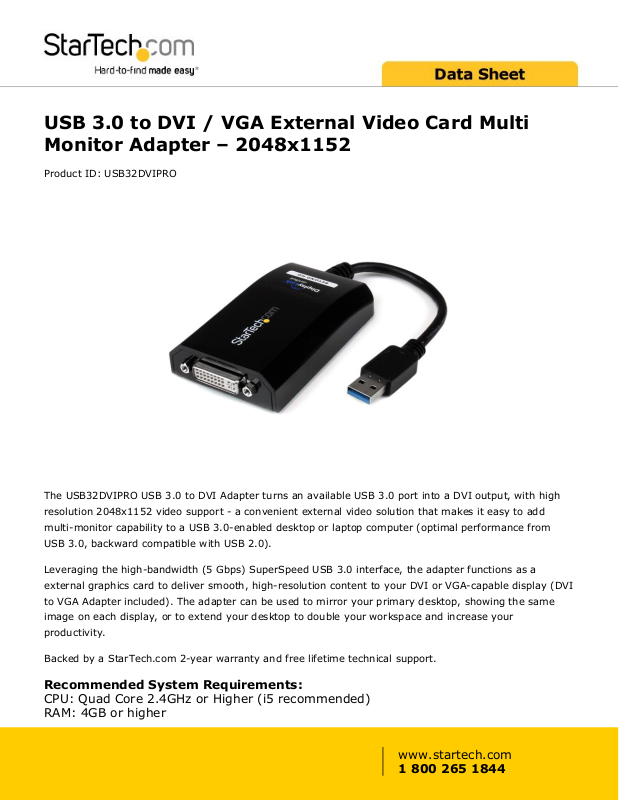

Page 1
USB 3.0 to DVI / VGA External Video Card Multi
Monitor Adapter – 2048x1152
Product ID: USB32DVIPRO
The USB32DVIPRO USB 3.0 to DVI Adapter turns an available USB 3.0 port into a DVI output, with high
resolution 2048x1152 video support - a convenient external video solution that makes it easy to add
multi-monitor capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from
USB 3.0, backward compatible with USB 2.0).
Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter functions as a
external graphics card to deliver smooth, high-resolution content to your DVI or VGA-capable display (DVI
to VGA Adapter included). The adapter can be used to mirror your primary desktop, showing the same
image on each display, or to extend your desktop to double your workspace and increase your
productivity.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Recommended System Requirements:
CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher
www.startech.com
1 800 265 1844
Page 2
Certifications, Reports
and Compatibility
Applications
• Add a secondary DVI or VGA display and extend your desktop
without taking apart your computer to install a new video card
• Add multi-monitor capability to a single computer, to create engaging
multimedia presentations
• Use the adapter to connect your PC to your DVI or VGA-equipped TV,
for showing family pictures and movies
• Great for researchers and writers, offering the ability to have
reference material on one display and a working document copy on
the other
• Increase productivity by running multiple applications on different
screens, check your e-mail on one display and search the web on the
other
• View large or multiple spreadsheets across multiple displays
• A compact, lightweight solution for traveling business associates
using laptop PCs, enabling connection to a secondary
display/projector
Features
• SuperSpeed USB 3.0 (5 Gbps) Interface and backwards compatible
with USB 2.0
• Quick, easy installation
• DVI to VGA adapter included
• Supports resolutions up to 2048x1152
• USB-powered - No external power adapter required
• Choose between Mirrored, Extended or Primary display configurations
• Driver software supports display rotation
• Supports the Windows® Aero interface
• Supports the use of multiple USB32DVIPRO adapters on a single
system (up to 5)
www.startech.com
1 800 265 1844
Page 3
Warranty 2 Years
Hardware Audio Yes
Chipset ID DisplayLink - DL3100
Memory 512MB DDR2 SDRAM
Output Signal DVI-I (DVI Digital/Analog)
USB Pass-Through No
Performance General Specifications This USB video adapter uses a DisplayLink family chipset. If
you’re connecting this device to a computer along with
additional USB video adapters or docking stations, please
avoid using devices with a Trigger or Fresco family chipset.
Maximum Analog Resolutions 2048x1152
Maximum Digital Resolutions 2048x1152
Note If using OS X 10.8, Apple update 10.8.3 must be installed
before installing DisplayLink software. 10.8.3 fixes several
serious OS X bugs exposed when DisplayLink software is
installed.
Supported Resolutions Widescreen(16/32 bit):
2048x1152, 1920x1200, 1920x1080, 1680x1050,
1366x768, 1280x800, 1280x768, 1280x720
Standard(16/32 bit):
1600x1200, 1400x1050, 1280x1024, 1024x768, 800x600,
640X480
Wide Screen Supported Yes
Connector(s) Connector A 1 - USB Type-A (9 pin) USB 3.0 Male
Connector B 1 - DVI-I (29 pin) Female
Software OS Compatibility Windows® 2000, XP, Vista, 7, 8, 8.1, 10
MacOS® 10.6 to 10.12
Ubuntu 14.04, 16.04
Special Notes /
Requirements
Note Connect a maximum of five USB32DVIPRO adapters on a
single PC - See manual for system requirements
System and Cable Requirements 1~2 USB Displays
Office Application:
CPU: i3 Dual core 2.8GHz
RAM: 2GB or higher
Full HD Video:
CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher
Power Power Source USB-Powered
www.startech.com
1 800 265 1844
Page 4
Environmental Humidity <85% RH Non-Condensing
Operating Temperature 10°C to 40°C (50°F to 194°F)
Storage Temperature -10°C to 80°C (14°F to 167°F)
Physical
Characteristics
Color Black
Enclosure Type Plastic
Product Height 0.6 in [15.5 mm]
Product Length 3.1 in [78 mm]
Product Weight 10.6 oz [300 g]
Product Width 1.7 in [43.5 mm]
Packaging
Information
Shipping (Package) Weight 0.5 lb [0.2 kg]
What's in the Box Included in Package 1 - USB 3.0 to DVI Adapter
1 - DVI to VGA Adapter
1 - Driver CD
1 - Installation guide
Product appearance and specifications are subject to change without notice.
www.startech.com
1 800 265 1844
