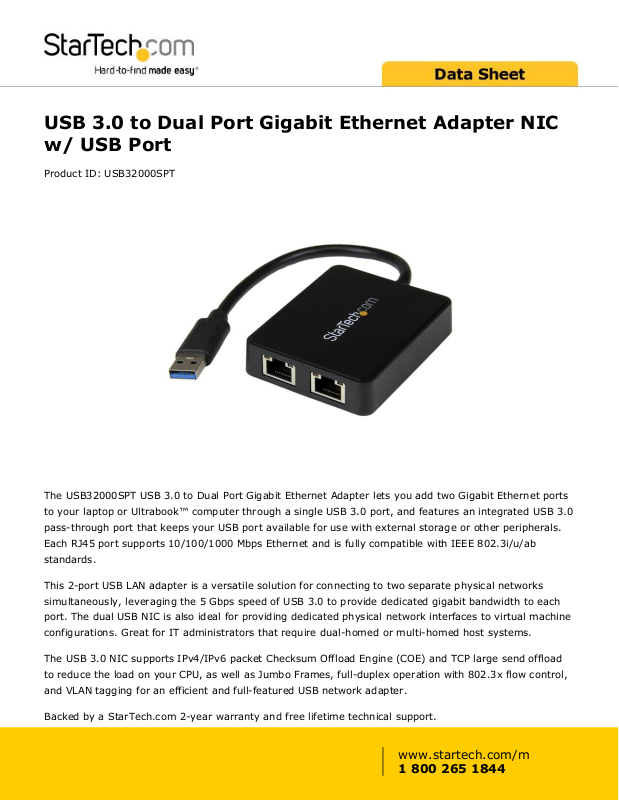

USB 3.0 to Dual Port Gigabit Ethernet Adapter NIC
w/ USB Port
Product ID: USB32000SPT
The USB32000SPT USB 3.0 to Dual Port Gigabit Ethernet Adapter lets you add two Gigabit Ethernet ports
to your laptop or Ultrabook™ computer through a single USB 3.0 port, and features an integrated USB 3.0
pass-through port that keeps your USB port available for use with external storage or other peripherals.
Each RJ45 port supports 10/100/1000 Mbps Ethernet and is fully compatible with IEEE 802.3i/u/ab
standards.
This 2-port USB LAN adapter is a versatile solution for connecting to two separate physical networks
simultaneously, leveraging the 5 Gbps speed of USB 3.0 to provide dedicated gigabit bandwidth to each
port. The dual USB NIC is also ideal for providing dedicated physical network interfaces to virtual machine
configurations. Great for IT administrators that require dual-homed or multi-homed host systems.
The USB 3.0 NIC supports IPv4/IPv6 packet Checksum Offload Engine (COE) and TCP large send offload
to reduce the load on your CPU, as well as Jumbo Frames, full-duplex operation with 802.3x flow control,
and VLAN tagging for an efficient and full-featured USB network adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
www.startech.com/m
1 800 265 1844
Certifications, Reports
and Compatibility
Applications
• Business or IT professionals that need to connect to two separate
networks simultaneously
• Run a virtual machine(s) on a workstation, with access to separate
physical network connections
• Replacement for a failed built-in Gigabit Ethernet port on a laptop
Features
• Dual Gigabit Ethernet ports through a single USB connection
• Integrated USB 3.0 pass-through port
• IEEE 802.3, 802.3u and 802.3ab (10BASE-T, 100BASE-TX, and
1000BASE-T) compatible
• Crossover Detection & Auto-Correction (Auto MDIX)
• IEEE 802.1Q VLAN Tagging support
• Up to 4K Jumbo Frame support
• Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and Large Send
Offload
• Compact, lightweight design for maximum portability
www.startech.com/m
1 800 265 1844
Warranty 2 Years
Hardware Bus Type USB 3.0
Chipset ID ASIX - AX88179 (2)
VIA - VL811
Industry Standards IEEE802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az
Interface RJ45 (Gigabit Ethernet)
Ports 2
Performance Auto MDIX Yes
Compatible Networks 10/100/1000 Mbps
Full Duplex Support Yes
Jumbo Frame Support 4K max.
Max Distance 100 m / 330 ft
Maximum Data Transfer Rate 5 Gbps (USB 3.0)
2 Gbps (Ethernet - Full-Duplex)
Type and Rate USB 3.0 - 5 Gbit/s
Connector(s) Connector Type(s) 1 - USB Type-A (9 pin) USB 3.0 Female
1 - USB Type-A (9 pin) USB 3.0 Male
2 - RJ-45 Female
Software OS Compatibility Windows® XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS® 10.6 to 10.12 - VLAN tagging is currently not
supported in Mac OS
Linux Kernel 2.6.25 to 4.4.x LTS Versions only
Special Notes /
Requirements
System and Cable Requirements Available USB port
Indicators LED Indicators 1 - Gigabit Link/Activity (Amber)
2 - 10/100 Link/Activity (Green)
Power Power Source USB-Powered
Environmental Humidity 5~85% RH
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Physical
Characteristics
Cable Length 8 in [203.2 mm]
Color Black
Enclosure Type Plastic
www.startech.com/m
1 800 265 1844
Form Factor Attached Cable
Product Height 0.6 in [16 mm]
Product Length 3 in [75 mm]
Product Weight 2.1 oz [59 g]
Product Width 2.4 in [60 mm]
Packaging
Information
Shipping (Package) Weight 5.1 oz [145 g]
What's in the Box Included in Package 1 - USB 3.0 Dual Network Adapter
1 - Driver CD
1 - Instruction Manual
Product appearance and specifications are subject to change without notice.
