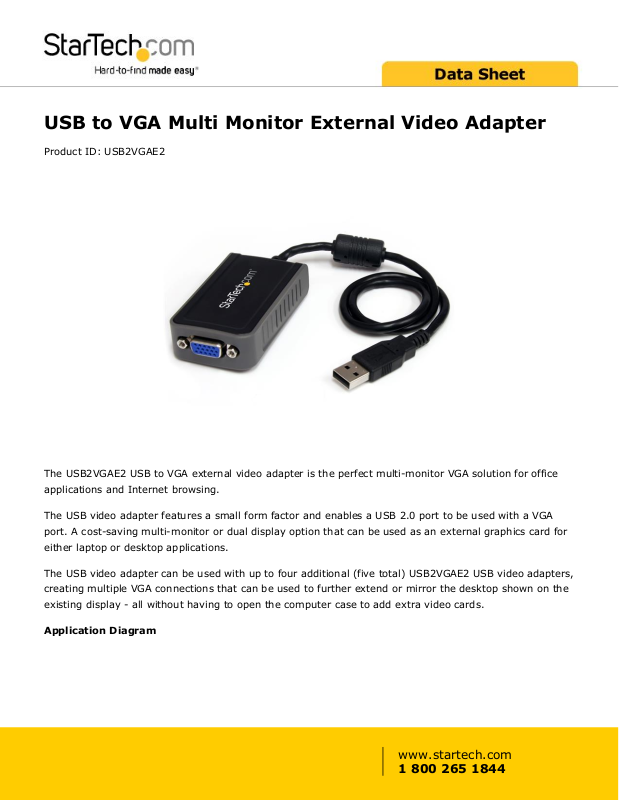

USB to VGA Multi Monitor External Video Adapter
Product ID: USB2VGAE2
The USB2VGAE2 USB to VGA external video adapter is the perfect multi-monitor VGA solution for office
applications and Internet browsing.
The USB video adapter features a small form factor and enables a USB 2.0 port to be used with a VGA
port. A cost-saving multi-monitor or dual display option that can be used as an external graphics card for
either laptop or desktop applications.
The USB video adapter can be used with up to four additional (five total) USB2VGAE2 USB video adapters,
creating multiple VGA connections that can be used to further extend or mirror the desktop shown on the
existing display - all without having to open the computer case to add extra video cards.
Application Diagram
www.startech.com
1 800 265 1844
Page 2
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
www.startech.com
1 800 265 1844
Page 3
Certifications, Reports
and Compatibility
Applications
• Add a secondary display adapter and extend your desktop display
without taking apart your computer to install a new video card
• Add multiple (up to five) monitors / projectors to your computer
setup using one USB2VGAE2 device for each additional display
• View large or multiple spreadsheets across multiple displays
• A compact, lightweight solution for traveling business associates
using laptop PCs enabling connection to a secondary display
• Connect multiple monitors to a single computer to create engaging
multimedia presentations
• Use the adapter to connect your PC to your television for showing
family pictures and movies
• Increase productivity by running multiple applications on different
screens, check your email on one display and work on a document in
the other
• Great for researchers and writers offering the ability to have
reference material on one display and a working document copy on
the other
Features
• Optimal performance at 1440x900 (higher resolutions supported)
and ideal for use with 17" to 19" monitors or smaller
• Works with desktop and laptop computers
• No power adapter required
• Includes easy to use software that allows for, multi-display
management and EDID monitor detection for increased compatibility
with displays
• Simple installation
www.startech.com
1 800 265 1844
Page 4
Warranty 2 Years
Hardware Chipset ID MCT - Trigger 1+
Memory 16MB SDRAM
USB Pass-Through No
Performance General Specifications This USB video adapter uses a Trigger family chipset. If
you’re connecting this device to a computer along with
additional USB video adapters or docking stations, please
avoid using devices with a DisplayLink or Fresco family
chipset.
Supported Resolutions Standard:
1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864,
1024x768, 800x600
Widescreen:
1680x1050, 1440x900, 1280x800, 1280x768, 1152x864,
800x600
Connector(s) Connector A 1 - USB A (4 pin) Male Input
Connector B 1 - VGA (15 pin, High Density D-Sub) Female Output
Software OS Compatibility Windows® 10 (32/64)
Windows 8 / 8.1 (32/64)
Windows 7(32/64)
Windows Vista (32/64)
Windows XP (32/64)
Special Notes /
Requirements
System and Cable Requirements One available USB 2.0 port
Physical
Characteristics
Cable Length 18 in [457.2 mm]
Color Gray
Product Height 2 in [50 mm]
Product Length 3 in [75 mm]
Product Weight 2.8 oz [80 g]
Product Width 1.7 in [42 mm]
Packaging
Information
Shipping (Package) Weight 8.2 oz [233.6 g]
What's in the Box Included in Package 1 - USB to VGA Adapter
1 - Driver and Software CD
1 - Instruction Manual
Product appearance and specifications are subject to change without notice.
