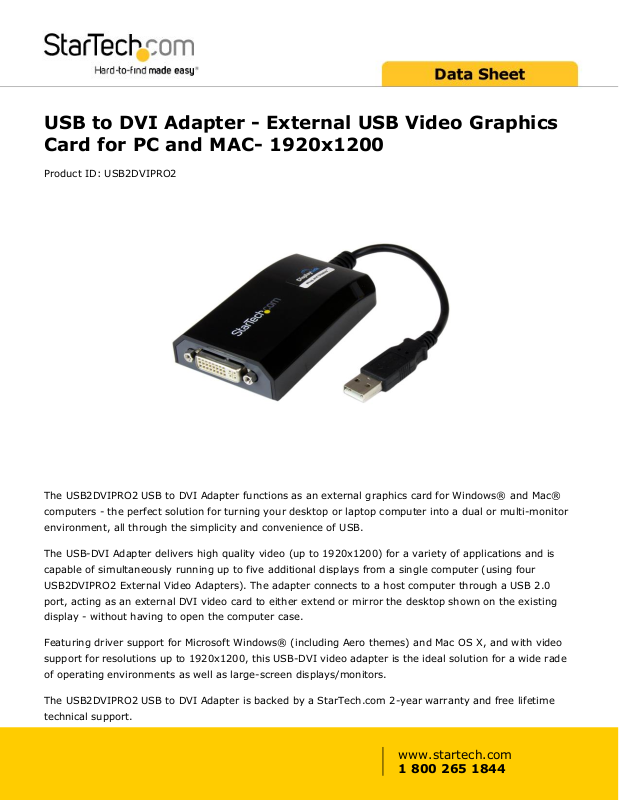

USB to DVI Adapter - External USB Video Graphics
Card for PC and MAC- 1920x1200
Product ID: USB2DVIPRO2
The USB2DVIPRO2 USB to DVI Adapter functions as an external graphics card for Windows® and Mac®
computers - the perfect solution for turning your desktop or laptop computer into a dual or multi-monitor
environment, all through the simplicity and convenience of USB.
The USB-DVI Adapter delivers high quality video (up to 1920x1200) for a variety of applications and is
capable of simultaneously running up to five additional displays from a single computer (using four
USB2DVIPRO2 External Video Adapters). The adapter connects to a host computer through a USB 2.0
port, acting as an external DVI video card to either extend or mirror the desktop shown on the existing
display - without having to open the computer case.
Featuring driver support for Microsoft Windows® (including Aero themes) and Mac OS X, and with video
support for resolutions up to 1920x1200, this USB-DVI video adapter is the ideal solution for a wide rade
of operating environments as well as large-screen displays/monitors.
The USB2DVIPRO2 USB to DVI Adapter is backed by a StarTech.com 2-year warranty and free lifetime
technical support.
www.startech.com
1 800 265 1844
Certifications, Reports
and Compatibility
Applications
• Add multiple (up to five) monitors / projectors to your computer
setup using one USB2DVIPRO2 device for each additional display
• View large or multiple spreadsheets across multiple displays
• Increase productivity by running multiple applications on different
DVI screens; check your email on one display while editing a
document on the other
• Use the USB-DVI adapter to connect your PC to your television for
showing family pictures and movies
• Connect multiple DVI monitors to a single computer to create
engaging multimedia presentations
• Great for researchers and writers offering the ability to have
reference material on one display and a working document copy on
the other
Features
• Support for Aero themes in Windows®
• Works with Mac® OS X
• Optimal performance at 1920x1200 and ideal for use with 24" to 26"
monitors or smaller
• USB-Powered operation, no external power adapter required
• Quick and easy installation
• Powered by DisplayLink DL-195 chip
www.startech.com
1 800 265 1844
Warranty 2 Years
Hardware Chipset ID DisplayLink - DL-195
Memory 16MB
Output Signal DVI-I (DVI Digital/Analog)
USB Pass-Through No
Performance General Specifications This USB video adapter uses a DisplayLink family chipset. If
you’re connecting this device to a computer along with
additional USB video adapters or docking stations, please
avoid using devices with a Trigger or Fresco family chipset.
Maximum Digital Resolutions 1920x1200 (32-bit color)
MTBF 621,445 Hours
Supported Resolutions Widescreen (16/32 bit):
1920x1200, 1680x1050, 1440x900, 1366x768
Standard (16/32 bit):
1600x1200, 1280x1024, 1024x768, 800x600, 640x480
Connector(s) Connector Type(s) 1 - DVI-I (29 pin) Female
1 - USB A (4 pin) Male
Software OS Compatibility Windows® 2000, XP, Vista, 7, 8, 8.1, 10
MacOS® 10.6 to 10.12
Chrome OS v51
Ubuntu 14.04, 16.04
Special Notes /
Requirements
Note Power PC-based Macintosh computers, such as late-model
iMacs, PowerBooks and PowerMacs, are not currently
supported
System and Cable Requirements 1.2Ghz or higher CPU
30MB of hard drive space
512 MB RAM
USB 2.0 Port
Indicators LED Indicators 1 - Blue - Power
Power Power Source USB-Powered
Environmental Humidity <85% non-condensing
Operating Temperature 10°C to 40°C (50°F to 104°F)
Storage Temperature -10°C to 80°C (14°F to 176°F)
Physical
Characteristics
Color Black
Product Height 0.8 in [20 mm]
Product Length 10.6 in [270 mm]
www.startech.com
1 800 265 1844
Product Weight 2.5 oz [72 g]
Product Width 2.2 in [55 mm]
Packaging
Information
Shipping (Package) Weight 9 oz [254 g]
What's in the Box Included in Package 1 - USB to DVI Adapter
1 - DVI to VGA adapter
1 - Driver CD
1 - Instruction Manual
Product appearance and specifications are subject to change without notice.
www.startech.com
1 800 265 1844
