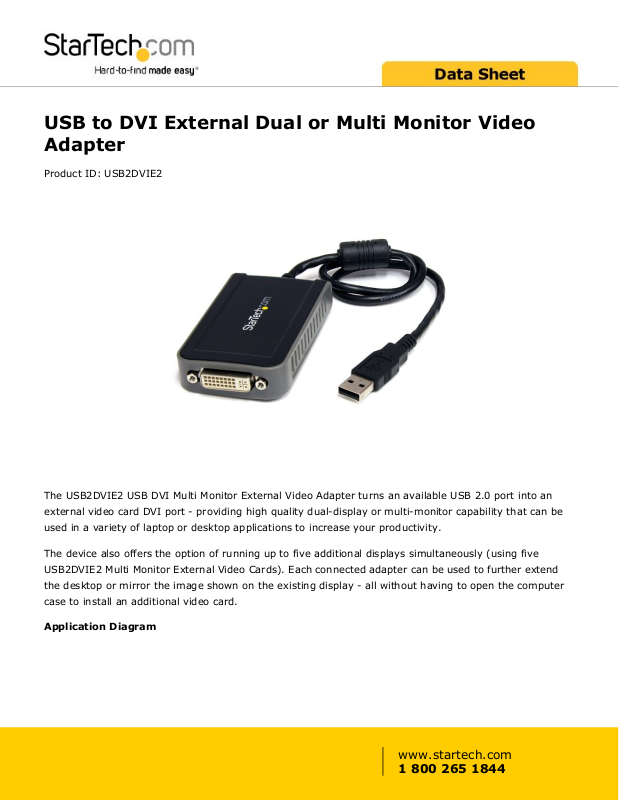

Page 1
USB to DVI External Dual or Multi Monitor Video
Adapter
Product ID: USB2DVIE2
The USB2DVIE2 USB DVI Multi Monitor External Video Adapter turns an available USB 2.0 port into an
external video card DVI port - providing high quality dual-display or multi-monitor capability that can be
used in a variety of laptop or desktop applications to increase your productivity.
The device also offers the option of running up to five additional displays simultaneously (using five
USB2DVIE2 Multi Monitor External Video Cards). Each connected adapter can be used to further extend
the desktop or mirror the image shown on the existing display - all without having to open the computer
case to install an additional video card.
Application Diagram
www.startech.com
1 800 265 1844
Page 2
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
www.startech.com
1 800 265 1844
Page 3
Certifications, Reports
and Compatibility
Applications
• Add a secondary display adapter and extend your desktop display
without taking apart your computer to install a new video card
• Add multiple (up to five) monitors / projectors to your computer
setup using one USB2DVIE2 device for each additional display
• View large or multiple spreadsheets across multiple displays
• A compact, lightweight solution for traveling business associates
using laptop PCs enabling connection to a secondary display
• Connect multiple monitors to a single computer to create engaging
multimedia presentations
• Use the adapter to connect your PC to your television for showing
family pictures and movies
• Increase productivity by running multiple applications on different
screens, check your email on one display and work on a document in
the other
• Great for researchers and writers offering the ability to have
reference material on one display and a working document copy on
the other
Features
• Optimal performance at 1440x900 (higher resolutions supported)
and ideal for use with 17" to 19" monitors or smaller
• Works with desktop and laptop computers
• No power adapter required, easy installation
• Includes easy to use software that allows for screen rotation, multidisplay management and EDID monitor detection for increased
compatibility with displays
• Supports the use of DVI to VGA or DVI to HDMI adapters
www.startech.com
1 800 265 1844
Page 4
Warranty 2 Years
Hardware Chipset ID MCT - Trigger 1+
Memory 16MB SDRAM
USB Pass-Through No
Performance General Specifications This USB video adapter uses a Trigger family chipset. If
you’re connecting this device to a computer along with
additional USB video adapters or docking stations, please
avoid using devices with a DisplayLink or Fresco family
chipset.
Supported Resolutions Widescreen(16/32 bit):
1680x1050, 1440x900, 1280x800, 1280x768
Standard(16/32 bit):
1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864,
1024x768, 800x600
Connector(s) Connector A 1 - USB A (4 pin) Male
Connector B 1 - DVI-I (29 pin) Female
Software OS Compatibility Windows® 10 (32/64)
Windows 8 / 8.1 (32/64)
Windows 7(32/64)
Windows Vista (32/64)
Windows XP (32/64)
Special Notes /
Requirements
System and Cable Requirements One available USB 2.0 port
Physical
Characteristics
Color Black
Product Height 0.7 in [18 mm]
Product Length 3.6 in [91 mm]
Product Weight 3.8 oz [108 g]
Product Width 2.1 in [53 mm]
Packaging
Information
Shipping (Package) Weight 0.6 lb [0.3 kg]
What's in the Box Included in Package 1 - USB to DVI Adapter
1 - Driver and Software CD
1 - Instruction Manual
Product appearance and specifications are subject to change without notice.
